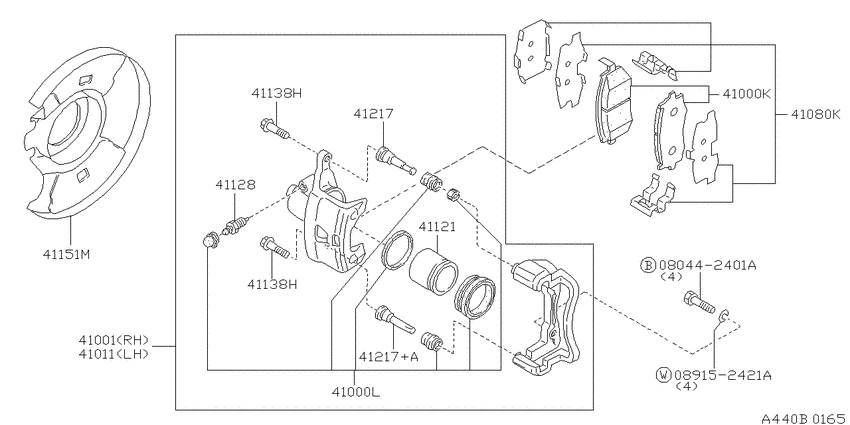

Front brake (1993-01-01 ~ 1994-01-01; RB25DE) Diagram Nissan LAUREL
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 2WD
- transmission
- AT.F5
- grade
- CLBS
- body
- K
- Suspension
- HICAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040-NS032 Pad Kit-Disc Brake9301--01 ~ 9401--01; RB25DE; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
AY040-NS032 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS013 Seal Kit-Disc Brake9301--01 ~ 9401--01; RB25DE |
AY600NS013 |
US $45.60 |
||
|
41001
|
41001
41001-75T01 Caliper Assy-Front Rh, W/o Pads Or Shims9301--01 ~ 9401--01; RB25DE |
41001-75T01 |
US $437.54 |
||
|
41011
|
41011
41011-75T01 Caliper Assy-Front Lh, W/o Pads Or Shims9301--01 ~ 9401--01; RB25DE |
41011-75T01 |
US $437.54 |
||
|
41080K
|
41080K
41080-73L26 Hardware Kit-Front Disc Brake Pad9301--01 ~ 9401--01; RB25DE |
41080-73L26 |
US $84.38 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER9301--01 ~ 9401--01; RB25DE |
4112171E00 |
from US $59.88 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9301--01 ~ 9401--01; RB25DE |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9301--01 ~ 9401--01; RB25DE |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9301--01 ~ 9401--01; RB25DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9301--01 ~ 9401--01; RB25DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9301--01 ~ 9401--01; RB25DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9301--01 ~ 9401--01; RB25DE |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41150-75T00 Plate-Baffle9301--01 ~ 9401--01; RB25DE; ﾐｷﾞ ﾖｳ |
41150-75T00 |
US $36 |
||
|
41151M
|
41151M
41160-75T00 Plate-Baffle9301--01 ~ 9401--01; RB25DE; ﾋﾀﾞﾘ ﾖｳ |
41160-75T00 |
US $36 |
||
|
41217
|
41217
44139-16E01 PIN9301--01 ~ 9401--01; RB25DE |
44139-16E01 |
US $18.29 |
||
|
41217
|
41217
44140N9500 Pin-Lock9301--01 ~ 9401--01; RB25DE |
44140N9500 |
from US $8.45 |
||
|
41217+A
|
41217+A
44140N9500 Pin-Lock9301--01 ~ 9401--01; RB25DE |
44140N9500 |
from US $8.45 |
||
