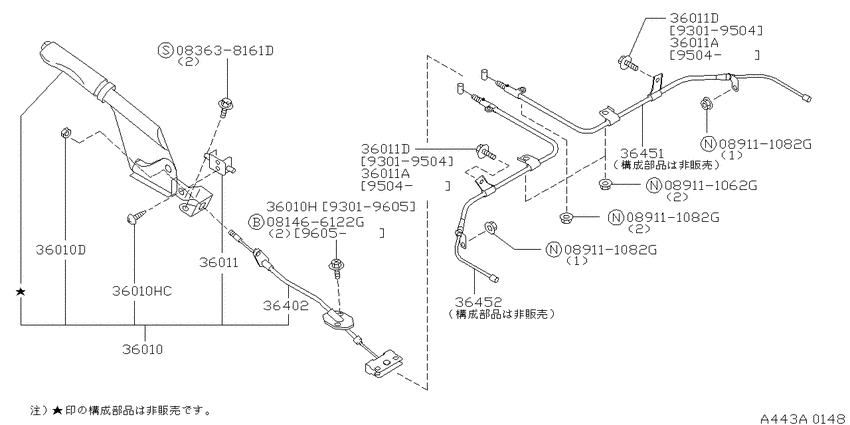

Parking brake control (1993-01-01 ~ 1996-05-01; RD28.MT) Diagram Nissan LAUREL
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- RD28
- drive
- 2WD
- transmission
- MT
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
083638161D
|
083638161D
08363-8161D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8161D |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-70T03 Device Assy-Parking Brake Control9301--01 ~ 9409--01; RD28.MT |
36010-70T03 |
US $158.40 |
||
|
36010
|
36010
01225-00511 NUT9301--01 ~ 9605--01; RD28.MT |
01225-00511 |
US $3.46 |
||
|
36010
|
36010
0143601141 SCREW9301--01 ~ 9605--01; RD28.MT |
0143601141 |
US $2.36 |
||
|
36010
|
36010
0145400431 SCREW9301--01 ~ 9605--01; RD28.MT |
0145400431 |
US $1.73 |
||
|
36010D
|
36010D
01225-00511 NUT9301--01 ~ 9605--01; RD28.MT |
01225-00511 |
US $3.46 |
||
|
36010H
|
36010H
0143601141 SCREW9301--01 ~ 9605--01; RD28.MT |
0143601141 |
US $2.36 |
||
|
36010H
|
36010H
0145400431 SCREW9301--01 ~ 9605--01; RD28.MT |
0145400431 |
US $1.73 |
||
|
36010HC
|
36010HC
0145400431 SCREW9301--01 ~ 9605--01; RD28.MT |
0145400431 |
US $1.73 |
||
|
36011
|
36011
36011-50Y00 Switch Assy-Parking Brake Lamp9301--01 ~ 9605--01; RD28.MT |
36011-50Y00 |
US $8.64 |
||
| replacement | |||||
|
36011
|
36011
3601150Y0A Switch Assy-Parking Brake Lamp9301--01 ~ 9605--01; RD28.MT |
3601150Y0A |
US $5.64 |
||
|
36011
|
36011
54459-0P005 Bolt9504--01 ~ 9605--01; RD28.MT |
54459-0P005 |
US $3.60 |
||
|
36011
|
36011
0143601141 SCREW9301--01 ~ 9504--01; RD28.MT |
0143601141 |
US $2.36 |
||
|
36011A
|
36011A
54459-0P005 Bolt9504--01 ~ 9605--01; RD28.MT |
54459-0P005 |
US $3.60 |
||
|
36011A
|
36011A
54459-0P005 Bolt9504--01 ~ 9605--01; RD28.MT |
54459-0P005 |
US $3.60 |
||
|
36011D
|
36011D
0143601141 SCREW9301--01 ~ 9504--01; RD28.MT |
0143601141 |
US $2.36 |
||
|
36011D
|
36011D
0143601141 SCREW9301--01 ~ 9504--01; RD28.MT |
0143601141 |
US $2.36 |
||
|
36402
|
36402
3640270T05 Cable Assy-Parking Brake, Front9301--01 ~ 9605--01; RD28.MT |
3640270T05 |
US $85.81 |
||
|
36451
|
36451
36530-15U05 Cable Assy-Brake, Rear Rh9308--01 ~ 9311--01; RD28.MT |
36530-15U05 |
US $66.24 |
||
|
36451
|
36451
36530-15U10 Cable Assy-Brake, Rear Rh9311--01 ~ 9401--01; RD28.MT |
36530-15U10 |
US $84.69 |
||
| replacement | |||||
|
36451
|
36451
3653015U1A
CABLE ASSYBRAK
9311--01 ~ 9401--01; RD28.MT |
3653015U1A |
— | ||
|
36451
|
36451
36530-70T10 Cable Assy-Brake, Rear Rh9301--01 ~ 9308--01; RD28.MT |
36530-70T10 |
US $66.24 |
||
|
36452
|
36452
36531-15U05 Cable Assy-Brake, Rear Lh9308--01 ~ 9311--01; RD28.MT |
36531-15U05 |
US $66.24 |
||
|
36452
|
36452
36531-15U10
Cable Assy-Brake, Rear Lh
9311--01 ~ 9401--01; RD28.MT |
36531-15U10 |
— | ||
| replacements | |||||
|
36452
|
36452
3653015U1A
CABLE ASSYBRAK
9311--01 ~ 9401--01; RD28.MT |
3653015U1A |
— | ||
|
36452
|
36452
3653115U1A CABLE ASSYBRAK9311--01 ~ 9401--01; RD28.MT |
3653115U1A |
from US $59.14 |
||
|
36452
|
36452
36531-70T05 Cable Assy-Brake, Rear Lh9301--01 ~ 9308--01; RD28.MT |
36531-70T05 |
US $66.24 |
||
