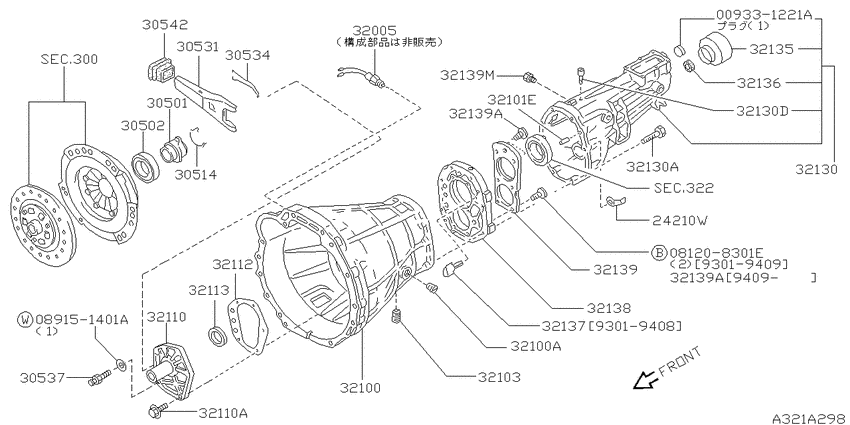

Transmission case & clutch release (1993-01-01 ~ 1996-05-01; MT) Diagram Nissan LAUREL
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- RD28
- drive
- 2WD
- transmission
- MT
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331221A
|
009331221A
00933-1221A PLUG |
00933-1221A |
from US $0.65 |
||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
24210W
|
24210W
24210-89963 Clip-Wiring Harness9301--01 ~ 9605--01; MT |
24210-89963 |
US $3.46 |
||
|
300
|
Clutch cover, disc & release parts
300
|
||||
|
300
|
Clutch cover, disc & release parts
300
|
||||
|
300
|
Clutch cover, disc & release parts
300
|
||||
|
300
|
Clutch cover, disc & release parts
300
|
||||
|
30501
|
30501
30501-22102
Sleeve-Clutch Release
9301--01 ~ 9605--01; MT |
30501-22102 |
— | ||
| replacement | |||||
|
30501
|
30501
30501-22104 Sleeve-Clutch Release9301--01 ~ 9605--01; MT |
30501-22104 |
from US $24.26 |
||
|
30502
|
30502
3050221000
Bearing-Clutch Release
9301--01 ~ 9605--01; MT; [B106] |
3050221000 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release9301--01 ~ 9605--01; MT; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing9301--01 ~ 9605--01; MT |
3051414600 |
from US $3.18 |
||
|
30531
|
30531
30531-50L10 Lever-Withdrawal, Clutch9301--01 ~ 9605--01; MT |
30531-50L10 |
US $20.88 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever9301--01 ~ 9605--01; MT |
30534E9000 |
from US $1.89 |
||
|
30537
|
30537
30537-40L00 Pin-Ball, Withdrawal Lever9301--01 ~ 9605--01; MT |
30537-40L00 |
US $5.04 |
||
|
30542
|
30542
30542-70T00 Cover-Dust, Withdrawal Lever9301--01 ~ 9605--01; MT |
30542-70T00 |
US $11.52 |
||
|
32005
|
32005
32005-K1005
Switch Assy-Reverse Lamp
9301--01 ~ 9405--01; MT |
32005-K1005 |
— | ||
| replacement | |||||
|
32005
|
32005
32005K106A Switch Assy-Reverse Lamp9301--01 ~ 9405--01; MT |
32005K106A |
from US $23.59 |
||
|
32005
|
32005
32005-K1015
Switch Assy-Reverse Lamp
9405--01 ~ 9605--01; MT |
32005-K1015 |
— | ||
| replacement | |||||
|
32005
|
32005
32005-K1065 Switch Assy-Reverse Lamp9405--01 ~ 9605--01; MT |
32005-K1065 |
US $38.65 |
||
|
32100
|
32100
32101-71L00 Case Assy-Transmission9301--01 ~ 9509--01; MT |
32101-71L00 |
US $484.27 |
||
|
32100
|
32100
32101-71L05 Case Assy-Transmission9509--01 ~ 9605--01; MT |
32101-71L05 |
US $484.27 |
||
|
32100
|
32100
0164200021
PLUG-THREAD
9301--01 ~ 9309--01; MT |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD9301--01 ~ 9309--01; MT |
33312-33G0B |
US $4.85 |
||
|
32100
|
32100
31306-65F00 Plug-Thread9309--01 ~ 9605--01; MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
9301--01 ~ 9309--01; MT |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD9301--01 ~ 9309--01; MT |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9309--01 ~ 9605--01; MT |
31306-65F00 |
from US $2.68 |
||
|
32101E
|
32101E
32106-20100 Pin-Dowel9301--01 ~ 9605--01; MT |
32106-20100 |
US $1.73 |
||
|
32103
|
32103
32103U8400
Plug-Drain
9301--01 ~ 9605--01; MT |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain9301--01 ~ 9605--01; MT |
32103-U840B |
US $7.35 |
||
|
32110
|
32110
32111-95P00 Cover Assy-Front9301--01 ~ 9605--01; MT |
32111-95P00 |
US $34.85 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover9301--01 ~ 9605--01; MT |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover9301--01 ~ 9605--01; MT |
32135-58S60 |
US $1.73 |
||
|
32112
|
32112
32112-08U00
Gasket-Front Cover
9301--01 ~ 9605--01; MT |
32112-08U00 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9301--01 ~ 9605--01; MT |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover9301--01 ~ 9605--01; MT |
32114Y4000 |
from US $3.19 |
||
|
32130
|
32130
32130-97L60 Extension Assy-Rear9301--01 ~ 9605--01; MT |
32130-97L60 |
US $291.70 |
||
|
32130
|
32130
32152-50L00 Bolt9301--01 ~ 9605--01; MT |
32152-50L00 |
US $2.45 |
||
|
32130
|
32130
38322-02U00 Breather9301--01 ~ 9605--01; MT |
38322-02U00 |
US $28.08 |
||
|
32130A
|
32130A
32152-50L00 Bolt9301--01 ~ 9605--01; MT |
32152-50L00 |
US $2.45 |
||
|
32130D
|
32130D
38322-02U00 Breather9301--01 ~ 9605--01; MT |
38322-02U00 |
US $28.08 |
||
|
32135
|
32135
32135-97L00 Cover-Dust, Sleeve Yoke9301--01 ~ 9605--01; MT |
32135-97L00 |
US $16.56 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
9301--01 ~ 9605--01; MT |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension9301--01 ~ 9605--01; MT |
32136-U010A |
from US $4.92 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter9301--01 ~ 9408--01; MT |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-55S11 Plate-Adapter9301--01 ~ 9601--01; MT |
32138-55S11 |
US $72.72 |
||
|
32138
|
32138
32138-55S14 Plate-Adapter9601--01 ~ 9605--01; MT |
32138-55S14 |
US $81.09 |
||
|
32139
|
32139
32139-36N00 Retainer-Bearing9409--01 ~ 9605--01; MT |
32139-36N00 |
US $16.99 |
||
|
32139
|
32139
32139-55S01 Retainer-Bearing9301--01 ~ 9409--01; MT |
32139-55S01 |
US $16.99 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER9301--01 ~ 9409--01; MT |
0114100021 |
US $2.91 |
||
|
32139
|
32139
32135-U0200 Plug-Switch9301--01 ~ 9605--01; MT |
32135-U0200 |
US $5.04 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER9301--01 ~ 9409--01; MT |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER9301--01 ~ 9409--01; MT |
0114100021 |
US $2.91 |
||
|
32139M
|
32139M
32135-U0200 Plug-Switch9301--01 ~ 9605--01; MT |
32135-U0200 |
US $5.04 |
||
|
