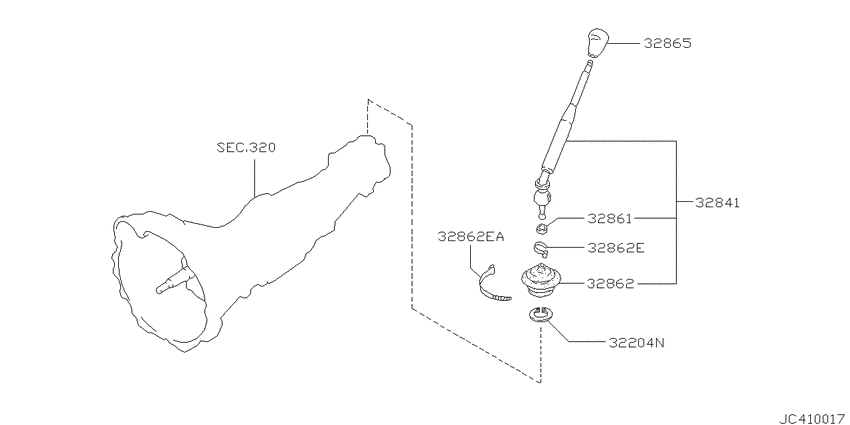

Transmission control & linkage (1996-05-01 ~ ; RD28.MT) Diagram Nissan LAUREL
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- RD28
- drive
- 2WD
- transmission
- MT
- grade
- M/CELE
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
320
|
Manual transmission, transaxle & fitting
320
|
||||
|
32204N
|
32204N
32204V5003 Ring-Snap, Control Lever9605--01 ~ ; RD28.MT |
32204V5003 |
from US $2.89 |
||
|
32841
|
32841
32839-71L00
Lever Assy-Control
9605--01 ~ ; RD28.MT |
32839-71L00 |
— | ||
|
32861
|
32861
32861H7301 Bush-Control Lever9605--01 ~ ; RD28.MT |
32861H7301 |
from US $1.52 |
||
|
32862
|
32862
32862V5002 Boot-Control Lever9605--01 ~ ; RD28.MT |
32862V5002 |
US $5.68 |
||
|
32862
|
32862
24216-24U00
Retainer-Boot Upper
9605--01 ~ 9608--01; RD28.MT |
24216-24U00 |
— | ||
| replacement | |||||
|
32862
|
32862
2421633G00 Band-Harness, Transfer Switch9605--01 ~ 9608--01; RD28.MT |
2421633G00 |
from US $2.09 |
||
|
32862
|
32862
24216-24U10
Retainer-Boot Upper
9608--01 ~ ; RD28.MT |
24216-24U10 |
— | ||
| replacement | |||||
|
32862
|
32862
2421633G00 Band-Harness, Transfer Switch9608--01 ~ ; RD28.MT |
2421633G00 |
from US $2.09 |
||
|
32862
|
32862
24216-V5010
Retainer-Boot Upper
9605--01 ~ ; RD28.MT |
24216-V5010 |
— | ||
| replacement | |||||
|
32862
|
32862
2421610Y80 Clamp9605--01 ~ ; RD28.MT |
2421610Y80 |
from US $4.42 |
||
|
32862E
|
32862E
24216-24U00
Retainer-Boot Upper
9605--01 ~ 9608--01; RD28.MT |
24216-24U00 |
— | ||
| replacement | |||||
|
32862E
|
32862E
2421633G00 Band-Harness, Transfer Switch9605--01 ~ 9608--01; RD28.MT |
2421633G00 |
from US $2.09 |
||
|
32862E
|
32862E
24216-24U10
Retainer-Boot Upper
9608--01 ~ ; RD28.MT |
24216-24U10 |
— | ||
| replacement | |||||
|
32862E
|
32862E
2421633G00 Band-Harness, Transfer Switch9608--01 ~ ; RD28.MT |
2421633G00 |
from US $2.09 |
||
|
32862E
|
32862E
24216-V5010
Retainer-Boot Upper
9605--01 ~ ; RD28.MT |
24216-V5010 |
— | ||
| replacement | |||||
|
32862E
|
32862E
2421610Y80 Clamp9605--01 ~ ; RD28.MT |
2421610Y80 |
from US $4.42 |
||
|
32862EA
|
32862EA
24216-V5010
Retainer-Boot Upper
9605--01 ~ ; RD28.MT |
24216-V5010 |
— | ||
| replacement | |||||
|
32862EA
|
32862EA
2421610Y80 Clamp9605--01 ~ ; RD28.MT |
2421610Y80 |
from US $4.42 |
||
|
32865
|
32865
32865-75L04
Knob-Control Lever
9605--01 ~ ; RD28.MT |
32865-75L04 |
— | ||
