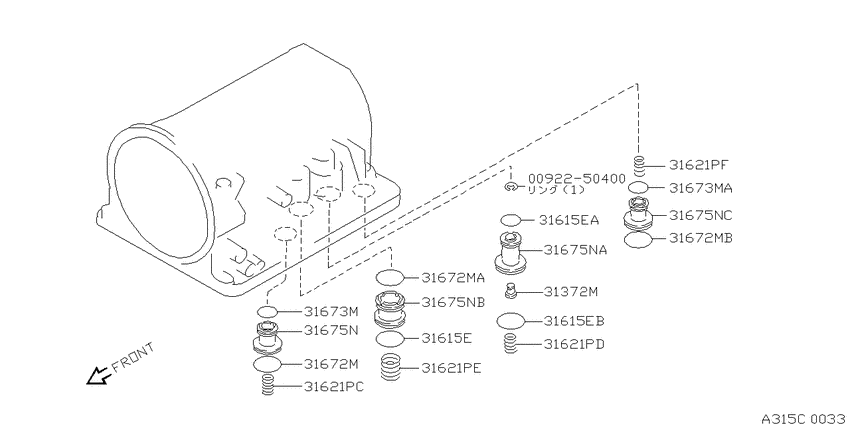

Clutch & band servo (1997-06-01 ~ ; ｱｷｭｰﾑﾚｰﾀｰﾊﾟｰﾂ(RE4R01A); 4WD.AT) Diagram Nissan LAUREL
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT
- grade
- MEDJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250400
|
0092250400
00922-50400 CLAMP-CABLE |
00922-50400 |
US $1.73 |
||
|
31372M
|
31372M
3137251X01 Retainer-Accumulator9706--01 ~ ; 4WD.AT; 3R |
3137251X01 |
US $5.18 |
||
|
31615E
|
31615E
31526-41X02 Seal-O Ring9706--01 ~ 9809--01; 4WD.AT; 2A |
31526-41X02 |
US $2.36 |
||
|
31615E
|
31615E
31526-48X01 Seal-O Ring9809--01 ~ 9901--01; 4WD.AT; 2A |
31526-48X01 |
US $2.45 |
||
|
31615E
|
31615E
31526-41X03 Seal-O Ring9706--01 ~ 9809--01; 4WD.AT; 3R |
31526-41X03 |
US $2.36 |
||
|
31615E
|
31615E
31526-4AX01 Seal-O Ring9809--01 ~ ; 4WD.AT; 3R |
31526-4AX01 |
US $2.45 |
||
|
31615E
|
31615E
31526-41X02 Seal-O Ring9706--01 ~ 9901--01; 4WD.AT; 3R |
31526-41X02 |
US $2.36 |
||
|
31615E
|
31615E
31526-48X01 Seal-O Ring9901--01 ~ ; 4WD.AT; 2A |
31526-48X01 |
US $2.45 |
||
|
31615EA
|
31615EA
31526-41X03 Seal-O Ring9706--01 ~ 9809--01; 4WD.AT; 3R |
31526-41X03 |
US $2.36 |
||
|
31615EA
|
31615EA
31526-4AX01 Seal-O Ring9809--01 ~ ; 4WD.AT; 3R |
31526-4AX01 |
US $2.45 |
||
|
31615EB
|
31615EB
31526-41X02 Seal-O Ring9706--01 ~ 9901--01; 4WD.AT; 3R |
31526-41X02 |
US $2.36 |
||
|
31615EB
|
31615EB
31526-48X01 Seal-O Ring9901--01 ~ ; 4WD.AT; 2A |
31526-48X01 |
US $2.45 |
||
|
31621PC
|
31621PC
31605-41X06 Spring-Servo9706--01 ~ ; 4WD.AT; 4A |
31605-41X06 |
US $1.73 |
||
|
31621PD
|
31621PD
31605-41X10 Spring-Servo9706--01 ~ 9809--01; 4WD.AT; 3R |
31605-41X10 |
US $3.88 |
||
|
31621PD
|
31621PD
31605-4AX03 Spring-Servo9809--01 ~ ; 4WD.AT; 3R |
31605-4AX03 |
US $4.03 |
||
|
31621PE
|
31621PE
31605-41X09 Spring-Servo9706--01 ~ 9809--01; 4WD.AT; 2A |
31605-41X09 |
US $3.88 |
||
|
31621PE
|
31621PE
31605-4AX00 Spring-Servo9809--01 ~ ; 4WD.AT; 2A |
31605-4AX00 |
US $4.03 |
||
|
31621PF
|
31621PF
31605-41X02 Spring-Servo9706--01 ~ ; 4WD.AT; N-D |
31605-41X02 |
US $4.03 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9706--01 ~ ; 4WD.AT; 4A |
3167221X00 |
US $4.99 |
||
|
31672M
|
31672M
31526-48X04 Seal-O Ring, Accumulator9809--01 ~ ; 4WD.AT; 2A |
31526-48X04 |
US $2.45 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9706--01 ~ 9809--01; 4WD.AT; 2A |
3167221X00 |
US $4.99 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9706--01 ~ ; 4WD.AT; N-D |
3167221X00 |
US $4.99 |
||
|
31672MA
|
31672MA
31526-48X04 Seal-O Ring, Accumulator9809--01 ~ ; 4WD.AT; 2A |
31526-48X04 |
US $2.45 |
||
|
31672MA
|
31672MA
3167221X00 Seal-O Ring, Accumulator9706--01 ~ 9809--01; 4WD.AT; 2A |
3167221X00 |
US $4.99 |
||
|
31672MB
|
31672MB
3167221X00 Seal-O Ring, Accumulator9706--01 ~ ; 4WD.AT; N-D |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator9706--01 ~ ; 4WD.AT; 4A |
3167321X00 |
US $4.85 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator9706--01 ~ ; 4WD.AT; N-D |
3167321X00 |
US $4.85 |
||
|
31673MA
|
31673MA
3167321X00 Seal-O Ring, Accumulator9706--01 ~ ; 4WD.AT; N-D |
3167321X00 |
US $4.85 |
||
|
31675N
|
31675N
31675-41X10
Piston-Accumulator Servo
9706--01 ~ 0211--01; 4WD.AT; 4A |
31675-41X10 |
— | ||
| replacement | |||||
|
31675N
|
31675N
31675-41X20 Piston-Accumulator Servo9706--01 ~ 0211--01; 4WD.AT; 4A |
31675-41X20 |
US $10.12 |
||
|
31675N
|
31675N
31675-41X20 Piston-Accumulator Servo0211--01 ~ ; 4WD.AT; 4A |
31675-41X20 |
US $10.12 |
||
|
31675N
|
31675N
31675-4AX03 Piston-Accumulator Servo9809--01 ~ ; 4WD.AT; 3R |
31675-4AX03 |
US $10.51 |
||
|
31675N
|
31675N
31675-51X00 Piston-Accumulator Servo9706--01 ~ 9809--01; 4WD.AT; 3R |
31675-51X00 |
US $10.51 |
||
|
31675N
|
31675N
31675-41X02 Piston-Accumulator Servo9706--01 ~ 9809--01; 4WD.AT; 2A |
31675-41X02 |
US $10.51 |
||
|
31675N
|
31675N
31675-4AX00 Piston-Accumulator Servo9809--01 ~ ; 4WD.AT; 2A |
31675-4AX00 |
US $10.51 |
||
|
31675N
|
31675N
31675-41X11 Piston-Accumulator Servo9706--01 ~ 0211--01; 4WD.AT; N-D |
31675-41X11 |
US $10.51 |
||
|
31675N
|
31675N
31675-41X21 Piston-Accumulator Servo0211--01 ~ ; 4WD.AT; N-D |
31675-41X21 |
US $10.51 |
||
|
31675NA
|
31675NA
31675-4AX03 Piston-Accumulator Servo9809--01 ~ ; 4WD.AT; 3R |
31675-4AX03 |
US $10.51 |
||
|
31675NA
|
31675NA
31675-51X00 Piston-Accumulator Servo9706--01 ~ 9809--01; 4WD.AT; 3R |
31675-51X00 |
US $10.51 |
||
|
31675NB
|
31675NB
31675-41X02 Piston-Accumulator Servo9706--01 ~ 9809--01; 4WD.AT; 2A |
31675-41X02 |
US $10.51 |
||
|
31675NB
|
31675NB
31675-4AX00 Piston-Accumulator Servo9809--01 ~ ; 4WD.AT; 2A |
31675-4AX00 |
US $10.51 |
||
|
31675NC
|
31675NC
31675-41X11 Piston-Accumulator Servo9706--01 ~ 0211--01; 4WD.AT; N-D |
31675-41X11 |
US $10.51 |
||
|
31675NC
|
31675NC
31675-41X21 Piston-Accumulator Servo0211--01 ~ ; 4WD.AT; N-D |
31675-41X21 |
US $10.51 |
||
