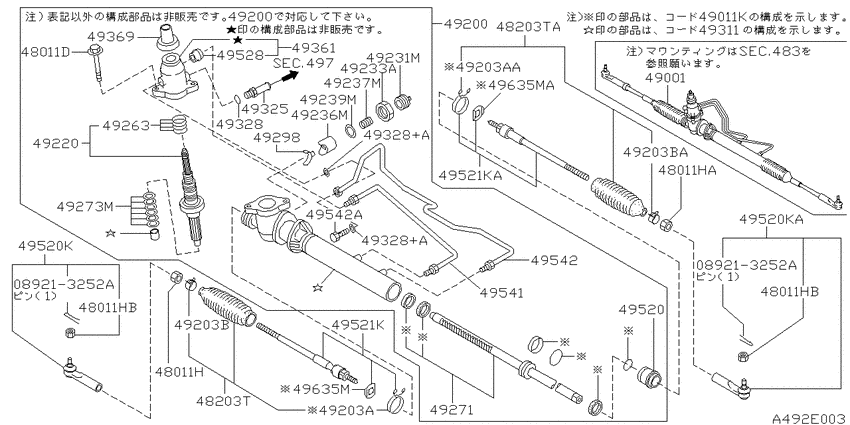

Power steering gear (1997-06-01 ~ ; 4WD.RB25DE) Diagram Nissan LAUREL
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT
- grade
- MEDJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
48011D
|
48011D
48361-15U05 Bolt9706--01 ~ ; 4WD.RB25DE |
48361-15U05 |
US $4.03 |
||
|
48011H
|
48011H
0121100371 NUT9706--01 ~ ; 4WD.RB25DE |
0121100371 |
from US $1.13 |
||
|
48011H
|
48011H
0121100371 NUT9706--01 ~ ; 4WD.RB25DE |
0121100371 |
from US $1.13 |
||
|
48011H
|
48011H
0122700081 NUT9706--01 ~ ; 4WD.RB25DE |
0122700081 |
US $2.91 |
||
|
48011HA
|
48011HA
0121100371 NUT9706--01 ~ ; 4WD.RB25DE |
0121100371 |
from US $1.13 |
||
|
48011HB
|
48011HB
0122700081 NUT9706--01 ~ ; 4WD.RB25DE |
0122700081 |
US $2.91 |
||
|
48011HB
|
48011HB
0122700081 NUT9706--01 ~ ; 4WD.RB25DE |
0122700081 |
US $2.91 |
||
|
48203T
|
48203T
4820391P85 Boot Kit-Power Steering Gear9706--01 ~ ; 4WD.RB25DE |
4820391P85 |
US $46.29 |
||
|
48203T
|
48203T
4820491P85 Boot Kit-Power Steering Gear9706--01 ~ ; 4WD.RB25DE |
4820491P85 |
US $46.29 |
||
|
48203TA
|
48203TA
4820491P85 Boot Kit-Power Steering Gear9706--01 ~ ; 4WD.RB25DE |
4820491P85 |
US $46.29 |
||
|
483
|
Steering gear mounting
483
|
||||
|
49001
|
49001
49001-6L100 Gear & Linkage-Power Steering9706--01 ~ ; 4WD.RB25DE |
49001-6L100 |
US $1,722 |
||
|
49011K
|
49011K
49297-91P26 Seal Kit-Rack, Power Steering Gear9706--01 ~ ; 4WD.RB25DE |
49297-91P26 |
from US $32.03 |
||
|
49200
|
49200
49200-23U10 Gear Assy-Power Steering9706--01 ~ 9804--01; 4WD.RB25DE |
49200-23U10 |
US $1,416 |
||
|
49200
|
49200
49200-6L100 Gear Assy-Power Steering9804--01 ~ ; 4WD.RB25DE |
49200-6L100 |
US $1,414 |
||
|
49203A
|
49203A
48055-02U10 Clamp-Boot9706--01 ~ ; 4WD.RB25DE |
48055-02U10 |
US $2.59 |
||
|
49203A
|
49203A
48055-02U10 Clamp-Boot9706--01 ~ ; 4WD.RB25DE |
48055-02U10 |
US $2.59 |
||
|
49203AA
|
49203AA
48055-02U10 Clamp-Boot9706--01 ~ ; 4WD.RB25DE |
48055-02U10 |
US $2.59 |
||
|
49203B
|
49203B
48054-91P00 Clamp-Boot9706--01 ~ ; 4WD.RB25DE |
48054-91P00 |
US $4.03 |
||
|
49203B
|
49203B
48054-91P00 Clamp-Boot9706--01 ~ ; 4WD.RB25DE |
48054-91P00 |
US $4.03 |
||
|
49203BA
|
49203BA
48054-91P00 Clamp-Boot9706--01 ~ ; 4WD.RB25DE |
48054-91P00 |
US $4.03 |
||
|
49220
|
49220
49220-23U00 Pinion Assy-Power Steering9706--01 ~ ; 4WD.RB25DE |
49220-23U00 |
US $244.80 |
||
|
49231M
|
49231M
48231-02U00 Screw-Adjust Retainer9706--01 ~ ; 4WD.RB25DE |
48231-02U00 |
US $5.47 |
||
|
49233A
|
49233A
48233-02U00 Nut9706--01 ~ ; 4WD.RB25DE |
48233-02U00 |
US $6.05 |
||
|
49236M
|
49236M
48236-02U00 Retainer-Power Steering Gear9706--01 ~ ; 4WD.RB25DE |
48236-02U00 |
US $5.90 |
||
|
49237M
|
49237M
48237-15U00 Spring-Retainer9706--01 ~ ; 4WD.RB25DE |
48237-15U00 |
US $6.91 |
||
|
49239M
|
49239M
48239-02U00 Seat-Spring, Retainer Power Steering Gear9706--01 ~ ; 4WD.RB25DE |
48239-02U00 |
US $2.59 |
||
|
49263
|
49263
49263-15U00 Ring-Worm, Flon9706--01 ~ ; 4WD.RB25DE |
49263-15U00 |
US $6.91 |
||
|
49271
|
49271
49271-23U10 Rack Assy-Power Steering9706--01 ~ ; 4WD.RB25DE |
49271-23U10 |
US $244.80 |
||
|
49273M
|
49273M
48273-91P00 Shim Adjust-Pinion Bearing9706--01 ~ 9804--01; 4WD.RB25DE |
48273-91P00 |
US $4.18 |
||
|
49298
|
49298
48235-02U00 Bush-Center9706--01 ~ ; 4WD.RB25DE |
48235-02U00 |
US $6.62 |
||
|
49311
|
49311
49311-23U06 Housing & Cylinder Assy-Power Steering9706--01 ~ ; 4WD.RB25DE |
49311-23U06 |
US $182.88 |
||
|
49325
|
49325
49326-91P00 Pipe-Drain, Steering Gear9706--01 ~ 9804--01; 4WD.RB25DE |
49326-91P00 |
US $7.92 |
||
|
49325
|
49325
49326AD000 Pipe-Drain, Steering Gear9804--01 ~ ; 4WD.RB25DE |
49326AD000 |
US $7.92 |
||
|
49328
|
49328
4932803E00 SEAL-O RING9706--01 ~ ; 4WD.RB25DE |
4932803E00 |
US $2.78 |
||
|
49328
|
49328
4932823U00 Seal-O Ring9706--01 ~ ; 4WD.RB25DE |
4932823U00 |
US $4.75 |
||
|
49328+A
|
49328+A
4932823U00 Seal-O Ring9706--01 ~ ; 4WD.RB25DE |
4932823U00 |
US $4.75 |
||
|
49328+A
|
49328+A
4932823U00 Seal-O Ring9706--01 ~ ; 4WD.RB25DE |
4932823U00 |
US $4.75 |
||
|
49361
|
49361
49361-23U05 Housing Assy-Rear9706--01 ~ ; 4WD.RB25DE |
49361-23U05 |
US $136.51 |
||
|
49369
|
49369
49369-23U00 Cap-Rear Cover9706--01 ~ ; 4WD.RB25DE |
49369-23U00 |
US $15.55 |
||
|
49520
|
49520
49520-91P10 Cover Assy-Cylinder End9706--01 ~ ; 4WD.RB25DE |
49520-91P10 |
US $54.86 |
||
|
49520
|
49520
48520-15U25 Socket Kit-Tie Rod, Outer9706--01 ~ ; 4WD.RB25DE |
48520-15U25 |
US $88.42 |
||
|
49520
|
49520
48520-15U25 Socket Kit-Tie Rod, Outer9706--01 ~ ; 4WD.RB25DE |
48520-15U25 |
US $88.42 |
||
|
49520K
|
49520K
48520-15U25 Socket Kit-Tie Rod, Outer9706--01 ~ ; 4WD.RB25DE |
48520-15U25 |
US $88.42 |
||
|
49520K
|
49520K
48520-15U25 Socket Kit-Tie Rod, Outer9706--01 ~ ; 4WD.RB25DE |
48520-15U25 |
US $88.42 |
||
|
49520KA
|
49520KA
48520-15U25 Socket Kit-Tie Rod, Outer9706--01 ~ ; 4WD.RB25DE |
48520-15U25 |
US $88.42 |
||
|
49521K
|
49521K
4852123U25 Socket Kit-Tie Rod, Inner9706--01 ~ ; 4WD.RB25DE |
4852123U25 |
US $109.44 |
||
|
49521K
|
49521K
4852123U25 Socket Kit-Tie Rod, Inner9706--01 ~ ; 4WD.RB25DE |
4852123U25 |
US $109.44 |
||
|
49521KA
|
49521KA
4852123U25 Socket Kit-Tie Rod, Inner9706--01 ~ ; 4WD.RB25DE |
4852123U25 |
US $109.44 |
||
|
49528
|
49528
49528-02U05 Seat-Tube9706--01 ~ ; 4WD.RB25DE |
49528-02U05 |
US $3.46 |
||
|
49541
|
49541
49541-23U05
Tube Assy-Cylinder
9706--01 ~ ; 4WD.RB25DE |
49541-23U05 |
— | ||
|
49542
|
49542
4954223U05
Tube Assy-Cylinder
9706--01 ~ ; 4WD.RB25DE |
4954223U05 |
— | ||
|
49542
|
49542
49738-23U00 Bolt-Connector9706--01 ~ ; 4WD.RB25DE |
49738-23U00 |
US $8.06 |
||
|
49542A
|
49542A
49738-23U00 Bolt-Connector9706--01 ~ ; 4WD.RB25DE |
49738-23U00 |
US $8.06 |
||
|
49635M
|
49635M
4863550L00 Plate-Shield, Side Rod9706--01 ~ ; 4WD.RB25DE |
4863550L00 |
US $2.45 |
||
|
49635M
|
49635M
4863550L00 Plate-Shield, Side Rod9706--01 ~ ; 4WD.RB25DE |
4863550L00 |
US $2.45 |
||
|
49635MA
|
49635MA
4863550L00 Plate-Shield, Side Rod9706--01 ~ ; 4WD.RB25DE |
4863550L00 |
US $2.45 |
||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
