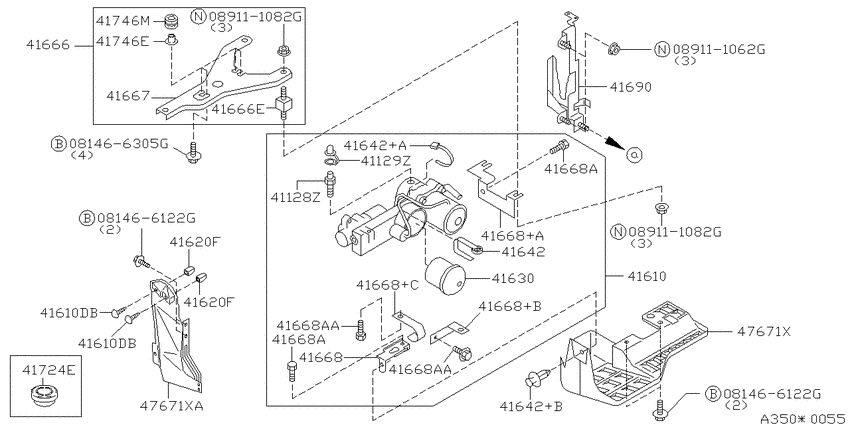

Transfer control parts (1997-06-01 ~ ; &ETSアクチュエーター フィッティング; 4WD.RB25DE) Diagram Nissan LAUREL
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT
- grade
- MEDJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466305G
|
081466305G
08146-6305G
Bolt-hexagon
|
08146-6305G |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
41128Z
|
41128Z
41128-05U00 Screw-Bleeder9706--01 ~ ; 4WD.RB25DE |
41128-05U00 |
US $6.62 |
||
|
41129Z
|
41129Z
41129-05U00 Cap-Bleeder9706--01 ~ ; 4WD.RB25DE |
41129-05U00 |
US $2.02 |
||
|
41610
|
41610
41610-23U00 Actuator Assy-Torque Split9706--01 ~ 0112--01; 4WD.RB25DE |
41610-23U00 |
US $4,032 |
||
|
41610
|
41610
41610-AA201 Actuator Assy-Torque Split0112--01 ~ ; 4WD.RB25DE |
41610-AA201 |
US $4,032 |
||
|
41610
|
41610
0145100841 SCREW9706--01 ~ ; 4WD.RB25DE |
0145100841 |
from US $0.94 |
||
|
41610DB
|
41610DB
0145100841 SCREW9706--01 ~ ; 4WD.RB25DE |
0145100841 |
from US $0.94 |
||
|
41610DB
|
41610DB
0145100841 SCREW9706--01 ~ ; 4WD.RB25DE |
0145100841 |
from US $0.94 |
||
|
41620F
|
41620F
0128100831 GROMMET-SCREW9706--01 ~ ; 4WD.RB25DE |
0128100831 |
from US $0.89 |
||
|
41620F
|
41620F
0128100831 GROMMET-SCREW9706--01 ~ ; 4WD.RB25DE |
0128100831 |
from US $0.89 |
||
|
41630
|
41630
4163020U00 Accumulator Assy-Torque Split9706--01 ~ ; 4WD.RB25DE |
4163020U00 |
US $373.82 |
||
|
41642
|
41642
4164205U00 Clamp9706--01 ~ ; 4WD.RB25DE |
4164205U00 |
US $5.47 |
||
|
41642
|
41642
25089-20U00 Clamp9706--01 ~ 0104--01; 4WD.RB25DE |
25089-20U00 |
US $4.61 |
||
|
41642
|
41642
0155308541 CLAMP9706--01 ~ ; 4WD.RB25DE |
0155308541 |
US $2.36 |
||
|
41642+A
|
41642+A
25089-20U00 Clamp9706--01 ~ 0104--01; 4WD.RB25DE |
25089-20U00 |
US $4.61 |
||
|
41642+B
|
41642+B
0155308541 CLAMP9706--01 ~ ; 4WD.RB25DE |
0155308541 |
US $2.36 |
||
|
41666
|
41666
41666-20U00 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41666-20U00 |
US $1,309.80 |
||
|
41666
|
41666
41750-1P400 Insulator-Bracket9706--01 ~ ; 4WD.RB25DE |
41750-1P400 |
US $9.02 |
||
|
41666E
|
41666E
41750-1P400 Insulator-Bracket9706--01 ~ ; 4WD.RB25DE |
41750-1P400 |
US $9.02 |
||
|
41667
|
41667
41667-20U00 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41667-20U00 |
US $61.49 |
||
|
41668
|
41668
41668-20U00 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41668-20U00 |
US $36.86 |
||
|
41668
|
41668
41668-20U01 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41668-20U01 |
US $36.86 |
||
|
41668
|
41668
41669-20U00 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41669-20U00 |
US $36.86 |
||
|
41668
|
41668
41669-20U01 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41669-20U01 |
US $36.86 |
||
|
41668
|
41668
41645-05U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-05U00 |
US $2.45 |
||
|
41668
|
41668
41645-20U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-20U00 |
US $1.73 |
||
|
41668+A
|
41668+A
41668-20U01 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41668-20U01 |
US $36.86 |
||
|
41668+B
|
41668+B
41669-20U00 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41669-20U00 |
US $36.86 |
||
|
41668+C
|
41668+C
41669-20U01 Bracket-Actuator9706--01 ~ ; 4WD.RB25DE |
41669-20U01 |
US $36.86 |
||
|
41668A
|
41668A
41645-05U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-05U00 |
US $2.45 |
||
|
41668A
|
41668A
41645-20U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-20U00 |
US $1.73 |
||
|
41668A
|
41668A
41645-05U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-05U00 |
US $2.45 |
||
|
41668A
|
41668A
41645-20U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-20U00 |
US $1.73 |
||
|
41668AA
|
41668AA
41645-20U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-20U00 |
US $1.73 |
||
|
41668AA
|
41668AA
41645-20U00 Screw9706--01 ~ ; 4WD.RB25DE |
41645-20U00 |
US $1.73 |
||
|
41690
|
41690
41690-23U00 Bracket-Reservoir Tank9706--01 ~ ; 4WD.RB25DE |
41690-23U00 |
US $42.34 |
||
|
41724E
|
41724E
41740-05U00
Grommet-Tube
9706--01 ~ ; 4WD.RB25DE |
41740-05U00 |
— | ||
|
41746E
|
41746E
49728-55S00
Collar
9706--01 ~ ; 4WD.RB25DE |
49728-55S00 |
— | ||
| replacement | |||||
|
41746E
|
41746E
49728-55S0A Collar-Insulator9706--01 ~ ; 4WD.RB25DE |
49728-55S0A |
US $2.64 |
||
|
41746M
|
41746M
18316S3260 Bush9706--01 ~ ; 4WD.RB25DE |
18316S3260 |
US $4.71 |
||
|
47671X
|
47671X
47671-20U00
Cover
9706--01 ~ ; 4WD.RB25DE |
47671-20U00 |
— | ||
|
47671X
|
47671X
4767020U00
Cover
9706--01 ~ ; 4WD.RB25DE |
4767020U00 |
— | ||
|
47671XA
|
47671XA
4767020U00
Cover
9706--01 ~ ; 4WD.RB25DE |
4767020U00 |
— | ||
