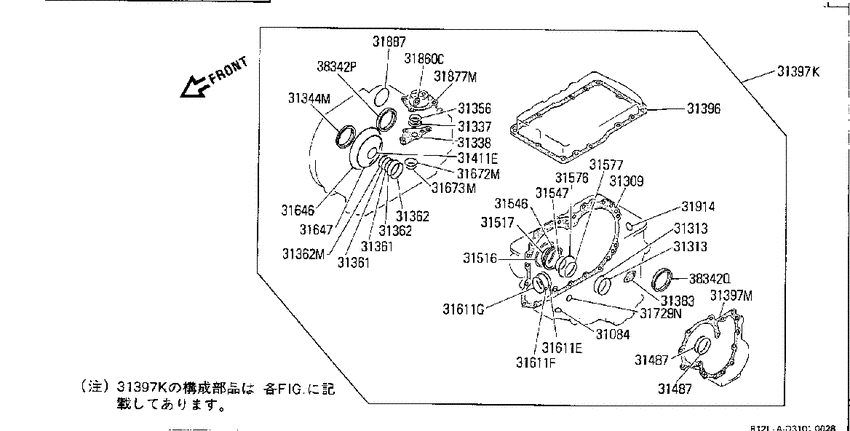

AT transmission & transaxle assembly (1986-08-01 ~ ; ガスケット & シ-ル キット; RL4F02A) Diagram Nissan LAUREL SPIRIT
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 2WD
- transmission
- AT
- grade
- GRL
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31084
|
31084
31084M7500 Seal-O Ring8905--01 ~ ; (GA15#+CD17).AT; |
31084M7500 |
US $1.15 |
||
|
31309
|
31309
31309-21X03
Gasket-Converter Housing
8603--01 ~ 8806--01; RL4F02A; |
31309-21X03 |
— | ||
|
31309
|
31309
31309-21X06
Gasket-Converter Housing
8806--01 ~ 9102--01; RL4F02A; |
31309-21X06 |
— | ||
| replacements | |||||
|
31309
|
31309
31309-21X08
Gasket-converter housing
8806--01 ~ 9102--01; RL4F02A; |
31309-21X08 |
— | ||
|
31309
|
31309
31309-21X09 Gasket-Converter Housing8806--01 ~ 9102--01; RL4F02A; |
31309-21X09 |
US $15.11 |
||
|
31309
|
31309
31309-21X10 Gasket-Converter Housing9102--01 ~ ; RL4F02A; |
31309-21X10 |
US $15.70 |
||
| replacement | |||||
|
31309
|
31309
31309-21X08
Gasket-converter housing
9102--01 ~ ; RL4F02A; |
31309-21X08 |
— | ||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8608--01 ~ ; RL4F02A |
31313-21X01 |
US $10.51 |
||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8608--01 ~ ; RL4F02A |
31313-21X01 |
US $10.51 |
||
|
31337
|
31337
31337-21X01 Seal-Lip8608--01 ~ ; RL4F02A |
31337-21X01 |
US $6.19 |
||
| replacement | |||||
|
31337
|
31337
C1337-21X01
Seal-lip
8608--01 ~ ; RL4F02A |
C1337-21X01 |
— | ||
|
31338
|
31338
31338-21X01 Gasket-Control Cylinder8608--01 ~ ; RL4F02A; |
31338-21X01 |
US $1.73 |
||
|
31344M
|
31344M
3134421X00 Seal-Oil Pump Housing8608--01 ~ ; RL4F02A; |
3134421X00 |
from US $4.66 |
||
|
31356
|
31356
31356-21X02 Seal-O Ring8608--01 ~ ; RL4F02A |
31356-21X02 |
US $5.18 |
||
| replacement | |||||
|
31356
|
31356
C1356-21X02
Seal-o ring
8608--01 ~ ; RL4F02A |
C1356-21X02 |
— | ||
|
31361
|
31361
31361-21X00 Ring-Seal8608--01 ~ ; RL4F02A; |
31361-21X00 |
US $10.80 |
||
|
31361
|
31361
31361-21X00 Ring-Seal8608--01 ~ ; RL4F02A; |
31361-21X00 |
US $10.80 |
||
|
31362
|
31362
31558-21X00 Ring-Seal8608--01 ~ ; RL4F02A; |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31362-21X04
Seal-O Ring
8608--01 ~ ; RL4F02A; |
31362-21X04 |
— | ||
| replacement | |||||
|
31362
|
31362
C1362-21X04 O ring8608--01 ~ ; RL4F02A; |
C1362-21X04 |
US $5.96 |
||
|
31362
|
31362
31558-21X00 Ring-Seal8608--01 ~ ; RL4F02A; |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31362-21X04
Seal-O Ring
8608--01 ~ ; RL4F02A; |
31362-21X04 |
— | ||
| replacement | |||||
|
31362
|
31362
C1362-21X04 O ring8608--01 ~ ; RL4F02A; |
C1362-21X04 |
US $5.96 |
||
|
31362M
|
31362M
31362-21X04
Seal-O Ring
8608--01 ~ ; RL4F02A; |
31362-21X04 |
— | ||
| replacement | |||||
|
31362M
|
31362M
C1362-21X04 O ring8608--01 ~ ; RL4F02A; |
C1362-21X04 |
US $5.96 |
||
|
31383
|
31383
31383-21X01 Gasket-Retainer Side8608--01 ~ ; RL4F02A |
31383-21X01 |
US $4.18 |
||
|
31396
|
31396
31396-21X01
Gasket-Upper Cover
8608--01 ~ ; RL4F02A; |
31396-21X01 |
— | ||
|
31397K
|
31397K
31397-21X85 Gasket & Seal Kit-Auto Transmission8709--01 ~ 8806--01; RL4F02A.GA15#; |
31397-21X85 |
US $254.88 |
||
|
31397K
|
31397K
31397-24X28 Gasket & Seal Kit-Auto Transmission8806--01 ~ 8905--01; RL4F02A.GA15# |
31397-24X28 |
US $254.88 |
||
|
31397M
|
31397M
31397-21X00
Gasket-Side Cover
8608--01 ~ ; RL4F02A; |
31397-21X00 |
— | ||
|
31411E
|
31411E
31159-X6101 Seal-O Ring8608--01 ~ ; RL4F02A; |
31159-X6101 |
US $3.31 |
||
|
31487
|
31487
31487-21X00 Ring-Seal8608--01 ~ ; RL4F02A |
31487-21X00 |
US $7.92 |
||
|
31487
|
31487
31487-21X00 Ring-Seal8608--01 ~ ; RL4F02A |
31487-21X00 |
US $7.92 |
||
|
31516
|
31516
31516-21X01
Seal-Lip
8608--01 ~ ; RL4F02A; |
31516-21X01 |
— | ||
| replacement | |||||
|
31516
|
31516
C1516-21X01 Seal-lip8608--01 ~ ; RL4F02A; |
C1516-21X01 |
US $11.79 |
||
|
31517
|
31517
31517-21X00 Seal-Lathe Cut Ring8608--01 ~ ; RL4F02A; |
31517-21X00 |
US $6.77 |
||
|
31546
|
31546
31527-21X01
Seal-Lathe Cut Ring
8709--01 ~ 8905--01; RL4F02A.GA15#; |
31527-21X01 |
— | ||
| replacement | |||||
|
31546
|
31546
C152721X01 ｼ-ﾙ,ﾘﾂﾌﾟ8709--01 ~ 8905--01; RL4F02A.GA15#; |
C152721X01 |
US $10.12 |
||
|
31547
|
31547
3154721X00 Seal-Lathe Cut Ring8608--01 ~ ; RL4F02A; |
3154721X00 |
from US $5.76 |
||
|
31576
|
31576
31576-21X00 Seal-Lathe Cut Ring8608--01 ~ ; RL4F02A |
31576-21X00 |
US $8.93 |
||
|
31577
|
31577
31577-21X00 Seal-O Ring, Low Clutch8608--01 ~ ; RL4F02A |
31577-21X00 |
US $5.90 |
||
|
31611E
|
31611E
31612-21X01 Seal-O Ring, Band Servo8608--01 ~ ; RL4F02A; |
31612-21X01 |
US $5.18 |
||
|
31611F
|
31611F
31613-21X10 Seal-O Ring, Band Servo8608--01 ~ ; RL4F02A; |
31613-21X10 |
US $5.18 |
||
|
31611G
|
31611G
31614-21X10 Seal-O Ring, Band Servo8608--01 ~ ; RL4F02A; |
31614-21X10 |
US $5.18 |
||
|
31646
|
31646
31646-21X00 Seal-Lathe Cut Ring8608--01 ~ ; RL4F02A; |
31646-21X00 |
US $11.95 |
||
|
31647
|
31647
31647-21X00 Seal-O Ring8608--01 ~ ; RL4F02A; |
31647-21X00 |
US $10.08 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator8608--01 ~ ; RL4F02A; |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator8608--01 ~ ; RL4F02A; |
3167321X00 |
US $4.85 |
||
|
31729N
|
31729N
31729-21X01 Seal-O Ring8608--01 ~ ; RL4F02A; |
31729-21X01 |
US $4.18 |
||
|
31860C
|
31860C
31897-21X00 Washer-Seal8608--01 ~ ; RL4F02A; |
31897-21X00 |
US $0.86 |
||
|
31877M
|
31877M
31877-21X00 Gasket-Governor Cap8608--01 ~ ; RL4F02A; |
31877-21X00 |
US $1.73 |
||
|
31887
|
31887
31887-21X00 Seal-Ring, Speedometer8608--01 ~ ; RL4F02A; |
31887-21X00 |
US $1.73 |
||
|
31914
|
31914
31914-01X00 Seal-O Ring8608--01 ~ ; RL4F02A; |
31914-01X00 |
US $2.45 |
||
|
38342P
|
38342P
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE8709--01 ~ 8905--01; RL4F02A.GA15#; |
3834203E00 |
US $10.04 |
||
|
38342Q
|
38342Q
38342-21X01 Seal-Oil, Differential Transmission Case8709--01 ~ 8905--01; RL4F02A.GA15# |
38342-21X01 |
US $6.91 |
||
