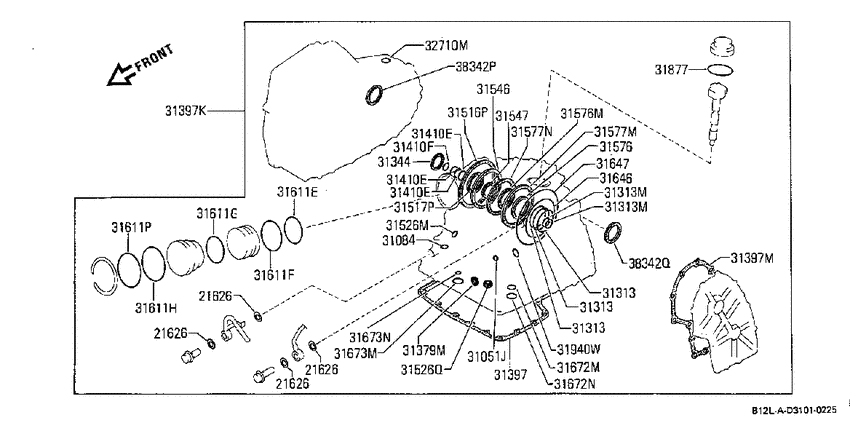

AT transmission & transaxle assembly (1989-05-01 ~ ; ガスケット & シール キット; RL4F03A) Diagram Nissan LAUREL SPIRIT
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- GRL
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21626
|
21626
21626-P2600 Washer-Seal8608--01 ~ ; AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
21626-P2600 Washer-Seal8608--01 ~ ; AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
21626-P2600 Washer-Seal8608--01 ~ ; AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
21626-P2600 Washer-Seal8608--01 ~ ; AT |
21626-P2600 |
US $1.73 |
||
|
31051J
|
31051J
31052-01X00
Seal-O Ring
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31052-01X00 |
— | ||
| replacement | |||||
|
31051J
|
31051J
C105201X00
ｼ-ﾙ,ｵ- ﾘﾝｸﾞ
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
C105201X00 |
— | ||
|
31084
|
31084
31084-21X01 Seal-O Ring8709--01 ~ 8905--01; (GA15E+CA16D).AT.2WD |
31084-21X01 |
US $2.45 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8905--01 ~ ; (GA15#+CD17).AT; |
31084M7500 |
US $1.15 |
||
|
31313
|
31313
31525-31X03 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X03 |
US $10.80 |
||
|
31313
|
31313
31525-31X04 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313
|
31313
31525-31X03 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X03 |
US $10.80 |
||
|
31313
|
31313
31525-31X04 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313
|
31313
31525-31X03 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X03 |
US $10.80 |
||
|
31313
|
31313
31525-31X04 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313M
|
31313M
31525-31X04 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313M
|
31313M
31525-31X04 Seal-Ring, Bearing Retainer8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31344
|
31344
31375-31X00
Seal-Oil Pump Housing
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31375-31X00 |
— | ||
| replacement | |||||
|
31344
|
31344
3137531X03 Seal-Oil Pump Housing8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3137531X03 |
from US $3.43 |
||
|
31379M
|
31379M
3137531X01 Seal-Oil8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3137531X01 |
from US $2.36 |
||
|
31397
|
31397
31397-31X01 Gasket-Oil Pan8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31397-31X01 |
US $24.19 |
||
|
31397
|
31397
31397-31X25 Gasket & Seal Kit-Auto Transmission8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31397-31X25 |
US $266.40 |
||
| replacement | |||||
|
31397
|
31397
C1397-31X2E
Gasket & seal kit-auto transmission
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
C1397-31X2E |
— | ||
|
31397
|
31397
31398-31X01 Gasket-Side Cover8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31398-31X01 |
US $16.27 |
||
|
31397K
|
31397K
31397-31X25 Gasket & Seal Kit-Auto Transmission8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31397-31X25 |
US $266.40 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-31X2E
Gasket & seal kit-auto transmission
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
C1397-31X2E |
— | ||
|
31397M
|
31397M
31398-31X01 Gasket-Side Cover8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31398-31X01 |
US $16.27 |
||
|
31410E
|
31410E
31525-31X02 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X02 |
US $10.80 |
||
|
31410E
|
31410E
31525-31X02 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X02 |
US $10.80 |
||
|
31410E
|
31410E
31525-31X02 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31525-31X02 |
US $10.80 |
||
|
31410F
|
31410F
31526-31X01 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31526-31X01 |
US $4.18 |
||
|
31516P
|
31516P
31528-21X10 Seal-Lip8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31528-21X10 |
US $8.78 |
||
|
31517P
|
31517P
31527-31X00 Seal-Lathe Cut Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31527-31X00 |
US $4.18 |
||
|
31526M
|
31526M
3152631X07 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152631X07 |
US $2.45 |
||
|
31526Q
|
31526Q
3152831X06 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152831X06 |
US $2.36 |
||
|
31546
|
31546
31528-31X01 Seal-Lip8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31528-31X01 |
US $10.80 |
||
|
31547
|
31547
31527-31X01 Seal-Lathe Cut Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31527-31X01 |
US $6.19 |
||
| replacement | |||||
|
31547
|
31547
C1527-31X01
Seal-lathe cut ring
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
C1527-31X01 |
— | ||
|
31576
|
31576
31527-31X02 Seal-Lathe Cut Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31527-31X02 |
US $9.07 |
||
|
31576
|
31576
31527-31X03 Seal-Lathe Cut Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31527-31X03 |
US $9.07 |
||
|
31576M
|
31576M
31527-31X03 Seal-Lathe Cut Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31527-31X03 |
US $9.07 |
||
|
31577M
|
31577M
31528-31X02 Seal-Lip8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31528-31X02 |
US $8.06 |
||
|
31577N
|
31577N
31528-31X03 Seal-Lip8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31528-31X03 |
US $8.06 |
||
|
31611E
|
31611E
3152631X02 Seal-O Ring, Band Servo8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152631X02 |
US $4.18 |
||
|
31611F
|
31611F
31526-31X03 Seal-O Ring, Band Servo8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31526-31X03 |
from US $4.18 |
||
|
31611G
|
31611G
3152631X04 Seal-O Ring, Band Servo8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152631X04 |
US $4.18 |
||
|
31611H
|
31611H
3152631X05 Seal-O Ring, Band Servo8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152631X05 |
US $4.18 |
||
|
31611P
|
31611P
3152631X06 Seal-O Ring, Band Servo8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152631X06 |
US $4.18 |
||
|
31646
|
31646
31527-31X04 Seal-Lathe Cut Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31527-31X04 |
US $8.06 |
||
| replacement | |||||
|
31646
|
31646
C1527-31X04
Seal-lathe cut ring
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
C1527-31X04 |
— | ||
|
31647
|
31647
31528-31X04 Seal-O Ring8901--01 ~ ; GA15#.AT.F4.RL4F03A |
31528-31X04 |
US $8.06 |
||
|
31672M
|
31672M
31526-31X08 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31526-31X08 |
US $4.18 |
||
|
31672N
|
31672N
3167221X00 Seal-O Ring, Accumulator8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
31526-41X02 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31526-41X02 |
US $2.36 |
||
|
31673N
|
31673N
31526-41X03 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
31526-41X03 |
US $2.36 |
||
|
31877
|
31877
3152631X10 Seal-Ring, Governor8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152631X10 |
US $3.89 |
||
|
31940W
|
31940W
3152641X09 Seal-O Ring8905--01 ~ ; GA15#.AT.F4.RL4F03A |
3152641X09 |
US $2.36 |
||
|
32710M
|
32710M
32710-04E01 SEAL-O RING,SPEEDOMETER PINION8709--01 ~ 8905--01; GRL.AT.2WD; |
32710-04E01 |
US $2.45 |
||
|
32710M
|
32710M
32710M8000 Seal-O Ring, Speedometer Pinion8905--01 ~ ; (GA15#+CD17).AT.2WD; |
32710M8000 |
US $2.78 |
||
|
38342P
|
38342P
38342-31X00
Seal-Oil, Differential Converter Housing
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
38342-31X00 |
— | ||
| replacement | |||||
|
38342P
|
38342P
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING8905--01 ~ ; GA15#.AT.F4.RL4F03A |
383428E000 |
from US $4.23 |
||
|
38342Q
|
38342Q
38342-31X00
Seal-Oil, Differential Converter Housing
8905--01 ~ ; GA15#.AT.F4.RL4F03A |
38342-31X00 |
— | ||
| replacement | |||||
|
38342Q
|
38342Q
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING8905--01 ~ ; GA15#.AT.F4.RL4F03A |
383428E000 |
from US $4.23 |
||
