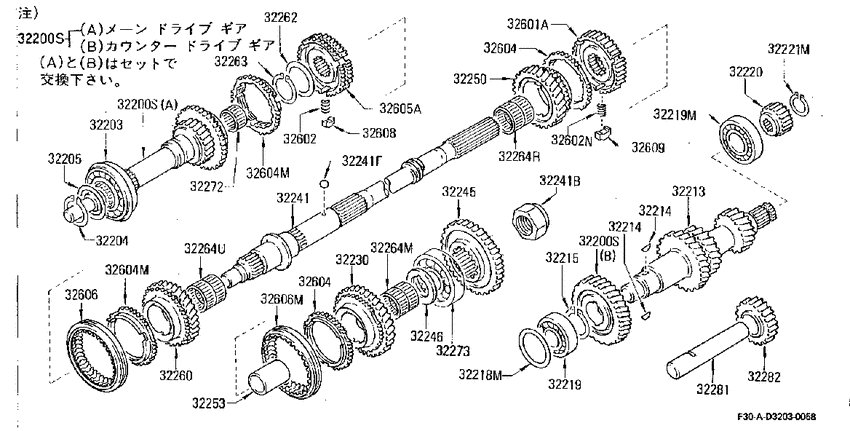

Transmission gear (1980-09-01 ~ 1982-08-01; Z18S.F4) Diagram Nissan LEOPARD
- Year
- 1980 - 1982
- Sales region
- Japan
- Engine
- Z18S
- transmission
- F4
- grade
- F
- body
- 4K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200S
|
32200S
32200-E9551 Gear Set-Main & Counter Drive8009--01 ~ 8305--01; Z18S.MT |
32200-E9551 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9591
Gear set-main & counter drive
8009--01 ~ 8305--01; Z18S.MT |
32200-E9591 |
— | ||
|
32200S
|
32200S
32200-E9559 Gear Set-Main & Counter Drive8305--01 ~ ; Z18S.MT |
32200-E9559 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9599 Gear Set-Main & Counter Drive8305--01 ~ ; Z18S.MT |
32200-E9599 |
US $366.74 |
||
|
32200S
|
32200S
32200-E9551 Gear Set-Main & Counter Drive8009--01 ~ 8305--01; Z18S.MT |
32200-E9551 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9591
Gear set-main & counter drive
8009--01 ~ 8305--01; Z18S.MT |
32200-E9591 |
— | ||
|
32200S
|
32200S
32200-E9559 Gear Set-Main & Counter Drive8305--01 ~ ; Z18S.MT |
32200-E9559 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9599 Gear Set-Main & Counter Drive8305--01 ~ ; Z18S.MT |
32200-E9599 |
US $366.74 |
||
|
32203
|
32203
32273-04100 Bearing-Main Drive8009--01 ~ ; Z18S.MT+L20E.MT |
32273-04100 |
from US $16.57 |
||
|
32204
|
32204
32204-78000 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.80 |
32204-78000 |
US $3.46 |
||
|
32204
|
32204
3220478001 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.87 |
3220478001 |
from US $1.18 |
||
|
32204
|
32204
3220478002 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.94 |
3220478002 |
US $3.06 |
||
|
32204
|
32204
32204-78003 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=2.01 |
32204-78003 |
US $3.06 |
||
|
32204
|
32204
3220478004
Ring-Snap
8009--01 ~ ; MT; ｾﾝﾀｸ T=2.08 |
3220478004 |
— | ||
| replacement | |||||
|
32204
|
32204
3220478001 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=2.08 |
3220478001 |
from US $1.18 |
||
|
32204
|
32204
3220478005 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.73 |
3220478005 |
US $3.46 |
||
|
32205
|
32205
32205-78000 Spacer-Bearing, Main Drive Gear8009--01 ~ ; MT |
32205-78000 |
US $0.82 |
||
|
32213
|
32213
32212-61S00 Gear-Counter8510--01 ~ ; (Z18S+L20E).MT |
32212-61S00 |
US $273.60 |
||
|
32213
|
32213
32212-E9201 Gear-Counter8009--01 ~ 8208--01; Z18S.F4 |
32212-E9201 |
US $273.60 |
||
|
32214
|
32214
32214-E9000 Key-Woodruff8009--01 ~ 8209--01; F4 |
32214-E9000 |
US $1.82 |
||
|
32214
|
32214
32214-E9029 Key-Woodruff8405--01 ~ ; Z18S.MT |
32214-E9029 |
US $2.45 |
||
| replacement | |||||
|
32214
|
32214
32214-E9011 Key-Woodruff8405--01 ~ ; Z18S.MT |
32214-E9011 |
US $2.45 |
||
|
32214
|
32214
32214-E9000 Key-Woodruff8009--01 ~ 8209--01; F4 |
32214-E9000 |
US $1.82 |
||
|
32214
|
32214
32214-E9029 Key-Woodruff8405--01 ~ ; Z18S.MT |
32214-E9029 |
US $2.45 |
||
| replacement | |||||
|
32214
|
32214
32214-E9011 Key-Woodruff8405--01 ~ ; Z18S.MT |
32214-E9011 |
US $2.45 |
||
|
32215
|
32215
32215-E9000 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.4 |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.5 |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.6 |
32215-E9002 |
US $3.06 |
||
|
32218M
|
32218M
32218-E9000 Shim-Bearing8009--01 ~ 8406--01; MT; ｾﾝﾀｸ T=0.1 |
32218-E9000 |
US $3.46 |
||
|
32218M
|
32218M
32218E9001
Shim-Bearing
8009--01 ~ 8406--01; MT; ｾﾝﾀｸ T=0.2 |
32218E9001 |
— | ||
|
32218M
|
32218M
32218-E9002 Shim-Bearing8009--01 ~ 8406--01; MT; ｾﾝﾀｸ T=0.3 |
32218-E9002 |
US $3.18 |
||
|
32218M
|
32218M
32218-E9003
Shim-Bearing
8009--01 ~ 8406--01; MT; ｾﾝﾀｸ T=0.4 |
32218-E9003 |
— | ||
|
32218M
|
32218M
32218E9004
Shim-Bearing
8009--01 ~ 8406--01; MT; ｾﾝﾀｸ T=0.5 |
32218E9004 |
— | ||
|
32218M
|
32218M
32218-V5000 Shim-Bearing8408--01 ~ ; Z18S.MT; ｾﾝﾀｸ T=0.1 |
32218-V5000 |
from US $3.76 |
||
|
32218M
|
32218M
32218-V5001 Shim-Bearing8408--01 ~ ; Z18S.MT; ｾﾝﾀｸ T=0.2 |
32218-V5001 |
from US $3.87 |
||
|
32218M
|
32218M
32218-V5002 Shim-Bearing8408--01 ~ ; Z18S.MT; ｾﾝﾀｸ T=0.3 |
32218-V5002 |
US $5.81 |
||
|
32218M
|
32218M
32218-V5003 Shim-Bearing8408--01 ~ ; Z18S.MT; ｾﾝﾀｸ T=0.4 |
32218-V5003 |
from US $3.68 |
||
|
32218M
|
32218M
32218V5004 Shim-Bearing8408--01 ~ ; Z18S.MT; ｾﾝﾀｸ T=0.5 |
32218V5004 |
from US $2.98 |
||
|
32218M
|
32218M
32218V5005 Shim-Bearing8408--01 ~ ; Z18S.MT; ｾﾝﾀｸ T=0.6 |
32218V5005 |
from US $3.70 |
||
|
32219
|
32219
32219-E9000
Bearing-Counter Shaft
8009--01 ~ 8406--01; MT |
32219-E9000 |
— | ||
| replacement | |||||
|
32219
|
32219
32219E9020 Bearing-Counter Shaft8009--01 ~ 8406--01; MT |
32219E9020 |
from US $19.41 |
||
|
32219
|
32219
32219-V5201
Bearing-Counter Shaft
8408--01 ~ ; Z18S.MT |
32219-V5201 |
— | ||
| replacement | |||||
|
32219
|
32219
32219V5260 Bearing-Counter Shaft8408--01 ~ ; Z18S.MT |
32219V5260 |
from US $19.41 |
||
|
32219
|
32219
3220318000 Bearing-Counter Shaft8009--01 ~ ; MT |
3220318000 |
US $12.24 |
||
|
32219M
|
32219M
3220318000 Bearing-Counter Shaft8009--01 ~ ; MT |
3220318000 |
US $12.24 |
||
|
32220
|
32220
32220-E9201
Gear-Reverse, Counter
8009--01 ~ 8209--01; F4 |
32220-E9201 |
— | ||
|
32220
|
32220
32220-E9811 Gear-Reverse, Counter8209--01 ~ 8309--01; Z18S.MT+L20E.MT |
32220-E9811 |
US $41.76 |
||
| replacement | |||||
|
32220
|
32220
32220-V5070 Gear-Reverse, Counter8209--01 ~ 8309--01; Z18S.MT+L20E.MT |
32220-V5070 |
US $45.65 |
||
|
32220
|
32220
32220-V5000 Gear-Reverse, Counter8309--01 ~ ; Z18S.MT |
32220-V5000 |
US $45.65 |
||
| replacement | |||||
|
32220
|
32220
32220-V5070 Gear-Reverse, Counter8309--01 ~ ; Z18S.MT |
32220-V5070 |
US $45.65 |
||
|
32221M
|
32221M
32228-E9200 Ring-Snap, Counter Shaft8009--01 ~ 8208--01; F4; ｾﾝﾀｸ T=1.4 |
32228-E9200 |
US $2.45 |
||
|
32221M
|
32221M
32228-E9201 Ring-Snap, Counter Shaft8009--01 ~ 8208--01; F4; ｾﾝﾀｸ T=1.5 |
32228-E9201 |
US $2.45 |
||
|
32221M
|
32221M
32228E9202 Ring-Snap, Counter Shaft8009--01 ~ 8208--01; F4; ｾﾝﾀｸ T=1.6 |
32228E9202 |
US $2.45 |
||
|
32221M
|
32221M
32228-E9203 Ring-Snap, Overdrive Bearing8009--01 ~ 8209--01; F4; ｾﾝﾀｸ T=1.7 |
32228-E9203 |
US $2.45 |
||
|
32230
|
32230
32242-E9200 Gear Assy-1St8009--01 ~ 8108--01; Z18S.F4 |
32242-E9200 |
US $123.84 |
||
|
32241
|
32241
32241-E9000
Shaft-Main
8009--01 ~ 8105--01; F4 |
32241-E9000 |
— | ||
|
32241
|
32241
32241-E9002
Shaft-Main
8105--01 ~ 8208--01; F4 |
32241-E9002 |
— | ||
|
32241
|
32241
32354-E9000
Nut-Main Shaft
8009--01 ~ 8105--01; F4 |
32354-E9000 |
— | ||
|
32241
|
32241
32354-E9001 Nut-Main Shaft8105--01 ~ 8208--01; F4 |
32354-E9001 |
US $6.34 |
||
|
32241
|
32241
3272014600 Ball-Steel8009--01 ~ ; MT |
3272014600 |
from US $0.41 |
||
|
32241B
|
32241B
32354-E9000
Nut-Main Shaft
8009--01 ~ 8105--01; F4 |
32354-E9000 |
— | ||
|
32241B
|
32241B
32354-E9001 Nut-Main Shaft8105--01 ~ 8208--01; F4 |
32354-E9001 |
US $6.34 |
||
|
32241F
|
32241F
3272014600 Ball-Steel8009--01 ~ ; MT |
3272014600 |
from US $0.41 |
||
|
32245
|
32245
32245-E9201 Gear-Reverse, Main Shaft8009--01 ~ 8208--01; Z18S.F4 |
32245-E9201 |
US $86.83 |
||
|
32245
|
32245
32245-E9811 Gear-Reverse, Main Shaft8305--01 ~ 8309--01; MT |
32245-E9811 |
US $93.17 |
||
| replacements | |||||
|
32245
|
32245
32245-V5060 Gear-Reverse, Main Shaft8305--01 ~ 8309--01; MT |
32245-V5060 |
US $142.77 |
||
|
32245
|
32245
32604-36N20 Ring-Baulk8305--01 ~ 8309--01; MT |
32604-36N20 |
US $50.45 |
||
|
32246
|
32246
32246-E9200 Washer-Thrust8009--01 ~ ; MT |
32246-E9200 |
US $6.24 |
||
|
32250
|
32250
32250-61S00 Gear Assy-2Nd8510--01 ~ ; (Z18S+L20E).MT |
32250-61S00 |
US $93.02 |
||
|
32250
|
32250
32250-E9200
Gear Assy-2Nd
8009--01 ~ 8108--01; MT |
32250-E9200 |
— | ||
|
32250
|
32250
32250-E9260
Gear Assy-2Nd
8108--01 ~ 8209--01; MT |
32250-E9260 |
— | ||
| replacement | |||||
|
32250
|
32250
32250-E9200
Gear Assy-2Nd
8108--01 ~ 8209--01; MT |
32250-E9200 |
— | ||
|
32253
|
32253
32253-14600
Bush-1St Gear
8009--01 ~ 8209--01; MT |
32253-14600 |
— | ||
| replacement | |||||
|
32253
|
32253
32253-14611 Bush-1st gear8009--01 ~ 8209--01; MT |
32253-14611 |
US $28.55 |
||
|
32253
|
32253
32253-14601
Bush-1St Gear
8209--01 ~ ; MT |
32253-14601 |
— | ||
| replacement | |||||
|
32253
|
32253
32253-14611 Bush-1st gear8209--01 ~ ; MT |
32253-14611 |
US $28.55 |
||
|
32260
|
32260
32260-55L00
Gear Assy-3Rd
8510--01 ~ ; (Z18S+L20E).MT |
32260-55L00 |
— | ||
|
32260
|
32260
32260-E9200 Gear Assy-3Rd8009--01 ~ 8510--01; Z18S.MT+L20E.MT |
32260-E9200 |
US $116.21 |
||
|
32262
|
32262
32207-E9000 Washer-Thrust8009--01 ~ ; MT |
32207-E9000 |
US $2.45 |
||
|
32263
|
32263
32263-E9000 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.4 |
32263-E9000 |
US $2.45 |
||
|
32263
|
32263
32263-E9001 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.5 |
32263-E9001 |
US $2.45 |
||
|
32263
|
32263
32263-E9002 Ring-Snap8009--01 ~ ; MT; ｾﾝﾀｸ T=1.6 |
32263-E9002 |
US $2.45 |
||
|
32264M
|
32264M
32264-14600
Bearing-Main Shaft
8009--01 ~ ; MT; 1ST |
32264-14600 |
— | ||
| replacement | |||||
|
32264M
|
32264M
32264-14601 Bearing-Needle, Main Shaft8009--01 ~ ; MT; 1ST |
32264-14601 |
US $14.51 |
||
|
32264R
|
32264R
32264-14600
Bearing-Main Shaft
8009--01 ~ ; MT; 2ND |
32264-14600 |
— | ||
| replacement | |||||
|
32264R
|
32264R
32264-14601 Bearing-Needle, Main Shaft8009--01 ~ ; MT; 2ND |
32264-14601 |
US $14.51 |
||
|
32264U
|
32264U
32264-14600
Bearing-Main Shaft
8009--01 ~ ; MT; 3RD |
32264-14600 |
— | ||
| replacement | |||||
|
32264U
|
32264U
32264-14601 Bearing-Needle, Main Shaft8009--01 ~ ; MT; 3RD |
32264-14601 |
US $14.51 |
||
|
32272
|
32272
32272-36900
Bearing-Drive Shaft
8009--01 ~ ; MT |
32272-36900 |
— | ||
| replacement | |||||
|
32272
|
32272
32272-36910 Bearing-Pilot, Main8009--01 ~ ; MT |
32272-36910 |
from US $10.63 |
||
|
32273
|
32273
3227336900 Bearing-Main Shaft8009--01 ~ 8409--01; MT |
3227336900 |
from US $13.01 |
||
|
32281
|
32281
32281-E9200 Shaft-Reverse Idler8009--01 ~ 8208--01; F4 |
32281-E9200 |
US $12.10 |
||
|
32282
|
32282
32280-E9201 Gear-Reverse Idler8009--01 ~ 8208--01; F4 |
32280-E9201 |
US $97.49 |
||
|
32601A
|
32601A
32601-E9200
Hub-Synchronizer, 1St & 2Nd
8009--01 ~ 8405--01; MT |
32601-E9200 |
— | ||
|
32602
|
32602
32602-32200 Spring-Shifting Insert8009--01 ~ ; MT; 3RD & 4TH |
32602-32200 |
from US $0.43 |
||
|
32602
|
32602
32602-32200 Spring-Shifting Insert8009--01 ~ 8405--01; MT; 1ST & 2ND |
32602-32200 |
from US $0.43 |
||
|
32602N
|
32602N
32602-32200 Spring-Shifting Insert8009--01 ~ 8405--01; MT; 1ST & 2ND |
32602-32200 |
from US $0.43 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8009--01 ~ 8305--01; MT; 1ST & 2ND |
32604-P0100 |
US $39.24 |
||
|
32604
|
32604
32607-V5010 Ring-Baulk8407--01 ~ ; MT; 1ST & 2ND |
32607-V5010 |
US $50.69 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8009--01 ~ ; MT; 3RD & 4TH |
32604-P0100 |
US $39.24 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8009--01 ~ 8305--01; MT; 1ST & 2ND |
32604-P0100 |
US $39.24 |
||
|
32604
|
32604
32607-V5010 Ring-Baulk8407--01 ~ ; MT; 1ST & 2ND |
32607-V5010 |
US $50.69 |
||
|
32604
|
32604
32604-P0100 Ring-Baulk8009--01 ~ ; MT; 3RD & 4TH |
32604-P0100 |
US $39.24 |
||
|
32604M
|
32604M
32604-P0100 Ring-Baulk8009--01 ~ ; MT; 3RD & 4TH |
32604-P0100 |
US $39.24 |
||
|
32604M
|
32604M
32604-P0100 Ring-Baulk8009--01 ~ ; MT; 3RD & 4TH |
32604-P0100 |
US $39.24 |
||
|
32605A
|
32605A
32605-E9000 Hub-Synchronizer, 3Rd & 4Th8009--01 ~ ; MT |
32605-E9000 |
US $68.75 |
||
|
32606
|
32606
32606-E9001
Sleeve-Coupling
8009--01 ~ ; MT; 3RD & 4TH |
32606-E9001 |
— | ||
| replacement | |||||
|
32606
|
32606
32606-E9005 Sleeve-coupling8009--01 ~ ; MT; 3RD & 4TH |
32606-E9005 |
US $58.50 |
||
|
32606
|
32606
32606-E9001
Sleeve-Coupling
8009--01 ~ 8405--01; MT; 1ST & 2ND |
32606-E9001 |
— | ||
| replacement | |||||
|
32606
|
32606
32606-E9005 Sleeve-coupling8009--01 ~ 8405--01; MT; 1ST & 2ND |
32606-E9005 |
US $58.50 |
||
|
32606
|
32606
32606-V5000 Sleeve-Coupling8405--01 ~ 8407--01; MT; 1ST & 2ND |
32606-V5000 |
US $48.38 |
||
| replacement | |||||
|
32606
|
32606
32606-V5015 Sleeve-coupling8405--01 ~ 8407--01; MT; 1ST & 2ND |
32606-V5015 |
US $52.06 |
||
|
32606
|
32606
32606-V5010 Sleeve-Coupling8407--01 ~ ; MT; 1ST & 2ND |
32606-V5010 |
US $48.38 |
||
| replacement | |||||
|
32606
|
32606
32606-V5015 Sleeve-coupling8407--01 ~ ; MT; 1ST & 2ND |
32606-V5015 |
US $52.06 |
||
|
32606M
|
32606M
32606-E9001
Sleeve-Coupling
8009--01 ~ 8405--01; MT; 1ST & 2ND |
32606-E9001 |
— | ||
| replacement | |||||
|
32606M
|
32606M
32606-E9005 Sleeve-coupling8009--01 ~ 8405--01; MT; 1ST & 2ND |
32606-E9005 |
US $58.50 |
||
|
32606M
|
32606M
32606-V5000 Sleeve-Coupling8405--01 ~ 8407--01; MT; 1ST & 2ND |
32606-V5000 |
US $48.38 |
||
| replacement | |||||
|
32606M
|
32606M
32606-V5015 Sleeve-coupling8405--01 ~ 8407--01; MT; 1ST & 2ND |
32606-V5015 |
US $52.06 |
||
|
32606M
|
32606M
32606-V5010 Sleeve-Coupling8407--01 ~ ; MT; 1ST & 2ND |
32606-V5010 |
US $48.38 |
||
| replacement | |||||
|
32606M
|
32606M
32606-V5015 Sleeve-coupling8407--01 ~ ; MT; 1ST & 2ND |
32606-V5015 |
US $52.06 |
||
|
32608
|
32608
32609-E9000 Insert-Shifting8009--01 ~ ; MT; 3RD & 4TH |
32609-E9000 |
from US $2.55 |
||
|
32609
|
32609
32609-E9000 Insert-Shifting8009--01 ~ 8405--01; MT; 1ST & 2ND |
32609-E9000 |
from US $2.55 |
||
|
32609
|
32609
32609-V5002 Insert-Shifting8405--01 ~ ; MT; 1ST & 2ND |
32609-V5002 |
from US $2.26 |
||
