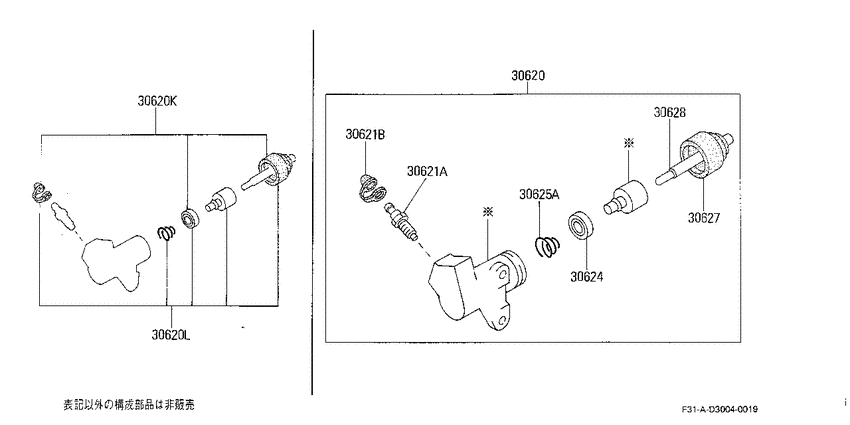

Clutch operating cylinder & piping (1986-02-01 ~ 1988-08-01; &クラッチ オペレーティング シリンダー; MT) Diagram Nissan LEOPARD
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- VG20E
- transmission
- MT
- grade
- XJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30620
|
30620
30620-V5002 Cylinder Assy-Clutch Operating8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
30620-V5002 |
US $90.43 |
||
| replacement | |||||
|
30620
|
30620
30620-V5012 Cylinder Assy-Clutch Operating8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
30620-V5012 |
US $118.51 |
||
|
30620
|
30620
30622-28525 Cup Kit-Clutch Operating Cylinder8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
30622-28525 |
US $7.20 |
||
| replacement | |||||
|
30620
|
30620
3062251E25 CUP KIT-CLUTCH OPERATING CYLINDER8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
3062251E25 |
US $9.65 |
||
|
30620
|
30620
30621Y4025 Piston Kit-Clutch Operating Cylinder8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
30621Y4025 |
from US $13.54 |
||
|
30620K
|
30620K
30622-28525 Cup Kit-Clutch Operating Cylinder8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
30622-28525 |
US $7.20 |
||
| replacement | |||||
|
30620K
|
30620K
3062251E25 CUP KIT-CLUTCH OPERATING CYLINDER8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
3062251E25 |
US $9.65 |
||
|
30620L
|
30620L
30621Y4025 Piston Kit-Clutch Operating Cylinder8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ 11/16 |
30621Y4025 |
from US $13.54 |
||
|
30621A
|
30621A
41128-U0201
Screw
8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ |
41128-U0201 |
— | ||
|
30621A
|
30621A
41128-U5200 Screw-Bleeder, Clutch Damper8602--01 ~ 8808--01; VG20E.XJ#.MT; ｸﾗﾂﾁ ﾀﾞﾝﾊﾟ- ﾖｳ |
41128-U5200 |
US $9.02 |
||
|
30621B
|
30621B
41129U0201 Cap-Bleeder8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ |
41129U0201 |
US $1.07 |
||
|
30624
|
30624
30624-28500 Cup-Piston8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ |
30624-28500 |
US $2.45 |
||
|
30624
|
30624
3062421000 Cup-Piston8602--01 ~ 8808--01; VG20E.XJ#.MT |
3062421000 |
US $1.26 |
||
|
30625A
|
30625A
30622-E3400 Spring-Piston8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ |
30622-E3400 |
US $2.74 |
||
|
30627
|
30627
30627-E3400 Cover-Dust8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ |
30627-E3400 |
US $5.04 |
||
|
30628
|
30628
30628-01W01 Rod-Push8602--01 ~ 8808--01; VG20E.XJ#.MT; ﾅﾌﾞｺ |
30628-01W01 |
US $9.36 |
||
