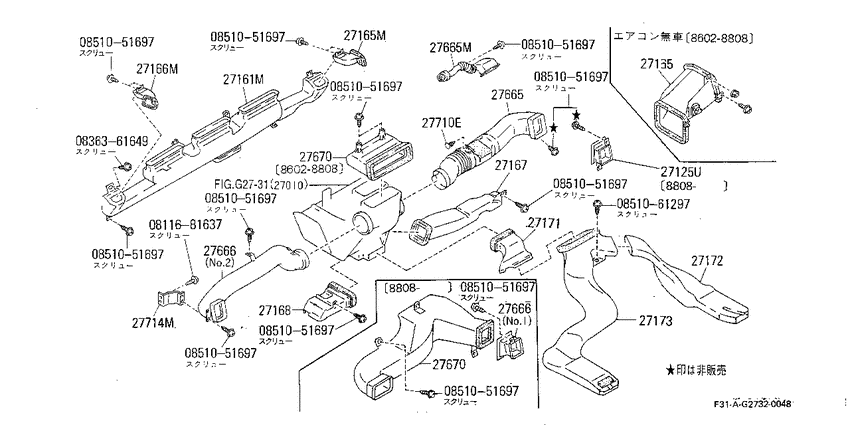

heater,cooler & air conditioner (fitting) (1986-02-01 ~ ; ノズル&ダクト; ALL) Diagram Nissan LEOPARD
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- VG20E
- transmission
- MT
- grade
- XJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0836361649
|
0836361649
08363-61649
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61649 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851051697
|
0851051697
08510-51697
SCREWTAPPING
|
08510-51697 |
— | ||
|
0851061297
|
0851061297
08510-61297
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61297 |
— | ||
|
27125U
|
27125U
27872-F6160 Door Assy-Rear Duct, Driver8808--01 ~ ; ALL; |
27872-F6160 |
US $4.90 |
||
|
27161M
|
27161M
27800-51S00 Nozzle-Demister8602--01 ~ ; ALL |
27800-51S00 |
US $53.42 |
||
|
27165
|
27165
27850-41L01 Duct-Demister, Rh8602--01 ~ 8808--01; VG20E.XJ+VG20T.XS |
27850-41L01 |
US $76.32 |
||
|
27165
|
27165
21476-B0100
Clip-Cooler Case
8602--01 ~ ; ALL |
21476-B0100 |
— | ||
| replacement | |||||
|
27165
|
27165
21476-C5500 Clip8602--01 ~ ; ALL |
21476-C5500 |
from US $3.07 |
||
|
27165
|
27165
01466-00022 Bolt8602--01 ~ 8706--01; VG20E.XJ+VG20T.XS |
01466-00022 |
from US $0.93 |
||
|
27165
|
27165
27810-F6100
Duct-Side Demister, Rh
8602--01 ~ 8808--01; ALL |
27810-F6100 |
— | ||
|
27165
|
27165
27810-F6160 Duct-Side Demister, Rh8808--01 ~ ; ALL |
27810-F6160 |
US $9.65 |
||
|
27165M
|
27165M
27810-F6100
Duct-Side Demister, Rh
8602--01 ~ 8808--01; ALL |
27810-F6100 |
— | ||
|
27165M
|
27165M
27810-F6160 Duct-Side Demister, Rh8808--01 ~ ; ALL |
27810-F6160 |
US $9.65 |
||
|
27166M
|
27166M
27811-F6100 Duct-Side Demister, Lh8602--01 ~ 8808--01; ALL |
27811-F6100 |
US $9.65 |
||
|
27166M
|
27166M
27811-F6160 Duct-Side Demister, Lh8808--01 ~ ; ALL; |
27811-F6160 |
US $9.65 |
||
|
27167
|
27167
27840-51S00 Nozzle-Demister, Rh8602--01 ~ ; ALL |
27840-51S00 |
US $14.11 |
||
|
27167
|
27167
0122500371 NUT8602--01 ~ ; ALL |
0122500371 |
US $1.73 |
||
|
27168
|
27168
27856-41L00 Nozzle-Demister, Lh8602--01 ~ ; ALL |
27856-41L00 |
US $10.22 |
||
|
27171
|
27171
27831-41L10 Duct-Heater8602--01 ~ 8910--01; ALL; [B517] |
27831-41L10 |
US $12.53 |
||
|
27171
|
27171
27831-41L11 Duct-Heater8910--01 ~ ; ALL; |
27831-41L11 |
US $12.53 |
||
|
27172
|
27172
27832-41L10 Duct-Heater Floor, Rear Rh8602--01 ~ ; ALL; [B517] |
27832-41L10 |
US $23.90 |
||
|
27173
|
27173
27833-41L10 Duct-Heater Floor, Rear Lh8602--01 ~ ; ALL; [B517] |
27833-41L10 |
US $28.08 |
||
|
27665
|
27665
27870-F6100 Duct-Ventilator, Rh8602--01 ~ 8808--01; ALL |
27870-F6100 |
US $31.25 |
||
|
27665
|
27665
27870-F6160 Duct-Ventilator, Rh8808--01 ~ ; ALL |
27870-F6160 |
US $31.25 |
||
|
27665
|
27665
0145100221 SCREW8602--01 ~ ; ALL |
0145100221 |
US $2.21 |
||
|
27665
|
27665
27890-F6100 Duct-Ventilator, Rh8602--01 ~ ; ALL |
27890-F6100 |
US $8.93 |
||
|
27665M
|
27665M
27890-F6100 Duct-Ventilator, Rh8602--01 ~ ; ALL |
27890-F6100 |
US $8.93 |
||
|
27666
|
27666
27861-F6160 Duct-Ventilator, Lh8808--01 ~ ; ALL; NO.1 |
27861-F6160 |
US $28.37 |
||
|
27666
|
27666
27871-F6100 Duct-Ventilator, Lh8602--01 ~ 8808--01; ALL |
27871-F6100 |
US $28.37 |
||
|
27666
|
27666
27871-F6160 Duct-Ventilator, Lh8808--01 ~ ; ALL; NO.2 |
27871-F6160 |
US $28.37 |
||
|
27666
|
27666
27861-F6160 Duct-Ventilator, Lh8808--01 ~ ; ALL; NO.1 |
27861-F6160 |
US $28.37 |
||
|
27666
|
27666
27871-F6100 Duct-Ventilator, Lh8602--01 ~ 8808--01; ALL |
27871-F6100 |
US $28.37 |
||
|
27666
|
27666
27871-F6160 Duct-Ventilator, Lh8808--01 ~ ; ALL; NO.2 |
27871-F6160 |
US $28.37 |
||
|
27670
|
27670
27860-F6100 Duct-Ventilator, Center8602--01 ~ 8808--01; ALL |
27860-F6100 |
US $24.48 |
||
|
27670
|
27670
27860-F6160 Duct-Ventilator, Center8808--01 ~ ; ALL; |
27860-F6160 |
US $24.48 |
||
|
27670
|
27670
27860-F6100 Duct-Ventilator, Center8602--01 ~ 8808--01; ALL |
27860-F6100 |
US $24.48 |
||
|
27670
|
27670
27860-F6160 Duct-Ventilator, Center8808--01 ~ ; ALL; |
27860-F6160 |
US $24.48 |
||
|
27710E
|
27710E
0155301182 CLIP8602--01 ~ ; ALL |
0155301182 |
from US $0.59 |
||
|
27714M
|
27714M
68124-41L00 Bracket-Instrument Side, Lh8602--01 ~ ; ALL |
68124-41L00 |
US $7.06 |
||
