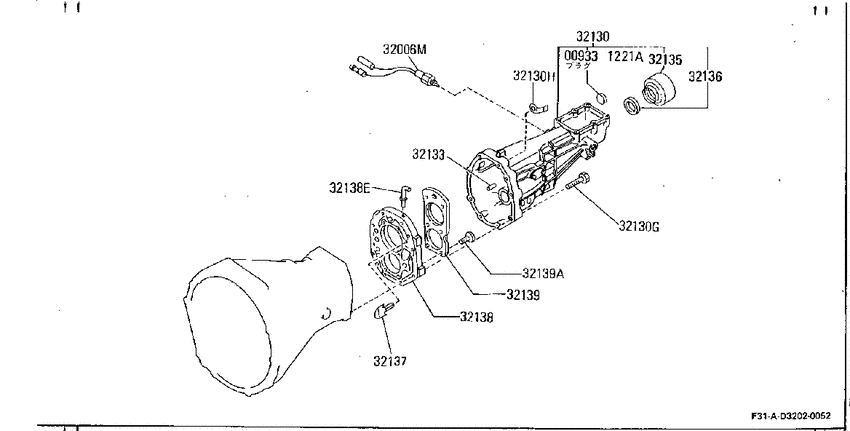

Transmission case (1986-02-01 ~ 1988-08-01; エクステンション; MT) Diagram Nissan LEOPARD
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- VG20E
- transmission
- MT
- grade
- XJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331221A
|
009331221A
00933-1221A PLUG |
00933-1221A |
from US $0.63 |
||
|
32006M
|
32006M
32006-K2405 Switch Assy-Neutral Position8602--01 ~ 8808--01; VG20E.MT |
32006-K2405 |
US $30.10 |
||
|
32130
|
32130
32130-V5011 Extension Assy-Rear8602--01 ~ 8808--01; VG20E.MT |
32130-V5011 |
US $344.09 |
||
| replacement | |||||
|
32130
|
32130
32130-V5012 Extension Assy-Rear8602--01 ~ 8808--01; VG20E.MT |
32130-V5012 |
US $344.09 |
||
|
32130
|
32130
32152-50L00 Bolt8602--01 ~ 8808--01; VG20E.MT |
32152-50L00 |
US $2.45 |
||
|
32130
|
32130
24210-89963 Clip-Wiring Harness8602--01 ~ 8808--01; VG20E.MT |
24210-89963 |
US $3.46 |
||
|
32130G
|
32130G
32152-50L00 Bolt8602--01 ~ 8808--01; VG20E.MT |
32152-50L00 |
US $2.45 |
||
|
32130H
|
32130H
24210-89963 Clip-Wiring Harness8602--01 ~ 8808--01; VG20E.MT |
24210-89963 |
US $3.46 |
||
|
32133
|
32133
32106-20100 Pin-Dowel8602--01 ~ 8808--01; VG20E.MT |
32106-20100 |
US $1.73 |
||
|
32135
|
32135
32135-V5010 Cover-Dust, Sleeve Yoke8602--01 ~ 8808--01; VG20E.MT |
32135-V5010 |
US $12.20 |
||
| replacement | |||||
|
32135
|
32135
32135V501A Cover-Dust, Sleeve Yoke8602--01 ~ 8808--01; VG20E.MT |
32135V501A |
from US $12.90 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
8602--01 ~ 8808--01; VG20E.MT |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension8602--01 ~ 8808--01; VG20E.MT |
32136-U010A |
from US $4.92 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter8602--01 ~ 8808--01; VG20E.MT |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-55S00
Plate-Adapter
8602--01 ~ 8610--01; VG20E.MT |
32138-55S00 |
— | ||
|
32138
|
32138
32138-55S01 Plate-Adapter8610--01 ~ 8808--01; VG20E.MT |
32138-55S01 |
US $70.99 |
||
|
32138
|
32138
38322-09L00 Breather8602--01 ~ 8808--01; VG20E.MT |
38322-09L00 |
US $4.03 |
||
|
32138E
|
32138E
38322-09L00 Breather8602--01 ~ 8808--01; VG20E.MT |
38322-09L00 |
US $4.03 |
||
|
32139
|
32139
32139-55S00 Retainer-Bearing8602--01 ~ 8608--01; VG20E.MT |
32139-55S00 |
US $22.32 |
||
|
32139
|
32139
32139-55S01 Retainer-Bearing8608--01 ~ 8808--01; VG20E.MT |
32139-55S01 |
US $16.99 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER8602--01 ~ 8808--01; VG20E.MT |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER8602--01 ~ 8808--01; VG20E.MT |
0114100021 |
US $2.91 |
||
