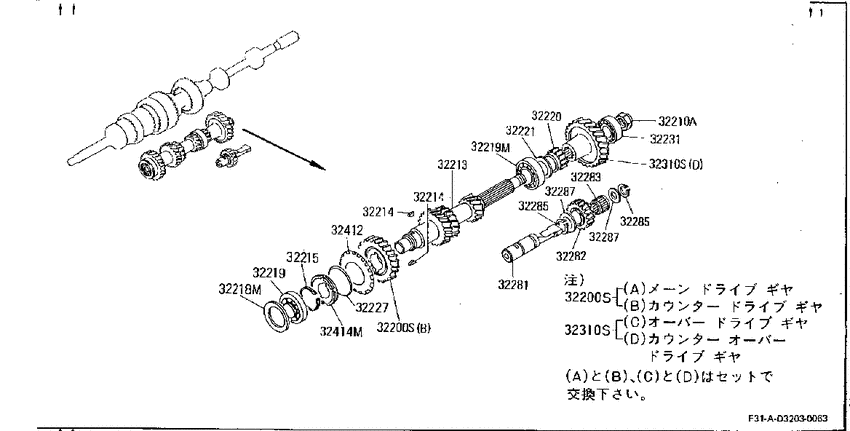

Transmission gear (1986-02-01 ~ 1988-08-01; カウンター&リバース ギヤ; MT) Diagram Nissan LEOPARD
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- VG20E
- transmission
- MT
- grade
- XJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200S
|
32200S
32200-V7050 Gear Set-Main & Counter Drive8602--01 ~ 8706--01; VG20E.MT |
32200-V7050 |
US $366.74 |
||
|
32200S
|
32200S
32200-V7051 ｷﾞﾔ ｾﾂﾄ,ﾒｲﾝ & ｶｳﾝﾀｰ ﾄﾞﾗｲﾌﾞ8706--01 ~ 8808--01; VG20E.MT |
32200-V7051 |
US $366.74 |
||
|
32200S
|
32200S
32200-V7050 Gear Set-Main & Counter Drive8602--01 ~ 8706--01; VG20E.MT |
32200-V7050 |
US $366.74 |
||
|
32200S
|
32200S
32200-V7051 ｷﾞﾔ ｾﾂﾄ,ﾒｲﾝ & ｶｳﾝﾀｰ ﾄﾞﾗｲﾌﾞ8706--01 ~ 8808--01; VG20E.MT |
32200-V7051 |
US $366.74 |
||
|
32200S
|
32200S
32200-V7050 Gear Set-Main & Counter Drive8602--01 ~ 8706--01; VG20E.MT |
32200-V7050 |
US $366.74 |
||
|
32200S
|
32200S
32200-V7051 ｷﾞﾔ ｾﾂﾄ,ﾒｲﾝ & ｶｳﾝﾀｰ ﾄﾞﾗｲﾌﾞ8706--01 ~ 8808--01; VG20E.MT |
32200-V7051 |
US $366.74 |
||
|
32210A
|
32210A
32236E9500 Nut8602--01 ~ 8808--01; VG20E.MT |
32236E9500 |
from US $5.99 |
||
|
32210A
|
32210A
32236E9500 Nut8602--01 ~ 8808--01; VG20E.MT |
32236E9500 |
from US $5.99 |
||
|
32210A
|
32210A
32236E9500 Nut8602--01 ~ 8808--01; VG20E.MT |
32236E9500 |
from US $5.99 |
||
|
32210A
|
32210A
32236E9500 Nut8602--01 ~ 8808--01; VG20E.MT |
32236E9500 |
from US $5.99 |
||
|
32213
|
32213
32212-55S60 Gear-Counter8602--01 ~ 8808--01; VG20E.MT |
32212-55S60 |
US $273.60 |
||
| replacement | |||||
|
32213
|
32213
32212-AA004 Gear-Counter8602--01 ~ 8808--01; VG20E.MT |
32212-AA004 |
US $273.60 |
||
|
32213
|
32213
32212-55S60 Gear-Counter8602--01 ~ 8808--01; VG20E.MT |
32212-55S60 |
US $273.60 |
||
| replacement | |||||
|
32213
|
32213
32212-AA004 Gear-Counter8602--01 ~ 8808--01; VG20E.MT |
32212-AA004 |
US $273.60 |
||
|
32214
|
32214
32214-58S60 Key-Woodruff8602--01 ~ 8808--01; VG20E.MT |
32214-58S60 |
US $1.73 |
||
|
32214
|
32214
32214-58S60 Key-Woodruff8602--01 ~ 8808--01; VG20E.MT |
32214-58S60 |
US $1.73 |
||
|
32214
|
32214
32214-58S60 Key-Woodruff8602--01 ~ 8808--01; VG20E.MT |
32214-58S60 |
US $1.73 |
||
|
32214
|
32214
32214-58S60 Key-Woodruff8602--01 ~ 8808--01; VG20E.MT |
32214-58S60 |
US $1.73 |
||
|
32215
|
32215
32215-E9000 Ring-Snap8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=1.4 |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=1.5 |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=1.6 |
32215-E9002 |
US $3.06 |
||
|
32215
|
32215
32215-E9000 Ring-Snap8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=1.4 |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=1.5 |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=1.6 |
32215-E9002 |
US $3.06 |
||
|
32218M
|
32218M
32218-V5000 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.1 |
32218-V5000 |
from US $3.76 |
||
|
32218M
|
32218M
32218-V5001 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.2 |
32218-V5001 |
from US $3.87 |
||
|
32218M
|
32218M
32218-V5002 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.3 |
32218-V5002 |
from US $3.63 |
||
|
32218M
|
32218M
32218-V5003 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.4 |
32218-V5003 |
from US $3.68 |
||
|
32218M
|
32218M
32218V5004 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.5 |
32218V5004 |
from US $2.98 |
||
|
32218M
|
32218M
32218V5005 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.6 |
32218V5005 |
from US $3.70 |
||
|
32218M
|
32218M
32218-V5000 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.1 |
32218-V5000 |
from US $3.76 |
||
|
32218M
|
32218M
32218-V5001 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.2 |
32218-V5001 |
from US $3.87 |
||
|
32218M
|
32218M
32218-V5002 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.3 |
32218-V5002 |
from US $3.63 |
||
|
32218M
|
32218M
32218-V5003 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.4 |
32218-V5003 |
from US $3.68 |
||
|
32218M
|
32218M
32218V5004 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.5 |
32218V5004 |
from US $2.98 |
||
|
32218M
|
32218M
32218V5005 Shim-Bearing8602--01 ~ 8808--01; VG20E.MT; ｾﾝﾀｸ T=0.6 |
32218V5005 |
from US $3.70 |
||
|
32219
|
32219
32219-V5201
Bearing-Counter Shaft
8602--01 ~ 8808--01; VG20E.MT |
32219-V5201 |
— | ||
| replacement | |||||
|
32219
|
32219
32219V5260 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32219V5260 |
from US $19.41 |
||
|
32219
|
32219
32203-V5201 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32203-V5201 |
US $13.70 |
||
|
32219
|
32219
32219-V5201
Bearing-Counter Shaft
8602--01 ~ 8808--01; VG20E.MT |
32219-V5201 |
— | ||
| replacement | |||||
|
32219
|
32219
32219V5260 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32219V5260 |
from US $19.41 |
||
|
32219
|
32219
32203-V5201 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32203-V5201 |
US $13.70 |
||
|
32219M
|
32219M
32203-V5201 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32203-V5201 |
US $13.70 |
||
|
32219M
|
32219M
32203-V5201 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32203-V5201 |
US $13.70 |
||
|
32220
|
32220
32220-V5000 Gear-Reverse, Counter8602--01 ~ 8808--01; VG20E.MT |
32220-V5000 |
US $45.65 |
||
| replacement | |||||
|
32220
|
32220
32220-V5070 Gear-Reverse, Counter8602--01 ~ 8808--01; VG20E.MT |
32220-V5070 |
US $45.65 |
||
|
32220
|
32220
32220-V5000 Gear-Reverse, Counter8602--01 ~ 8808--01; VG20E.MT |
32220-V5000 |
US $45.65 |
||
| replacement | |||||
|
32220
|
32220
32220-V5070 Gear-Reverse, Counter8602--01 ~ 8808--01; VG20E.MT |
32220-V5070 |
US $45.65 |
||
|
32221
|
32221
32221-E9800 Spacer-Counter Reverse Gear8602--01 ~ 8808--01; VG20E.MT |
32221-E9800 |
US $5.04 |
||
|
32221
|
32221
32221-E9800 Spacer-Counter Reverse Gear8602--01 ~ 8808--01; VG20E.MT |
32221-E9800 |
US $5.04 |
||
|
32227
|
32227
32415-55S60 Spring-Sub Gear, Counter Drive Gear8602--01 ~ 8808--01; VG20E.MT |
32415-55S60 |
from US $3.88 |
||
|
32227
|
32227
32415-55S60 Spring-Sub Gear, Counter Drive Gear8602--01 ~ 8808--01; VG20E.MT |
32415-55S60 |
from US $3.88 |
||
|
32231
|
32231
32319-N4800
Bearing-Counter Shaft
8602--01 ~ 8808--01; VG20E.MT |
32319-N4800 |
— | ||
| replacement | |||||
|
32231
|
32231
32319N4870 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32319N4870 |
from US $10.10 |
||
|
32231
|
32231
32319-N4800
Bearing-Counter Shaft
8602--01 ~ 8808--01; VG20E.MT |
32319-N4800 |
— | ||
| replacement | |||||
|
32231
|
32231
32319N4870 Bearing-Counter Shaft8602--01 ~ 8808--01; VG20E.MT |
32319N4870 |
from US $10.10 |
||
|
32281
|
32281
32281-E9810 Shaft-Reverse Idler8602--01 ~ 8808--01; VG20E.MT |
32281-E9810 |
US $29.81 |
||
|
32281
|
32281
32281-E9810 Shaft-Reverse Idler8602--01 ~ 8808--01; VG20E.MT |
32281-E9810 |
US $29.81 |
||
|
32282
|
32282
32282-55S00 Gear-Reverse Idler8602--01 ~ 8604--01; VG20E.MT |
32282-55S00 |
US $57.02 |
||
|
32282
|
32282
32282-55S01 Gear-Reverse Idler8604--01 ~ 8808--01; VG20E.MT |
32282-55S01 |
US $55.87 |
||
|
32282
|
32282
32282-55S00 Gear-Reverse Idler8602--01 ~ 8604--01; VG20E.MT |
32282-55S00 |
US $57.02 |
||
|
32282
|
32282
32282-55S01 Gear-Reverse Idler8604--01 ~ 8808--01; VG20E.MT |
32282-55S01 |
US $55.87 |
||
|
32283
|
32283
32272-E9810 Bearing-Reverse Idler Gear8602--01 ~ 8808--01; VG20E.MT |
32272-E9810 |
US $13.10 |
||
|
32283
|
32283
32272-E9810 Bearing-Reverse Idler Gear8602--01 ~ 8808--01; VG20E.MT |
32272-E9810 |
US $13.10 |
||
|
32285
|
32285
32285-20100 Ring-Snap8602--01 ~ 8808--01; VG20E.MT |
32285-20100 |
from US $2.92 |
||
|
32285
|
32285
32285-20100 Ring-Snap8602--01 ~ 8808--01; VG20E.MT |
32285-20100 |
from US $2.92 |
||
|
32285
|
32285
32285-20100 Ring-Snap8602--01 ~ 8808--01; VG20E.MT |
32285-20100 |
from US $2.92 |
||
|
32285
|
32285
32285-20100 Ring-Snap8602--01 ~ 8808--01; VG20E.MT |
32285-20100 |
from US $2.92 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler8602--01 ~ 8808--01; VG20E.MT |
32284-E9000 |
US $4.03 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler8602--01 ~ 8808--01; VG20E.MT |
32284-E9000 |
US $4.03 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler8602--01 ~ 8808--01; VG20E.MT |
32284-E9000 |
US $4.03 |
||
|
32287
|
32287
32284-E9000 Washer-Thrust, Reverse Idler8602--01 ~ 8808--01; VG20E.MT |
32284-E9000 |
US $4.03 |
||
|
32310S
|
32310S
3231055S50 Gear Set-Main & Counter Overdrive8602--01 ~ 8808--01; VG20E.MT |
3231055S50 |
US $359.66 |
||
|
32310S
|
32310S
3231055S50 Gear Set-Main & Counter Overdrive8602--01 ~ 8808--01; VG20E.MT |
3231055S50 |
US $359.66 |
||
|
32310S
|
32310S
3231055S50 Gear Set-Main & Counter Overdrive8602--01 ~ 8808--01; VG20E.MT |
3231055S50 |
US $359.66 |
||
|
32412
|
32412
32412-55S60 Gear-Sub, Counter Drive Gear8602--01 ~ 8808--01; VG20E.MT |
32412-55S60 |
US $11.23 |
||
|
32412
|
32412
32412-55S60 Gear-Sub, Counter Drive Gear8602--01 ~ 8808--01; VG20E.MT |
32412-55S60 |
US $11.23 |
||
|
32414M
|
32414M
3241458S60 Bracket-Sub Gear, Counter Drive Gear8602--01 ~ 8808--01; VG20E.MT |
3241458S60 |
from US $8.73 |
||
|
32414M
|
32414M
3241458S60 Bracket-Sub Gear, Counter Drive Gear8602--01 ~ 8808--01; VG20E.MT |
3241458S60 |
from US $8.73 |
||
