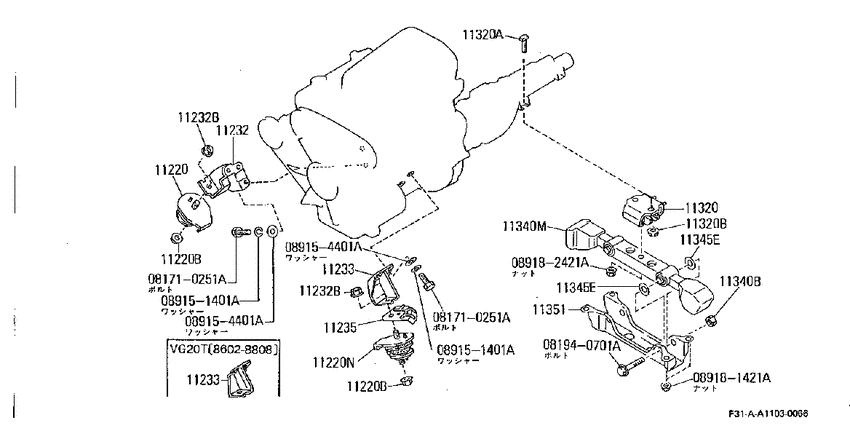

engine & transmission mounting (1986-02-01 ~ ; VG20E.AT) Diagram Nissan LEOPARD
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- VG20E
- transmission
- AT
- grade
- XJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081710251A
|
081710251A
081710251A
Bolt-hexagon
|
081710251A |
— | ||
|
081710251A
|
081710251A
081710251A
Bolt-hexagon
|
081710251A |
— | ||
|
081940701A
|
081940701A
08194-0701A
Bolt-hexagon
|
08194-0701A |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
089181421A
|
089181421A
08918-1421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08918-1421A |
— | ||
|
089182421A
|
089182421A
08918-2421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08918-2421A |
— | ||
|
11220
|
11220
11220-F6100 Insulator-Engine Mounting, Front8602--01 ~ ; VG20E; ﾐｷﾞ ﾖｳ |
11220-F6100 |
US $137.52 |
||
|
11220
|
11220
0122500062 NUT8602--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11220
|
11220
11220-F6100 Insulator-Engine Mounting, Front8602--01 ~ ; VG20E; ﾋﾀﾞﾘ ﾖｳ |
11220-F6100 |
US $137.52 |
||
|
11220B
|
11220B
0122500062 NUT8602--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11220B
|
11220B
0122500062 NUT8602--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11220N
|
11220N
11220-F6100 Insulator-Engine Mounting, Front8602--01 ~ ; VG20E; ﾋﾀﾞﾘ ﾖｳ |
11220-F6100 |
US $137.52 |
||
|
11232
|
11232
11232-F6300 Bracket-Engine Mounting, Rh8602--01 ~ ; ALL |
11232-F6300 |
US $67.25 |
||
|
11232
|
11232
0122500062 NUT8602--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11232B
|
11232B
0122500062 NUT8602--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11232B
|
11232B
0122500062 NUT8602--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11233
|
11233
11233-59L02 Bracket-Engine Mounting, Lh8602--01 ~ 8608--01; VG20E.XJ# |
11233-59L02 |
US $69.98 |
||
|
11233
|
11233
1123359L03 Bracket-Engine Mounting, Lh8608--01 ~ ; VG20E |
1123359L03 |
US $68.54 |
||
|
11233
|
11233
11233-59L02 Bracket-Engine Mounting, Lh8602--01 ~ 8608--01; VG20E.XJ# |
11233-59L02 |
US $69.98 |
||
|
11233
|
11233
1123359L03 Bracket-Engine Mounting, Lh8608--01 ~ ; VG20E |
1123359L03 |
US $68.54 |
||
|
11235
|
11235
11284-59L00 Plate-Heat Shield8602--01 ~ ; VG20E |
11284-59L00 |
US $6.91 |
||
|
11320
|
11320
11320-F6001 Insulator-Engine Mounting, Rear8602--01 ~ 8808--01; VG20E.AT VG30D |
11320-F6001 |
US $66.82 |
||
|
11320
|
11320
11322P0101 Bolt8602--01 ~ 8808--01; ALL |
11322P0101 |
US $3.31 |
||
|
11320
|
11320
11258D0101 Nut8602--01 ~ 8808--01; ALL |
11258D0101 |
from US $2.41 |
||
|
11320A
|
11320A
11322P0101 Bolt8602--01 ~ 8808--01; ALL |
11322P0101 |
US $3.31 |
||
|
11320B
|
11320B
11258D0101 Nut8602--01 ~ 8808--01; ALL |
11258D0101 |
from US $2.41 |
||
|
11340B
|
11340B
11258D0101 Nut8602--01 ~ 8808--01; -VG20E.AT VG20T.AT VG30D |
11258D0101 |
from US $2.41 |
||
|
11340M
|
11340M
11310-44L00 Member Assy-Engine Mount, Rear8602--01 ~ 8808--01; -VG20E.AT VG20T.AT VG30D |
11310-44L00 |
US $233.28 |
||
|
11345E
|
11345E
11346-41L00 Stopper-Mounting8602--01 ~ 8808--01; -VG20E.AT VG20T.AT VG30D |
11346-41L00 |
US $5.62 |
||
|
11345E
|
11345E
11346-41L00 Stopper-Mounting8602--01 ~ 8808--01; -VG20E.AT VG20T.AT VG30D |
11346-41L00 |
US $5.62 |
||
|
11351
|
11351
11350-F6500 Sub Member-Engine Mounting, Rear8602--01 ~ 8603--01; VG20E.AT VG20T.AT |
11350-F6500 |
US $55.87 |
||
|
11351
|
11351
11350-F6510 Sub Member-Engine Mounting, Rear8603--01 ~ 8808--01; VG20E.AT VG20T.AT |
11350-F6510 |
US $55.87 |
