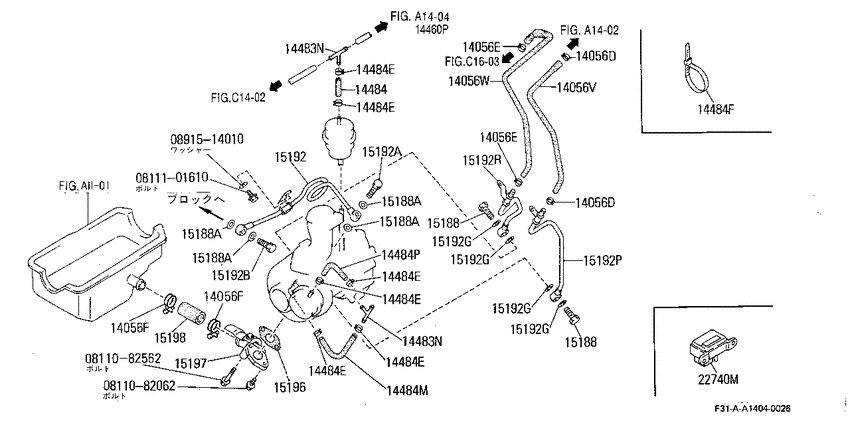

Turbo charger (1986-02-01 ~ 1988-08-01; パイピング; VG20T) Diagram Nissan LEOPARD
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- VG20T
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0811101610
|
0811101610
08111-01610
Bolt-hexagon
|
08111-01610 |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
14056D
|
14056D
16439-56S00
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-56S00 |
— | ||
| replacement | |||||
|
14056D
|
14056D
1643956S0A Clamp-Hose8602--01 ~ 8808--01; VG20T |
1643956S0A |
from US $3.44 |
||
|
14056D
|
14056D
16439-56S00
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-56S00 |
— | ||
| replacement | |||||
|
14056D
|
14056D
1643956S0A Clamp-Hose8602--01 ~ 8808--01; VG20T |
1643956S0A |
from US $3.44 |
||
|
14056E
|
14056E
01555-00261
CLAMP-HOSE
9602--01 ~ 9808--01; VG20T; ｺ-ﾄﾞ 14056F ﾆﾃ ﾋﾖｳｼﾞ |
01555-00261 |
— | ||
| replacements | |||||
|
14056E
|
14056E
0155500891 CLAMP-HOSE9602--01 ~ 9808--01; VG20T; ｺ-ﾄﾞ 14056F ﾆﾃ ﾋﾖｳｼﾞ |
0155500891 |
from US $2.89 |
||
|
14056E
|
14056E
A4465-05U11 Gasket9602--01 ~ 9808--01; VG20T; ｺ-ﾄﾞ 14056F ﾆﾃ ﾋﾖｳｼﾞ |
A4465-05U11 |
US $7.48 |
||
|
14056E
|
14056E
16439-H1000
Clamp-Hose, B
8602--01 ~ 8808--01; VG20T |
16439-H1000 |
— | ||
|
14056E
|
14056E
01555-00261
CLAMP-HOSE
9602--01 ~ 9808--01; VG20T; ｺ-ﾄﾞ 14056F ﾆﾃ ﾋﾖｳｼﾞ |
01555-00261 |
— | ||
| replacements | |||||
|
14056E
|
14056E
0155500891 CLAMP-HOSE9602--01 ~ 9808--01; VG20T; ｺ-ﾄﾞ 14056F ﾆﾃ ﾋﾖｳｼﾞ |
0155500891 |
from US $2.89 |
||
|
14056E
|
14056E
A4465-05U11 Gasket9602--01 ~ 9808--01; VG20T; ｺ-ﾄﾞ 14056F ﾆﾃ ﾋﾖｳｼﾞ |
A4465-05U11 |
US $7.48 |
||
|
14056E
|
14056E
16439-H1000
Clamp-Hose, B
8602--01 ~ 8808--01; VG20T |
16439-H1000 |
— | ||
|
14056F
|
14056F
01555-00261
CLAMP-HOSE
8602--01 ~ 8808--01; VG20T |
01555-00261 |
— | ||
| replacements | |||||
|
14056F
|
14056F
0155500891 CLAMP-HOSE8602--01 ~ 8808--01; VG20T |
0155500891 |
from US $2.89 |
||
|
14056F
|
14056F
A4465-05U11 Gasket8602--01 ~ 8808--01; VG20T |
A4465-05U11 |
US $7.48 |
||
|
14056F
|
14056F
01555-00261
CLAMP-HOSE
8602--01 ~ 8808--01; VG20T |
01555-00261 |
— | ||
| replacements | |||||
|
14056F
|
14056F
0155500891 CLAMP-HOSE8602--01 ~ 8808--01; VG20T |
0155500891 |
from US $2.89 |
||
|
14056F
|
14056F
A4465-05U11 Gasket8602--01 ~ 8808--01; VG20T |
A4465-05U11 |
US $7.48 |
||
|
14056V
|
14056V
14056-F6310 Hose-Water8602--01 ~ 8808--01; VG20T |
14056-F6310 |
US $13.54 |
||
|
14056W
|
14056W
14056-F6320 Hose-Water8602--01 ~ 8808--01; VG20T |
14056-F6320 |
US $27.07 |
||
|
14460P
|
14460P
14460-F6314 Tube-Inlet8602--01 ~ 8808--01; VG20T |
14460-F6314 |
US $288 |
||
|
14483N
|
14483N
17351-H1801 Connector-3 Way8602--01 ~ 8808--01; VG20T |
17351-H1801 |
US $20.88 |
||
|
14483N
|
14483N
17351-H1801 Connector-3 Way8602--01 ~ 8808--01; VG20T |
17351-H1801 |
US $20.88 |
||
|
14484
|
14484
02187-10523
HOSE-BOOST
8602--01 ~ 8808--01; VG20T; L=50 S/#A8761-M4901 |
02187-10523 |
— | ||
|
14484
|
14484
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484
|
14484
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484
|
14484
01552-00033 CLIP-HARNESS8502--01 ~ 8808--01; VG20T |
01552-00033 |
US $4.85 |
||
|
14484
|
14484
22318-V7020 Hose-Boost8602--01 ~ 8808--01; VG20T |
22318-V7020 |
US $8.93 |
||
|
14484
|
14484
22320-F6302 Hose Assy-Flapper Control8602--01 ~ 8808--01; VG20T |
22320-F6302 |
US $11.95 |
||
|
14484E
|
14484E
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484E
|
14484E
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484E
|
14484E
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484E
|
14484E
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484E
|
14484E
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484E
|
14484E
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484E
|
14484E
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484E
|
14484E
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484E
|
14484E
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484E
|
14484E
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484E
|
14484E
16439-N2100
Clamp-Hose
8602--01 ~ 8808--01; VG20T |
16439-N2100 |
— | ||
| replacement | |||||
|
14484E
|
14484E
16439N210A Clamp-Hose8602--01 ~ 8808--01; VG20T |
16439N210A |
from US $3.32 |
||
|
14484F
|
14484F
01552-00033 CLIP-HARNESS8502--01 ~ 8808--01; VG20T |
01552-00033 |
US $4.85 |
||
|
14484M
|
14484M
22318-V7020 Hose-Boost8602--01 ~ 8808--01; VG20T |
22318-V7020 |
US $8.93 |
||
|
14484P
|
14484P
22320-F6302 Hose Assy-Flapper Control8602--01 ~ 8808--01; VG20T |
22320-F6302 |
US $11.95 |
||
|
15188
|
15188
15188-V7000 Bolt-Eye, Water Tube8602--01 ~ 8808--01; VG20T |
15188-V7000 |
US $4.03 |
||
|
15188
|
15188
15193P9000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15193P9000 |
from US $2.44 |
||
|
15188
|
15188
15188-V7000 Bolt-Eye, Water Tube8602--01 ~ 8808--01; VG20T |
15188-V7000 |
US $4.03 |
||
|
15188
|
15188
15193P9000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15193P9000 |
from US $2.44 |
||
|
15188A
|
15188A
15193P9000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15193P9000 |
from US $2.44 |
||
|
15188A
|
15188A
15193P9000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15193P9000 |
from US $2.44 |
||
|
15188A
|
15188A
15193P9000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15193P9000 |
from US $2.44 |
||
|
15188A
|
15188A
15193P9000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15193P9000 |
from US $2.44 |
||
|
15192
|
15192
15192-V7000 Tube Assy-Oil8602--01 ~ 8808--01; VG20T |
15192-V7000 |
US $45.65 |
||
|
15192
|
15192
16432-P9000
Bolt-Eye
8602--01 ~ 8808--01; VG20T |
16432-P9000 |
— | ||
| replacement | |||||
|
15192
|
15192
16432P900A Bolt-Eye8602--01 ~ 8808--01; VG20T |
16432P900A |
US $9.69 |
||
|
15192
|
15192
16432-V5300 Bolt-Eye8602--01 ~ 8808--01; VG20T |
16432-V5300 |
US $4.32 |
||
| replacement | |||||
|
15192
|
15192
16432V530A
Eyebolt
8602--01 ~ 8808--01; VG20T |
16432V530A |
— | ||
|
15192
|
15192
15189V7000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15189V7000 |
US $2.45 |
||
|
15192
|
15192
14499-F6301 Tube Assy-Water Inlet8602--01 ~ 8808--01; VG20T |
14499-F6301 |
US $27.79 |
||
|
15192
|
15192
14498-F6301 Tube Assy-Water Outlet8602--01 ~ 8808--01; VG20T |
14498-F6301 |
US $25.49 |
||
|
15192A
|
15192A
16432-P9000
Bolt-Eye
8602--01 ~ 8808--01; VG20T |
16432-P9000 |
— | ||
| replacement | |||||
|
15192A
|
15192A
16432P900A Bolt-Eye8602--01 ~ 8808--01; VG20T |
16432P900A |
US $9.69 |
||
|
15192B
|
15192B
16432-V5300 Bolt-Eye8602--01 ~ 8808--01; VG20T |
16432-V5300 |
US $4.32 |
||
| replacement | |||||
|
15192B
|
15192B
16432V530A
Eyebolt
8602--01 ~ 8808--01; VG20T |
16432V530A |
— | ||
|
15192G
|
15192G
15189V7000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15189V7000 |
US $2.45 |
||
|
15192G
|
15192G
15189V7000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15189V7000 |
US $2.45 |
||
|
15192G
|
15192G
15189V7000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15189V7000 |
US $2.45 |
||
|
15192G
|
15192G
15189V7000 Gasket-Eye Bolt8602--01 ~ 8808--01; VG20T |
15189V7000 |
US $2.45 |
||
|
15192P
|
15192P
14499-F6301 Tube Assy-Water Inlet8602--01 ~ 8808--01; VG20T |
14499-F6301 |
US $27.79 |
||
|
15192R
|
15192R
14498-F6301 Tube Assy-Water Outlet8602--01 ~ 8808--01; VG20T |
14498-F6301 |
US $25.49 |
||
|
15196
|
15196
15196-P7600 Turbocharger Oil Outlet Gasket8602--01 ~ 8808--01; VG20T |
15196-P7600 |
US $2.45 |
||
| replacement | |||||
|
15196
|
15196
1519673L00 Turbocharger Oil Outlet Gasket8602--01 ~ 8808--01; VG20T |
1519673L00 |
from US $1.05 |
||
|
15197
|
15197
15197-F6300 Turbocharger Oil Outlet8602--01 ~ 8808--01; VG20T |
15197-F6300 |
US $34.85 |
||
|
15198
|
15198
15198-F6300 Turbocharger Oil Hose8602--01 ~ 8808--01; VG20T |
15198-F6300 |
US $34.85 |
||
|
15198
|
15198
14464W1502 Clamp-Hose8602--01 ~ 8808--01; VG20T |
14464W1502 |
US $13.25 |
||
|
22740M
|
22740M
2236559S00 Sensor-Boost Pressure8602--01 ~ 8808--01; VG20T |
2236559S00 |
US $201.60 |
||
