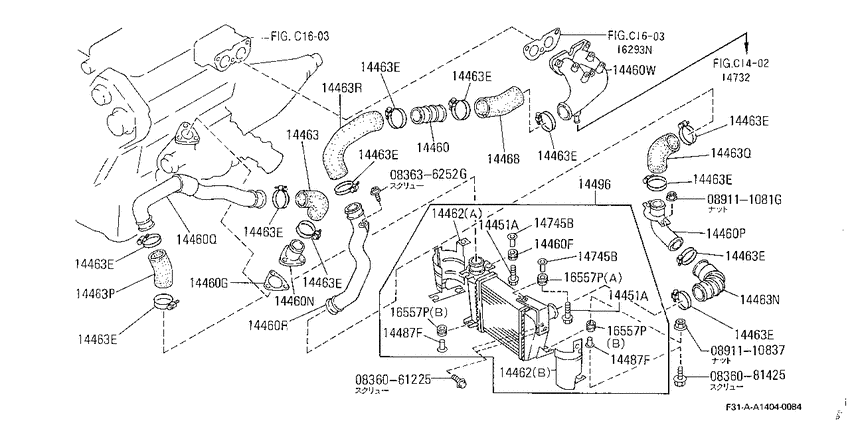

Turbo charger (1988-08-01 ~ ; インタークーラー; VG20DT) Diagram Nissan LEOPARD
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG20DT
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836061225
|
0836061225
08360-61225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61225 |
— | ||
|
0836081425
|
0836081425
08360-81425
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81425 |
— | ||
|
083636252G
|
083636252G
083636252G SCREWMACHINE |
083636252G |
US $1.83 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
14451A
|
14451A
14749-59S00 Bolt8808--01 ~ ; VG20DT; |
14749-59S00 |
US $2.16 |
||
|
14451A
|
14451A
14749-59S00 Bolt8808--01 ~ ; VG20DT; |
14749-59S00 |
US $2.16 |
||
|
14460
|
14460
14460-F6203 Tube Assy-Inlet8808--01 ~ ; VG20DT |
14460-F6203 |
US $146.88 |
||
|
14460
|
14460
14746-59S00 Mounting Rubber8808--01 ~ ; VG20DT; |
14746-59S00 |
US $4.75 |
||
|
14460
|
14460
14465-26E00
GASKET-INLET TUBE
8808--01 ~ ; VG20DT |
14465-26E00 |
— | ||
| replacement | |||||
|
14460
|
14460
A4465-40P03 Gasket-inlet tu8808--01 ~ ; VG20DT |
A4465-40P03 |
US $10.12 |
||
|
14460
|
14460
14460-F6220 Tube-Inlet8808--01 ~ ; VG20DT |
14460-F6220 |
US $38.16 |
||
|
14460
|
14460
14460-80S01 Tube-Inlet8808--01 ~ ; VG20DT |
14460-80S01 |
US $188.64 |
||
|
14460
|
14460
14460-F6205 Tube-Inlet8808--01 ~ ; VG20DT |
14460-F6205 |
US $645.70 |
||
|
14460
|
14460
14460-F6201 Tube-Inlet8808--01 ~ ; VG20DT |
14460-F6201 |
US $645.70 |
||
|
14460
|
14460
16579-F6210 Tube Assy-Inlet8808--01 ~ ; VG20DT |
16579-F6210 |
US $273.60 |
||
|
14460F
|
14460F
14746-59S00 Mounting Rubber8808--01 ~ ; VG20DT; |
14746-59S00 |
US $4.75 |
||
|
14460G
|
14460G
14465-26E00
GASKET-INLET TUBE
8808--01 ~ ; VG20DT |
14465-26E00 |
— | ||
| replacement | |||||
|
14460G
|
14460G
A4465-40P03 Gasket-inlet tu8808--01 ~ ; VG20DT |
A4465-40P03 |
US $10.12 |
||
|
14460N
|
14460N
14460-F6220 Tube-Inlet8808--01 ~ ; VG20DT |
14460-F6220 |
US $38.16 |
||
|
14460P
|
14460P
14460-80S01 Tube-Inlet8808--01 ~ ; VG20DT |
14460-80S01 |
US $188.64 |
||
|
14460Q
|
14460Q
14460-F6205 Tube-Inlet8808--01 ~ ; VG20DT |
14460-F6205 |
US $645.70 |
||
|
14460R
|
14460R
14460-F6201 Tube-Inlet8808--01 ~ ; VG20DT |
14460-F6201 |
US $645.70 |
||
|
14460W
|
14460W
16579-F6210 Tube Assy-Inlet8808--01 ~ ; VG20DT |
16579-F6210 |
US $273.60 |
||
|
14462
|
14462
14462-F6200 Charge Air Cooler Cover8808--01 ~ ; VG20DT; A |
14462-F6200 |
US $145.44 |
||
|
14462
|
14462
14462-F6201 Charge Air Cooler Cover8808--01 ~ ; VG20DT; B |
14462-F6201 |
US $145.44 |
||
|
14462
|
14462
14462-F6200 Charge Air Cooler Cover8808--01 ~ ; VG20DT; A |
14462-F6200 |
US $145.44 |
||
|
14462
|
14462
14462-F6201 Charge Air Cooler Cover8808--01 ~ ; VG20DT; B |
14462-F6201 |
US $145.44 |
||
|
14463
|
14463
14463-F6213 Turbocharger Tube Hose8808--01 ~ ; VG20DT |
14463-F6213 |
US $72.86 |
||
|
14463
|
14463
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463
|
14463
14463-59S05 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-59S05 |
US $58.32 |
||
|
14463
|
14463
14463-F6208 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-F6208 |
US $72.86 |
||
|
14463
|
14463
14463-F6209 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-F6209 |
US $72.86 |
||
|
14463
|
14463
14463-F6210 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-F6210 |
US $72.86 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463E
|
14463E
14464W1502 Clamp-Hose8808--01 ~ ; VG20DT |
14464W1502 |
US $13.25 |
||
|
14463N
|
14463N
14463-59S05 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-59S05 |
US $58.32 |
||
|
14463P
|
14463P
14463-F6208 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-F6208 |
US $72.86 |
||
|
14463Q
|
14463Q
14463-F6209 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-F6209 |
US $72.86 |
||
|
14463R
|
14463R
14463-F6210 Hose-Air Inlet8808--01 ~ ; VG20DT |
14463-F6210 |
US $72.86 |
||
|
14468
|
14468
14463-F6211 Hose-Suction Air8808--01 ~ ; VG20DT |
14463-F6211 |
US $72.86 |
||
|
14487F
|
14487F
1474759S10 Collar-Mounting Rubber8808--01 ~ ; VG20DT |
1474759S10 |
US $13.10 |
||
|
14487F
|
14487F
1474759S10 Collar-Mounting Rubber8808--01 ~ ; VG20DT |
1474759S10 |
US $13.10 |
||
|
14496
|
14496
14461-F6200 Charge Air Cooler8808--01 ~ ; VG20DT; |
14461-F6200 |
US $2,170 |
||
|
14745B
|
14745B
14747-59S00 Collar-Mounting Rubber8808--01 ~ ; VG20DT |
14747-59S00 |
US $13.10 |
||
|
14745B
|
14745B
14747-59S00 Collar-Mounting Rubber8808--01 ~ ; VG20DT |
14747-59S00 |
US $13.10 |
||
|
16557P
|
16557P
14746-59S05 Mounting Rubber8808--01 ~ ; VG20DT; (A) |
14746-59S05 |
US $2.45 |
||
|
16557P
|
16557P
1474659S10 Mounting Rubber8808--01 ~ ; VG20DT; (B) |
1474659S10 |
US $2.45 |
||
|
16557P
|
16557P
14746-59S05 Mounting Rubber8808--01 ~ ; VG20DT; (A) |
14746-59S05 |
US $2.45 |
||
|
16557P
|
16557P
1474659S10 Mounting Rubber8808--01 ~ ; VG20DT; (B) |
1474659S10 |
US $2.45 |
||
|
16557P
|
16557P
14746-59S05 Mounting Rubber8808--01 ~ ; VG20DT; (A) |
14746-59S05 |
US $2.45 |
||
|
16557P
|
16557P
1474659S10 Mounting Rubber8808--01 ~ ; VG20DT; (B) |
1474659S10 |
US $2.45 |
||
