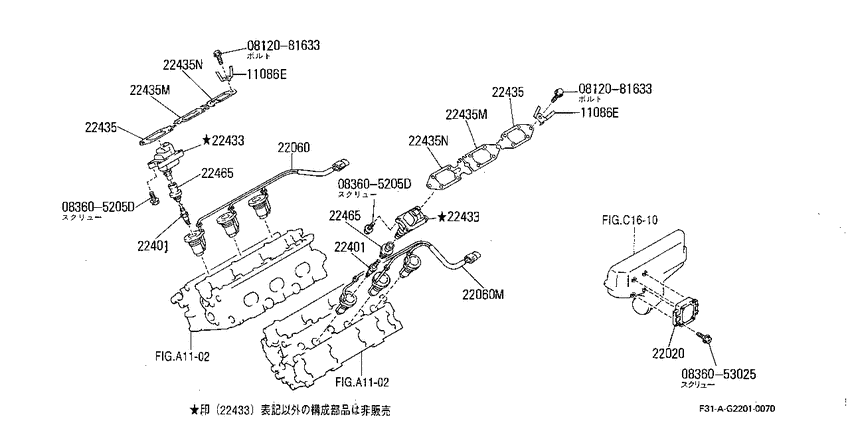

Ignition System (1988-08-01 ~ ; VG30DT) Diagram Nissan LEOPARD
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- ULTIMA/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812081633
|
0812081633
08120-81633
Bolt-hexagon
|
08120-81633 |
— | ||
|
0812081633
|
0812081633
08120-81633
Bolt-hexagon
|
08120-81633 |
— | ||
|
083605205D
|
083605205D
08360-5205D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5205D |
— | ||
|
083605205D
|
083605205D
08360-5205D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5205D |
— | ||
|
0836053025
|
0836053025
08360-53025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-53025 |
— | ||
|
11086E
|
11086E
24201-F6510 Clamp8808--01 ~ ; VG20DT VG30DT; |
24201-F6510 |
US $2.45 |
||
|
11086E
|
11086E
24201-F6510 Clamp8808--01 ~ ; VG20DT VG30DT; |
24201-F6510 |
US $2.45 |
||
|
22020
|
22020
22020-58S11 Transistor Ignition Unit8808--01 ~ ; VG20DT VG30DT; ﾐﾂﾋﾞｼ |
22020-58S11 |
US $679.68 |
||
| replacement | |||||
|
22020
|
22020
22020-58S12
Transistor ignition unit
8808--01 ~ ; VG20DT VG30DT; ﾐﾂﾋﾞｼ |
22020-58S12 |
— | ||
|
22060
|
22060
22060-45V00 Knock Sensor8808--01 ~ ; VG30DT; ﾐｷﾞｶﾞﾜ JECS |
22060-45V00 |
US $218.88 |
||
|
22060
|
22060
22060-45V10 Knock Sensor8808--01 ~ ; VG30DT; ﾐｷﾞｶﾞﾜ NTK |
22060-45V10 |
US $218.88 |
||
|
22060
|
22060
22060-45V05 Knock Sensor8808--01 ~ ; VG30DT; ﾋﾀﾞﾘｶﾞﾜ JECS |
22060-45V05 |
US $218.88 |
||
|
22060
|
22060
22060-45V15 Knock Sensor8808--01 ~ ; VG30DT; ﾋﾀﾞﾘｶﾞﾜ NTK |
22060-45V15 |
US $218.88 |
||
|
22060M
|
22060M
22060-45V05 Knock Sensor8808--01 ~ ; VG30DT; ﾋﾀﾞﾘｶﾞﾜ JECS |
22060-45V05 |
US $218.88 |
||
|
22060M
|
22060M
22060-45V15 Knock Sensor8808--01 ~ ; VG30DT; ﾋﾀﾞﾘｶﾞﾜ NTK |
22060-45V15 |
US $218.88 |
||
|
22401
|
22401
22401-F6515 Plug-Spark8808--01 ~ ; VG30DT; PFR5A-11A ﾋﾖｳｼﾞﾕﾝ[B512] |
22401-F6515 |
US $21.60 |
||
|
22401
|
22401
22401F6516 Plug-Spark8808--01 ~ ; VG30DT; PFR6A-11A[B512] |
22401F6516 |
US $21.60 |
||
|
22401
|
22401
22401-F6517 Plug-Spark8808--01 ~ ; VG30DT; PFR7A-11A[B512] |
22401-F6517 |
US $21.60 |
||
|
22401
|
22401
22401-F6515 Plug-Spark8808--01 ~ ; VG30DT; PFR5A-11A ﾋﾖｳｼﾞﾕﾝ[B512] |
22401-F6515 |
US $21.60 |
||
|
22401
|
22401
22401F6516 Plug-Spark8808--01 ~ ; VG30DT; PFR6A-11A[B512] |
22401F6516 |
US $21.60 |
||
|
22401
|
22401
22401-F6517 Plug-Spark8808--01 ~ ; VG30DT; PFR7A-11A[B512] |
22401-F6517 |
US $21.60 |
||
|
22433
|
22433
22433-59S10
Coil Assy-Ignition
8808--01 ~ 8811--01; VG20DT+VG30#; ﾊﾝｼﾝ |
22433-59S10 |
— | ||
|
22433
|
22433
22433-59S11
Coil Assy-Ignition
8811--01 ~ ; VG20DT+VG30#; ﾊﾝｼﾝ MCP-200 |
22433-59S11 |
— | ||
| replacement | |||||
|
22433
|
22433
2243359S12 Coil Assy-Ignition8811--01 ~ ; VG20DT+VG30#; ﾊﾝｼﾝ MCP-200 |
2243359S12 |
US $202.37 |
||
|
22433
|
22433
22433-59S60
Coil Assy-Ignition
8808--01 ~ ; VG20DT VG30DT; ﾐﾂﾋﾞｼ |
22433-59S60 |
— | ||
|
22433
|
22433
22433-59S10
Coil Assy-Ignition
8808--01 ~ 8811--01; VG20DT+VG30#; ﾊﾝｼﾝ |
22433-59S10 |
— | ||
|
22433
|
22433
22433-59S11
Coil Assy-Ignition
8811--01 ~ ; VG20DT+VG30#; ﾊﾝｼﾝ MCP-200 |
22433-59S11 |
— | ||
| replacement | |||||
|
22433
|
22433
2243359S12 Coil Assy-Ignition8811--01 ~ ; VG20DT+VG30#; ﾊﾝｼﾝ MCP-200 |
2243359S12 |
US $202.37 |
||
|
22433
|
22433
22433-59S60
Coil Assy-Ignition
8808--01 ~ ; VG20DT VG30DT; ﾐﾂﾋﾞｼ |
22433-59S60 |
— | ||
|
22433
|
22433
22433-59S10
Coil Assy-Ignition
8808--01 ~ 8811--01; VG20DT+VG30#; ﾊﾝｼﾝ |
22433-59S10 |
— | ||
|
22433
|
22433
22433-59S11
Coil Assy-Ignition
8811--01 ~ ; VG20DT+VG30#; ﾊﾝｼﾝ MCP-200 |
22433-59S11 |
— | ||
| replacement | |||||
|
22433
|
22433
2243359S12 Coil Assy-Ignition8811--01 ~ ; VG20DT+VG30#; ﾊﾝｼﾝ MCP-200 |
2243359S12 |
US $202.37 |
||
|
22433
|
22433
22433-59S60
Coil Assy-Ignition
8808--01 ~ ; VG20DT VG30DT; ﾐﾂﾋﾞｼ |
22433-59S60 |
— | ||
|
22435
|
22435
22435-F6505 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6505 |
US $26.78 |
||
|
22435
|
22435
22435-F6506 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6506 |
US $26.78 |
||
|
22435
|
22435
22435-F6507 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6507 |
US $26.78 |
||
|
22435
|
22435
22435-F6505 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6505 |
US $26.78 |
||
|
22435
|
22435
22435-F6506 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6506 |
US $26.78 |
||
|
22435
|
22435
22435-F6507 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6507 |
US $26.78 |
||
|
22435M
|
22435M
22435-F6506 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6506 |
US $26.78 |
||
|
22435M
|
22435M
22435-F6506 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6506 |
US $26.78 |
||
|
22435N
|
22435N
22435-F6507 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6507 |
US $26.78 |
||
|
22435N
|
22435N
22435-F6507 Bracket-Ignition Coil8808--01 ~ ; VG20DT VG30DT; |
22435-F6507 |
US $26.78 |
||
|
22465
|
22465
22465-F6501 Protector-Ignition Coil8808--01 ~ ; VG30DT; ﾔｻﾞｷ |
22465-F6501 |
US $10.51 |
||
|
22465
|
22465
22465-F6501 Protector-Ignition Coil8808--01 ~ ; VG30DT; ﾔｻﾞｷ |
22465-F6501 |
US $10.51 |
||
