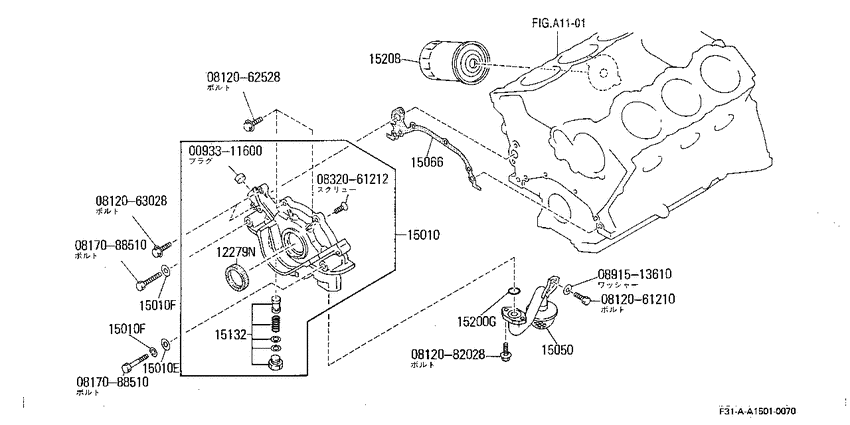

Lubricating system (1988-08-01 ~ ; VG20DT+VG30DT) Diagram Nissan LEOPARD
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- ULTIMA/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061210
|
0812061210
08120-61210
Bolt-hexagon
|
08120-61210 |
— | ||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0817088510
|
0817088510
08170-88510
Bolt-hexagon
|
08170-88510 |
— | ||
|
0817088510
|
0817088510
08170-88510
Bolt-hexagon
|
08170-88510 |
— | ||
|
0832061212
|
0832061212
08320-61212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-61212 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
12279N
|
12279N
13042-42L00
Seal-Oil, Crankshaft Front
8808--01 ~ ; VG20DT+VG30#; |
13042-42L00 |
— | ||
| replacement | |||||
|
12279N
|
12279N
13042-16V0A SI - Le, oil camsiyaft8808--01 ~ ; VG20DT+VG30#; |
13042-16V0A |
from US $7.09 |
||
|
15010
|
15010
15010-16V00 Pump Assy-Oil8808--01 ~ 9007--01; VG30DT; |
15010-16V00 |
US $342.67 |
||
|
15010
|
15010
1501071V00 Pump Assy-Oil9007--01 ~ ; VG30DT; |
1501071V00 |
US $412.06 |
||
|
15010
|
15010
01311-00131 WASHER-PLAIN8808--01 ~ ; VG20DT+VG30DT; |
01311-00131 |
US $2.45 |
||
|
15010E
|
15010E
01311-00131 WASHER-PLAIN8808--01 ~ ; VG20DT+VG30DT; |
01311-00131 |
US $2.45 |
||
|
15050
|
15050
15050-45V00 Strainer Assy-Oil8808--01 ~ ; VG20DT+VG30# |
15050-45V00 |
US $33.26 |
||
|
15066
|
15066
15066-30P00 Gasket-Oil Pump To Cylinder Block9002--01 ~ ; VG20DT+VG30D+VG30DT |
15066-30P00 |
US $4.18 |
||
|
15066
|
15066
15066-F6500 Gasket-Oil Pump To Cylinder Block8808--01 ~ 9002--01; VG20DT+VG30D+VG30DT; |
15066-F6500 |
US $4.18 |
||
|
15132
|
15132
15132-16V00 Valve Assy-Oil Regulator8808--01 ~ ; VG30DT; |
15132-16V00 |
US $13.10 |
||
|
15200G
|
15200G
15053-F6500 Seal-O Ring8808--01 ~ ; VG20DT+VG30D+VG30DT |
15053-F6500 |
US $3.46 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil8808--01 ~ ; VG30D+VG30DT |
AY100NS007 |
US $11.13 |
||
|
15208
|
15208
15213-21001 Stud-Oil Filter8808--01 ~ ; VG20DT+VG30D+VG30DT; |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15208
|
15208
15213-W040A Stud-oil filter8808--01 ~ ; VG20DT+VG30D+VG30DT; |
15213-W040A |
US $5.81 |
||
