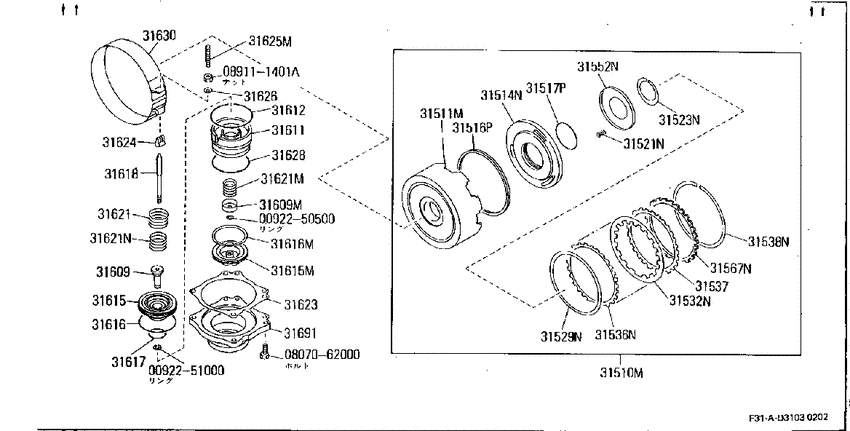

Oil pump & clutch (1988-08-01 ~ ; サーボ&リバース クラッチ; RE4R03A VG30DT) Diagram Nissan LEOPARD
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- ULTIMA/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250500
|
0092250500
00922-50500
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50500 |
— | ||
|
0092251000
|
0092251000
00922-51000
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-51000 |
— | ||
|
0807062000
|
0807062000
08070-62000
Bolt-hexagon
|
08070-62000 |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
31510M
|
31510M
31510-51X00 Clutch Assy-Reverse8808--01 ~ 8810--01; VG30DT.AT; |
31510-51X00 |
US $298.78 |
||
|
31510M
|
31510M
31510-51X02 Clutch Assy-Reverse8810--01 ~ ; VG30DT.AT |
31510-51X02 |
US $298.78 |
||
|
31511M
|
31511M
31511-51X00 Drum-Reverse Clutch8808--01 ~ 8810--01; VG30DT.AT; |
31511-51X00 |
US $158.40 |
||
|
31511M
|
31511M
31511-51X02 Drum-Reverse Clutch8810--01 ~ ; VG30DT.AT |
31511-51X02 |
US $158.40 |
||
|
31514N
|
31514N
31514-51X00 Piston Assy-Clutch8808--01 ~ 8907--01; VG30DT.AT; |
31514-51X00 |
US $83.52 |
||
|
31514N
|
31514N
31514-51X01 Piston Assy-Clutch8907--01 ~ ; VG30DT |
31514-51X01 |
US $83.52 |
||
|
31516P
|
31516P
31516-21X01
Seal-Lip
8808--01 ~ ; VG30DT.AT |
31516-21X01 |
— | ||
| replacement | |||||
|
31516P
|
31516P
C1516-21X01 Seal-lip8808--01 ~ ; VG30DT.AT |
C1516-21X01 |
US $11.79 |
||
|
31517P
|
31517P
31527-51X03 Seal-Lathe Cut Ring8808--01 ~ ; VG30DT.AT; |
31527-51X03 |
US $4.18 |
||
|
31521N
|
31521N
31505-51X00 Spring-Piston Return8808--01 ~ ; VG30DT.AT; |
31505-51X00 |
US $0.86 |
||
|
31521N
|
31521N
31521-X0100 Spring-Piston Return8602--01 ~ 8808--01; AT |
31521-X0100 |
US $6.48 |
||
|
31523N
|
31523N
31506-51X06 Ring-Snap8808--01 ~ ; VG30DT.AT; |
31506-51X06 |
US $1.73 |
||
|
31523N
|
31523N
31523-X0100 Ring-Snap8602--01 ~ 8808--01; AT |
31523-X0100 |
US $2.45 |
||
|
31529N
|
31529N
31529-X0100 Plate-Dished8602--01 ~ 8808--01; AT |
31529-X0100 |
US $10.51 |
||
|
31529N
|
31529N
31535-51X03 Plate-Dished8808--01 ~ 8810--01; VG30DT.AT; |
31535-51X03 |
US $10.80 |
||
|
31529N
|
31529N
31535-51X05 Plate-Dished8810--01 ~ ; VG30DT.AT |
31535-51X05 |
US $10.80 |
||
|
31532N
|
31532N
31532-51X05 Plate Assy-Drive8808--01 ~ ; VG30DT.AT; |
31532-51X05 |
US $16.47 |
||
|
31532N
|
31532N
31532-X0102
Plate Assy-Drive
8602--01 ~ 8808--01; AT |
31532-X0102 |
— | ||
|
31536N
|
31536N
31536-51X00 Plate-Driven8808--01 ~ ; VG30DT.AT |
31536-51X00 |
US $12.53 |
||
|
31536N
|
31536N
31536-X0100 Plate-Driven8602--01 ~ 8808--01; AT |
31536-X0100 |
US $5.55 |
||
|
31537
|
31537
31537-51X00 Plate-Retaining8808--01 ~ 8810--01; VG30DT.AT; |
31537-51X00 |
US $22.90 |
||
|
31537
|
31537
31537-51X18 Plate-Retaining8810--01 ~ ; VG30DT.AT |
31537-51X18 |
US $31.82 |
||
|
31538N
|
31538N
31506-51X02 Ring-Snap8808--01 ~ ; VG30DT.AT; |
31506-51X02 |
US $6.19 |
||
|
31538N
|
31538N
31538-X0100 Ring-Snap8602--01 ~ 8808--01; AT |
31538-X0100 |
US $6.48 |
||
|
31552N
|
31552N
31522-51X00 Retainer-Spring8808--01 ~ ; VG30DT.AT; |
31522-51X00 |
US $4.18 |
||
|
31552N
|
31552N
31552-X0103 Retainer-Spring8602--01 ~ 8808--01; AT |
31552-X0103 |
US $2.45 |
||
|
31567N
|
31567N
31537-51X00 Plate-Retaining8808--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.6 |
31537-51X00 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X01 Plate-Retaining8808--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.8 |
31537-51X01 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X02 Plate-Retaining8808--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=5.0 |
31537-51X02 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X03 Plate-Retaining8808--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=5.2 |
31537-51X03 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X04 Plate-Retaining8808--01 ~ 8810--01; VG30DT.AT; ｾﾝﾀｸ T=5.4 |
31537-51X04 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X61 Plate-Retaining8808--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.4 |
31537-51X61 |
US $31.82 |
||
|
31567N
|
31567N
31567-X2900 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=5.0 |
31567-X2900 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2901 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=5.2 |
31567-X2901 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2902 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=5.4 |
31567-X2902 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2903 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=5.6 |
31567-X2903 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2904 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=5.8 |
31567-X2904 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2905 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=6.0 |
31567-X2905 |
US $12.96 |
||
|
31567N
|
31567N
31567-X2906 Plate-Retaining8602--01 ~ 8808--01; AT; ｾﾝﾀｸ T=6.2 |
31567-X2906 |
US $12.96 |
||
|
31577N
|
31577N
31527-51X05
Seal-Lathe Cut Ring
8808--01 ~ ; VG30DT.AT |
31527-51X05 |
— | ||
|
31609
|
31609
31621-41X01 Retainer-Return Spring Servo8808--01 ~ ; VG30DT.AT; |
31621-41X01 |
US $6.05 |
||
| replacement | |||||
|
31609
|
31609
31618-71X01 Stem-Band Servo Piston8808--01 ~ ; VG30DT.AT; |
31618-71X01 |
US $9.07 |
||
|
31609
|
31609
31622-41X00 Retainer-Spring, Servo Piston8808--01 ~ ; VG30DT.AT |
31622-41X00 |
US $1.73 |
||
|
31609M
|
31609M
31622-41X00 Retainer-Spring, Servo Piston8808--01 ~ ; VG30DT.AT |
31622-41X00 |
US $1.73 |
||
|
31611
|
31611
31611-51X01 Retainer-Servo Piston8808--01 ~ ; VG30DT.AT; 2ND ｻ-ﾎﾞ |
31611-51X01 |
US $47.66 |
||
|
31611
|
31611
31611-X8502 Retainer-Servo Piston8602--01 ~ 8808--01; AT; 72-44 |
31611-X8502 |
US $30.24 |
||
|
31611
|
31611
01121-00391 BOLT8602--01 ~ 8808--01; AT |
01121-00391 |
US $2.45 |
||
|
31612
|
31612
31526-51X02 Seal-Lathe Cut Ring8808--01 ~ ; VG30DT.AT; |
31526-51X02 |
US $2.45 |
||
|
31612
|
31612
31612-X0300 Seal-Lathe Cut Ring8602--01 ~ 8808--01; AT |
31612-X0300 |
US $2.36 |
||
|
31615
|
31615
31615-51X01 Piston-Band Servo8808--01 ~ ; VG30DT.AT; 2ND ｻ-ﾎﾞ |
31615-51X01 |
US $36.86 |
||
|
31615
|
31615
31615-X8502 Piston-Band Servo8602--01 ~ 8808--01; AT; 72-44 |
31615-X8502 |
US $22.61 |
||
|
31615
|
31615
31695-51X02 Piston-Overdrive Servo8808--01 ~ ; VG30DT.AT; |
31695-51X02 |
US $14.40 |
||
|
31615M
|
31615M
31695-51X02 Piston-Overdrive Servo8808--01 ~ ; VG30DT.AT; |
31695-51X02 |
US $14.40 |
||
|
31616
|
31616
31527-41X00 Seal-Lathe Cut Ring8808--01 ~ ; VG30DT.AT; |
31527-41X00 |
US $4.75 |
||
|
31616
|
31616
31616-X0300 Seal-Lathe Cut Ring8602--01 ~ 8808--01; AT; 72 |
31616-X0300 |
US $2.88 |
||
|
31616
|
31616
31527-51X04 Seal-Ring, Overdrive Servo Piston8808--01 ~ ; VG30DT.AT; |
31527-51X04 |
US $4.18 |
||
|
31616M
|
31616M
31527-51X04 Seal-Ring, Overdrive Servo Piston8808--01 ~ ; VG30DT.AT; |
31527-51X04 |
US $4.18 |
||
|
31617
|
31617
31527-41X01 Seal-Lathe Cut Ring8808--01 ~ ; VG30DT.AT; |
31527-41X01 |
US $4.75 |
||
|
31617
|
31617
31617-X0100 Seal-Lathe Cut Ring8602--01 ~ 8808--01; AT; 44 |
31617-X0100 |
US $2.68 |
||
|
31618
|
31618
31618-51X00 Stem-Band Servo Piston8808--01 ~ ; VG30DT.AT |
31618-51X00 |
US $9.07 |
||
|
31618
|
31618
31618-X8500 Stem-Band Servo Piston8602--01 ~ 8808--01; AT |
31618-X8500 |
US $8.21 |
||
|
31621
|
31621
31605-41X00 Spring-Servo8808--01 ~ ; VG30DT.AT; 2ND ｻ-ﾎﾞ ｱｳﾀ- |
31605-41X00 |
US $4.03 |
||
|
31621
|
31621
31605-41X01 Spring-Servo8808--01 ~ ; VG30DT.AT |
31605-41X01 |
US $2.45 |
||
|
31621
|
31621
31605-41X05 Spring-Servo8808--01 ~ ; VG30DT.AT; 2ND ｻ-ﾎﾞ ｲﾝﾅ- |
31605-41X05 |
US $2.45 |
||
|
31621M
|
31621M
31605-41X01 Spring-Servo8808--01 ~ ; VG30DT.AT |
31605-41X01 |
US $2.45 |
||
|
31621N
|
31621N
31605-41X05 Spring-Servo8808--01 ~ ; VG30DT.AT; 2ND ｻ-ﾎﾞ ｲﾝﾅ- |
31605-41X05 |
US $2.45 |
||
|
31623
|
31623
31623-51X00 Gasket-Retainer, Servo8808--01 ~ ; VG30DT.AT; |
31623-51X00 |
US $0.86 |
||
|
31624
|
31624
31624-41X00 Strut-Band8808--01 ~ ; VG30DT.AT |
31624-41X00 |
US $4.18 |
||
|
31624
|
31624
31624-X0101 Strut-Band8602--01 ~ 8808--01; AT |
31624-X0101 |
US $4.18 |
||
|
31624
|
31624
31624-X0101 Strut-Band8602--01 ~ 8808--01; AT |
31624-X0101 |
US $4.18 |
||
|
31625M
|
31625M
31625-41X00 Pin-Anchor End8808--01 ~ ; VG30DT.AT |
31625-41X00 |
US $5.90 |
||
|
31626
|
31626
31626-21X00 Washer-Anchor End Pin8808--01 ~ ; VG30DT.AT |
31626-21X00 |
US $0.86 |
||
|
31628
|
31628
31526-51X01 Seal-O Ring8808--01 ~ ; VG30DT.AT; |
31526-51X01 |
US $4.18 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring8602--01 ~ 8808--01; AT |
31628-X0100 |
US $1.67 |
||
|
31630
|
31630
31630-51X00 Band Assy-Brake8808--01 ~ ; VG30DT.AT; |
31630-51X00 |
US $49.25 |
||
|
31630
|
31630
31630-X0104 Band Assy-Brake8602--01 ~ 8808--01; AT |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake8602--01 ~ 8808--01; AT |
31630-X0106 |
US $49.25 |
||
|
31630
|
31630
31630-X0104 Band Assy-Brake8602--01 ~ 8808--01; AT |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake8602--01 ~ 8808--01; AT |
31630-X0106 |
US $49.25 |
||
|
31691
|
31691
31691-51X02 Retainer-Piston, Overdrive Servo8808--01 ~ ; VG30DT.AT; |
31691-51X02 |
US $37.58 |
||
|
31691
|
31691
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai8602--01 ~ 8808--01; AT |
31692X8600 |
US $6.19 |
||
