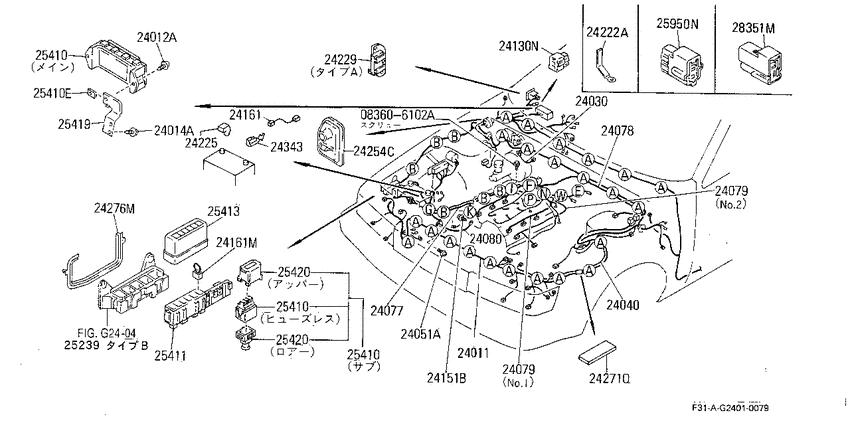

Wiring harness (1988-08-01 ~ ; エンジン ルーム; VG30DET) Diagram Nissan LEOPARD
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- ULTIMA/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606102A
|
083606102A
08360-6102A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6102A |
— | ||
|
24011
|
24011
24010-F6560 Harness Assy-Engine Room8808--01 ~ 8909--01; VG30DT; |
24010-F6560 |
US $2,954 |
||
|
24011
|
24011
24010-F6561 Harness Assy-Engine Room8808--01 ~ 8909--01; *ULTIMA/T; BOSE SPEAKER |
24010-F6561 |
US $2,954 |
||
|
24011
|
24011
24010-F6562 Harness Assy-Engine Room8909--01 ~ ; VG30DT; |
24010-F6562 |
US $2,954 |
||
|
24011
|
24011
24010-F6563 Harness Assy-Engine Room8909--01 ~ ; *ULTIMA/T; BOSE SPEAKER |
24010-F6563 |
US $4,214 |
||
|
24012A
|
24012A
01451-00102 SCREW8602--01 ~ 8808--01; ALL |
01451-00102 |
US $2.08 |
||
|
24014A
|
24014A
01451-00171 SCREW8602--01 ~ 8808--01; ALL |
01451-00171 |
US $2.08 |
||
|
24030
|
24030
2403041L00 Harness-Wiper8602--01 ~ ; *ALL; ｶﾝﾚｲﾁ ｼﾖｳ |
2403041L00 |
US $11.38 |
||
|
24030
|
24030
28819-02E00 HARNESS-WIPER8808--01 ~ ; *ALL; ｾﾐｺﾝﾄﾛ-ﾙﾖｳ *ｶﾝﾚｲﾁﾖｳ |
28819-02E00 |
US $9.65 |
||
|
24051A
|
24051A
0145600031 SCREW8602--01 ~ ; ALL |
0145600031 |
from US $1.11 |
||
|
24077
|
24077
24077-F6175 Harness Assy-Engine Room Sub8808--01 ~ ; *VG20; *TVﾂｷ ﾊﾞﾂﾃﾘ-ｶﾗ ｽﾀ-ﾀ-ﾓ-ﾀ- |
24077-F6175 |
US $187.20 |
||
|
24077
|
24077
24077-F6560 Harness Assy-Engine Room Sub8808--01 ~ ; VG30DET.ULTIMA; ﾊﾞﾂﾃﾘ-ｶﾗ ｽﾀ-ﾀ-ﾓ-ﾀ- |
24077-F6560 |
US $187.20 |
||
|
24078
|
24078
24011-F6560 Harness Assy-Egi8808--01 ~ ; VG30DT; |
24011-F6560 |
US $921.82 |
||
|
24079
|
24079
24079-16V05 Harness Assy-Egi Sub8808--01 ~ ; VG20DT+VG30DT; %NO.2 ｻ-ﾏﾙ ﾄﾗﾝｽﾐﾂﾀ-,ﾍ ﾂﾄﾞ ﾃﾝﾌﾟ ｾﾝｻ- ﾖｳ |
24079-16V05 |
US $43.06 |
||
|
24079
|
24079
24079-F6560 Harness Assy-Egi Sub8808--01 ~ ; VG30DT; NO.1 ｲｸﾞﾆﾂｼﾖﾝｺｲﾙ,ｲﾝｼ ﾞｴｸﾀ- ﾖｳ |
24079-F6560 |
US $417.72 |
||
|
24079
|
24079
24079-16V05 Harness Assy-Egi Sub8808--01 ~ ; VG20DT+VG30DT; %NO.2 ｻ-ﾏﾙ ﾄﾗﾝｽﾐﾂﾀ-,ﾍ ﾂﾄﾞ ﾃﾝﾌﾟ ｾﾝｻ- ﾖｳ |
24079-16V05 |
US $43.06 |
||
|
24079
|
24079
24079-F6560 Harness Assy-Egi Sub8808--01 ~ ; VG30DT; NO.1 ｲｸﾞﾆﾂｼﾖﾝｺｲﾙ,ｲﾝｼ ﾞｴｸﾀ- ﾖｳ |
24079-F6560 |
US $417.72 |
||
|
24080
|
24080
24080-42L10 Cable Assy-Battery Earth8808--01 ~ ; VG30# |
24080-42L10 |
US $60.77 |
||
|
24080
|
24080
01451-00102 SCREW8602--01 ~ ; ALL |
01451-00102 |
US $2.08 |
||
|
24130N
|
24130N
24335-89901 Diode8602--01 ~ 8808--01; ALL; 2ｷﾖｸ |
24335-89901 |
US $17.42 |
||
|
24130N
|
24130N
24335C9900 Diode8808--01 ~ ; ALL; 2ｷﾖｸ |
24335C9900 |
US $17.60 |
||
|
24130N
|
24130N
24335-F6102 Diode8602--01 ~ 8808--01; ALL; 4ｷﾖｸ |
24335-F6102 |
US $17.42 |
||
|
24130N
|
24130N
24335V5000 Diode8808--01 ~ ; ALL; ﾌﾞﾙ- 10ｷﾖｸ |
24335V5000 |
US $17.32 |
||
|
24151B
|
24151B
0146600161 SCREW-CLIP8808--01 ~ ; VG30#; |
0146600161 |
US $1.93 |
||
|
24161
|
24161
24022F6100 Link-Fusible8602--01 ~ ; ALL; (ｸﾞﾚ-) |
24022F6100 |
US $40.76 |
||
|
24161
|
24161
24021-V5003 Link-Fusible8602--01 ~ ; ALL; (ﾌﾞﾗｳﾝ) |
24021-V5003 |
US $11.81 |
||
|
24161
|
24161
24021-V5005 Link-Fusible8602--01 ~ ; ALL; (ｸﾞﾘ-ﾝ) |
24021-V5005 |
US $19.95 |
||
|
24161M
|
24161M
24021-V5003 Link-Fusible8602--01 ~ ; ALL; (ﾌﾞﾗｳﾝ) |
24021-V5003 |
US $11.81 |
||
|
24161M
|
24161M
24021-V5005 Link-Fusible8602--01 ~ ; ALL; (ｸﾞﾘ-ﾝ) |
24021-V5005 |
US $19.95 |
||
|
24222A
|
24222A
01551-00281 CLIP-WIRING HARNESS8808--01 ~ ; ALL |
01551-00281 |
US $3.75 |
||
|
24225
|
24225
24360F6100 Cap-Terminal8602--01 ~ 8808--01; ALL |
24360F6100 |
US $13.39 |
||
|
24225
|
24225
24227-F6600 Clip-Wiring Harness, C8808--01 ~ ; *ALL; ｷ-ﾚｽ ｼﾖｳ |
24227-F6600 |
US $5.90 |
||
|
24229
|
24229
24316-51S00 Bracket-Junction8602--01 ~ ; ALL; ﾀｲﾌﾟB |
24316-51S00 |
US $8.78 |
||
|
24229
|
24229
24356-41L00 Bracket-Junction8602--01 ~ ; ALL; ﾀｲﾌﾟA |
24356-41L00 |
US $22.18 |
||
|
24254C
|
24254C
24251-41L00 Grommet8808--01 ~ ; ALL |
24251-41L00 |
US $31.82 |
||
|
24276M
|
24276M
24277-F6100 Protector-Harness8602--01 ~ ; ALL |
24277-F6100 |
US $4.03 |
||
|
24343
|
24343
B4341-89930 Terminal-Fusible Link8602--01 ~ ; ALL; 3ｷﾖｸ ﾖｳ |
B4341-89930 |
US $5.90 |
||
|
25239
|
25239
25234-C8000 Cover-Relay8808--01 ~ ; *ALL; BOSE SPEAKER |
25234-C8000 |
US $11.81 |
||
|
25239
|
25239
25237-01E00 BLOCK-JUNCTION8602--01 ~ ; ALL; ﾀｲﾌﾟ B |
25237-01E00 |
US $21.31 |
||
|
25239
|
25239
25239-F6110 Bracket Assy-Connector8602--01 ~ ; ALL; ﾀｲﾌﾟ A |
25239-F6110 |
US $26.78 |
||
|
25410
|
25410
24310-01E00 BLOCK ASSY-FUSE8602--01 ~ 8808--01; ALL; ﾒｲﾝ |
24310-01E00 |
US $64.51 |
||
|
25410
|
25410
24311-01E00 BLOCK ASSY-FUSE8808--01 ~ ; ALL; ﾒｲﾝ |
24311-01E00 |
US $44.78 |
||
|
25410
|
25410
24320-F6100 Block Assy-Fuse8602--01 ~ 8808--01; ALL; ｻﾌﾞ |
24320-F6100 |
US $26.78 |
||
|
25410
|
25410
24320-F6560 Block Assy-Fuse8808--01 ~ ; ALL; ｻﾌﾞ |
24320-F6560 |
US $46.08 |
||
|
25410
|
25410
24320-F6565 Block Assy-Fuse8808--01 ~ ; *ALL; ｻﾌﾞ *BDSE SPEAKER ﾖｳ |
24320-F6565 |
US $123.84 |
||
|
25410
|
25410
24321-F6100 Block Assy-Fuse8602--01 ~ ; ALL; ｻﾌﾞ(ﾋﾕ-ｽﾞ ﾚｽ) |
24321-F6100 |
US $12.82 |
||
|
25410
|
25410
01241-00031 NUT8602--01 ~ ; ALL |
01241-00031 |
US $2.45 |
||
| replacement | |||||
|
25410
|
25410
01241-00581 NUT-SPRING8602--01 ~ ; ALL |
01241-00581 |
US $2.45 |
||
|
25410
|
25410
2432101L00 Block Assy-Fuse8602--01 ~ ; ALL |
2432101L00 |
US $4.90 |
||
|
25410
|
25410
24310-01E00 BLOCK ASSY-FUSE8602--01 ~ 8808--01; ALL; ﾒｲﾝ |
24310-01E00 |
US $64.51 |
||
|
25410
|
25410
24311-01E00 BLOCK ASSY-FUSE8808--01 ~ ; ALL; ﾒｲﾝ |
24311-01E00 |
US $44.78 |
||
|
25410
|
25410
24320-F6100 Block Assy-Fuse8602--01 ~ 8808--01; ALL; ｻﾌﾞ |
24320-F6100 |
US $26.78 |
||
|
25410
|
25410
24320-F6560 Block Assy-Fuse8808--01 ~ ; ALL; ｻﾌﾞ |
24320-F6560 |
US $46.08 |
||
|
25410
|
25410
24320-F6565 Block Assy-Fuse8808--01 ~ ; *ALL; ｻﾌﾞ *BDSE SPEAKER ﾖｳ |
24320-F6565 |
US $123.84 |
||
|
25410
|
25410
24321-F6100 Block Assy-Fuse8602--01 ~ ; ALL; ｻﾌﾞ(ﾋﾕ-ｽﾞ ﾚｽ) |
24321-F6100 |
US $12.82 |
||
|
25410
|
25410
01241-00031 NUT8602--01 ~ ; ALL |
01241-00031 |
US $2.45 |
||
| replacement | |||||
|
25410
|
25410
01241-00581 NUT-SPRING8602--01 ~ ; ALL |
01241-00581 |
US $2.45 |
||
|
25410
|
25410
2432101L00 Block Assy-Fuse8602--01 ~ ; ALL |
2432101L00 |
US $4.90 |
||
|
25410
|
25410
24310-01E00 BLOCK ASSY-FUSE8602--01 ~ 8808--01; ALL; ﾒｲﾝ |
24310-01E00 |
US $64.51 |
||
|
25410
|
25410
24311-01E00 BLOCK ASSY-FUSE8808--01 ~ ; ALL; ﾒｲﾝ |
24311-01E00 |
US $44.78 |
||
|
25410
|
25410
24320-F6100 Block Assy-Fuse8602--01 ~ 8808--01; ALL; ｻﾌﾞ |
24320-F6100 |
US $26.78 |
||
|
25410
|
25410
24320-F6560 Block Assy-Fuse8808--01 ~ ; ALL; ｻﾌﾞ |
24320-F6560 |
US $46.08 |
||
|
25410
|
25410
24320-F6565 Block Assy-Fuse8808--01 ~ ; *ALL; ｻﾌﾞ *BDSE SPEAKER ﾖｳ |
24320-F6565 |
US $123.84 |
||
|
25410
|
25410
24321-F6100 Block Assy-Fuse8602--01 ~ ; ALL; ｻﾌﾞ(ﾋﾕ-ｽﾞ ﾚｽ) |
24321-F6100 |
US $12.82 |
||
|
25410
|
25410
01241-00031 NUT8602--01 ~ ; ALL |
01241-00031 |
US $2.45 |
||
| replacement | |||||
|
25410
|
25410
01241-00581 NUT-SPRING8602--01 ~ ; ALL |
01241-00581 |
US $2.45 |
||
|
25410
|
25410
2432101L00 Block Assy-Fuse8602--01 ~ ; ALL |
2432101L00 |
US $4.90 |
||
|
25410E
|
25410E
01241-00031 NUT8602--01 ~ ; ALL |
01241-00031 |
US $2.45 |
||
| replacement | |||||
|
25410E
|
25410E
01241-00581 NUT-SPRING8602--01 ~ ; ALL |
01241-00581 |
US $2.45 |
||
|
25411
|
25411
24381-F6100 Holder-Fusible Link8602--01 ~ ; ALL |
24381-F6100 |
US $21.31 |
||
|
25413
|
25413
24382-F6100 Cover-Fusible Link8602--01 ~ ; ALL |
24382-F6100 |
US $17.57 |
||
|
25419
|
25419
24317-F6110 Bracket-Fuse Block8602--01 ~ 8808--01; ALL |
24317-F6110 |
US $12.38 |
||
|
25419
|
25419
24329-03B00 Bracket-Fuse Block8808--01 ~ ; ALL; |
24329-03B00 |
US $5.18 |
||
|
25420
|
25420
24322-F6110 Cover-Fuse Block8602--01 ~ ; ALL; ｻﾌﾞ(ﾛｱ) |
24322-F6110 |
US $12.82 |
||
|
25420
|
25420
24322-F6560 Cover-Fuse Block8808--01 ~ ; ALL; ｻﾌﾞ(ｱﾂﾊﾟ-) |
24322-F6560 |
US $15.41 |
||
|
25420
|
25420
24322-F6565 Cover-Fuse Block8808--01 ~ ; *ALL; ｻﾌﾞ(ｱﾂﾊﾟ-) *BOSE SPEAKER ﾖｳ) |
24322-F6565 |
US $84.53 |
||
|
25420
|
25420
24322-F6110 Cover-Fuse Block8602--01 ~ ; ALL; ｻﾌﾞ(ﾛｱ) |
24322-F6110 |
US $12.82 |
||
|
25420
|
25420
24322-F6560 Cover-Fuse Block8808--01 ~ ; ALL; ｻﾌﾞ(ｱﾂﾊﾟ-) |
24322-F6560 |
US $15.41 |
||
|
25420
|
25420
24322-F6565 Cover-Fuse Block8808--01 ~ ; *ALL; ｻﾌﾞ(ｱﾂﾊﾟ-) *BOSE SPEAKER ﾖｳ) |
24322-F6565 |
US $84.53 |
||
|
25950N
|
25950N
24336-89901 Resistor8808--01 ~ ; ALL |
24336-89901 |
US $15.55 |
||
|
28351M
|
28351M
28351-89901 Condensor-Ignition Coil8808--01 ~ ; ALL |
28351-89901 |
from US $5.42 |
||
