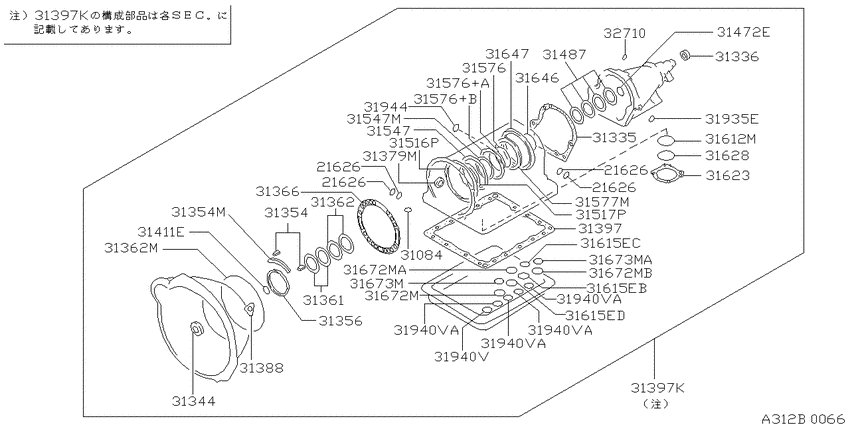

Gasket & seal kit (automatic) (1992-06-01 ~ ; RE4R03A; VH41DE.AT) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21626
|
21626
2162664U00 Washer-Seal9206--01 ~ ; VH41DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162664U00 Washer-Seal9206--01 ~ ; VH41DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162664U00 Washer-Seal9206--01 ~ ; VH41DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162664U00 Washer-Seal9206--01 ~ ; VH41DE.AT |
2162664U00 |
US $2.45 |
||
|
31084
|
31084
31084-20300 Seal-O Ring9206--01 ~ ; VH41DE.AT |
31084-20300 |
US $1.58 |
||
|
31084
|
31084
01456-00481 SCREW9206--01 ~ ; VH41DE.AT |
01456-00481 |
US $1.73 |
||
|
31084
|
31084
0145600411 SCREW9206--01 ~ ; VH41DE.AT |
0145600411 |
US $1.67 |
||
|
31084
|
31084
0143601161
SCREW
9206--01 ~ ; VH41DE.AT |
0143601161 |
— | ||
| replacement | |||||
|
31084
|
31084
08368-6125G ｽｸﾘﾕ-9206--01 ~ ; VH41DE.AT |
08368-6125G |
US $2.21 |
||
|
31335
|
31335
31338-41X00
Gasket-Extension
9206--01 ~ 9308--01; VH41DE.AT |
31338-41X00 |
— | ||
| replacement | |||||
|
31335
|
31335
31338-41X0A Gasket-Extension9206--01 ~ 9308--01; VH41DE.AT |
31338-41X0A |
US $7.76 |
||
|
31335
|
31335
31338-41X01
Gasket-Extension
9308--01 ~ ; VH41DE.AT |
31338-41X01 |
— | ||
| replacement | |||||
|
31335
|
31335
31338-41X0A Gasket-Extension9308--01 ~ ; VH41DE.AT |
31338-41X0A |
US $7.76 |
||
|
31336
|
31336
31375-51X01 Seal-Oil, Rear Extension9206--01 ~ 9512--01; VH41DE.AT |
31375-51X01 |
from US $24.19 |
||
|
31336
|
31336
3137560X00 Seal-Oil, Reduction Case9512--01 ~ ; VH41DE.AT |
3137560X00 |
US $6.34 |
||
|
31344
|
31344
3134421X00 Seal-Oil Pump Housing9206--01 ~ ; VH41DE.AT |
3134421X00 |
from US $4.66 |
||
|
31354
|
31354
31354-41X00 Seal-Side, Control Piston9206--01 ~ ; VH41DE.AT |
31354-41X00 |
US $4.03 |
||
|
31354
|
31354
31355-41X00 Seal-Side, Control Piston9206--01 ~ ; VH41DE.AT |
31355-41X00 |
US $4.03 |
||
|
31354M
|
31354M
31355-41X00 Seal-Side, Control Piston9206--01 ~ ; VH41DE.AT |
31355-41X00 |
US $4.03 |
||
|
31356
|
31356
31362-21X04
Seal-O Ring
9206--01 ~ ; VH41DE.AT |
31362-21X04 |
— | ||
| replacement | |||||
|
31356
|
31356
C1362-21X04 O ring9206--01 ~ ; VH41DE.AT |
C1362-21X04 |
US $5.96 |
||
|
31361
|
31361
31361-21X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31361-21X00 |
US $10.80 |
||
|
31362
|
31362
31558-21X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31526-41X01
Seal-O Ring
9206--01 ~ 9505--01; VH41DE.AT |
31526-41X01 |
— | ||
| replacement | |||||
|
31362
|
31362
31526-41X12 Seal-O Ring9206--01 ~ 9505--01; VH41DE.AT |
31526-41X12 |
US $14.83 |
||
|
31362
|
31362
31526-41X10 Seal-O Ring9505--01 ~ ; VH41DE.AT |
31526-41X10 |
US $6.05 |
||
|
31362M
|
31362M
31526-41X01
Seal-O Ring
9206--01 ~ 9505--01; VH41DE.AT |
31526-41X01 |
— | ||
| replacement | |||||
|
31362M
|
31362M
31526-41X12 Seal-O Ring9206--01 ~ 9505--01; VH41DE.AT |
31526-41X12 |
US $14.83 |
||
|
31362M
|
31362M
31526-41X10 Seal-O Ring9505--01 ~ ; VH41DE.AT |
31526-41X10 |
US $6.05 |
||
|
31366
|
31366
31366-41X03 Gasket-Oil Pump9412--01 ~ ; VH41DE.AT |
31366-41X03 |
US $16.92 |
||
|
31366
|
31366
31366-51X00 Gasket-Oil Pump9206--01 ~ 9408--01; VH41DE.AT |
31366-51X00 |
US $9.65 |
||
|
31366
|
31366
31366-51X01 Gasket-Oil Pump9408--01 ~ 9412--01; VH41DE.AT |
31366-51X01 |
US $9.65 |
||
|
31366
|
31366
31363-41X00 Ring-Friction, Oil Pump9206--01 ~ ; VH41DE.AT |
31363-41X00 |
US $26.35 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil9206--01 ~ ; VH41DE.AT |
3137541X00 |
from US $2.36 |
||
|
31388
|
31388
3138851X00 Gasket-Tubine Sensor9206--01 ~ ; VH41DE.AT |
3138851X00 |
US $4.18 |
||
|
31397
|
31397
31397-51X00 Gasket-Oil Pan9206--01 ~ 9308--01; VH41DE.AT |
31397-51X00 |
US $24.05 |
||
| replacement | |||||
|
31397
|
31397
31397-51X01 Gasket-Oil Pan9206--01 ~ 9308--01; VH41DE.AT |
31397-51X01 |
US $24.05 |
||
|
31397
|
31397
3139751X02 Gasket-Oil Pan9308--01 ~ ; VH41DE.AT |
3139751X02 |
from US $22.79 |
||
|
31397
|
31397
31397-51X28 Gasket & Seal Kit-Auto Transmission9206--01 ~ ; VH41DE.AT |
31397-51X28 |
US $195.84 |
||
| replacement | |||||
|
31397
|
31397
31397-51X85
Gasket & Seal Kit-Auto Transmission
9206--01 ~ ; VH41DE.AT |
31397-51X85 |
— | ||
|
31397K
|
31397K
31397-51X28 Gasket & Seal Kit-Auto Transmission9206--01 ~ ; VH41DE.AT |
31397-51X28 |
US $195.84 |
||
| replacement | |||||
|
31397K
|
31397K
31397-51X85
Gasket & Seal Kit-Auto Transmission
9206--01 ~ ; VH41DE.AT |
31397-51X85 |
— | ||
|
31397K
|
31397K
31397-51X28 Gasket & Seal Kit-Auto Transmission9206--01 ~ ; VH41DE.AT |
31397-51X28 |
US $195.84 |
||
| replacement | |||||
|
31397K
|
31397K
31397-51X85
Gasket & Seal Kit-Auto Transmission
9206--01 ~ ; VH41DE.AT |
31397-51X85 |
— | ||
|
31411E
|
31411E
31526-51X00 Seal-O Ring9206--01 ~ ; VH41DE.AT |
31526-51X00 |
US $5.18 |
||
| replacement | |||||
|
31411E
|
31411E
3152671X01 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152671X01 |
US $5.18 |
||
|
31472E
|
31472E
31954-X6100 Seal-Oil9206--01 ~ 9407--01; VH41DE.AT |
31954-X6100 |
US $2.45 |
||
|
31487
|
31487
31525-41X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31525-41X00 |
US $6.05 |
||
|
31516P
|
31516P
31516-21X01
Seal-Lip
9206--01 ~ ; VH41DE.AT |
31516-21X01 |
— | ||
| replacement | |||||
|
31516P
|
31516P
C1516-21X01 Seal-lip9206--01 ~ ; VH41DE.AT |
C1516-21X01 |
US $11.79 |
||
|
31517P
|
31517P
31527-51X03 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31527-51X03 |
US $4.18 |
||
|
31547
|
31547
31527-41X08 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31527-41X08 |
US $6.19 |
||
|
31547
|
31547
31517-21X00 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31517-21X00 |
US $6.77 |
||
|
31547M
|
31547M
31517-21X00 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31517-21X00 |
US $6.77 |
||
|
31576
|
31576
31527-41X06 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31527-41X06 |
US $4.03 |
||
|
31576
|
31576
31527-41X05 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31527-41X05 |
US $4.03 |
||
|
31576
|
31576
31527-51X05
Seal-Lathe Cut Ring
9206--01 ~ ; VH41DE.AT |
31527-51X05 |
— | ||
|
31576+A
|
31576+A
31527-41X05 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31527-41X05 |
US $4.03 |
||
|
31576+B
|
31576+B
31527-51X05
Seal-Lathe Cut Ring
9206--01 ~ ; VH41DE.AT |
31527-51X05 |
— | ||
|
31577M
|
31577M
31528-41X00 Seal-Lip9206--01 ~ ; VH41DE.AT |
31528-41X00 |
US $7.92 |
||
|
31615EB
|
31615EB
31526-41X02 Seal-O Ring9206--01 ~ ; VH41DE.AT; 3R |
31526-41X02 |
US $2.36 |
||
|
31615EC
|
31615EC
31526-41X03 Seal-O Ring9206--01 ~ ; VH41DE.AT; 3R |
31526-41X03 |
US $2.36 |
||
|
31615ED
|
31615ED
31526-41X02 Seal-O Ring9206--01 ~ ; VH41DE.AT; 2A |
31526-41X02 |
US $2.36 |
||
|
31623
|
31623
31623-51X00 Gasket-Retainer, Servo9206--01 ~ 9308--01; VH41DE.AT |
31623-51X00 |
US $0.86 |
||
|
31623
|
31623
31623-51X01 Gasket-Retainer, Servo9308--01 ~ ; VH41DE.AT |
31623-51X01 |
US $5.18 |
||
|
31646
|
31646
31527-51X02 Seal-Lathe Cut Ring9206--01 ~ ; VH41DE.AT |
31527-51X02 |
US $8.06 |
||
|
31647
|
31647
31528-51X00 Seal-O Ring9206--01 ~ ; VH41DE.AT |
31528-51X00 |
US $13.82 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; 4A |
3167221X00 |
US $4.99 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; 2A |
3167221X00 |
US $4.99 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; N-D |
3167221X00 |
US $4.99 |
||
|
31672MA
|
31672MA
3167221X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; 2A |
3167221X00 |
US $4.99 |
||
|
31672MB
|
31672MB
3167221X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; N-D |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; 4A |
3167321X00 |
US $4.85 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; N-D |
3167321X00 |
US $4.85 |
||
|
31673MA
|
31673MA
3167321X00 Seal-O Ring, Accumulator9206--01 ~ ; VH41DE.AT; N-D |
3167321X00 |
US $4.85 |
||
|
31935E
|
31935E
3152641X05 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152641X05 |
US $4.03 |
||
|
31940V
|
31940V
31526-41X08 Seal-O Ring9206--01 ~ ; VH41DE.AT |
31526-41X08 |
US $2.45 |
||
|
31940V
|
31940V
3152641X09 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152641X09 |
US $2.36 |
||
|
31940VA
|
31940VA
3152641X09 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152641X09 |
US $2.36 |
||
|
31940VA
|
31940VA
3152641X09 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152641X09 |
US $2.36 |
||
|
31940VA
|
31940VA
3152641X09 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152641X09 |
US $2.36 |
||
|
31940VA
|
31940VA
3152641X09 Seal-O Ring9206--01 ~ ; VH41DE.AT |
3152641X09 |
US $2.36 |
||
|
31944
|
31944
3152641X04 Seal-O Ring, Terminal9206--01 ~ ; VH41DE.AT |
3152641X04 |
US $3.88 |
||
