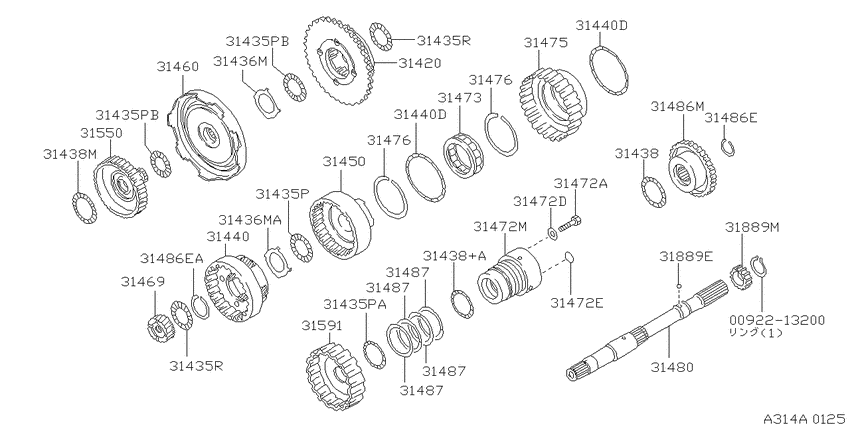

Governor,power train & planetary gear (1992-06-01 ~ ; RE4R03A; VH41DE.AT) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092213200
|
0092213200
00922-13200 RING SNAP |
00922-13200 |
US $4.85 |
||
|
31420
|
31420
31420-51X00 Carrier Assy-Front Planet9206--01 ~ 9307--01; VH41DE.AT |
31420-51X00 |
US $308.69 |
||
|
31420
|
31420
31420-51X04 Carrier Assy-Front Planet9307--01 ~ ; VH41DE.AT |
31420-51X04 |
US $308.69 |
||
|
31435P
|
31435P
31407-51X01 Bearing-Needle, Thrust9307--01 ~ ; VH41DE.AT |
31407-51X01 |
from US $8.38 |
||
|
31435P
|
31435P
31407-51X03 Bearing-Needle, Thrust9206--01 ~ 9307--01; VH41DE.AT |
31407-51X03 |
US $14.69 |
||
|
31435P
|
31435P
31407-51X04 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31407-51X04 |
US $13.82 |
||
|
31435P
|
31435P
31407-51X01 Bearing-Needle, Thrust9206--01 ~ 9307--01; VH41DE.AT |
31407-51X01 |
from US $8.38 |
||
|
31435P
|
31435P
31407-51X05 Bearing-Needle, Thrust9307--01 ~ ; VH41DE.AT |
31407-51X05 |
US $13.82 |
||
|
31435PA
|
31435PA
31407-51X04 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31407-51X04 |
US $13.82 |
||
|
31435PB
|
31435PB
31407-51X01 Bearing-Needle, Thrust9206--01 ~ 9307--01; VH41DE.AT |
31407-51X01 |
from US $8.38 |
||
|
31435PB
|
31435PB
31407-51X05 Bearing-Needle, Thrust9307--01 ~ ; VH41DE.AT |
31407-51X05 |
US $13.82 |
||
|
31435PB
|
31435PB
31407-51X01 Bearing-Needle, Thrust9206--01 ~ 9307--01; VH41DE.AT |
31407-51X01 |
from US $8.38 |
||
|
31435PB
|
31435PB
31407-51X05 Bearing-Needle, Thrust9307--01 ~ ; VH41DE.AT |
31407-51X05 |
US $13.82 |
||
|
31435R
|
31435R
31455-21X00 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31455-21X00 |
US $16.27 |
||
|
31435R
|
31435R
31455-21X00 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31455-21X00 |
US $16.27 |
||
|
31436M
|
31436M
31435-51X00 Race-Bearing9206--01 ~ ; VH41DE.AT |
31435-51X00 |
US $6.19 |
||
|
31436M
|
31436M
31435-51X01 Race-Bearing9206--01 ~ ; VH41DE.AT |
31435-51X01 |
US $6.19 |
||
|
31436MA
|
31436MA
31435-51X01 Race-Bearing9206--01 ~ ; VH41DE.AT |
31435-51X01 |
US $6.19 |
||
|
31438
|
31438
3140741X06 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
3140741X06 |
US $7.20 |
||
|
31438
|
31438
31407-41X05 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31407-41X05 |
US $9.22 |
||
|
31438
|
31438
31438-X0100 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31438-X0100 |
US $13.10 |
||
|
31438+A
|
31438+A
31407-41X05 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31407-41X05 |
US $9.22 |
||
|
31438M
|
31438M
31438-X0100 Bearing-Needle, Thrust9206--01 ~ ; VH41DE.AT |
31438-X0100 |
US $13.10 |
||
|
31440
|
31440
31440-51X04 Carrier Assy-Rear Planet9206--01 ~ ; VH41DE.AT |
31440-51X04 |
US $467.28 |
||
|
31440
|
31440
3150851X08 Washer-Thrust9206--01 ~ ; VH41DE.AT |
3150851X08 |
US $7.34 |
||
|
31440D
|
31440D
3150851X08 Washer-Thrust9206--01 ~ ; VH41DE.AT |
3150851X08 |
US $7.34 |
||
|
31440D
|
31440D
3150851X08 Washer-Thrust9206--01 ~ ; VH41DE.AT |
3150851X08 |
US $7.34 |
||
|
31450
|
31450
31450-51X00 Gear Assy-Internal9206--01 ~ ; VH41DE.AT |
31450-51X00 |
US $259.20 |
||
|
31460
|
31460
31460-51X02 Gear Assy-Sun9206--01 ~ ; VH41DE.AT |
31460-51X02 |
US $259.20 |
||
|
31469
|
31469
31469-51X02 Gear-Sun, Rear9206--01 ~ ; VH41DE.AT |
31469-51X02 |
US $60.19 |
||
|
31472A
|
31472A
31377-51X03 Bolt9206--01 ~ 9501--01; VH41DE.AT |
31377-51X03 |
US $1.73 |
||
|
31472A
|
31472A
31377-51X05 Bolt9501--01 ~ 9708--01; VH41DE.AT |
31377-51X05 |
US $1.73 |
||
|
31472A
|
31472A
31377-51X06 Bolt9708--01 ~ ; VH41DE.AT |
31377-51X06 |
US $1.73 |
||
|
31472D
|
31472D
31378-41X00 Washer-Plain9206--01 ~ ; VH41DE.AT |
31378-41X00 |
US $0.86 |
||
|
31472E
|
31472E
31954-X6100 Seal-Oil9206--01 ~ 9407--01; VH41DE.AT |
31954-X6100 |
US $2.45 |
||
|
31472M
|
31472M
31472-51X01 Race-Inner, One Way Clutch9206--01 ~ 9304--01; VH41DE.AT |
31472-51X01 |
US $56.88 |
||
|
31472M
|
31472M
31472-51X02 Race-Inner, One Way Clutch9304--01 ~ 9407--01; VH41DE.AT |
31472-51X02 |
US $56.88 |
||
|
31472M
|
31472M
31472-51X03 Race-Inner, One Way Clutch9407--01 ~ ; VH41DE.AT |
31472-51X03 |
US $56.88 |
||
|
31473
|
31473
31484-51X00 Clutch Assy-One Way9206--01 ~ 9712--01; VH41DE.AT; ﾌｵﾜ-ﾄﾞ ﾖｳ |
31484-51X00 |
US $101.09 |
||
|
31473
|
31473
31484-71X00 Clutch Assy-One Way9712--01 ~ ; VH41DE.AT; ﾌｵﾜ-ﾄﾞ ﾖｳ |
31484-71X00 |
US $101.09 |
||
|
31473
|
31473
31473-51X00 Clutch Assy-Low, One Way9206--01 ~ 9210--01; VH41DE.AT |
31473-51X00 |
US $44.35 |
||
|
31473
|
31473
31473-51X01 Clutch Assy-Low, One Way9210--01 ~ ; VH41DE.AT |
31473-51X01 |
US $62.21 |
||
|
31475
|
31475
31487-51X01 Race-Outer, One Way Clutch9206--01 ~ ; VH41DE.AT |
31487-51X01 |
US $88.70 |
||
|
31476
|
31476
31506-51X04 Ring-Snap9206--01 ~ ; VH41DE.AT |
31506-51X04 |
US $4.18 |
||
|
31476
|
31476
31506-51X04 Ring-Snap9206--01 ~ ; VH41DE.AT |
31506-51X04 |
US $4.18 |
||
|
31480
|
31480
31480-51X00 Shaft Assy-Output9206--01 ~ 9409--01; VH41DE.AT |
31480-51X00 |
US $115.06 |
||
|
31480
|
31480
31480-51X05 Shaft Assy-Output9409--01 ~ ; VH41DE.AT |
31480-51X05 |
US $115.06 |
||
|
31486E
|
31486E
31506-41X01 Ring-Snap9206--01 ~ ; VH41DE.AT; ﾊﾟ-ｷﾝｸﾞ ｷﾞﾔ ﾖｳ |
31506-41X01 |
US $3.31 |
||
|
31486E
|
31486E
31506-41X02 Ring-Snap9206--01 ~ ; VH41DE.AT; ﾘﾔ- ｷﾔﾘｱ- ﾖｳ |
31506-41X02 |
US $3.31 |
||
|
31486EA
|
31486EA
31506-41X02 Ring-Snap9206--01 ~ ; VH41DE.AT; ﾘﾔ- ｷﾔﾘｱ- ﾖｳ |
31506-41X02 |
US $3.31 |
||
|
31486M
|
31486M
31486-41X00 Gear-Parking9206--01 ~ ; VH41DE.AT |
31486-41X00 |
US $85.39 |
||
|
31487
|
31487
31525-41X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31525-41X00 |
US $6.05 |
||
|
31487
|
31487
31525-41X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31525-41X00 |
US $6.05 |
||
|
31487
|
31487
31525-41X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31525-41X00 |
US $6.05 |
||
|
31487
|
31487
31525-41X00 Ring-Seal9206--01 ~ ; VH41DE.AT |
31525-41X00 |
US $6.05 |
||
|
31550
|
31550
31550-51X01 Hub-Clutch, High9206--01 ~ ; VH41DE.AT |
31550-51X01 |
US $118.94 |
||
|
31591
|
31591
31591-51X02 Hub-Overrun Clutch9206--01 ~ ; VH41DE.AT |
31591-51X02 |
US $24.77 |
||
|
31889E
|
31889E
01018-03967 BALL-STEEL9404--01 ~ ; VH41DE.AT |
01018-03967 |
US $0.86 |
||
|
31889E
|
31889E
3272014600 Ball-Steel9206--01 ~ 9404--01; VH41DE.AT |
3272014600 |
from US $0.41 |
||
|
31889M
|
31889M
32701-03G00 Gear-Drive, Speedometer9206--01 ~ 9409--01; VH41DE.AT |
32701-03G00 |
US $51.41 |
||
|
31889M
|
31889M
32701-51X00 Gear-Drive, Speedometer9409--01 ~ ; VH41DE.AT |
32701-51X00 |
US $7.06 |
