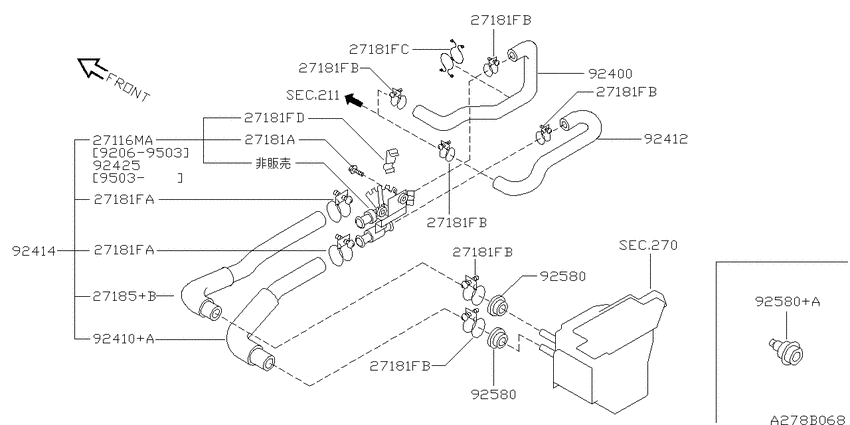

Heater piping (1992-06-01 ~ ; S.VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
211
|
Water hose & piping
211
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
27116MA
|
27116MA
92230-0P000 Cock-Water Control9206--01 ~ 9503--01; S.VH41DE |
92230-0P000 |
US $82.08 |
||
|
27181A
|
27181A
0143600921 SCREW9206--01 ~ 9404--01; S.VH41DE |
0143600921 |
US $0.63 |
||
|
27181A
|
27181A
0143601141 SCREW9404--01 ~ ; S.VH41DE |
0143601141 |
US $2.36 |
||
|
27181FA
|
27181FA
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FA
|
27181FA
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FA
|
27181FA
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FA
|
27181FA
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FA
|
27181FA
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FA
|
27181FA
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FB
|
27181FB
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FB
|
27181FB
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FB
|
27181FB
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FB
|
27181FB
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FB
|
27181FB
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FB
|
27181FB
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FB
|
27181FB
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FB
|
27181FB
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FB
|
27181FB
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FB
|
27181FB
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FB
|
27181FB
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FB
|
27181FB
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FB
|
27181FB
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FB
|
27181FB
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FB
|
27181FB
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FB
|
27181FB
01555-00261
CLAMP-HOSE
9206--01 ~ ; S.VH41DE |
01555-00261 |
— | ||
| replacements | |||||
|
27181FB
|
27181FB
0155500891 CLAMP-HOSE9206--01 ~ ; S.VH41DE |
0155500891 |
from US $2.65 |
||
|
27181FB
|
27181FB
A4465-05U11 Gasket9206--01 ~ ; S.VH41DE |
A4465-05U11 |
US $7.48 |
||
|
27181FC
|
27181FC
92555-1P100 Clip9206--01 ~ ; S.VH41DE |
92555-1P100 |
from US $4.26 |
||
|
27181FD
|
27181FD
92280-0P000
Clip
9206--01 ~ ; S.VH41DE |
92280-0P000 |
— | ||
| replacement | |||||
|
27181FD
|
27181FD
27156-S0100 Clamp-Cable9206--01 ~ ; S.VH41DE |
27156-S0100 |
from US $0.98 |
||
|
27185+B
|
27185+B
92401-0P500 Hose-Front Heater, 39206--01 ~ ; S.VH41DE; [B517] |
92401-0P500 |
US $26.35 |
||
|
92400
|
92400
92400-1P100 ﾎ-ｽ,ﾋ-ﾀ- ｲﾝﾚﾂﾄ9206--01 ~ ; S.VH41DE; [B517] |
92400-1P100 |
US $31.68 |
||
|
92410+A
|
92410+A
92410-1P100 ﾎ-ｽ,ﾋ-ﾀ- ｱｳﾄﾚﾂﾄ9206--01 ~ ; S.VH41DE; [B517] |
92410-1P100 |
US $22.75 |
||
|
92412
|
92412
92412-1P100 ﾎ-ｽ,ﾋ-ﾀ- ｱｳﾄﾚﾂﾄ9206--01 ~ ; S.VH41DE; [B517] |
92412-1P100 |
US $26.35 |
||
|
92414
|
92414
924081P100 ﾎｰｽ ｱﾂｼｰ9206--01 ~ 9503--01; S.VH41DE |
924081P100 |
US $158.40 |
||
|
92414
|
92414
92408-1P110 ﾎ-ｽ ｱﾂｾﾝﾌﾞﾘ-,ﾋ-ﾀ-9503--01 ~ ; S.VH41DE |
92408-1P110 |
US $156.96 |
||
|
92425
|
92425
92425-1P600 ﾁﾕ-ﾌﾞ,ﾘﾔ ﾋ-ﾀ-9503--01 ~ ; S.VH41DE |
92425-1P600 |
US $67.54 |
||
|
92580
|
92580
92580-0P000 ｸﾞﾛﾒﾂﾄ9206--01 ~ ; S.VH41DE |
92580-0P000 |
US $5.33 |
||
|
92580
|
92580
92560-0P000 ｸﾞﾛﾒﾂﾄ9206--01 ~ 9503--01; S.VH41DE |
92560-0P000 |
US $7.20 |
||
|
92580
|
92580
92560-0P001 ｸﾞﾛﾒﾂﾄ9503--01 ~ ; S.VH41DE |
92560-0P001 |
US $7.20 |
||
|
92580
|
92580
92580-0P000 ｸﾞﾛﾒﾂﾄ9206--01 ~ ; S.VH41DE |
92580-0P000 |
US $5.33 |
||
|
92580
|
92580
92560-0P000 ｸﾞﾛﾒﾂﾄ9206--01 ~ 9503--01; S.VH41DE |
92560-0P000 |
US $7.20 |
||
|
92580
|
92580
92560-0P001 ｸﾞﾛﾒﾂﾄ9503--01 ~ ; S.VH41DE |
92560-0P001 |
US $7.20 |
||
|
92580+A
|
92580+A
92560-0P000 ｸﾞﾛﾒﾂﾄ9206--01 ~ 9503--01; S.VH41DE |
92560-0P000 |
US $7.20 |
||
|
92580+A
|
92580+A
92560-0P001 ｸﾞﾛﾒﾂﾄ9503--01 ~ ; S.VH41DE |
92560-0P001 |
US $7.20 |
||
