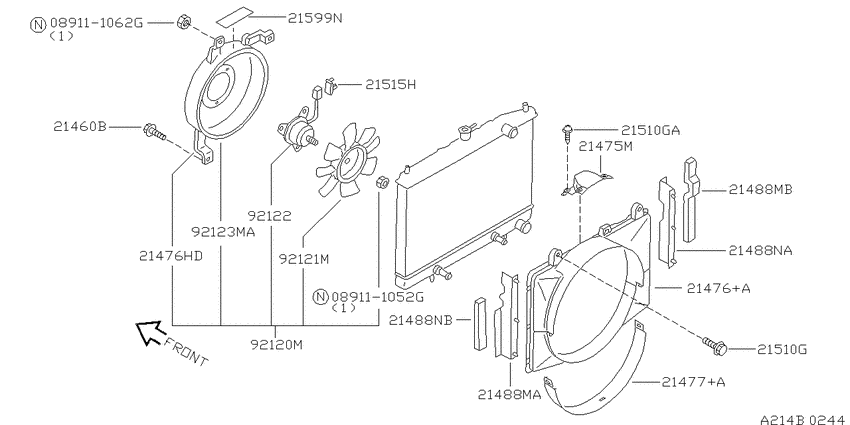

Radiator, shroud & fitting (1992-06-01 ~ ; ラジエター シュラウド; VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
21460B
|
21460B
01436-01041
Bolt
9206--01 ~ ; VH41DE |
01436-01041 |
— | ||
| replacement | |||||
|
21460B
|
21460B
081466162G Bolt-hexagon9206--01 ~ ; VH41DE |
081466162G |
from US $0.67 |
||
|
21475M
|
21475M
21491-16Y00 Cover-Radiator Shroud9206--01 ~ ; VH41DE |
21491-16Y00 |
US $26.35 |
||
|
21476+A
|
21476+A
21476-1P100 Shroud-Upper9206--01 ~ ; VH41DE |
21476-1P100 |
US $111.31 |
||
|
21476HD
|
21476HD
92124-10Y05 Bracket-Motor Fan9206--01 ~ ; VH41DE |
92124-10Y05 |
US $16.70 |
||
|
21477+A
|
21477+A
214771P100 Shroud-Lower9206--01 ~ ; VH41DE |
214771P100 |
US $47.66 |
||
|
21488MA
|
21488MA
21498-14Y00 Seal-Radiator, Rh9206--01 ~ ; VH41DE |
21498-14Y00 |
US $13.68 |
||
|
21488MB
|
21488MB
21498-0P010 Seal-Radiator, Rh9206--01 ~ ; VH41DE |
21498-0P010 |
US $12.67 |
||
|
21488NA
|
21488NA
21499-14Y00 Seal-Radiator, Lh9206--01 ~ ; VH41DE |
21499-14Y00 |
US $13.68 |
||
|
21488NB
|
21488NB
21499-0P010 Seal-Radiator, Lh9206--01 ~ ; VH41DE |
21499-0P010 |
US $12.67 |
||
|
21510G
|
21510G
01456-00451 SCREW9206--01 ~ ; VH41DE |
01456-00451 |
from US $0.28 |
||
|
21510G
|
21510G
01456-00451 SCREW9206--01 ~ ; VH41DE |
01456-00451 |
from US $0.28 |
||
|
21510GA
|
21510GA
01456-00451 SCREW9206--01 ~ ; VH41DE |
01456-00451 |
from US $0.28 |
||
|
21515H
|
21515H
24346-79980 Clip-Harness9206--01 ~ ; VH41DE |
24346-79980 |
US $0.97 |
||
|
21599N
|
21599N
21599-89900
Label-Caution, Motor Fan
9206--01 ~ 9603--01; VH41DE |
21599-89900 |
— | ||
|
21599N
|
21599N
2159989914 Label-Caution, Motor Fan9603--01 ~ ; VH41DE |
2159989914 |
US $3.88 |
||
|
92120M
|
92120M
92120-16Y00 ﾌｱﾝ & ﾓ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾃﾞﾝｻ-9206--01 ~ ; VH41DE |
92120-16Y00 |
US $454.54 |
||
|
92121M
|
92121M
9212110Y00 Fan-Condenser9206--01 ~ ; VH41DE |
9212110Y00 |
from US $34.86 |
||
|
92122
|
92122
9212216Y00 Motor-Condenser9206--01 ~ ; VH41DE |
9212216Y00 |
US $227.52 |
||
|
92123MA
|
92123MA
92123-10Y00 ｼﾕﾗｳﾄﾞ,ｺﾝﾃﾞﾝｻ-9206--01 ~ ; VH41DE |
92123-10Y00 |
US $57.17 |
||
