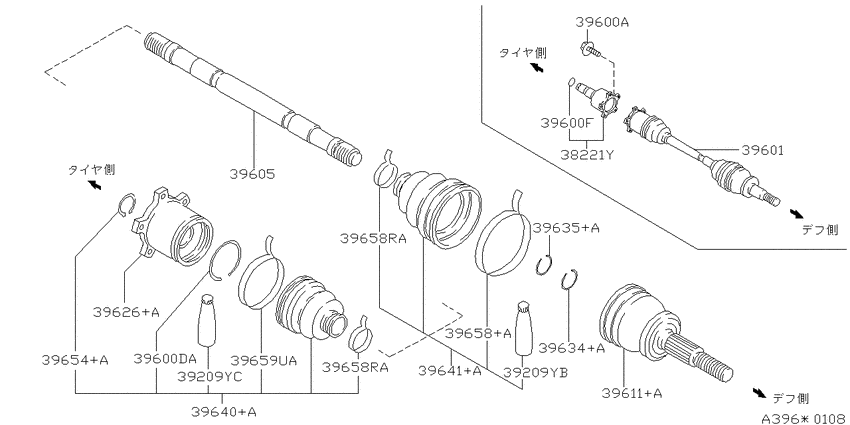

Rear drive shaft (1995-04-01 ~ ; 左; VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38221Y
|
38221Y
38220-10Y16 ﾌﾗﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ｽﾗｲﾄﾞ lh9206--01 ~ 9302--01; VH41DE |
38220-10Y16 |
US $342.67 |
||
|
38221Y
|
38221Y
38220-16Y01 Flange Assy-Slide Lh9302--01 ~ ; VH41DE |
38220-16Y01 |
US $305.86 |
||
|
39209YB
|
39209YB
39209-0P025 Grease9504--01 ~ ; VH41DE; ﾀｲﾔｶﾞﾜ |
39209-0P025 |
US $27.79 |
||
|
39209YC
|
39209YC
39209-03P86 Grease-Inner9504--01 ~ ; VH41DE; ﾃﾞﾌｶﾞﾜ |
39209-03P86 |
US $31.10 |
||
|
39600A
|
39600A
39606-17V00
Bolt
9206--01 ~ ; VH41DE |
39606-17V00 |
— | ||
| replacement | |||||
|
39600A
|
39600A
3960617V0A Bolt9206--01 ~ ; VH41DE |
3960617V0A |
US $2.91 |
||
|
39600DA
|
39600DA
39735-17V20 Ring-Snap9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾄﾞﾗｲﾌﾞ ｼﾔﾌﾄ ﾃﾞﾌ ｶﾞﾜ |
39735-17V20 |
US $1.73 |
||
|
39600DA
|
39600DA
39735-17V60 Ring-Snap9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾄﾞﾗｲﾌﾞ ｼﾔﾌﾄ ﾃﾞﾌ ｶﾞﾜ |
39735-17V60 |
from US $2.26 |
||
|
39600F
|
39600F
38225-17V20 Circlip9206--01 ~ ; VH41DE; ﾋﾀﾞﾘ ｻｲﾄﾞ ﾌﾗﾝｼﾞ |
38225-17V20 |
US $3.17 |
||
|
39601
|
39601
39601-0P600 Shaft Assy-Rear Drive, Lh9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ |
39601-0P600 |
US $1,326.79 |
||
|
39601
|
39601
39601-0P660 Shaft Assy-Rear Drive, Lh9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ |
39601-0P660 |
US $1,326.79 |
||
|
39601
|
39601
39210-0P685 Repair Kit-Rear Drive Shaft, Lh9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾀｲﾔ ｶﾞﾜ |
39210-0P685 |
US $1,205.02 |
||
|
39605
|
39605
39705-0P660 Shaft-Rear Drive, Lh9504--01 ~ ; VH41DE |
39705-0P660 |
US $257.76 |
||
|
39611+A
|
39611+A
39211-0P660 Joint Assy-Outer9504--01 ~ ; VH41DE |
39211-0P660 |
US $431.88 |
||
|
39626+A
|
39626+A
39711-60U00 Joint Assy-Inner9206--01 ~ 9309--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39711-60U00 |
US $406.39 |
||
| replacement | |||||
|
39626+A
|
39626+A
39711-60U20 Joint Assy-Inner9206--01 ~ 9309--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39711-60U20 |
US $341.26 |
||
|
39626+A
|
39626+A
39711-60U20 Joint Assy-Inner9309--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39711-60U20 |
US $341.26 |
||
|
39626+A
|
39626+A
39711-60U60 Joint Assy-Inner9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39711-60U60 |
US $379.49 |
||
|
39634+A
|
39634+A
39234-03P00 Seal-Oil9504--01 ~ ; VH41DE |
39234-03P00 |
US $3.46 |
||
|
39635+A
|
39635+A
39235-03P00 Ring-Snap, Drive Shaft9504--01 ~ ; VH41DE |
39235-03P00 |
US $4.03 |
||
|
39640+A
|
39640+A
3974117V26 Repair Kit-Seal, Inner9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
3974117V26 |
US $143.71 |
||
|
39640+A
|
39640+A
39741-17V85
Repair Kit-Seal, Inner
9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39741-17V85 |
— | ||
| replacements | |||||
|
39640+A
|
39640+A
39741-17V86
Repair Kit-Seal, Inner
9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39741-17V86 |
— | ||
|
39640+A
|
39640+A
C9GDA-17V86 Boot Repair Kit,9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
C9GDA-17V86 |
US $98.56 |
||
|
39641+A
|
39641+A
3924117V26 Repair Kit-Seal, Outer9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾀｲﾔ ｶﾞﾜ |
3924117V26 |
US $143.71 |
||
|
39641+A
|
39641+A
39241-17V87
Repair Kit-Seal, Outer
9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾀｲﾔ ｶﾞﾜ |
39241-17V87 |
— | ||
| replacement | |||||
|
39641+A
|
39641+A
C9BDA-17V87 Repair Kit-Seal, Outer9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾀｲﾔ ｶﾞﾜ |
C9BDA-17V87 |
US $96.61 |
||
|
39654+A
|
39654+A
39734-03P00 Ring-Snap, Drive Shaft9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39734-03P00 |
US $2.45 |
||
|
39654+A
|
39654+A
39734-17V20 Ring-Snap, Drive Shaft9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌ ｶﾞﾜ |
39734-17V20 |
US $3.31 |
||
|
39658+A
|
39658+A
39242-17V20 Band-Boot, Drive Shaft Outer9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾀｲﾔ ｶﾞﾜ HSG ﾄﾘﾂ |
39242-17V20 |
US $5.62 |
||
|
39658+A
|
39658+A
39242-17V60
Band-Boot, Drive Shaft Outer
9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾀｲﾔ ｶﾞﾜ HSG ﾄﾘﾂ |
39242-17V60 |
— | ||
|
39658RA
|
39658RA
39242-17V05 Band-Boot, Drive Shaft Outer9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ SFT ｼﾒﾂｹ |
39242-17V05 |
US $5.62 |
||
|
39658RA
|
39658RA
39242-17V65 Band-Boot, Drive Shaft Outer9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ SFT ｼﾒﾂｹ |
39242-17V65 |
US $4.75 |
||
|
39658RA
|
39658RA
39242-17V05 Band-Boot, Drive Shaft Outer9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ SFT ｼﾒﾂｹ |
39242-17V05 |
US $5.62 |
||
|
39658RA
|
39658RA
39242-17V65 Band-Boot, Drive Shaft Outer9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ SFT ｼﾒﾂｹ |
39242-17V65 |
US $4.75 |
||
|
39659UA
|
39659UA
39742-17V20 Band-Boot Drive Shaft Inner9206--01 ~ 9504--01; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌｶﾞﾜ HSG ｼﾒﾂｹ |
39742-17V20 |
US $9.94 |
||
|
39659UA
|
39659UA
39742-17V60 Band-Boot Drive Shaft Inner9504--01 ~ ; VH41DE; ﾋﾀﾞﾘ ﾃﾞﾌｶﾞﾜ HSG ｼﾒﾂｹ |
39742-17V60 |
US $9.43 |
||
