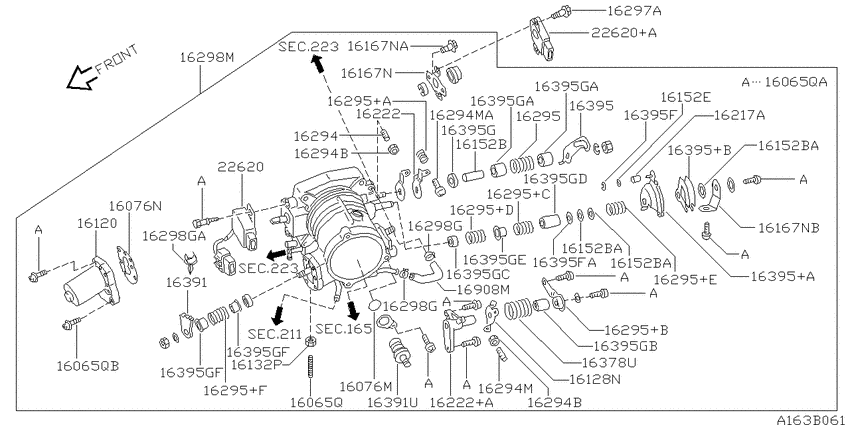

Throttle chamber (1992-06-01 ~ ; 構成部品; VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16065Q
|
16065Q
16065-64U03 Screw9206--01 ~ ; VH41DE |
16065-64U03 |
US $1.73 |
||
|
16065Q
|
16065Q
16065-1P105 Screw9206--01 ~ ; VH41DE |
16065-1P105 |
US $1.73 |
||
|
16065Q
|
16065Q
16065-64U04 Screw9206--01 ~ ; VH41DE |
16065-64U04 |
US $1.73 |
||
|
16065QA
|
16065QA
16065-1P105 Screw9206--01 ~ ; VH41DE |
16065-1P105 |
US $1.73 |
||
|
16065QB
|
16065QB
16065-64U04 Screw9206--01 ~ ; VH41DE |
16065-64U04 |
US $1.73 |
||
|
16076M
|
16076M
16618-95L00 Seal-O Ring9206--01 ~ ; VH41DE |
16618-95L00 |
US $5.62 |
||
|
16076N
|
16076N
16076-64U00 Gasket9206--01 ~ ; VH41DE |
16076-64U00 |
US $6.77 |
||
|
16120
|
16120
1612016Y01 Motor Assy-Tcs9206--01 ~ ; VH41DE |
1612016Y01 |
US $451.70 |
||
|
16128N
|
16128N
16131-1P101 Cam-Opener9206--01 ~ ; VH41DE |
16131-1P101 |
US $19.44 |
||
|
16132P
|
16132P
16132-64U01 Nut9206--01 ~ ; VH41DE |
16132-64U01 |
US $1.73 |
||
|
16152B
|
16152B
16217-1P100 Washer9206--01 ~ ; VH41DE |
16217-1P100 |
US $3.60 |
||
|
16152B
|
16152B
16217-61U00 Washer9206--01 ~ ; VH41DE |
16217-61U00 |
US $4.75 |
||
|
16152BA
|
16152BA
16217-61U00 Washer9206--01 ~ ; VH41DE |
16217-61U00 |
US $4.75 |
||
|
16152BA
|
16152BA
16217-61U00 Washer9206--01 ~ ; VH41DE |
16217-61U00 |
US $4.75 |
||
|
16152BA
|
16152BA
16217-61U00 Washer9206--01 ~ ; VH41DE |
16217-61U00 |
US $4.75 |
||
|
16152E
|
16152E
16152-61U01 Washer9206--01 ~ ; VH41DE |
16152-61U01 |
US $4.75 |
||
|
16167N
|
16167N
16167-1P105 Bracket-Switch9206--01 ~ ; VH41DE |
16167-1P105 |
US $32.83 |
||
|
16167N
|
16167N
16167-64U01 Bracket-Switch9206--01 ~ ; VH41DE |
16167-64U01 |
US $1.73 |
||
|
16167N
|
16167N
16264-1P100 Bracket-Switch9206--01 ~ ; VH41DE |
16264-1P100 |
US $37.44 |
||
|
16167NA
|
16167NA
16167-64U01 Bracket-Switch9206--01 ~ ; VH41DE |
16167-64U01 |
US $1.73 |
||
|
16167NB
|
16167NB
16264-1P100 Bracket-Switch9206--01 ~ ; VH41DE |
16264-1P100 |
US $37.44 |
||
|
16217A
|
16217A
16740-61U00 Coller9206--01 ~ ; VH41DE |
16740-61U00 |
US $11.23 |
||
|
16222
|
16222
16063-16Y02 Adaptor-Shaft9206--01 ~ ; VH41DE |
16063-16Y02 |
US $16.56 |
||
|
16222
|
16222
16063-16Y01 Adaptor-Shaft9206--01 ~ ; VH41DE |
16063-16Y01 |
US $15.12 |
||
|
16222+A
|
16222+A
16063-16Y01 Adaptor-Shaft9206--01 ~ ; VH41DE |
16063-16Y01 |
US $15.12 |
||
|
16294
|
16294
1614461U00 Screw-Adjusting9206--01 ~ ; VH41DE |
1614461U00 |
US $12.67 |
||
|
16294
|
16294
1607461U00 Nut9206--01 ~ ; VH41DE |
1607461U00 |
US $3.60 |
||
|
16294
|
16294
1637961U00 Screw-Adjusting9206--01 ~ ; VH41DE |
1637961U00 |
US $5.76 |
||
|
16294
|
16294
16379-61U01 Screw-Adjusting9206--01 ~ ; VH41DE |
16379-61U01 |
US $8.35 |
||
|
16294B
|
16294B
1607461U00 Nut9206--01 ~ ; VH41DE |
1607461U00 |
US $3.60 |
||
|
16294B
|
16294B
1607461U00 Nut9206--01 ~ ; VH41DE |
1607461U00 |
US $3.60 |
||
|
16294M
|
16294M
1637961U00 Screw-Adjusting9206--01 ~ ; VH41DE |
1637961U00 |
US $5.76 |
||
|
16294M
|
16294M
16379-61U01 Screw-Adjusting9206--01 ~ ; VH41DE |
16379-61U01 |
US $8.35 |
||
|
16294MA
|
16294MA
16379-61U01 Screw-Adjusting9206--01 ~ ; VH41DE |
16379-61U01 |
US $8.35 |
||
|
16295
|
16295
16145-1P101 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P101 |
US $5.47 |
||
|
16295
|
16295
16145-95L00 Spring-Screw, Adjust9206--01 ~ ; VH41DE |
16145-95L00 |
US $4.46 |
||
|
16295
|
16295
16145-64U00 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-64U00 |
US $11.23 |
||
|
16295
|
16295
16145-1P103 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P103 |
US $5.47 |
||
|
16295
|
16295
16145-1P105 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P105 |
US $5.47 |
||
|
16295
|
16295
16145-1P106 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P106 |
US $6.91 |
||
|
16295
|
16295
16145-64U02 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-64U02 |
US $3.60 |
||
|
16295+A
|
16295+A
16145-95L00 Spring-Screw, Adjust9206--01 ~ ; VH41DE |
16145-95L00 |
US $4.46 |
||
|
16295+B
|
16295+B
16145-64U00 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-64U00 |
US $11.23 |
||
|
16295+C
|
16295+C
16145-1P103 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P103 |
US $5.47 |
||
|
16295+D
|
16295+D
16145-1P105 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P105 |
US $5.47 |
||
|
16295+E
|
16295+E
16145-1P106 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-1P106 |
US $6.91 |
||
|
16295+F
|
16295+F
16145-64U02 Spring-Adjusting Screw9206--01 ~ ; VH41DE |
16145-64U02 |
US $3.60 |
||
|
16297A
|
16297A
16129-1P100 Screw9206--01 ~ ; VH41DE |
16129-1P100 |
US $1.73 |
||
|
16298G
|
16298G
16156-84A00 Clamp-Hose9206--01 ~ ; VH41DE |
16156-84A00 |
US $5.47 |
||
|
16298G
|
16298G
24225-89913 Clip9206--01 ~ ; VH41DE |
24225-89913 |
US $4.18 |
||
|
16298G
|
16298G
16156-84A00 Clamp-Hose9206--01 ~ ; VH41DE |
16156-84A00 |
US $5.47 |
||
|
16298G
|
16298G
24225-89913 Clip9206--01 ~ ; VH41DE |
24225-89913 |
US $4.18 |
||
|
16298GA
|
16298GA
24225-89913 Clip9206--01 ~ ; VH41DE |
24225-89913 |
US $4.18 |
||
|
16298M
|
16298M
16119-16Y01 Chamber Assy-Throttle9206--01 ~ ; VH41DE |
16119-16Y01 |
US $2,436 |
||
|
16378U
|
16378U
16378-61U00 Spring-Cam9206--01 ~ ; VH41DE |
16378-61U00 |
US $10.80 |
||
|
16391
|
16391
16381-64U00 Shaft-Throttle9206--01 ~ ; VH41DE |
16381-64U00 |
US $56.16 |
||
|
16391
|
16391
1639195L00 Element-Thermo9206--01 ~ ; VH41DE |
1639195L00 |
US $164.16 |
||
|
16391U
|
16391U
1639195L00 Element-Thermo9206--01 ~ ; VH41DE |
1639195L00 |
US $164.16 |
||
|
16395
|
16395
16134-1P100 Lever-Throttle9206--01 ~ ; VH41DE |
16134-1P100 |
US $24.91 |
||
|
16395
|
16395
16134-1P101 Lever-Throttle9206--01 ~ ; VH41DE |
16134-1P101 |
US $24.91 |
||
|
16395
|
16395
16134-1P102 Lever-Throttle9206--01 ~ ; VH41DE |
16134-1P102 |
US $24.91 |
||
|
16395
|
16395
16660-1P100 Ring-Snap9206--01 ~ ; VH41DE |
16660-1P100 |
US $2.02 |
||
|
16395
|
16395
16660-61U01 Ring-Snap9206--01 ~ ; VH41DE |
16660-61U01 |
US $5.90 |
||
|
16395
|
16395
16116-16Y01 Retainer-Spring9206--01 ~ ; VH41DE |
16116-16Y01 |
US $6.91 |
||
|
16395
|
16395
16116-1P100 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P100 |
US $6.91 |
||
|
16395
|
16395
16116-61U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-61U00 |
US $4.75 |
||
|
16395
|
16395
16116-1P101 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P101 |
US $6.91 |
||
|
16395
|
16395
16116-1P102 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P102 |
US $6.91 |
||
|
16395
|
16395
16116-1P103 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P103 |
US $6.91 |
||
|
16395
|
16395
16116-64U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-64U00 |
US $4.61 |
||
|
16395+A
|
16395+A
16134-1P101 Lever-Throttle9206--01 ~ ; VH41DE |
16134-1P101 |
US $24.91 |
||
|
16395+B
|
16395+B
16134-1P102 Lever-Throttle9206--01 ~ ; VH41DE |
16134-1P102 |
US $24.91 |
||
|
16395F
|
16395F
16660-1P100 Ring-Snap9206--01 ~ ; VH41DE |
16660-1P100 |
US $2.02 |
||
|
16395F
|
16395F
16660-61U01 Ring-Snap9206--01 ~ ; VH41DE |
16660-61U01 |
US $5.90 |
||
|
16395FA
|
16395FA
16660-61U01 Ring-Snap9206--01 ~ ; VH41DE |
16660-61U01 |
US $5.90 |
||
|
16395G
|
16395G
16116-16Y01 Retainer-Spring9206--01 ~ ; VH41DE |
16116-16Y01 |
US $6.91 |
||
|
16395G
|
16395G
16116-1P100 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P100 |
US $6.91 |
||
|
16395G
|
16395G
16116-61U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-61U00 |
US $4.75 |
||
|
16395G
|
16395G
16116-1P101 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P101 |
US $6.91 |
||
|
16395G
|
16395G
16116-1P102 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P102 |
US $6.91 |
||
|
16395G
|
16395G
16116-1P103 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P103 |
US $6.91 |
||
|
16395G
|
16395G
16116-64U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-64U00 |
US $4.61 |
||
|
16395GA
|
16395GA
16116-1P100 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P100 |
US $6.91 |
||
|
16395GA
|
16395GA
16116-1P100 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P100 |
US $6.91 |
||
|
16395GB
|
16395GB
16116-61U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-61U00 |
US $4.75 |
||
|
16395GC
|
16395GC
16116-1P101 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P101 |
US $6.91 |
||
|
16395GD
|
16395GD
16116-1P102 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P102 |
US $6.91 |
||
|
16395GE
|
16395GE
16116-1P103 Retainer-Spring9206--01 ~ ; VH41DE |
16116-1P103 |
US $6.91 |
||
|
16395GF
|
16395GF
16116-64U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-64U00 |
US $4.61 |
||
|
16395GF
|
16395GF
16116-64U00 Retainer-Spring9206--01 ~ ; VH41DE |
16116-64U00 |
US $4.61 |
||
|
165
|
Air cleaner
165
|
||||
|
16908M
|
16908M
16908-1P105 Hose-Water9206--01 ~ ; VH41DE |
16908-1P105 |
US $10.37 |
||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22620
|
22620
16260-1P100 Throttle Position Switch9206--01 ~ ; VH41DE |
16260-1P100 |
US $74.02 |
||
|
22620
|
22620
22620-64U01 Throttle Position Switch9206--01 ~ ; VH41DE |
22620-64U01 |
US $107.71 |
||
|
22620+A
|
22620+A
22620-64U01 Throttle Position Switch9206--01 ~ ; VH41DE |
22620-64U01 |
US $107.71 |
||
