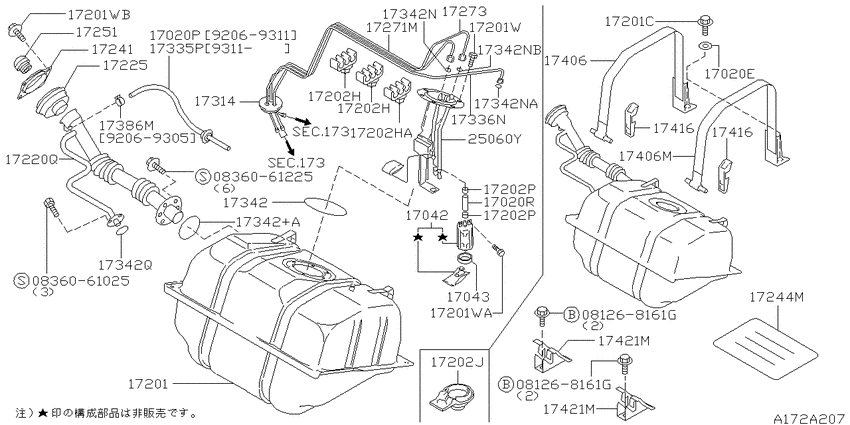

Fuel tank (1992-06-01 ~ ; VG30DE +VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VG30DE
- transmission
- AT
- grade
- TYPE/F
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268161G
|
081268161G
08126-8161G
Bolt-hexagon
|
08126-8161G |
— | ||
|
081268161G
|
081268161G
08126-8161G
Bolt-hexagon
|
08126-8161G |
— | ||
|
0836061025
|
0836061025
08360-61025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61025 |
— | ||
|
0836061225
|
0836061225
08360-61225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61225 |
— | ||
|
17020E
|
17020E
01352-00521 GASKET9206--01 ~ ; VG30DE +VH41DE |
01352-00521 |
US $1.73 |
||
|
17020P
|
17020P
02173-06020
TUBE-VINYL,FLEXIBLE
9206--01 ~ 9311--01; VG30DE +VH41DE; L=60 S/#A7335-U0110 |
02173-06020 |
— | ||
|
17020R
|
17020R
08740-05039
HOSE-FUEL
9206--01 ~ ; VG30DE +VH41DE; L=50 S/#A8741-00039 |
08740-05039 |
— | ||
| replacement | |||||
|
17020R
|
17020R
A874100039 Hose-Fuel9206--01 ~ ; VG30DE +VH41DE; L=50 S/#A8741-00039 |
A874100039 |
from US $27.96 |
||
|
17042
|
17042
1704297E00 PUMP ASSY-FUEL9206--01 ~ 9210--01; VG30DE |
1704297E00 |
US $447.46 |
||
|
17042
|
17042
17042-97E05 PUMP ASSY-FUEL9210--01 ~ ; VG30DE |
17042-97E05 |
US $538.08 |
||
|
17043
|
17043
1704351E00 SUPPORT-PUMP,RUBBER9206--01 ~ ; VG30DE +VH41DE |
1704351E00 |
US $16.50 |
||
|
17201
|
17201
17202-0P060 Tank Assy-Fuel9206--01 ~ ; VG30DE +VH41DE |
17202-0P060 |
US $1,091.74 |
||
|
17201
|
17201
01121-01051 BOLT9206--01 ~ ; VG30DE +VH41DE |
01121-01051 |
US $2.45 |
||
|
17201
|
17201
0143600291 SCREW9206--01 ~ ; VG30DE +VH41DE |
0143600291 |
from US $2.21 |
||
|
17201
|
17201
01431-00351 SCREW9206--01 ~ ; VG30DE +VH41DE |
01431-00351 |
US $2.21 |
||
|
17201
|
17201
01436-01401 SCREW9206--01 ~ ; VG30DE +VH41DE |
01436-01401 |
US $2.45 |
||
|
17201C
|
17201C
01121-01051 BOLT9206--01 ~ ; VG30DE +VH41DE |
01121-01051 |
US $2.45 |
||
|
17201W
|
17201W
0143600291 SCREW9206--01 ~ ; VG30DE +VH41DE |
0143600291 |
from US $2.21 |
||
|
17201W
|
17201W
01431-00351 SCREW9206--01 ~ ; VG30DE +VH41DE |
01431-00351 |
US $2.21 |
||
|
17201W
|
17201W
01436-01401 SCREW9206--01 ~ ; VG30DE +VH41DE |
01436-01401 |
US $2.45 |
||
|
17201WA
|
17201WA
01431-00351 SCREW9206--01 ~ ; VG30DE +VH41DE |
01431-00351 |
US $2.21 |
||
|
17201WB
|
17201WB
01436-01401 SCREW9206--01 ~ ; VG30DE +VH41DE |
01436-01401 |
US $2.45 |
||
|
17202H
|
17202H
0156100291 INSULATOR9206--01 ~ ; VG30DE +VH41DE |
0156100291 |
US $4.18 |
||
|
17202H
|
17202H
01561-00281 INSULATOR9206--01 ~ ; VG30DE +VH41DE |
01561-00281 |
US $4.18 |
||
|
17202H
|
17202H
0156100291 INSULATOR9206--01 ~ ; VG30DE +VH41DE |
0156100291 |
US $4.18 |
||
|
17202H
|
17202H
01561-00281 INSULATOR9206--01 ~ ; VG30DE +VH41DE |
01561-00281 |
US $4.18 |
||
|
17202HA
|
17202HA
01561-00281 INSULATOR9206--01 ~ ; VG30DE +VH41DE |
01561-00281 |
US $4.18 |
||
|
17202J
|
17202J
74816-01E12 PLUG9206--01 ~ ; VG30DE +VH41DE |
74816-01E12 |
US $10.95 |
||
|
17202P
|
17202P
16439-35F15
Clamp
9206--01 ~ ; VG30DE +VH41DE |
16439-35F15 |
— | ||
| replacement | |||||
|
17202P
|
17202P
1643935F1A Clamp9206--01 ~ ; VG30DE +VH41DE |
1643935F1A |
US $4.85 |
||
|
17202P
|
17202P
16439-35F15
Clamp
9206--01 ~ ; VG30DE +VH41DE |
16439-35F15 |
— | ||
| replacement | |||||
|
17202P
|
17202P
1643935F1A Clamp9206--01 ~ ; VG30DE +VH41DE |
1643935F1A |
US $4.85 |
||
|
17220Q
|
17220Q
17221-14Y00 Tube Assy-Filler9206--01 ~ 9207--01; VG30DE +VH41DE |
17221-14Y00 |
US $236.16 |
||
|
17220Q
|
17220Q
17221-14Y05 Tube Assy-Filler9208--01 ~ ; VG30DE +VH41DE |
17221-14Y05 |
US $236.16 |
||
|
17220Q
|
17220Q
17221-14Y10 Tube Assy-Filler9207--01 ~ 9208--01; VG30DE +VH41DE |
17221-14Y10 |
US $236.16 |
||
|
17225
|
17225
17225-0P000 Packing-Filler Neck9206--01 ~ ; VG30DE +VH41DE |
17225-0P000 |
US $12.53 |
||
|
17241
|
17241
17241-10Y00 Retainer-Grommet9206--01 ~ ; VG30DE +VH41DE |
17241-10Y00 |
US $26.78 |
||
|
17244M
|
17244M
17244-0P025
Insulator-Fuel Tank
9206--01 ~ ; VG30DE +VH41DE |
17244-0P025 |
— | ||
|
17251
|
17251
17251-79910
Cap Assy-Filler
9206--01 ~ ; VG30DE +VH41DE |
17251-79910 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler9206--01 ~ ; VG30DE +VH41DE |
1725179920 |
from US $34.10 |
||
|
17271M
|
17271M
17271-10Y00 Tube-Fuel Tank Outlet9206--01 ~ ; VG30DE +VH41DE |
17271-10Y00 |
US $67.68 |
||
|
17273
|
17273
17273-10Y00 Tube-Fuel Tank, Return9206--01 ~ ; VG30DE +VH41DE |
17273-10Y00 |
US $82.94 |
||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
17314
|
17314
17314-10V01 Grommet9206--01 ~ ; VG30DE +VH41DE |
17314-10V01 |
US $2.74 |
||
|
17335P
|
17335P
17335-0P020 Hose-Breather9311--01 ~ ; VG30DE +VH41DE |
17335-0P020 |
US $19.15 |
||
|
17336N
|
17336N
17336-10Y10 Tube-Breather9206--01 ~ 9505--01; VG30DE +VH41DE |
17336-10Y10 |
US $108.72 |
||
|
17336N
|
17336N
17336-10Y11 Tube-Breather9505--01 ~ ; VG30DE +VH41DE |
17336-10Y11 |
US $64.66 |
||
|
17342
|
17342
1734201A00 Seal-O Ring, Fuel Gauge9206--01 ~ ; VG30DE +VH41DE |
1734201A00 |
from US $16.50 |
||
|
17342
|
17342
1734201L00 Seal-O Ring, Fuel Gauge9206--01 ~ ; VG30DE |
1734201L00 |
from US $15.93 |
||
|
17342
|
17342
92470-N8200
O Ring
9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
17342
|
17342
92470N8210 O Ring9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470N8210 |
from US $0.98 |
||
|
17342
|
17342
92472N8200 Seal-O Ring9206--01 ~ ; VG30DE +VH41DE |
92472N8200 |
US $1.13 |
||
|
17342
|
17342
92470-N8200
O Ring
9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
17342
|
17342
92470N8210 O Ring9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470N8210 |
from US $0.98 |
||
|
17342
|
17342
17342-0P000
Packing-Fuel Gauge
9206--01 ~ ; VG30DE +VH41DE |
17342-0P000 |
— | ||
|
17342+A
|
17342+A
1734201L00 Seal-O Ring, Fuel Gauge9206--01 ~ ; VG30DE |
1734201L00 |
from US $15.93 |
||
|
17342N
|
17342N
92470-N8200
O Ring
9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
17342N
|
17342N
92470N8210 O Ring9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470N8210 |
from US $0.98 |
||
|
17342N
|
17342N
92472N8200 Seal-O Ring9206--01 ~ ; VG30DE +VH41DE |
92472N8200 |
US $1.13 |
||
|
17342N
|
17342N
92470-N8200
O Ring
9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
17342N
|
17342N
92470N8210 O Ring9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470N8210 |
from US $0.98 |
||
|
17342NA
|
17342NA
92472N8200 Seal-O Ring9206--01 ~ ; VG30DE +VH41DE |
92472N8200 |
US $1.13 |
||
|
17342NB
|
17342NB
92470-N8200
O Ring
9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
17342NB
|
17342NB
92470N8210 O Ring9206--01 ~ ; VG30DE +VH41DE; [B421] |
92470N8210 |
from US $0.98 |
||
|
17342Q
|
17342Q
17342-0P000
Packing-Fuel Gauge
9206--01 ~ ; VG30DE +VH41DE |
17342-0P000 |
— | ||
|
17386M
|
17386M
17386-M7001 Clip9206--01 ~ 9305--01; VG30DE +VH41DE |
17386-M7001 |
US $2.45 |
||
| replacement | |||||
|
17386M
|
17386M
17326-F990A Clamp-Breather Hose9206--01 ~ 9305--01; VG30DE +VH41DE |
17326-F990A |
US $2.45 |
||
|
17406
|
17406
17406-10Y00 Band Assy-Fuel Tank Mounting9206--01 ~ 9401--01; VG30DE +VH41DE |
17406-10Y00 |
US $87.55 |
||
|
17406
|
17406
17406-10Y11 Band Assy-Fuel Tank Mounting9401--01 ~ ; VG30DE +VH41DE |
17406-10Y11 |
US $87.55 |
||
|
17406
|
17406
17407-10Y00 Band Assy-Fuel Tank, Mounting9206--01 ~ 9401--01; VG30DE +VH41DE |
17407-10Y00 |
US $87.55 |
||
|
17406
|
17406
17407-10Y11 Band Assy-Fuel Tank, Mounting9401--01 ~ ; VG30DE +VH41DE |
17407-10Y11 |
US $87.55 |
||
|
17406M
|
17406M
17407-10Y00 Band Assy-Fuel Tank, Mounting9206--01 ~ 9401--01; VG30DE +VH41DE |
17407-10Y00 |
US $87.55 |
||
|
17406M
|
17406M
17407-10Y11 Band Assy-Fuel Tank, Mounting9401--01 ~ ; VG30DE +VH41DE |
17407-10Y11 |
US $87.55 |
||
|
17416
|
17416
17416-60U00 Spacer-Fuel Tank Mounting Band9206--01 ~ ; VG30DE +VH41DE |
17416-60U00 |
US $1.73 |
||
|
17416
|
17416
17416-60U00 Spacer-Fuel Tank Mounting Band9206--01 ~ ; VG30DE +VH41DE |
17416-60U00 |
US $1.73 |
||
|
17421M
|
17421M
17421-10Y00 Bracket Assy-Fuel Tank Supprot9206--01 ~ ; VG30DE +VH41DE |
17421-10Y00 |
US $58.61 |
||
|
17421M
|
17421M
17421-10Y00 Bracket Assy-Fuel Tank Supprot9206--01 ~ ; VG30DE +VH41DE |
17421-10Y00 |
US $58.61 |
||
|
25060Y
|
25060Y
25060-0P000
Sender Unit-Fuel Gauge
9206--01 ~ ; VG30DE +VH41DE |
25060-0P000 |
— | ||
| replacement | |||||
|
25060Y
|
25060Y
250600P001
ｾﾝﾀﾞ- ﾕﾆﾂﾄ
9206--01 ~ ; VG30DE +VH41DE |
250600P001 |
— | ||
