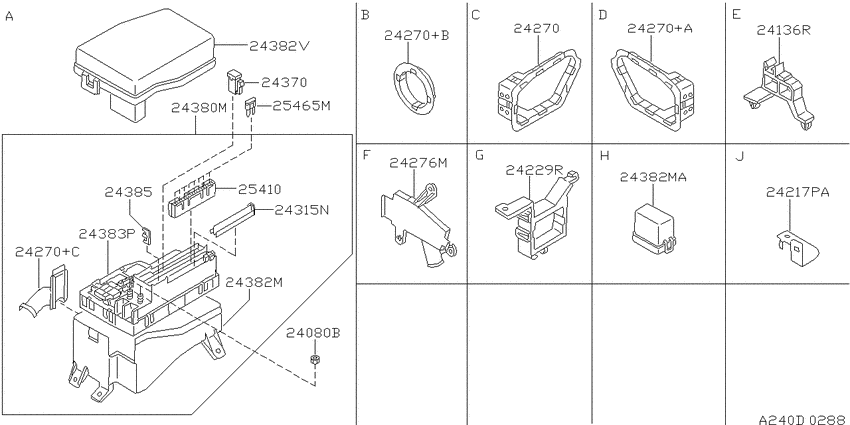

Wiring (1997-10-01 ~ ; &エンジン ルーム フィッティング(1); K.RB25DET) Diagram Nissan LEOPARD
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 4WD
- transmission
- AT
- grade
- XJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24080B
|
24080B
0122100381 NUT9710--01 ~ ; K.RB25DET |
0122100381 |
from US $5.85 |
||
|
24136R
|
24136R
243464P000 Bracket-Connector9710--01 ~ ; K.RB25DET |
243464P000 |
US $4.61 |
||
|
24217PA
|
24217PA
24239-75T00 Bracket-Harness Clip9710--01 ~ ; K.RB25DET |
24239-75T00 |
US $10.37 |
||
|
24229R
|
24229R
24356-4P011 Bracket-Junction9710--01 ~ ; K.RB25DET |
24356-4P011 |
US $9.65 |
||
|
24270
|
24270
24282-4P000 Protector-Harness9710--01 ~ ; K.RB25DET |
24282-4P000 |
US $7.92 |
||
|
24270
|
24270
24282-4P001 Protector-Harness9710--01 ~ ; K.RB25DET |
24282-4P001 |
US $7.92 |
||
|
24270
|
24270
24282-4P010 Protector-Harness9710--01 ~ ; K.RB25DET |
24282-4P010 |
US $8.06 |
||
|
24270
|
24270
24299-4P000 Protector-Harness9710--01 ~ ; K.RB25DET |
24299-4P000 |
US $8.06 |
||
|
24270
|
24270
24275-4P000 Protector-Harness9710--01 ~ ; K.RB25DET |
24275-4P000 |
US $14.54 |
||
|
24270
|
24270
24282-4P002 Protector-Harness9710--01 ~ ; K.RB25DET |
24282-4P002 |
US $12.82 |
||
|
24270+A
|
24270+A
24282-4P001 Protector-Harness9710--01 ~ ; K.RB25DET |
24282-4P001 |
US $7.92 |
||
|
24270+B
|
24270+B
24282-4P010 Protector-Harness9710--01 ~ ; K.RB25DET |
24282-4P010 |
US $8.06 |
||
|
24270+C
|
24270+C
24299-4P000 Protector-Harness9710--01 ~ ; K.RB25DET |
24299-4P000 |
US $8.06 |
||
|
24276M
|
24276M
24281-4P000 Protector-Harness9710--01 ~ ; K.RB25DET |
24281-4P000 |
US $5.47 |
||
|
24315N
|
24315N
24315-4P000 Retainer-Fuse Block9710--01 ~ ; K.RB25DET |
24315-4P000 |
US $4.61 |
||
|
24370
|
24370
24370-C9910 Connector Assy-Fusible Link9710--01 ~ ; K.RB25DET; 30A |
24370-C9910 |
US $13.10 |
||
|
24370
|
24370
24370-C9920 Connector Assy-Fusible Link9710--01 ~ ; K.RB25DET; 40A |
24370-C9920 |
US $13.10 |
||
|
24370
|
24370
24370C9970 Connector Assy-Fusible Link9710--01 ~ ; K.RB25DET; 60A |
24370C9970 |
from US $13.62 |
||
|
24370
|
24370
24370C9980 Connector Assy-Fusible Link9710--01 ~ ; K.RB25DET; 80A |
24370C9980 |
from US $14.29 |
||
|
24370
|
24370
2437079917 Connector Assy-Fusible Link9710--01 ~ ; K.RB25DET; 120A |
2437079917 |
US $13.10 |
||
|
24380M
|
24380M
24380-4P000 Box Assy-Relay9710--01 ~ ; K.RB25DET |
24380-4P000 |
US $181.44 |
||
|
24380M
|
24380M
24380-4P200 Box Assy-Relay9710--01 ~ ; K.RB25DET |
24380-4P200 |
US $49.39 |
||
|
24382M
|
24382M
24372-4P000 Cover-Relay Box9710--01 ~ ; K.RB25DET |
24372-4P000 |
US $17.57 |
||
|
24382M
|
24382M
24382-64U21 Cover-Relay Box9710--01 ~ ; K.RB25DET |
24382-64U21 |
US $16.50 |
||
|
24382MA
|
24382MA
24382-64U21 Cover-Relay Box9710--01 ~ ; K.RB25DET |
24382-64U21 |
US $16.50 |
||
|
24382V
|
24382V
24382-5P500 Cover-Relay Box9710--01 ~ ; K.RB25DET |
24382-5P500 |
US $24.91 |
||
|
24382V
|
24382V
24382-4P200 Cover-Relay Box9710--01 ~ ; K.RB25DET |
24382-4P200 |
US $19.01 |
||
|
24383P
|
24383P
24383-4P000 Housing-Relay Box9710--01 ~ ; K.RB25DET |
24383-4P000 |
US $19.15 |
||
|
24385
|
24385
24385-4P003 Retainer-Fusible Link Holder9710--01 ~ ; K.RB25DET |
24385-4P003 |
US $5.47 |
||
|
25410
|
25410
24311-4P000 Block Assy-Fuse9710--01 ~ ; K.RB25DET |
24311-4P000 |
US $104.98 |
||
|
25465M
|
25465M
24319C9907 Fuse9710--01 ~ ; K.RB25DET; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9910 Fuse9710--01 ~ ; K.RB25DET; 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9915 Fuse9710--01 ~ ; K.RB25DET; 15A |
24319C9915 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse9710--01 ~ ; K.RB25DET; 20A |
24319C9920 |
from US $0.86 |
