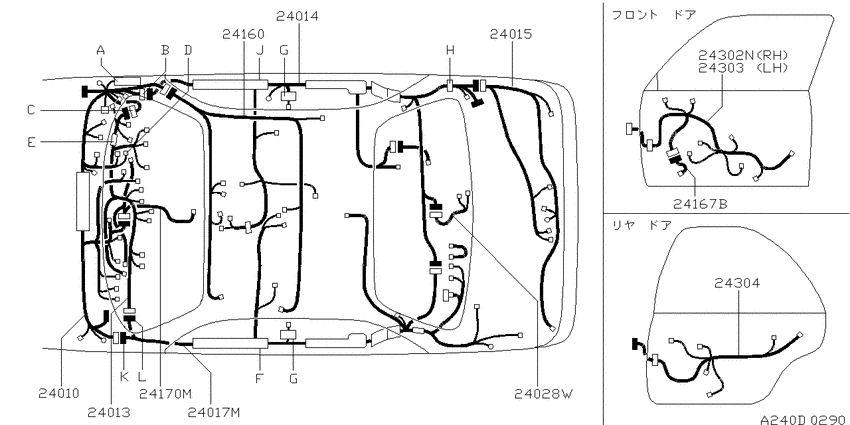

Wiring (1997-10-01 ~ ; ボディー; K.RB25DET) Diagram Nissan LEOPARD
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 4WD
- transmission
- AT
- grade
- XJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-5P500 Harness Assy-Main9710--01 ~ ; K.RB25DET |
24010-5P500 |
US $2,702 |
||
|
24010
|
24010
24010-5P501 Harness Assy-Main9710--01 ~ ; *K.RB25DET; ｻﾝﾙ-ﾌ ｼﾖｳ |
24010-5P501 |
US $2,702 |
||
|
24010
|
24010
24010-5P502 Harness Assy-Main9710--01 ~ ; *K.RB25DET; ｶﾝﾚｲﾁ ｼﾖｳ |
24010-5P502 |
US $2,702 |
||
|
24010
|
24010
24010-5P503 Harness Assy-Main9710--01 ~ ; *K.RB25DET; ﾏﾙﾁAV |
24010-5P503 |
US $2,702 |
||
|
24013
|
24013
24013-5P560 Harness Assy-Instrument9710--01 ~ ; *K.RB25DET; ﾊﾞ-ﾁﾔﾙﾋﾞｼﾞﾖﾝﾒ-ﾀ- ｼﾖｳ |
24013-5P560 |
US $795.79 |
||
|
24013
|
24013
24013-5P561 Harness Assy-Instrument9710--01 ~ ; *K.RB25DET; ﾊﾞ-ﾁﾔﾙﾋﾞｼﾞﾖﾝﾒ-ﾀ- ｼﾖｳ +ﾏﾙﾁAV |
24013-5P561 |
US $795.79 |
||
|
24013
|
24013
24013-5P570 Harness Assy-Instrument9710--01 ~ ; K.RB25DET |
24013-5P570 |
US $947.30 |
||
|
24013
|
24013
24013-5P571 Harness Assy-Instrument9710--01 ~ ; *K.RB25DET; ﾏﾙﾁAV |
24013-5P571 |
US $947.30 |
||
|
24013
|
24013
01658-00033 PLUG-BLIND9710--01 ~ ; K.RB25DET |
01658-00033 |
US $4.18 |
||
|
24014
|
24014
24014-5P500 Harness Assy-Body9710--01 ~ ; K.RB25DET |
24014-5P500 |
US $1,329.62 |
||
|
24014
|
24014
24014-5P502 Harness Assy-Body9710--01 ~ ; *K.RB25DET; ﾏﾙﾁAV |
24014-5P502 |
US $1,329.62 |
||
|
24014
|
24014
24014-5P560 Harness Assy-Body9710--01 ~ ; *K.RB25DET; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
24014-5P560 |
US $1,329.62 |
||
|
24014
|
24014
24014-5P562 Harness Assy-Body9710--01 ~ ; *K.RB25DET; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ+ﾏﾙﾁAV |
24014-5P562 |
US $1,329.62 |
||
|
24014
|
24014
0145100581 SCREW9710--01 ~ ; K.RB25DET |
0145100581 |
from US $0.72 |
||
|
24015
|
24015
24015-5P700 Harness Assy-Tail9710--01 ~ ; K.RB25DET |
24015-5P700 |
US $315.77 |
||
|
24017M
|
24017M
24017-5P500 Harness-Body, No29710--01 ~ ; K.RB25DET |
24017-5P500 |
US $1,568 |
||
|
24017M
|
24017M
24017-5P502 Harness-Body, No29710--01 ~ ; *K.RB25DET; ﾏﾙﾁAV |
24017-5P502 |
US $1,568 |
||
|
24017M
|
24017M
24017-5P560 Harness-Body, No29710--01 ~ ; *K.RB25DET; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
24017-5P560 |
US $1,568 |
||
|
24017M
|
24017M
24017-5P562 Harness-Body, No29710--01 ~ ; *K.RB25DET; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ+ﾏﾙﾁAV |
24017-5P562 |
US $1,568 |
||
|
24028W
|
24028W
24050-5P200 Harness-Sub9710--01 ~ ; K.RB25DET |
24050-5P200 |
US $64.94 |
||
|
24160
|
24160
24060-5P601 Harness Assy-Room Lamp9710--01 ~ ; *K.RB25DET; ｻﾝﾙ-ﾌ ｼﾖｳ |
24060-5P601 |
US $177.12 |
||
|
24160
|
24160
24060-5P602 Harness Assy-Room Lamp9710--01 ~ ; K.RB25DET |
24060-5P602 |
US $177.12 |
||
|
24167B
|
24167B
24028-5P500 Harness-Sub9710--01 ~ ; K.RB25DET |
24028-5P500 |
US $185.76 |
||
|
24170M
|
24170M
24170-5P500 Harness-Air Bag, Room9710--01 ~ ; K.RB25DET |
24170-5P500 |
US $317.18 |
||
|
24302N
|
24302N
241245P601 Harness Assy-Door, Front9710--01 ~ ; K.RB25DET |
241245P601 |
US $270.72 |
||
|
24302N
|
24302N
24124-5P602 Harness Assy-Door, Front9710--01 ~ ; *K.RB25DET; ﾋｰﾀｰﾐﾗｰ ｼﾖｳ |
24124-5P602 |
US $270.72 |
||
|
24303
|
24303
24125-5P600 Harness Assy-Door, Front9710--01 ~ ; K.RB25DET |
24125-5P600 |
US $188.64 |
||
|
24303
|
24303
24125-5P601 Harness Assy-Door, Front9710--01 ~ ; *K.RB25DET; ﾋｰﾀｰﾐﾗｰ ｼﾖｳ |
24125-5P601 |
US $187.20 |
||
|
24304
|
24304
24126-4P000 Harness Assy-Door, Rear9710--01 ~ ; K.RB25DET |
24126-4P000 |
US $121.68 |
