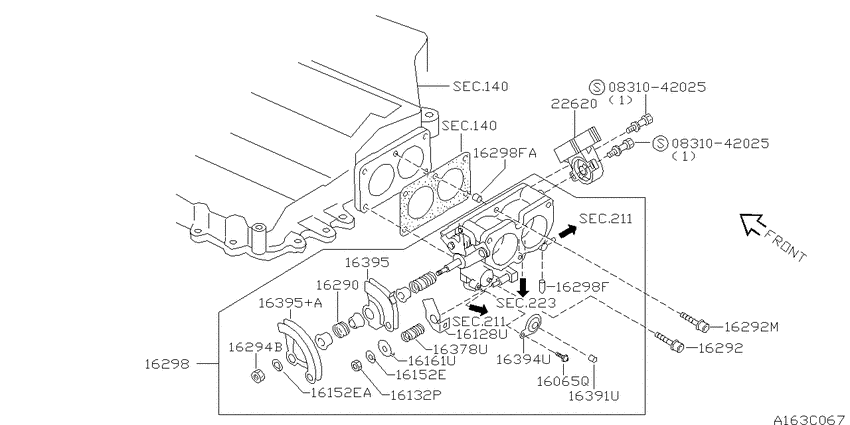

Throttle chamber (1996-03-01 ~ 1997-10-01; VQ30DE) Diagram Nissan LEOPARD
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- VQ30DE
- drive
- 2WD
- transmission
- AT
- grade
- XR
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831042025
|
0831042025
0831042025
ｽｸﾘﾕ-,ﾏｼﾝ
|
0831042025 |
— | ||
|
0831042025
|
0831042025
0831042025
ｽｸﾘﾕ-,ﾏｼﾝ
|
0831042025 |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16065Q
|
16065Q
1606531U00 Screw9603--01 ~ 9710--01; VQ30DE |
1606531U00 |
US $3.46 |
||
|
16128U
|
16128U
16128-4P100 Cam-Fast Idle9603--01 ~ 9710--01; VQ30DE |
16128-4P100 |
US $26.78 |
||
|
16132P
|
16132P
16132-73C10 Nut9603--01 ~ 9710--01; VQ30DE |
16132-73C10 |
US $3.46 |
||
|
16152E
|
16152E
16152-73C10 Washer9603--01 ~ 9710--01; VQ30DE |
16152-73C10 |
US $1.44 |
||
|
16152E
|
16152E
16152-97E15 WASHER9603--01 ~ 9710--01; VQ30DE |
16152-97E15 |
US $0.86 |
||
|
16152EA
|
16152EA
16152-97E15 WASHER9603--01 ~ 9710--01; VQ30DE |
16152-97E15 |
US $0.86 |
||
|
16161U
|
16161U
16161-31U00 Hanger-Throttle Return9603--01 ~ 9710--01; VQ30DE |
16161-31U00 |
US $7.78 |
||
|
16290
|
16290
16160-4P100 Spring-Throttle Return9603--01 ~ 9710--01; VQ30DE |
16160-4P100 |
US $10.94 |
||
|
16292
|
16292
16122-17B00 Bolt-Chamber9603--01 ~ 9710--01; VQ30DE |
16122-17B00 |
US $7.63 |
||
|
16292
|
16292
16122-73C00 Bolt-Chamber9603--01 ~ 9710--01; VQ30DE |
16122-73C00 |
US $2.45 |
||
|
16292M
|
16292M
16122-73C00 Bolt-Chamber9603--01 ~ 9710--01; VQ30DE |
16122-73C00 |
US $2.45 |
||
|
16294B
|
16294B
1607495E15 NUT9603--01 ~ 9710--01; VQ30DE |
1607495E15 |
US $2.45 |
||
|
16298
|
16298
16118-4P100 Chamber Assy-Throttle9603--01 ~ 9610--01; VQ30DE |
16118-4P100 |
US $1,195.10 |
||
|
16298
|
16298
16118-4P120 Chamber Assy-Throttle9610--01 ~ 9612--01; VQ30DE |
16118-4P120 |
US $1,195.10 |
||
|
16298
|
16298
16118-4P121 Chamber Assy-Throttle9612--01 ~ 9710--01; VQ30DE |
16118-4P121 |
US $1,094.57 |
||
|
16298
|
16298
16599-W7000 Cap-Connector9603--01 ~ 9710--01; VQ30DE |
16599-W7000 |
US $6.19 |
||
|
16298
|
16298
1102258S00 Pin-Dowel9603--01 ~ 9710--01; VQ30DE |
1102258S00 |
US $2.45 |
||
|
16298F
|
16298F
16599-W7000 Cap-Connector9603--01 ~ 9710--01; VQ30DE |
16599-W7000 |
US $6.19 |
||
|
16298F
|
16298F
1102258S00 Pin-Dowel9603--01 ~ 9710--01; VQ30DE |
1102258S00 |
US $2.45 |
||
|
16298FA
|
16298FA
1102258S00 Pin-Dowel9603--01 ~ 9710--01; VQ30DE |
1102258S00 |
US $2.45 |
||
|
16378U
|
16378U
16378-86G00 Spring-Cam9603--01 ~ 9710--01; VQ30DE |
16378-86G00 |
US $5.04 |
||
|
16391U
|
16391U
1639131U00 Element Kit-Thermo9603--01 ~ 9710--01; VQ30DE |
1639131U00 |
US $168.48 |
||
|
16394U
|
16394U
1639473C00 Ptc9603--01 ~ 9710--01; VQ30DE |
1639473C00 |
US $3.46 |
||
|
16395
|
16395
16134-4P100 Lever-Throttle9603--01 ~ 9710--01; VQ30DE |
16134-4P100 |
US $24.05 |
||
|
16395
|
16395
16134-4P101 Lever-Throttle9603--01 ~ 9710--01; VQ30DE |
16134-4P101 |
US $24.05 |
||
|
16395+A
|
16395+A
16134-4P101 Lever-Throttle9603--01 ~ 9710--01; VQ30DE |
16134-4P101 |
US $24.05 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22620
|
22620
22620-31U16 Throttle Position Switch9603--01 ~ 9606--01; VQ30DE |
22620-31U16 |
US $72.58 |
||
|
22620
|
22620
22620-3M200 Throttle Position Switch9606--01 ~ 9710--01; VQ30DE |
22620-3M200 |
US $72.58 |
||
| replacement | |||||
|
22620
|
22620
22620-4M510 Throttle Position Switch9606--01 ~ 9710--01; VQ30DE |
22620-4M510 |
US $72.58 |
||
