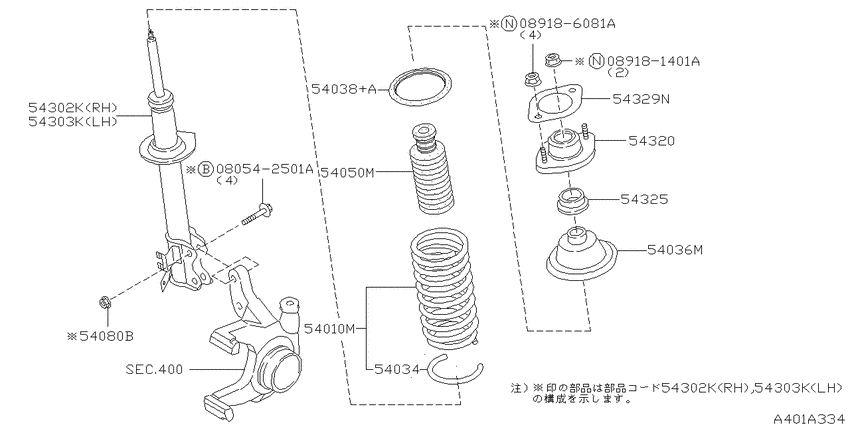

Front suspension (1997-05-01 ~ ; ストラット & スプリング; CG13DE) Diagram Nissan MARCH
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- CG13DE
- transmission
- MT.F5
- grade
- CABRIOLE
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080542501A
|
080542501A
08054-2501A
Bolt-hexagon
|
08054-2501A |
— | ||
|
089181401A
|
089181401A
089181401A Nut |
089181401A |
US $1.39 |
||
|
089186081A
|
089186081A
089186081A
NUTSLOCK
|
089186081A |
— | ||
|
400
|
Front axle
400
|
||||
|
54010M
|
54010M
54010-41B13 Spring-Front9705--01 ~ ; CG13DE.MT.F5; ﾋﾀﾞﾘ ﾖｳ |
54010-41B13 |
US $100.80 |
||
|
54010M
|
54010M
54010-77B00 Spring-Front9705--01 ~ ; CG13DE.MT.F5; ﾐｷﾞ ﾖｳ |
54010-77B00 |
US $144 |
||
|
54034
|
54034
5503133P10 Tube-Rear Spring9705--01 ~ ; CG13DE |
5503133P10 |
US $12.05 |
||
|
54036M
|
54036M
54036-77B00 Seat-Front Spring, Upper9709--01 ~ ; CG13DE |
54036-77B00 |
US $34.13 |
||
|
54036M
|
54036M
5403801B10 Seat-Front Spring, Upper9705--01 ~ 9709--01; CG13DE |
5403801B10 |
US $13.29 |
||
|
54038+A
|
54038+A
5403441B01 Spacer-Seat, Rh9705--01 ~ ; CG13DE |
5403441B01 |
US $15.11 |
||
|
54050M
|
54050M
5405041B02 Bumper Assy-Bound9705--01 ~ ; CG13DE |
5405041B02 |
US $33.26 |
||
|
54080B
|
54080B
0122500072 NUT9705--01 ~ ; CG13DE |
0122500072 |
US $1.05 |
||
|
54302K
|
54302K
54302-41B86 Strut Kit-Front Suspension, Rh9705--01 ~ ; CG13DE; ｺｸｲﾝNO.54302-41B17 |
54302-41B86 |
US $250.56 |
||
|
54302K
|
54302K
54302-41B86 Strut Kit-Front Suspension, Rh9705--01 ~ ; CG13DE; ｺｸｲﾝNO.54302-41B17 |
54302-41B86 |
US $250.56 |
||
|
54303K
|
54303K
54303-41B86 Strut Kit-Front Suspension, Lh9705--01 ~ ; CG13DE; ｺｸｲﾝNO.54303-41B17 |
54303-41B86 |
US $250.56 |
||
|
54303K
|
54303K
54303-41B86 Strut Kit-Front Suspension, Lh9705--01 ~ ; CG13DE; ｺｸｲﾝNO.54303-41B17 |
54303-41B86 |
US $250.56 |
||
|
54320
|
54320
5432041B03 Insulator Assy-Strut Mounting9705--01 ~ 9709--01; CG13DE |
5432041B03 |
US $37.87 |
||
|
54320
|
54320
54320-77B00 Insulator Assy-Strut Mounting9709--01 ~ ; CG13DE |
54320-77B00 |
US $37.87 |
||
|
54325
|
54325
543250M001 Bearing-Strut Mounting9709--01 ~ ; CG13DE |
543250M001 |
US $36.31 |
||
|
54325
|
54325
5432541B01 Bearing-Strut Mounting9705--01 ~ 9709--01; CG13DE |
5432541B01 |
US $33.55 |
||
|
54329N
|
54329N
5432941B00 Spacer-Front Strut Insulator9705--01 ~ ; CG13DE |
5432941B00 |
US $15.11 |
||
