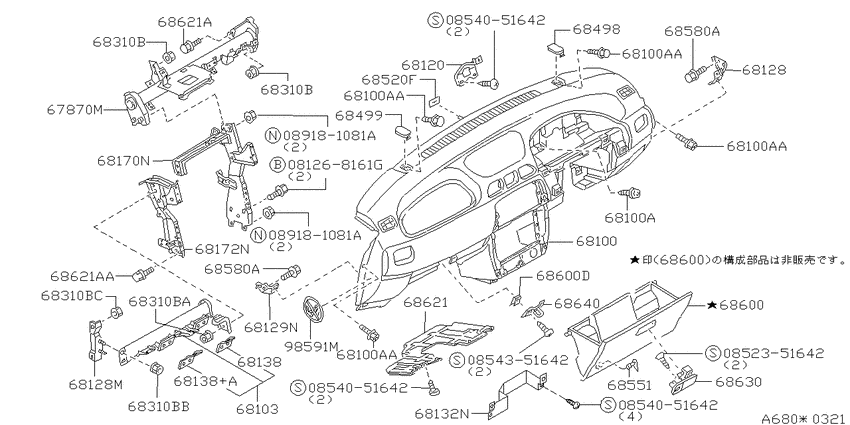

Instrument panel, pad & cluster lid (1997-05-01 ~ ; ｲﾝｽﾄ ﾊﾟｯﾄﾞ & ｸﾗｽﾀｰ ﾘｯﾄﾞ; C) Diagram Nissan MARCH
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- CG13DE
- transmission
- MT.F5
- grade
- CABRIOLE
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268161G
|
081268161G
08126-8161G
Bolt-hexagon
|
08126-8161G |
— | ||
|
0852351642
|
0852351642
0852351642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0852351642 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
0854351642
|
0854351642
0854351642
SCREWTAPPING
|
0854351642 |
— | ||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
67870M
|
67870M
67870-72B00 Member Assy-Steering9705--01 ~ ; C |
67870-72B00 |
US $114.19 |
||
|
68100
|
68100
68100-72B10 Panel-Instrument9705--01 ~ ; C |
68100-72B10 |
US $516.84 |
||
|
68100
|
68100
0143601081 SCREW9705--01 ~ ; C |
0143601081 |
US $2.45 |
||
|
68100
|
68100
01466-00171 SCREW9705--01 ~ ; C |
01466-00171 |
US $2.21 |
||
|
68100A
|
68100A
0143601081 SCREW9705--01 ~ ; C |
0143601081 |
US $2.45 |
||
|
68100A
|
68100A
01466-00171 SCREW9705--01 ~ ; C |
01466-00171 |
US $2.21 |
||
|
68100AA
|
68100AA
01466-00171 SCREW9705--01 ~ ; C |
01466-00171 |
US $2.21 |
||
|
68100AA
|
68100AA
01466-00171 SCREW9705--01 ~ ; C |
01466-00171 |
US $2.21 |
||
|
68100AA
|
68100AA
01466-00171 SCREW9705--01 ~ ; C |
01466-00171 |
US $2.21 |
||
|
68100AA
|
68100AA
01466-00171 SCREW9705--01 ~ ; C |
01466-00171 |
US $2.21 |
||
|
68103
|
68103
68110-72B00 Member Assy-Instrument Lower9705--01 ~ ; C |
68110-72B00 |
US $114.05 |
||
|
68120
|
68120
68120-41B00 Bracket-Meter Panel9705--01 ~ ; C |
68120-41B00 |
US $21.60 |
||
|
68128
|
68128
68128-41B00 Bracket-Instrument Side, Rh9705--01 ~ ; C |
68128-41B00 |
US $9.65 |
||
|
68128
|
68128
68138-72B00 Bracket-Instrument9705--01 ~ ; C |
68138-72B00 |
US $20.02 |
||
|
68128M
|
68128M
68138-72B00 Bracket-Instrument9705--01 ~ ; C |
68138-72B00 |
US $20.02 |
||
|
68129N
|
68129N
68129-72B00 Reinforce-Instrument Side9705--01 ~ ; C |
68129-72B00 |
US $7.06 |
||
|
68132N
|
68132N
68132-72B00 Reinforce-Instrument Panel9705--01 ~ ; *C; ｸﾘ-ﾝﾌｲﾙﾀ-(ｴｱｺﾝﾅｲｿﾞｳ) |
68132-72B00 |
US $32.11 |
||
|
68138
|
68138
68136-72B00 Bracket-Instrument Member, Rh9705--01 ~ ; C |
68136-72B00 |
US $7.20 |
||
|
68138
|
68138
68137-72B00 Bracket-Instrument Member, Rh9705--01 ~ ; C |
68137-72B00 |
US $7.20 |
||
|
68138+A
|
68138+A
68137-72B00 Bracket-Instrument Member, Rh9705--01 ~ ; C |
68137-72B00 |
US $7.20 |
||
|
68170N
|
68170N
68170-72B00 Stay Assy-Instrument, Driver9705--01 ~ ; C |
68170-72B00 |
US $68.69 |
||
|
68172N
|
68172N
68172-72B00 Stay Assy-Instrument, Assist9705--01 ~ ; C |
68172-72B00 |
US $68.69 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310BA
|
68310BA
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310BB
|
68310BB
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68310BC
|
68310BC
0122500371 NUT9705--01 ~ ; C |
0122500371 |
US $1.73 |
||
|
68498
|
68498
68498-72B00 Mask-Instrument, Rh9705--01 ~ ; C |
68498-72B00 |
US $9.07 |
||
|
68499
|
68499
68499-72B00 Mask-Instrument, Lh9705--01 ~ ; C |
68499-72B00 |
US $9.07 |
||
|
68520F
|
68520F
6837071L00 Tape-Silent9705--01 ~ ; C |
6837071L00 |
US $4.46 |
||
|
68551
|
68551
6855150Y00
Pin-Glove Box
9705--01 ~ ; C |
6855150Y00 |
— | ||
| replacement | |||||
|
68551
|
68551
68551-EQ00A Pin-glove box9705--01 ~ ; C |
68551-EQ00A |
from US $5.27 |
||
|
68580A
|
68580A
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68580A
|
68580A
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68600
|
68600
68500-77B00
ﾎﾞﾂｸｽ,ｸﾞﾛ-ﾌﾞ
9705--01 ~ ; C |
68500-77B00 |
— | ||
|
68600
|
68600
21477-C0510 Nut9705--01 ~ ; C |
21477-C0510 |
US $1.73 |
||
|
68600D
|
68600D
21477-C0510 Nut9705--01 ~ ; C |
21477-C0510 |
US $1.73 |
||
|
68621
|
68621
68520-72B00 Cover-Glove Box Lid9705--01 ~ ; C |
68520-72B00 |
US $49.39 |
||
|
68621
|
68621
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68621
|
68621
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68621A
|
68621A
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68621A
|
68621A
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68621AA
|
68621AA
01466-00371 SCREW9705--01 ~ ; C |
01466-00371 |
US $1.73 |
||
|
68630
|
68630
68630-77B00
ﾛﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ｸﾞﾛ-ﾌﾞ ﾎﾞﾂｸｽ ﾘﾂﾄﾞ
9705--01 ~ ; C |
68630-77B00 |
— | ||
|
68640
|
68640
6864040Y00 Striker-Glove Box Lid9705--01 ~ ; C |
6864040Y00 |
US $12.96 |
||
|
98591M
|
98591M
9859289911 Label-Air Bag9705--01 ~ ; C; ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ ﾖｳ |
9859289911 |
US $4.32 |
||
