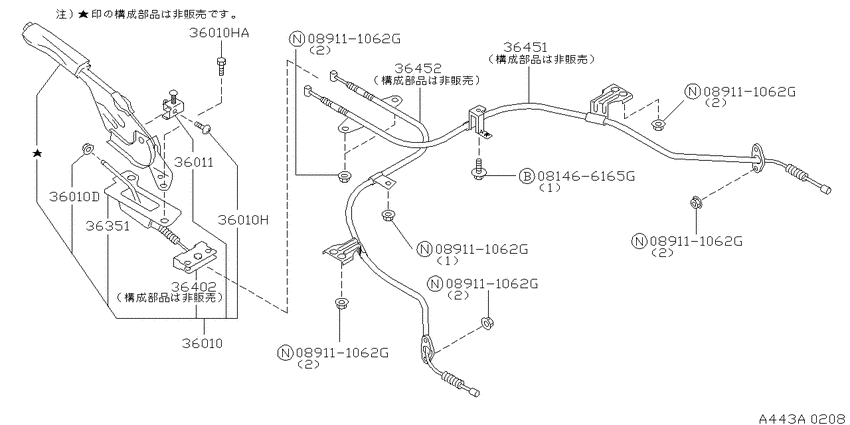

Parking brake control (1997-05-01 ~ ; CG13DE) Diagram Nissan MARCH
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- CG13DE
- transmission
- MT.F5
- grade
- CABRIOLE
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.68 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
36010
|
36010
36010-72B00 Device Assy-Parking Brake Control9705--01 ~ ; CG13DE |
36010-72B00 |
US $135.07 |
||
|
36010
|
36010
01225-00511 NUT9705--01 ~ ; CG13DE |
01225-00511 |
US $3.46 |
||
|
36010
|
36010
0145400431 SCREW9705--01 ~ ; CG13DE |
0145400431 |
US $1.73 |
||
|
36010
|
36010
01436-01861 SCREW9705--01 ~ ; CG13DE |
01436-01861 |
US $1.73 |
||
|
36010D
|
36010D
01225-00511 NUT9705--01 ~ ; CG13DE |
01225-00511 |
US $3.46 |
||
|
36010H
|
36010H
0145400431 SCREW9705--01 ~ ; CG13DE |
0145400431 |
US $1.73 |
||
|
36010H
|
36010H
01436-01861 SCREW9705--01 ~ ; CG13DE |
01436-01861 |
US $1.73 |
||
|
36010HA
|
36010HA
01436-01861 SCREW9705--01 ~ ; CG13DE |
01436-01861 |
US $1.73 |
||
|
36011
|
36011
36011-41B00 Switch Assy-Parking Brake Lamp9705--01 ~ ; CG13DE |
36011-41B00 |
US $10.08 |
||
|
36351
|
36351
36013-50J00 Cover-Dust, Parking Brake9705--01 ~ ; CG13DE |
36013-50J00 |
US $8.93 |
||
|
36402
|
36402
36402-50J10 Cable Assy-Parking Brake, Front9705--01 ~ ; CG13DE |
36402-50J10 |
US $50.40 |
||
|
36451
|
36451
36530-41B00 Cable Assy-Brake, Rear Rh9705--01 ~ ; CG13DE |
36530-41B00 |
US $58.61 |
||
|
36452
|
36452
36531-41B00 Cable Assy-Brake, Rear Lh9705--01 ~ ; CG13DE |
36531-41B00 |
US $58.61 |
