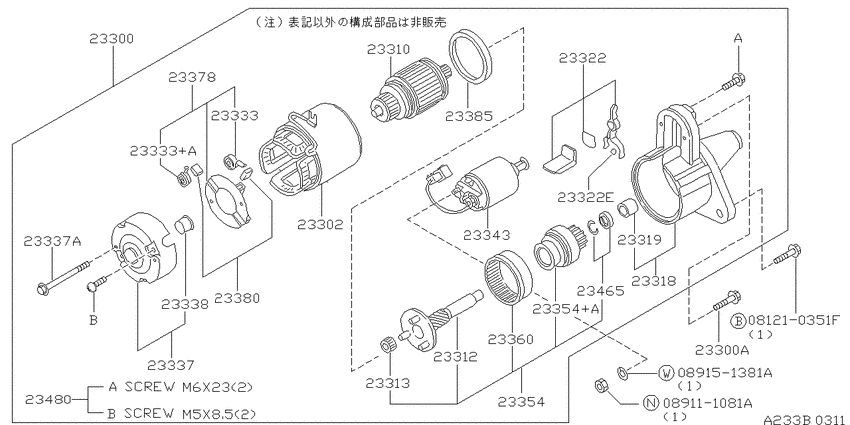

Starter motor (1997-05-01 ~ ; CG13DE.AT.CVT) Diagram Nissan MARCH
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- CG13DE
- transmission
- AT.CVT
- grade
- CABRIOLE
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210351F
|
081210351F
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
23300
|
23300
23300-41B78 Motor Assy-Starter9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23300-41B78 |
US $1,200.77 |
||
|
23300
|
23300
01121-01441 BOLT9705--01 ~ ; CG13DE.AT.CVT |
01121-01441 |
US $2.45 |
||
|
23300A
|
23300A
01121-01441 BOLT9705--01 ~ ; CG13DE.AT.CVT |
01121-01441 |
US $2.45 |
||
|
23302
|
23302
23302-50Y15 Yoke Assy9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23302-50Y15 |
US $304.44 |
||
|
23310
|
23310
23310-50Y12 Armature Assy9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23310-50Y12 |
US $443.21 |
||
|
23312
|
23312
23312-50Y13 Pinion Assy9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23312-50Y13 |
US $139.25 |
||
|
23313
|
23313
23361-42L70 Planet Gear9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-41B78 Case Assy-Gear9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23318-41B78 |
US $168.48 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23322
|
23322
23322-50Y12 Lever Set-Shift9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23322-50Y12 |
US $19.95 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23333+A
|
23333+A
23333-42L71 Spring9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-50Y15 Cover Assy-Rear9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23337-50Y15 |
US $62.35 |
||
|
23337
|
23337
23340-M8010 Bolt-Through9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23338-01N10 |
US $9.94 |
||
|
23343
|
23343
23343-41B78 Switch Assy-Magnetic9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23343-41B78 |
US $122.98 |
||
|
23354
|
23354
23354-50Y13 Clutch Assy9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23354-50Y13 |
US $546.58 |
||
|
23354
|
23354
23354-42L70 Clutch Assy9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23354-42L70 |
US $254.88 |
||
|
23354+A
|
23354+A
23354-42L70 Clutch Assy9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23354-42L70 |
US $254.88 |
||
|
23360
|
23360
23360-50Y12 Gear & Shaft Set9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23360-50Y12 |
US $27.94 |
||
|
23378
|
23378
23378-50Y12 Holder Assy-Brush9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23378-50Y12 |
US $58.61 |
||
|
23380
|
23380
23380-41B76 Brush-Plus9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23380-41B76 |
US $12.67 |
||
|
23385
|
23385
23385-50Y12 Packing9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23385-50Y12 |
US $8.06 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set9705--01 ~ ; CG13DE.AT.CVT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
