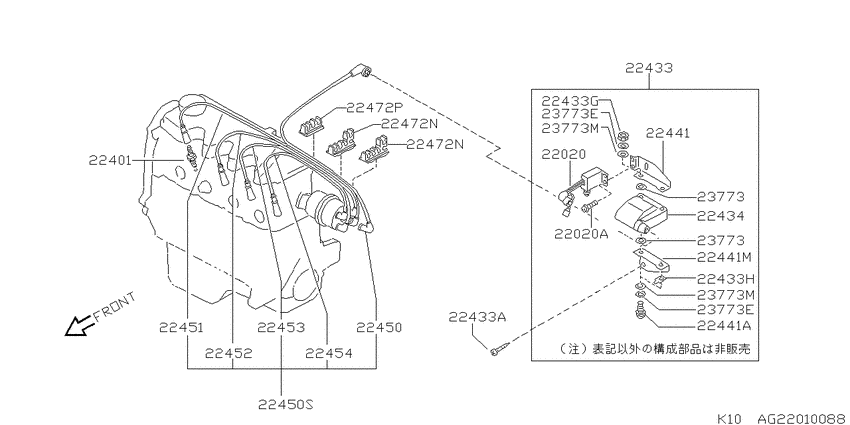

Ignition System (1985-02-01 ~ ; MA10T) Diagram Nissan MARCH
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- MA10T
- transmission
- MT
- grade
- T
- body
- 3HB
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22020
|
22020
22020-03G11 Transistor Ignition Unit8708--01 ~ 8808--01; MA10T; ﾊﾝｼﾝ |
22020-03G11 |
US $169.92 |
||
| replacement | |||||
|
22020
|
22020
B2020-03G11
Power transistor assy
8708--01 ~ 8808--01; MA10T; ﾊﾝｼﾝ |
B2020-03G11 |
— | ||
|
22020
|
22020
22020-17F10
Transistor Ignition Unit
8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22020-17F10 |
— | ||
|
22020
|
22020
22020-56E11 TRANSISTOR IGNITION UNIT8808--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22020-56E11 |
US $116.64 |
||
|
22020
|
22020
22467-17F10 Screw8502--01 ~ 8808--01; MA10T; ﾊﾝｼﾝ |
22467-17F10 |
US $2.02 |
||
|
22020
|
22020
22467-56E11 SCREW8808--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22467-56E11 |
US $1.73 |
||
|
22020A
|
22020A
22467-17F10 Screw8502--01 ~ 8808--01; MA10T; ﾊﾝｼﾝ |
22467-17F10 |
US $2.02 |
||
|
22020A
|
22020A
22467-56E11 SCREW8808--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22467-56E11 |
US $1.73 |
||
|
22401
|
22401
22401-N8714 Plug-Spark8210--01 ~ 8803--01; MA10T; BP4ES-11[B512] |
22401-N8714 |
US $5.90 |
||
|
22401
|
22401
22401N8715 Plug-Spark8210--01 ~ 8803--01; MA10S MA10T; BP5ES-11[B512] |
22401N8715 |
US $4.68 |
||
|
22401
|
22401
22401-N8716
Plug-Spark
8210--01 ~ 8803--01; MA10T; BP6ES-11 ﾋﾖｳｼﾞﾕﾝ[B512] |
22401-N8716 |
— | ||
|
22401
|
22401
22401-N8717 Plug-Spark8210--01 ~ 8803--01; MA10S MA10T; BP7ES-11[B512] |
22401-N8717 |
US $5.90 |
||
|
22401
|
22401
22401P8314 Plug-Spark8803--01 ~ ; MA10T; BPR4ES[B512] |
22401P8314 |
US $5.15 |
||
|
22401
|
22401
22401P8315 Plug-Spark8803--01 ~ ; MA10S MA10T; BPR5ES-11[B512] |
22401P8315 |
US $5.15 |
||
|
22401
|
22401
22401P8316 Plug-Spark8803--01 ~ ; MA10T; BPR6ES-11 ﾋﾖｳｼﾞﾕﾝ[B512] |
22401P8316 |
US $6.48 |
||
|
22401
|
22401
22401-P8317 Plug-Spark8803--01 ~ ; MA10S MA10T; BPR7ES-11[B512] |
22401-P8317 |
US $6.48 |
||
|
22433
|
22433
22448-17B11 Coil Assy-Ignition8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ MCC-1413 |
22448-17B11 |
US $369.58 |
||
|
22433
|
22433
22448-17F10 Coil Assy-Ignition8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ MCC-102 |
22448-17F10 |
US $241.92 |
||
| replacement | |||||
|
22433
|
22433
B2448-17F10
Coil assy-ignition
8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ MCC-102 |
B2448-17F10 |
— | ||
|
22433
|
22433
22448-21B10 Coil Assy-Ignition8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ SMC-104 |
22448-21B10 |
US $369.58 |
||
|
22433
|
22433
0145600031 SCREW8708--01 ~ ; MA10T |
0145600031 |
from US $1.11 |
||
|
22433
|
22433
01461-00041 SCREW8502--01 ~ 8708--01; MA10T |
01461-00041 |
US $1.73 |
||
|
22433
|
22433
22464-N7110 Nut8502--01 ~ ; MA10T; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22433
|
22433
22471-56E11 TERMINAL-IGNITION COIL8901--01 ~ ; MA10T; ﾊﾝｼﾝ |
22471-56E11 |
US $4.03 |
||
|
22433A
|
22433A
0145600031 SCREW8708--01 ~ ; MA10T |
0145600031 |
from US $1.11 |
||
|
22433A
|
22433A
01461-00041 SCREW8502--01 ~ 8708--01; MA10T |
01461-00041 |
US $1.73 |
||
|
22433G
|
22433G
22464-N7110 Nut8502--01 ~ ; MA10T; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22433H
|
22433H
22471-56E11 TERMINAL-IGNITION COIL8901--01 ~ ; MA10T; ﾊﾝｼﾝ |
22471-56E11 |
US $4.03 |
||
|
22434
|
22434
22433-10G10 Coil-Ignition8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ |
22433-10G10 |
US $177.12 |
||
|
22434
|
22434
22433-12P10 Coil-Ignition8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22433-12P10 |
US $190.08 |
||
| replacement | |||||
|
22434
|
22434
B2433-12P11
Coil assy-ignition exhaust
8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
B2433-12P11 |
— | ||
|
22434
|
22434
2243356E11 COIL ASSY-IGNITION8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
2243356E11 |
US $116.67 |
||
|
22441
|
22441
22435-21B11 Band8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22435-21B11 |
US $27.22 |
||
|
22441
|
22441
22435-32F12 Band8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ |
22435-32F12 |
US $39.02 |
||
|
22441
|
22441
22441-17F10 Band8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22441-17F10 |
US $8.06 |
||
|
22441
|
22441
22467-29R10 Screw8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ |
22467-29R10 |
US $2.45 |
||
|
22441
|
22441
22467-F5985 Screw8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22467-F5985 |
US $4.46 |
||
|
22441
|
22441
22435-21B10 Band8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22435-21B10 |
US $13.25 |
||
|
22441
|
22441
22435-32F13
Band
8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ |
22435-32F13 |
— | ||
|
22441
|
22441
22441-17F11 Band8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22441-17F11 |
US $8.06 |
||
|
22441A
|
22441A
22467-29R10 Screw8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ |
22467-29R10 |
US $2.45 |
||
|
22441A
|
22441A
22467-F5985 Screw8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22467-F5985 |
US $4.46 |
||
|
22441M
|
22441M
22435-21B10 Band8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22435-21B10 |
US $13.25 |
||
|
22441M
|
22441M
22435-32F13
Band
8708--01 ~ 8901--01; MA10T; ﾊﾝｼﾝ |
22435-32F13 |
— | ||
|
22441M
|
22441M
22441-17F11 Band8502--01 ~ 8708--01; MA10T; ﾊﾝｼﾝ |
22441-17F11 |
US $8.06 |
||
|
22450
|
22450
22450-17B10 Cable Assy-Ignition Coil To Distributor8502--01 ~ ; MA10T; ｽﾐﾄﾓ |
22450-17B10 |
US $29.23 |
||
|
22450
|
22450
22450-17B25 Cable Set-High Tension8502--01 ~ 8803--01; MA10T |
22450-17B25 |
US $214.56 |
||
|
22450
|
22450
22450-17B26 Cable Set-High Tension8803--01 ~ 9011--01; MA10T |
22450-17B26 |
US $164.16 |
||
|
22450S
|
22450S
22450-17B25 Cable Set-High Tension8502--01 ~ 8803--01; MA10T |
22450-17B25 |
US $214.56 |
||
|
22450S
|
22450S
22450-17B26 Cable Set-High Tension8803--01 ~ 9011--01; MA10T |
22450-17B26 |
US $164.16 |
||
|
22451
|
22451
22451-17B10 Cable Assy-High Tension, No 18502--01 ~ 8803--01; MA10T; ｽﾐﾄﾓ |
22451-17B10 |
US $57.60 |
||
|
22451
|
22451
22451-17B11 Cable Assy-High Tension, No 18803--01 ~ 9011--01; MA10T; ｽﾐﾄﾓ |
22451-17B11 |
US $44.06 |
||
|
22452
|
22452
22452-17B10 Cable Assy-High Tension, No 28502--01 ~ 8803--01; MA10T; ｽﾐﾄﾓ |
22452-17B10 |
US $40.32 |
||
|
22452
|
22452
22452-17B11 Cable Assy-High Tension, No 28803--01 ~ 9011--01; MA10T; ｽﾐﾄﾓ |
22452-17B11 |
US $30.67 |
||
|
22453
|
22453
22453-17B10 Cable Assy-High Tension, No 38502--01 ~ 8803--01; MA10T; ｽﾐﾄﾓ |
22453-17B10 |
US $54.43 |
||
|
22453
|
22453
22453-17B11 Cable Assy-High Tension, No 38803--01 ~ 9011--01; MA10T; ｽﾐﾄﾓ |
22453-17B11 |
US $30.67 |
||
|
22454
|
22454
22454-17B10 Cable Assy-High Tension, No 48502--01 ~ 8803--01; MA10T; ｽﾐﾄﾓ |
22454-17B10 |
US $52.99 |
||
|
22454
|
22454
22454-17B11 Cable Assy-High Tension, No 48803--01 ~ ; MA10T; ｽﾐﾄﾓ |
22454-17B11 |
US $30.67 |
||
|
22472N
|
22472N
22472-17B00 Clamp-High Tension Cable8502--01 ~ ; MA10T |
22472-17B00 |
US $9.79 |
||
|
22472N
|
22472N
22472-17B00 Clamp-High Tension Cable8502--01 ~ ; MA10T |
22472-17B00 |
US $9.79 |
||
|
22472P
|
22472P
22472-42L00 Clamp-High Tension Cable8502--01 ~ ; MA10T |
22472-42L00 |
US $7.34 |
||
|
23773
|
23773
22491-03G11 Mounting Rubber-Ignition Coil8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22491-03G11 |
US $4.90 |
||
|
23773
|
23773
22492-03G10 Collar8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22492-03G10 |
US $5.76 |
||
|
23773
|
23773
22491-03G10 Mounting Rubber-Ignition Coil8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773
|
23773
22491-03G11 Mounting Rubber-Ignition Coil8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22491-03G11 |
US $4.90 |
||
|
23773
|
23773
22492-03G10 Collar8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22492-03G10 |
US $5.76 |
||
|
23773
|
23773
22491-03G10 Mounting Rubber-Ignition Coil8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773E
|
23773E
22492-03G10 Collar8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22492-03G10 |
US $5.76 |
||
|
23773E
|
23773E
22492-03G10 Collar8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22492-03G10 |
US $5.76 |
||
|
23773M
|
23773M
22491-03G10 Mounting Rubber-Ignition Coil8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773M
|
23773M
22491-03G10 Mounting Rubber-Ignition Coil8901--01 ~ ; MA10T MA09RT; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
