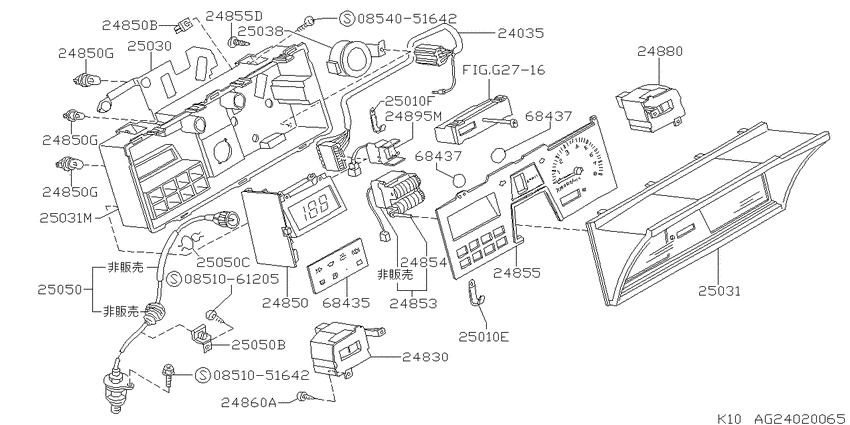

meter (1985-02-01 ~ 1989-01-01; デジタル タイプ; 3HB.T) Diagram Nissan MARCH
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- MA10T
- transmission
- MT
- grade
- T
- body
- 3HB
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851051642
|
0851051642
08510-51642
SCREWTAPPING
|
08510-51642 |
— | ||
|
0851061205
|
0851061205
08510-61205
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61205 |
— | ||
|
0854051642
|
0854051642
0854051642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0854051642 |
— | ||
|
24035
|
24035
24862-17B00 Harness Assy-Meter8502--01 ~ 8901--01; 3HB.T |
24862-17B00 |
US $90.29 |
||
|
24830
|
24830
24830-17B00 Meter Assy-Water & Fuel8502--01 ~ 8901--01; 3HB.T; ﾌﾕ-ｴﾙ ﾒ-ﾀ- |
24830-17B00 |
US $263.52 |
||
|
24850
|
24850
24820-28B00 Speedometer Assy8901--01 ~ ; T# |
24820-28B00 |
US $488.52 |
||
|
24850
|
24850
24850-17B00 Speedometer Assy8502--01 ~ 8901--01; 3HB.T |
24850-17B00 |
US $587.64 |
||
|
24850
|
24850
2487209B01 Bolt8901--01 ~ ; *COLLET 5HB.FV T#; ﾌﾞｻﾞ- ﾖｳ |
2487209B01 |
US $3.31 |
||
|
24850
|
24850
68198-W1000 Nut8502--01 ~ ; ALL |
68198-W1000 |
US $0.86 |
||
| replacement | |||||
|
24850
|
24850
6819151E0A Nut8502--01 ~ ; ALL |
6819151E0A |
US $1.39 |
||
|
24850
|
24850
24899-D0200 Washer8901--01 ~ ; *COLLET 5HB.FV T# |
24899-D0200 |
US $0.86 |
||
|
24850
|
24850
2504301B00 Socket & Bulb Assy8502--01 ~ 8901--01; ALL; 12V-3.4W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504301B00 |
US $4.71 |
||
|
24850
|
24850
25043-01B60
Socket Assy-Bulb
8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
25043-01B60 |
— | ||
|
24850
|
24850
2504306P61 Socket & Bulb Assy8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); T5 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504306P61 |
US $4.03 |
||
|
24850
|
24850
25043-17B00 Socket Assy-Bulb8502--01 ~ 8901--01; 3HB.T; 13.5V-1.2W ﾄｹｲ ﾖｳ |
25043-17B00 |
US $4.90 |
||
|
24850
|
24850
25043-F5050 Socket Assy-Bulb8901--01 ~ ; *COLLET 5HB.FV T#; 2W ﾊﾞﾙﾌﾞﾂｷ ｿｹﾂﾄ=ｸﾛ |
25043-F5050 |
US $5.76 |
||
|
24850
|
24850
25043-N8200 Socket Assy-Bulb8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
25043-N8200 |
US $7.92 |
||
| replacement | |||||
|
24850
|
24850
B5M43N8200
ｿｹﾂﾄ&ﾊﾞﾙﾌﾞ ｱﾂｼｰ
8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
B5M43N8200 |
— | ||
|
24850B
|
24850B
68198-W1000 Nut8502--01 ~ ; ALL |
68198-W1000 |
US $0.86 |
||
| replacement | |||||
|
24850B
|
24850B
6819151E0A Nut8502--01 ~ ; ALL |
6819151E0A |
US $1.39 |
||
|
24850G
|
24850G
2504301B00 Socket & Bulb Assy8502--01 ~ 8901--01; ALL; 12V-3.4W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504301B00 |
US $4.71 |
||
|
24850G
|
24850G
25043-01B60
Socket Assy-Bulb
8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
25043-01B60 |
— | ||
|
24850G
|
24850G
2504306P61 Socket & Bulb Assy8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); T5 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504306P61 |
US $4.03 |
||
|
24850G
|
24850G
25043-17B00 Socket Assy-Bulb8502--01 ~ 8901--01; 3HB.T; 13.5V-1.2W ﾄｹｲ ﾖｳ |
25043-17B00 |
US $4.90 |
||
|
24850G
|
24850G
25043-F5050 Socket Assy-Bulb8901--01 ~ ; *COLLET 5HB.FV T#; 2W ﾊﾞﾙﾌﾞﾂｷ ｿｹﾂﾄ=ｸﾛ |
25043-F5050 |
US $5.76 |
||
|
24850G
|
24850G
25043-N8200 Socket Assy-Bulb8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
25043-N8200 |
US $7.92 |
||
| replacement | |||||
|
24850G
|
24850G
B5M43N8200
ｿｹﾂﾄ&ﾊﾞﾙﾌﾞ ｱﾂｼｰ
8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
B5M43N8200 |
— | ||
|
24850G
|
24850G
2504301B00 Socket & Bulb Assy8502--01 ~ 8901--01; ALL; 12V-3.4W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504301B00 |
US $4.71 |
||
|
24850G
|
24850G
25043-01B60
Socket Assy-Bulb
8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
25043-01B60 |
— | ||
|
24850G
|
24850G
2504306P61 Socket & Bulb Assy8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); T5 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504306P61 |
US $4.03 |
||
|
24850G
|
24850G
25043-17B00 Socket Assy-Bulb8502--01 ~ 8901--01; 3HB.T; 13.5V-1.2W ﾄｹｲ ﾖｳ |
25043-17B00 |
US $4.90 |
||
|
24850G
|
24850G
25043-F5050 Socket Assy-Bulb8901--01 ~ ; *COLLET 5HB.FV T#; 2W ﾊﾞﾙﾌﾞﾂｷ ｿｹﾂﾄ=ｸﾛ |
25043-F5050 |
US $5.76 |
||
|
24850G
|
24850G
25043-N8200 Socket Assy-Bulb8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
25043-N8200 |
US $7.92 |
||
| replacement | |||||
|
24850G
|
24850G
B5M43N8200
ｿｹﾂﾄ&ﾊﾞﾙﾌﾞ ｱﾂｼｰ
8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
B5M43N8200 |
— | ||
|
24850G
|
24850G
2504301B00 Socket & Bulb Assy8502--01 ~ 8901--01; ALL; 12V-3.4W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504301B00 |
US $4.71 |
||
|
24850G
|
24850G
25043-01B60
Socket Assy-Bulb
8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
25043-01B60 |
— | ||
|
24850G
|
24850G
2504306P61 Socket & Bulb Assy8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV); T5 12V-2W ﾜ-ﾆﾝｸﾞ ﾖｳ |
2504306P61 |
US $4.03 |
||
|
24850G
|
24850G
25043-17B00 Socket Assy-Bulb8502--01 ~ 8901--01; 3HB.T; 13.5V-1.2W ﾄｹｲ ﾖｳ |
25043-17B00 |
US $4.90 |
||
|
24850G
|
24850G
25043-F5050 Socket Assy-Bulb8901--01 ~ ; *COLLET 5HB.FV T#; 2W ﾊﾞﾙﾌﾞﾂｷ ｿｹﾂﾄ=ｸﾛ |
25043-F5050 |
US $5.76 |
||
|
24850G
|
24850G
25043-N8200 Socket Assy-Bulb8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
25043-N8200 |
US $7.92 |
||
| replacement | |||||
|
24850G
|
24850G
B5M43N8200
ｿｹﾂﾄ&ﾊﾞﾙﾌﾞ ｱﾂｼｰ
8901--01 ~ ; T#; 3.4W ﾁﾔｲﾛ ﾊﾞﾙﾌﾞ&ｿｹﾂﾄ |
B5M43N8200 |
— | ||
|
24853
|
24853
24873-17B00 Odo & Tripmeter Assy8502--01 ~ 8901--01; 3HB.T |
24873-17B00 |
US $318.60 |
||
|
24854
|
24854
24866-17B00 Knob-Tripmeter8502--01 ~ 8901--01; 3HB.T |
24866-17B00 |
US $6.19 |
||
|
24855
|
24855
24825-28B01 Tachometer Assy8901--01 ~ ; MA10T |
24825-28B01 |
US $453.12 |
||
|
24855
|
24855
24855-17B00 Tachometer Assy8502--01 ~ 8901--01; 3HB.T |
24855-17B00 |
US $190.08 |
||
|
24855
|
24855
01451-00171 SCREW8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV) |
01451-00171 |
US $2.08 |
||
|
24855D
|
24855D
01451-00171 SCREW8502--01 ~ 8708--01; 3HB.(G,G1,GC,T) 5HB.(FT,FV) |
01451-00171 |
US $2.08 |
||
|
24860A
|
24860A
01454-00201 SCREW8505--01 ~ 8901--01; 3HB.T |
01454-00201 |
US $1.73 |
||
|
24880
|
24880
24835-17B00 Meter Assy-Water Temperature8502--01 ~ 8901--01; 3HB.T; ﾃﾝﾌﾟ ﾒ-ﾀ- |
24835-17B00 |
US $217.44 |
||
|
24880
|
24880
24835-28B00 Meter Assy-Water Temperature8901--01 ~ ; T#; ﾌﾕ-ｴﾙ & ﾃﾝﾌﾟ |
24835-28B00 |
US $217.44 |
||
|
24895M
|
24895M
24895-17B00 Meter Assy-Boost8502--01 ~ 8901--01; 3HB.T |
24895-17B00 |
US $172.80 |
||
|
25010E
|
25010E
24896-17B01 Clip-Harness8502--01 ~ 8901--01; 3HB.T; F/10KSW |
24896-17B01 |
US $6.19 |
||
|
25010F
|
25010F
24896-17B00 Clip-Harness8502--01 ~ 8901--01; 3HB.T |
24896-17B00 |
US $6.19 |
||
|
25030
|
25030
24814-09B01 Plate Assy-Printed Circuit8901--01 ~ ; *COLLET 5HB.FV T# |
24814-09B01 |
US $52.56 |
||
|
25030
|
25030
25030-17B00 Plate Assy-Printed Circuit8502--01 ~ 8901--01; 3HB.T |
25030-17B00 |
US $69.98 |
||
|
25031
|
25031
24812-28B00 Housing-Meter Comb, Upper8901--01 ~ ; T# |
24812-28B00 |
US $88.27 |
||
|
25031
|
25031
25031-17B00 Housing-Meter Comb, Upper8502--01 ~ 8901--01; 3HB.T |
25031-17B00 |
US $69.70 |
||
|
25031
|
25031
24811-09B01 Housing-Meter Comb, Lower8901--01 ~ ; *COLLET 5HB.FV T# |
24811-09B01 |
US $46.08 |
||
|
25031
|
25031
25032-17B00 Housing-Meter Comb, Lower8502--01 ~ 8901--01; 3HB.T |
25032-17B00 |
US $61.34 |
||
|
25031M
|
25031M
24811-09B01 Housing-Meter Comb, Lower8901--01 ~ ; *COLLET 5HB.FV T# |
24811-09B01 |
US $46.08 |
||
|
25031M
|
25031M
25032-17B00 Housing-Meter Comb, Lower8502--01 ~ 8901--01; 3HB.T |
25032-17B00 |
US $61.34 |
||
|
25038
|
25038
25038-09B01 Buzzer Assy8901--01 ~ ; *COLLET 5HB.FV T# |
25038-09B01 |
US $65.52 |
||
|
25038
|
25038
25038-17B00 Buzzer Assy8502--01 ~ 8901--01; 3HB.T |
25038-17B00 |
US $56.88 |
||
|
25050
|
25050
25050-01B00 Shaft Assy-Flexible, Speedometer8210--01 ~ 8502--01; MT |
25050-01B00 |
US $129.02 |
||
|
25050
|
25050
2505001B02
Shaft Assy-Flexible, Speedometer
8502--01 ~ 8708--01; AT+3HB.T.MT |
2505001B02 |
— | ||
|
25050
|
25050
25052-W1007 Clip-Flexible Shaft8210--01 ~ ; ALL |
25052-W1007 |
US $5.33 |
||
|
25050
|
25050
24220-W1010 Clamp-Wire Holder8502--01 ~ 8901--01; 3HB.T |
24220-W1010 |
US $4.18 |
||
|
25050
|
25050
01451-00102 SCREW8210--01 ~ 8901--01; ALL |
01451-00102 |
US $2.08 |
||
|
25050B
|
25050B
25052-W1007 Clip-Flexible Shaft8210--01 ~ ; ALL |
25052-W1007 |
US $5.33 |
||
|
25050C
|
25050C
24220-W1010 Clamp-Wire Holder8502--01 ~ 8901--01; 3HB.T |
24220-W1010 |
US $4.18 |
||
|
68435
|
68435
24880-28B00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8901--01 ~ ; T# |
24880-28B00 |
US $27.36 |
||
|
68435
|
68435
25021-17B00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8502--01 ~ 8901--01; 3HB.T |
25021-17B00 |
US $14.54 |
||
|
68437
|
68437
24816-28B00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8901--01 ~ ; T#; ﾀ-ﾝ ﾋﾀﾞﾘ ﾖｳ |
24816-28B00 |
US $27.36 |
||
|
68437
|
68437
24816-28B01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8901--01 ~ ; T#; ﾀ-ﾝ ﾐｷﾞ ﾖｳ |
24816-28B01 |
US $27.36 |
||
|
68437
|
68437
25049-17B00 Lens-Warning Turn Signal8502--01 ~ 8901--01; 3HB.T; ﾀ-ﾝ ﾖｳ |
25049-17B00 |
US $6.19 |
||
|
68437
|
68437
24816-28B00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8901--01 ~ ; T#; ﾀ-ﾝ ﾋﾀﾞﾘ ﾖｳ |
24816-28B00 |
US $27.36 |
||
|
68437
|
68437
24816-28B01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8901--01 ~ ; T#; ﾀ-ﾝ ﾐｷﾞ ﾖｳ |
24816-28B01 |
US $27.36 |
||
|
68437
|
68437
25049-17B00 Lens-Warning Turn Signal8502--01 ~ 8901--01; 3HB.T; ﾀ-ﾝ ﾖｳ |
25049-17B00 |
US $6.19 |
||
