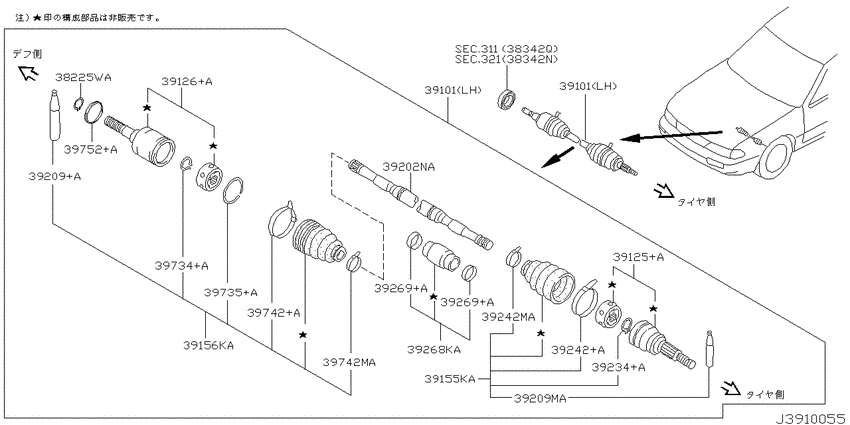

Front drive shaft (ff) (2000-10-01 ~ ; 左側; 3HB.CGA3DE +5HB.4WD.CGA3DE) Diagram Nissan MARCH
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 4WD
- transmission
- AT.CVT
- grade
- CLT
- body
- 3HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
38225WA
|
38225WA
3822565A05 Clip-Drive Shaft9911--01 ~ 0010--01; 4WD.CGA3DE |
3822565A05 |
from US $0.57 |
||
|
39101
|
39101
39101-AN310 Shaft Assy-Front Drive, Lh9911--01 ~ 0010--01; 4WD.CGA3DE |
39101-AN310 |
US $916.15 |
||
|
39101
|
39101
39101-AN370 Shaft Assy-Front Drive, Lh0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-AN370 |
US $916.15 |
||
|
39101
|
39101
39101-AN310 Shaft Assy-Front Drive, Lh9911--01 ~ 0010--01; 4WD.CGA3DE |
39101-AN310 |
US $916.15 |
||
|
39101
|
39101
39101-AN370 Shaft Assy-Front Drive, Lh0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-AN370 |
US $916.15 |
||
|
39125+A
|
39125+A
392112U060 Joint Assy-Outer9911--01 ~ 0010--01; 4WD.CGA3DE |
392112U060 |
US $397.90 |
||
|
39125+A
|
39125+A
39211AN000 Joint Assy-Outer0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE |
39211AN000 |
US $523.92 |
||
|
39126+A
|
39126+A
39711-AN310 Joint Assy-Inner9911--01 ~ 0010--01; 4WD.CGA3DE |
39711-AN310 |
US $332.76 |
||
|
39155KA
|
39155KA
3924141B26 Repair Kit-Dust Boot, Outer9911--01 ~ 0010--01; 4WD.CGA3DE |
3924141B26 |
US $82.08 |
||
|
39155KA
|
39155KA
39241AN025 Repair Kit-Dust Boot, Outer0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE |
39241AN025 |
US $97.63 |
||
|
39156KA
|
39156KA
39741-44B86 Repair Kit-Dust B00T, Inner9911--01 ~ 0010--01; 4WD.CGA3DE |
39741-44B86 |
US $82.08 |
||
|
39156KA
|
39156KA
39741AN185 Repair Kit-Dust B00T, Inner0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE |
39741AN185 |
US $82.08 |
||
|
39202NA
|
39202NA
39205-AN300 Shaft-Front Drive, Lh9911--01 ~ 0010--01; 4WD.CGA3DE |
39205-AN300 |
US $220.32 |
||
|
39202NA
|
39202NA
39205-AN370 Shaft-Front Drive, Lh0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE |
39205-AN370 |
US $263.52 |
||
|
39209+A
|
39209+A
39209-03P85 Grease-Inner9911--01 ~ 0010--01; 4WD.CGA3DE; ﾃﾞﾌ ｻｲﾄﾞ |
39209-03P85 |
US $29.95 |
||
|
39209+A
|
39209+A
C9709-AN115 Grease-Inner0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE; ﾃﾞﾌ ｻｲﾄﾞ |
C9709-AN115 |
US $28.37 |
||
|
39209MA
|
39209MA
40099M0826 Grease-Outer9911--01 ~ 0010--01; 4WD.CGA3DE; ﾀｲﾔ ｻｲﾄﾞ |
40099M0826 |
US $24.34 |
||
|
39209MA
|
39209MA
C9209-AN025 Grease-Outer0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE; ﾀｲﾔ ｻｲﾄﾞ |
C9209-AN025 |
US $29.09 |
||
|
39234+A
|
39234+A
3923401M00 Circlip-Drive Shaft9911--01 ~ 0010--01; 4WD.CGA3DE |
3923401M00 |
US $4.18 |
||
|
39242+A
|
39242+A
39242-01M00 Band-Boot, Drive Shaft Outer9911--01 ~ 0010--01; 4WD.CGA3DE |
39242-01M00 |
US $4.61 |
||
|
39242+A
|
39242+A
39242AN000 Band-Boot, Drive Shaft Outer0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE |
39242AN000 |
US $5.47 |
||
|
39242MA
|
39242MA
39242-01M05 Band-Dust Cover, Shaft9911--01 ~ 0010--01; 4WD.CGA3DE |
39242-01M05 |
US $4.61 |
||
|
39242MA
|
39242MA
39242-AN010 Band-Boot, Drive Shaft0012--01 ~ ; 3HB.CGA3DE +5HB.4WD.CGA3DE |
39242-AN010 |
US $5.47 |
||
|
39268KA
|
39268KA
39268-4M427 Damper Kit-Dynamic, Front Drive Shaft9911--01 ~ 0010--01; 4WD.CGA3DE |
39268-4M427 |
US $34.42 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper9911--01 ~ 0010--01; 4WD.CGA3DE |
3926911A10 |
US $9.50 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper9911--01 ~ 0010--01; 4WD.CGA3DE |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
39734-11M00 Ring-Snap, C9911--01 ~ 0010--01; 4WD.CGA3DE |
39734-11M00 |
US $2.74 |
||
|
39735+A
|
39735+A
39735-11M00 Seal-O Ring, Slide Joint9911--01 ~ 0010--01; 4WD.CGA3DE |
39735-11M00 |
US $4.61 |
||
|
39742+A
|
39742+A
39742-11M00 Band-Dust Cover, Inner9911--01 ~ 0010--01; 4WD.CGA3DE |
39742-11M00 |
US $8.21 |
||
|
39742MA
|
39742MA
39242-11M05 Band-Dust Cover, Shaft9911--01 ~ 0010--01; 4WD.CGA3DE |
39242-11M05 |
US $4.18 |
||
|
39752+A
|
39752+A
39752-77A10 Shield-Dust9911--01 ~ 0010--01; 4WD.CGA3DE |
39752-77A10 |
US $4.03 |
||
