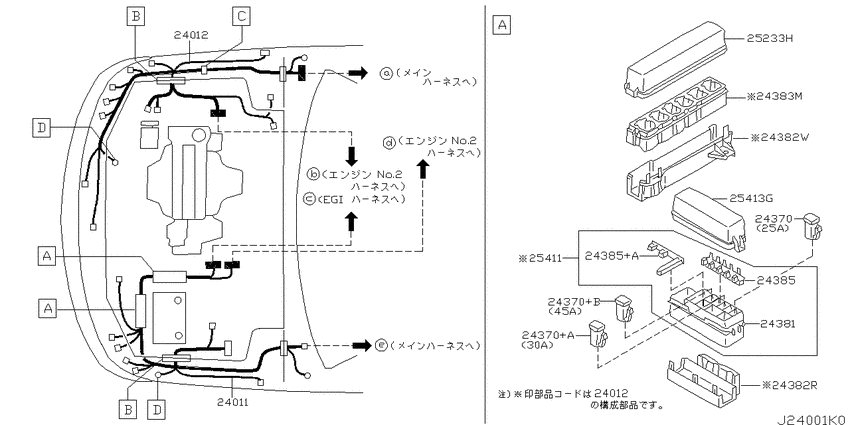

Wiring (2000-10-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; 3HB.CGA3DE +5HB.CGA3DE) Diagram Nissan MARCH
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 4WD
- transmission
- AT.CVT
- grade
- CLT
- body
- 3HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24011
|
24011
24012-1A872 Harness Assy-Engine Room9911--01 ~ 0010--01; *3HB.4WD +*5HB.4WD; [K116] |
24012-1A872 |
US $1,419.60 |
||
|
24011
|
24011
24012-1A875 Harness Assy-Engine Room0010--01 ~ ; &*3HB.CGA3DE +*5HB.4WD +*5HB.A/S.AT.CVT; [K116] |
24012-1A875 |
US $1,442 |
||
|
24011
|
24011
24012-AN872 Harness Assy-Engine Room9911--01 ~ 0010--01; 3HB.4WD +5HB.4WD |
24012-AN872 |
US $1,363.61 |
||
|
24011
|
24011
24012-AP880 Harness Assy-Engine Room0010--01 ~ ; .3HB.CGA3DE +5HB.4WD +5HB.A/S.AT.CVT +5HB.AUT/S |
24012-AP880 |
US $1,145.54 |
||
|
24012
|
24012
24012-1A007 Harness Assy-Engine Room9911--01 ~ 0010--01; *3HB.4WD +*5HB.4WD; [K116] |
24012-1A007 |
US $778.80 |
||
|
24012
|
24012
24012-AN007 Harness Assy-Engine Room9911--01 ~ 0010--01; 3HB.4WD +5HB.4WD |
24012-AN007 |
US $1,363.61 |
||
|
24012
|
24012
24012-AN008 Harness Assy-Engine Room9911--01 ~ 0010--01; X*3HB.4WD +*3HB.CGA3DE.AT.F4 +*3HB.A/S.MT.F5 +*5HB.4WD +*5HB.CGA3DE.AT.F4 +*5HB.A/S.MT.F5 |
24012-AN008 |
US $1,363.61 |
||
|
24012
|
24012
24012-AN009 Harness Assy-Engine Room9911--01 ~ 0010--01; 2*3HB.4WD +*3HB.A/S.MT.F5 +*5HB.4WD +*5HB.A/S.MT.F5 |
24012-AN009 |
US $1,135.63 |
||
|
24012
|
24012
24012-AP808 Harness Assy-Engine Room0010--01 ~ ; 3HB.CGA3DE +5HB.4WD |
24012-AP808 |
US $1,363.61 |
||
|
24012
|
24012
0145600411 SCREW9911--01 ~ 0010--01; *3HB.4WD +*3HB.A/S +*5HB.CGA3DE |
0145600411 |
US $1.67 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9911--01 ~ 0010--01; 3HB +5HB; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9911--01 ~ 0010--01; 3HB +5HB; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9911--01 ~ 0010--01; 3HB +5HB; 45A |
24370-89960 |
US $12.20 |
||
|
24370
|
24370
2437089910 Connector Assy-Fusible Link9911--01 ~ 0010--01; 3HB +5HB; 65A |
2437089910 |
from US $10.80 |
||
|
24370+A
|
24370+A
2437089905 Connector Assy-Fusible Link9911--01 ~ 0010--01; 3HB +5HB; 30A |
2437089905 |
from US $12.77 |
||
|
24370+B
|
24370+B
24370-89960 Conn Assy-Fusible Link9911--01 ~ 0010--01; 3HB +5HB; 45A |
24370-89960 |
US $12.20 |
||
|
24381
|
24381
24381-50Y00 Housing-Fusible Link Holder0010--01 ~ ; 3HB.CGA3DE +5HB.CGA3DE |
24381-50Y00 |
US $37.01 |
||
|
24382R
|
24382R
24382-41B10 Cover-Fusible Link Holder9911--01 ~ 0010--01; 3HB +5HB |
24382-41B10 |
US $5.62 |
||
|
24382W
|
24382W
24382-41B60 Cover-Relay Box9911--01 ~ 0010--01; 3HB +5HB |
24382-41B60 |
US $13.82 |
||
|
24383M
|
24383M
24383-51E01 HOUSING-RELAY BOX0010--01 ~ ; 3HB.CGA3DE +5HB.CGA3DE |
24383-51E01 |
US $13.39 |
||
|
24385
|
24385
24385-50Y00 Retainer-Fusible Link Holder0010--01 ~ ; 3HB.CGA3DE +5HB.CGA3DE |
24385-50Y00 |
US $6.34 |
||
|
24385
|
24385
24385-50Y05 Retainer-Fusible Link Holder0010--01 ~ ; 3HB.CGA3DE +5HB.CGA3DE |
24385-50Y05 |
US $6.91 |
||
|
24385+A
|
24385+A
24385-50Y05 Retainer-Fusible Link Holder0010--01 ~ ; 3HB.CGA3DE +5HB.CGA3DE |
24385-50Y05 |
US $6.91 |
||
|
25233H
|
25233H
243822U510 Cover-Relay Box0010--01 ~ ; 3HB.CGA3DE +5HB.CGA3DE |
243822U510 |
US $18.14 |
||
|
25233H
|
25233H
243822U510 Cover-Relay Box9911--01 ~ 0010--01; 3HB +5HB |
243822U510 |
US $18.14 |
||
|
25411
|
25411
24380-50Y00 Holder-Fusible Link9911--01 ~ 0010--01; 3HB +5HB |
24380-50Y00 |
US $31.68 |
||
|
25413G
|
25413G
24382-2U500 Cover-Fusible Link9911--01 ~ 0010--01; 3HB +5HB |
24382-2U500 |
US $24.34 |
