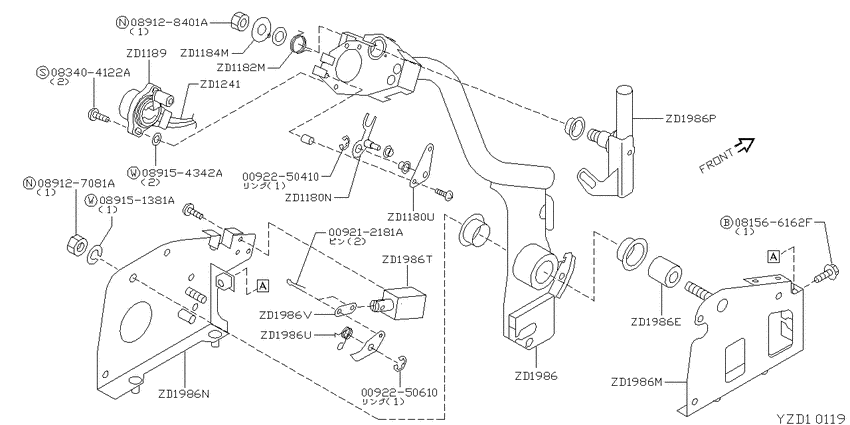

ﾄﾞﾗｲﾌﾞ ｷﾞｱ (2003-07-01 ~ ; ドライブギヤ ユニット パーツ; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ) Diagram Nissan MARCH
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- CR12DE
- drive
- 2WD
- transmission
- AT
- grade
- 12S/E/B
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009212181A
|
009212181A
00921-2181A
ﾋﾟﾝ,ｽﾌﾟﾘﾂﾄ ｺﾂﾀ-
|
00921-2181A |
— | ||
|
0092250410
|
0092250410
0092250410 CLAMP-CABLE |
0092250410 |
US $1.63 |
||
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
081566162F
|
081566162F
081566162F Bolt-hexagon |
081566162F |
US $0.80 |
||
|
083404122A
|
083404122A
08340-4122A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08340-4122A |
— | ||
|
089127081A
|
089127081A
089127081A NUT-HEX |
089127081A |
US $2.21 |
||
|
089128401A
|
089128401A
089128401A NUTHEX |
089128401A |
from US $0.59 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089154342A
|
089154342A
089154342A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089154342A |
— | ||
|
ZD1180N
|
ZD1180N
18010-1A350
ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ- ｱｸｾﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
18010-1A350 |
— | ||
|
ZD1180U
|
ZD1180U
18020-1A350
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾍﾟﾀﾞﾙ ﾚﾊﾞ-
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
18020-1A350 |
— | ||
|
ZD1182M
|
ZD1182M
18215-1A301
ｽﾌﾟﾘﾝｸﾞ,ﾘﾀｰﾝ ｱｸｾﾙ ﾍﾟﾀﾞﾙ ﾚﾊﾞｰ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
18215-1A301 |
— | ||
|
ZD1184M
|
ZD1184M
18419-1A302
ｽﾍﾟ-ｻ-
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
18419-1A302 |
— | ||
|
ZD1189
|
ZD1189
18919-AM810 ACCELUNIT0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
18919-AM810 |
from US $301.90 |
||
|
ZD1241
|
ZD1241
24167-1A300
ﾊ-ﾈｽ,ｻﾌﾞ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
24167-1A300 |
— | ||
|
ZD1986
|
ZD1986
98661-1A154
ｱ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98661-1A154 |
— | ||
|
ZD1986
|
ZD1986
98661-1A700
ｱ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98661-1A700 |
— | ||
|
ZD1986
|
ZD1986
98635-1A700
ｶﾗ-,ｱｸｾﾙﾚ-ﾀ- ﾘﾝｸ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞ ﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98635-1A700 |
— | ||
|
ZD1986
|
ZD1986
98636-1A300
ｶﾗ-,ﾒｲﾝ ｼﾔﾌﾄ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98636-1A300 |
— | ||
|
ZD1986
|
ZD1986
98636-1A301
ｶﾗ-,ﾒｲﾝ ｼﾔﾌﾄ
0510--01 ~ 0706--01; 5HB.CR12DE.AT +5HB.14S/FOUR; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98636-1A301 |
— | ||
|
ZD1986
|
ZD1986
98636-1A700
ｶﾗ-,ﾒｲﾝ ｼﾔﾌﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98636-1A700 |
— | ||
|
ZD1986
|
ZD1986
98626-1A700
ﾃﾞﾊﾞｲｽ ｱﾂｾﾝﾌﾞﾘ-,ﾚﾊﾞ- ﾛﾂｸ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98626-1A700 |
— | ||
|
ZD1986
|
ZD1986
98639-1A700
ﾌﾞﾛﾂｸ,ｱｸｾﾙﾚ-ﾀ- ｽﾄﾂﾊﾟ-
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98639-1A700 |
— | ||
|
ZD1986
|
ZD1986
98621-1A701
ﾘﾝｸ ｱﾂｾﾝﾌﾞﾘ-,ｱｸﾃｾﾙﾚ-ﾀ- ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98621-1A701 |
— | ||
|
ZD1986
|
ZD1986
98611-1A700
ﾘﾝｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98611-1A700 |
— | ||
|
ZD1986
|
ZD1986
98654-1A302
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98654-1A302 |
— | ||
|
ZD1986
|
ZD1986
98654-1A700
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98654-1A700 |
— | ||
|
ZD1986
|
ZD1986
98654-1A301
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ lh
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98654-1A301 |
— | ||
|
ZD1986
|
ZD1986
98654-1A701
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ lh
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98654-1A701 |
— | ||
|
ZD1986
|
ZD1986
98661-1A350
ｱ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98661-1A350 |
— | ||
|
ZD1986
|
ZD1986
98671-1A700
ｽﾌﾟﾘﾝｸﾞ,ﾘﾀ-ﾝ ｺﾝﾄﾛ-ﾙ ｱ-ﾑ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98671-1A700 |
— | ||
|
ZD1986
|
ZD1986
98637-1A700
ｶﾗ-,ﾚﾊﾞ- ﾛﾂｸ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98637-1A700 |
— | ||
|
ZD1986
|
ZD1986
98680-1A700
ｿﾚﾉｲﾄﾞ ｱﾂｾﾝﾌﾞﾘ-
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98680-1A700 |
— | ||
|
ZD1986
|
ZD1986
98675-1A701
ｽﾌﾟﾘﾝｸﾞ,ﾘﾀ-ﾝ ﾗﾁｴﾂﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98675-1A701 |
— | ||
|
ZD1986
|
ZD1986
98674-1A300
ｼﾞﾖｲﾝﾄ,ﾗﾁｴﾂﾄ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98674-1A300 |
— | ||
|
ZD1986
|
ZD1986
98674-1A700
ｼﾞﾖｲﾝﾄ,ﾗﾁｴﾂﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98674-1A700 |
— | ||
|
ZD1986
|
ZD1986
98679-1A301
ｶﾊﾞ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98679-1A301 |
— | ||
|
ZD1986
|
ZD1986
98679-1A701
ｶﾊﾞ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98679-1A701 |
— | ||
|
ZD1986
|
ZD1986
98641-1A151
ﾍﾞ-ｽ ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98641-1A151 |
— | ||
|
ZD1986
|
ZD1986
98641-1A154
ﾍﾞ-ｽ ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98641-1A154 |
— | ||
|
ZD1986
|
ZD1986
98650-1A151
ｶﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾞ-ｽ ﾌﾞﾗｹﾂﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98650-1A151 |
— | ||
|
ZD1986E
|
ZD1986E
98636-1A300
ｶﾗ-,ﾒｲﾝ ｼﾔﾌﾄ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98636-1A300 |
— | ||
|
ZD1986E
|
ZD1986E
98636-1A301
ｶﾗ-,ﾒｲﾝ ｼﾔﾌﾄ
0510--01 ~ 0706--01; 5HB.CR12DE.AT +5HB.14S/FOUR; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98636-1A301 |
— | ||
|
ZD1986E
|
ZD1986E
98636-1A700
ｶﾗ-,ﾒｲﾝ ｼﾔﾌﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98636-1A700 |
— | ||
|
ZD1986M
|
ZD1986M
98654-1A302
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98654-1A302 |
— | ||
|
ZD1986M
|
ZD1986M
98654-1A700
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98654-1A700 |
— | ||
|
ZD1986N
|
ZD1986N
98654-1A301
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ lh
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98654-1A301 |
— | ||
|
ZD1986N
|
ZD1986N
98654-1A701
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ lh
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98654-1A701 |
— | ||
|
ZD1986P
|
ZD1986P
98661-1A350
ｱ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞﾗｲﾌﾞ ｺﾝﾄﾛ-ﾙ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98661-1A350 |
— | ||
|
ZD1986T
|
ZD1986T
98680-1A700
ｿﾚﾉｲﾄﾞ ｱﾂｾﾝﾌﾞﾘ-
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98680-1A700 |
— | ||
|
ZD1986U
|
ZD1986U
98675-1A701
ｽﾌﾟﾘﾝｸﾞ,ﾘﾀ-ﾝ ﾗﾁｴﾂﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98675-1A701 |
— | ||
|
ZD1986V
|
ZD1986V
98674-1A300
ｼﾞﾖｲﾝﾄ,ﾗﾁｴﾂﾄ
0307--01 ~ 0404--01; 3HB.AT +5HB.CR12DE.AT +5HB.14C; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ |
98674-1A300 |
— | ||
|
ZD1986V
|
ZD1986V
98674-1A700
ｼﾞﾖｲﾝﾄ,ﾗﾁｴﾂﾄ
0202--01 ~ 0307--01; 3HB.CR12DE.AT +5HB.CR12DE.AT; ﾄﾞﾗｲﾋﾞﾝｸﾞﾍﾙﾊﾟｰ ｼﾖｳ[K116] |
98674-1A700 |
— |
