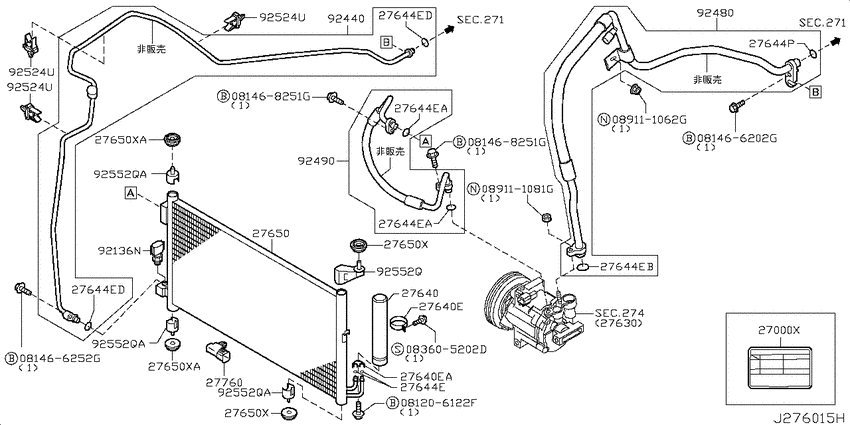

air conditioner (engine room) (2007-06-01 ~ ; 5HB.CR12DE) Diagram Nissan MARCH
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- CR12DE
- drive
- 2WD
- transmission
- AT
- grade
- 12S
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206122F
|
081206122F
08120-6122F
Bolt-hexagon
|
08120-6122F |
— | ||
|
081466202G
|
081466202G
081466202G
Bolt-hexagon
|
081466202G |
— | ||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
083605202D
|
083605202D
08360-5202D
SCREW
|
08360-5202D |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
27000X
|
27000X
2709079941 Label-Air Con0706--01 ~ ; 5HB.CR12DE |
2709079941 |
US $4.18 |
||
|
27000X
|
27000X
27090-AX000 Label-Air Con0707--01 ~ ; *5HB.12S.AT |
27090-AX000 |
US $4.18 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
274
|
Compressor
274
|
||||
|
274
|
Compressor
274
|
||||
|
27640
|
27640
921312Y920 Tank Assy-Liquid0706--01 ~ ; 5HB.CR12DE |
921312Y920 |
from US $105.12 |
||
|
27640
|
27640
921454W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.CR12DE |
921454W000 |
US $6.34 |
||
|
27640
|
27640
921354W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.CR12DE |
921354W000 |
US $6.34 |
||
|
27640E
|
27640E
921454W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.CR12DE |
921454W000 |
US $6.34 |
||
|
27640E
|
27640E
921354W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.CR12DE |
921354W000 |
US $6.34 |
||
|
27640EA
|
27640EA
921354W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.CR12DE |
921354W000 |
US $6.34 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ8 ﾖｳ |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ8 ﾖｳ |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92472N8210 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ12 ﾖｳ |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92474N8210 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ19 ﾖｳ |
92474N8210 |
US $1.68 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0706--01 ~ ; 5HB.CR12DE |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0706--01 ~ ; 5HB.CR12DE |
92470HC050 |
from US $0.85 |
||
|
27644EA
|
27644EA
92472N8210 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ12 ﾖｳ |
92472N8210 |
from US $0.98 |
||
|
27644EA
|
27644EA
92472N8210 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ12 ﾖｳ |
92472N8210 |
from US $0.98 |
||
|
27644EB
|
27644EB
92474N8210 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ19 ﾖｳ |
92474N8210 |
US $1.68 |
||
|
27644ED
|
27644ED
92471-N8210
O Ring
0706--01 ~ ; 5HB.CR12DE |
92471-N8210 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470HC050 O Ring0706--01 ~ ; 5HB.CR12DE |
92470HC050 |
from US $0.85 |
||
|
27644ED
|
27644ED
92471-N8210
O Ring
0706--01 ~ ; 5HB.CR12DE |
92471-N8210 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470HC050 O Ring0706--01 ~ ; 5HB.CR12DE |
92470HC050 |
from US $0.85 |
||
|
27644P
|
27644P
92473N8210 O Ring0706--01 ~ ; 5HB.CR12DE; ﾊﾟｲﾌﾟ16 ﾖｳ |
92473N8210 |
from US $1.41 |
||
|
27650
|
27650
921101U600 Condenser Assy0706--01 ~ ; 5HB.CR12DE |
921101U600 |
US $431.88 |
||
|
27650
|
27650
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650
|
27650
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650X
|
27650X
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650X
|
27650X
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650X
|
27650X
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650X
|
27650X
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650XA
|
27650XA
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27650XA
|
27650XA
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.CR12DE |
921184M400 |
from US $1.68 |
||
|
27760
|
27760
2772215U00 Sensor Assy-Ambient0706--01 ~ ; *5HB.(12S+12E) |
2772215U00 |
US $22.75 |
||
|
92136N
|
92136N
92136-6J010 Sensor Assy-Pressure0706--01 ~ ; 5HB.CR12DE |
92136-6J010 |
US $50.83 |
||
|
92440
|
92440
92440AX000 Pipe-Front Cooler, High0706--01 ~ ; 5HB.CR12DE; [D420] |
92440AX000 |
US $85.68 |
||
|
92480
|
92480
92480AX000 Hose-Flexible, Low0706--01 ~ ; 5HB.CR12DE; [D420] |
92480AX000 |
US $256.32 |
||
|
92490
|
92490
92490AX000 Hose-Flexible, High0706--01 ~ ; 5HB.CR12DE; [D420] |
92490AX000 |
US $213.12 |
||
|
92524U
|
92524U
46271EW00A
Clip
0706--01 ~ ; 5HB.CR12DE |
46271EW00A |
— | ||
| replacement | |||||
|
92524U
|
92524U
46271-EW80A Clip0706--01 ~ ; 5HB.CR12DE |
46271-EW80A |
from US $2.21 |
||
|
92524U
|
92524U
46271EW00A
Clip
0706--01 ~ ; 5HB.CR12DE |
46271EW00A |
— | ||
| replacement | |||||
|
92524U
|
92524U
46271-EW80A Clip0706--01 ~ ; 5HB.CR12DE |
46271-EW80A |
from US $2.21 |
||
|
92524U
|
92524U
46271EW00A
Clip
0706--01 ~ ; 5HB.CR12DE |
46271EW00A |
— | ||
| replacement | |||||
|
92524U
|
92524U
46271-EW80A Clip0706--01 ~ ; 5HB.CR12DE |
46271-EW80A |
from US $2.21 |
||
|
92552Q
|
92552Q
B211C1U600 Bracket0706--01 ~ ; 5HB.CR12DE |
B211C1U600 |
US $14.69 |
||
|
92552Q
|
92552Q
B760C-1U600 Bracket0706--01 ~ ; 5HB.CR12DE |
B760C-1U600 |
US $8.06 |
||
|
92552QA
|
92552QA
B760C-1U600 Bracket0706--01 ~ ; 5HB.CR12DE |
B760C-1U600 |
US $8.06 |
||
|
92552QA
|
92552QA
B760C-1U600 Bracket0706--01 ~ ; 5HB.CR12DE |
B760C-1U600 |
US $8.06 |
||
|
92552QA
|
92552QA
B760C-1U600 Bracket0706--01 ~ ; 5HB.CR12DE |
B760C-1U600 |
US $8.06 |
||
