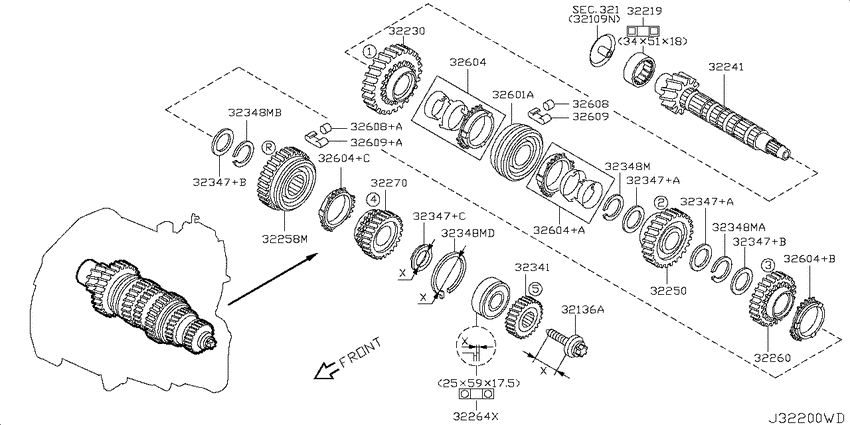

Transmission gear (2007-06-01 ~ ; !メイン シャフト(JH3-103); MT) Diagram Nissan MARCH
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- CR12DE
- drive
- 2WD
- transmission
- MT
- grade
- 12S
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
32136A
|
32136A
N190300QAB Bolt0706--01 ~ ; MT |
N190300QAB |
US $2.45 |
||
|
32219
|
32219
3226400QAB Bearing-Counter Shaft0706--01 ~ ; MT |
3226400QAB |
from US $13.60 |
||
|
32230
|
32230
32243-00QAP Gear Assy-1St0706--01 ~ ; MT |
32243-00QAP |
US $164.16 |
||
|
32241
|
32241
3224100Q0A Shaft-Main0706--01 ~ ; MT |
3224100Q0A |
US $214.56 |
||
|
32250
|
32250
32251-00QAN Gear Assy-2Nd0706--01 ~ ; MT |
32251-00QAN |
US $145.44 |
||
|
32258M
|
32258M
32610-00QAD Hub & Sleeve Set-3Rd & 4Th0706--01 ~ ; MT |
32610-00QAD |
US $101.95 |
||
|
32260
|
32260
32261-00Q0K Gear Assy-3Rd0706--01 ~ ; MT |
32261-00Q0K |
US $133.34 |
||
|
32264X
|
32264X
3220300Q0A Bearing-Input Shaft0706--01 ~ ; MT |
3220300Q0A |
US $38.18 |
||
| replacement | |||||
|
32264X
|
32264X
32203-00Q0R Bearing-Input Shaft0706--01 ~ ; MT |
32203-00Q0R |
US $24.29 |
||
|
32270
|
32270
32271-00QAH Gear Assy-4Th0706--01 ~ ; MT |
32271-00QAH |
US $78.05 |
||
|
32341
|
32341
3234100QAK Gear-5Th, Main0706--01 ~ ; MT |
3234100QAK |
US $99.65 |
||
|
32347+A
|
32347+A
32207-00QAG Spacer-Main Shaft0706--01 ~ ; MT |
32207-00QAG |
US $5.68 |
||
|
32347+A
|
32347+A
32207-00QAG Spacer-Main Shaft0706--01 ~ ; MT |
32207-00QAG |
US $5.68 |
||
|
32347+B
|
32347+B
32207-00QAG Spacer-Main Shaft0706--01 ~ ; MT |
32207-00QAG |
US $5.68 |
||
|
32347+B
|
32347+B
32207-00QAG Spacer-Main Shaft0706--01 ~ ; MT |
32207-00QAG |
US $5.68 |
||
|
32347+C
|
32347+C
32207-00QAA Spacer-Main Shaft0706--01 ~ ; MT |
32207-00QAA |
US $5.90 |
||
|
32348M
|
32348M
32348-00QAA Ring-Snap0706--01 ~ ; MT |
32348-00QAA |
US $5.68 |
||
|
32348M
|
32348M
32348-00QAA Ring-Snap0706--01 ~ ; MT |
32348-00QAA |
US $5.68 |
||
|
32348M
|
32348M
32348-00QAA Ring-Snap0706--01 ~ ; MT |
32348-00QAA |
US $5.68 |
||
|
32348M
|
32348M
32228-00QAD Ring-Snap0706--01 ~ ; MT |
32228-00QAD |
US $4.18 |
||
|
32348M
|
32348M
32228-00QAD Ring-Snap0706--01 ~ ; MT |
32228-00QAD |
US $4.18 |
||
|
32348MA
|
32348MA
32348-00QAA Ring-Snap0706--01 ~ ; MT |
32348-00QAA |
US $5.68 |
||
|
32348MB
|
32348MB
32348-00QAA Ring-Snap0706--01 ~ ; MT |
32348-00QAA |
US $5.68 |
||
|
32348MD
|
32348MD
32228-00QAD Ring-Snap0706--01 ~ ; MT |
32228-00QAD |
US $4.18 |
||
|
32601A
|
32601A
32600-00QAC Hub & Sleeve Set, 1St & 2Nd0706--01 ~ ; MT |
32600-00QAC |
from US $144 |
||
|
32604
|
32604
3260400QAF Ring-Baulk0706--01 ~ ; MT |
3260400QAF |
US $48.67 |
||
|
32604
|
32604
3260400QAF Ring-Baulk0706--01 ~ ; MT |
3260400QAF |
US $48.67 |
||
|
32604
|
32604
32604-00QAB Ring-Baulk0706--01 ~ ; MT |
32604-00QAB |
US $48.67 |
||
|
32604
|
32604
32604-00QAB Ring-Baulk0706--01 ~ ; MT |
32604-00QAB |
US $48.67 |
||
|
32604
|
32604
32604-00Q0G Ring-Baulk0706--01 ~ ; MT; FROM SERIAL NO.461800(JH3-103) |
32604-00Q0G |
US $46.37 |
||
|
32604+A
|
32604+A
3260400QAF Ring-Baulk0706--01 ~ ; MT |
3260400QAF |
US $48.67 |
||
|
32604+B
|
32604+B
32604-00QAB Ring-Baulk0706--01 ~ ; MT |
32604-00QAB |
US $48.67 |
||
|
32604+C
|
32604+C
32604-00QAB Ring-Baulk0706--01 ~ ; MT |
32604-00QAB |
US $48.67 |
||
|
32608
|
32608
32608-00QAB Insert-Shifting0706--01 ~ ; MT |
32608-00QAB |
from US $4.18 |
||
|
32608
|
32608
32608-00QAB Insert-Shifting0706--01 ~ ; MT |
32608-00QAB |
from US $4.18 |
||
|
32608+A
|
32608+A
32608-00QAB Insert-Shifting0706--01 ~ ; MT |
32608-00QAB |
from US $4.18 |
||
|
32609
|
32609
32609-00QAA Insert-Shifting0706--01 ~ ; MT |
32609-00QAA |
US $2.45 |
||
|
32609
|
32609
32609-00QAA Insert-Shifting0706--01 ~ ; MT |
32609-00QAA |
US $2.45 |
||
|
32609+A
|
32609+A
32609-00QAA Insert-Shifting0706--01 ~ ; MT |
32609-00QAA |
US $2.45 |
||
