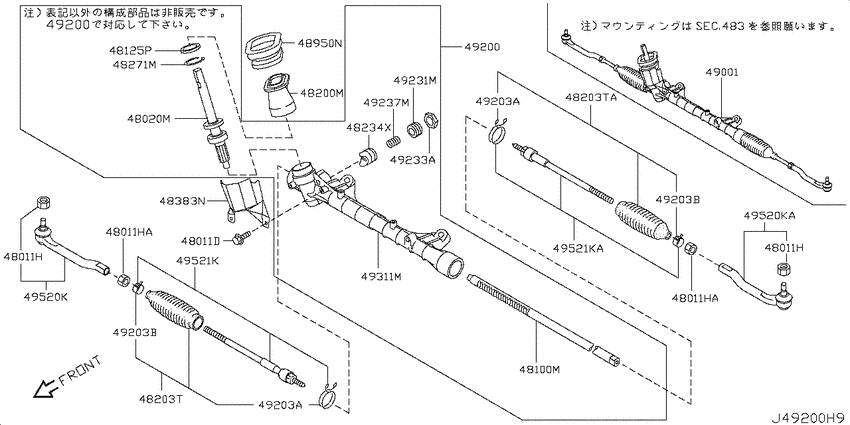

Power steering gear (2005-08-01 ~ 2007-06-01; HR15DE) Diagram Nissan MARCH
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- CVT
- grade
- 15RX
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48011D
|
48011D
48129-ED000 Bolt0508--01 ~ 0706--01; HR15DE |
48129-ED000 |
from US $5.74 |
||
|
48011H
|
48011H
0122300231 NUT0508--01 ~ 0706--01; HR15DE |
0122300231 |
from US $2.52 |
||
|
48011H
|
48011H
482983U010 Nut0508--01 ~ 0706--01; HR15DE |
482983U010 |
US $7.34 |
||
|
48011H
|
48011H
0122300231 NUT0508--01 ~ 0706--01; HR15DE |
0122300231 |
from US $2.52 |
||
|
48011H
|
48011H
482983U010 Nut0508--01 ~ 0706--01; HR15DE |
482983U010 |
US $7.34 |
||
|
48011HA
|
48011HA
482983U010 Nut0508--01 ~ 0706--01; HR15DE |
482983U010 |
US $7.34 |
||
|
48011HA
|
48011HA
482983U010 Nut0508--01 ~ 0706--01; HR15DE |
482983U010 |
US $7.34 |
||
|
48020M
|
48020M
48020-ED00A Pinion Assy-Steering Gear0508--01 ~ 0706--01; HR15DE |
48020-ED00A |
US $99.27 |
||
|
48100M
|
48100M
48100-3U010 Rack-Steering Gear0508--01 ~ 0706--01; HR15DE |
48100-3U010 |
US $180.89 |
||
|
48125P
|
48125P
48125-3U010 Seal-Oil0508--01 ~ 0706--01; HR15DE |
48125-3U010 |
from US $3.50 |
||
|
48200M
|
48200M
48124-3U010 Cover-Gear Box, Rear0508--01 ~ 0706--01; HR15DE |
48124-3U010 |
US $15.26 |
||
|
48203T
|
48203T
482033U025 Boot Kit-Power Steering Gear0508--01 ~ 0706--01; HR15DE |
482033U025 |
from US $21.94 |
||
|
48203T
|
48203T
482033U025 Boot Kit-Power Steering Gear0508--01 ~ 0706--01; HR15DE |
482033U025 |
from US $21.94 |
||
|
48203TA
|
48203TA
482033U025 Boot Kit-Power Steering Gear0508--01 ~ 0706--01; HR15DE |
482033U025 |
from US $21.94 |
||
|
48234X
|
48234X
48234-3U010 Retainer-Steering Gear0508--01 ~ 0706--01; HR15DE |
48234-3U010 |
from US $6.79 |
||
|
48271M
|
48271M
48271-3U010 Ring-Snap0508--01 ~ 0706--01; HR15DE |
48271-3U010 |
US $6.05 |
||
|
483
|
Steering gear mounting
483
|
||||
|
483
|
Steering gear mounting
483
|
||||
|
48383N
|
48383N
48383-ED000 Bracket-Heat Insulator, Steering0508--01 ~ 0706--01; HR15DE |
48383-ED000 |
US $14.98 |
||
|
48950N
|
48950N
48950-3U010 Cover Assy-Hole0508--01 ~ 0706--01; HR15DE |
48950-3U010 |
US $76.32 |
||
|
49001
|
49001
480011U70A Gear & Linkage-Power Steering0508--01 ~ 0706--01; HR15DE |
480011U70A |
US $1,484 |
||
|
49200
|
49200
48010-1U70A Gear Assy-Power Steering0508--01 ~ 0706--01; HR15DE |
48010-1U70A |
US $1,011.02 |
||
|
49203A
|
49203A
480553U010 Clamp-Boot0508--01 ~ 0706--01; HR15DE |
480553U010 |
US $6.91 |
||
|
49203A
|
49203A
480553U010 Clamp-Boot0508--01 ~ 0706--01; HR15DE |
480553U010 |
US $6.91 |
||
|
49203B
|
49203B
480543U010 Clamp-Boot0508--01 ~ 0706--01; HR15DE |
480543U010 |
US $4.18 |
||
|
49203B
|
49203B
480543U010 Clamp-Boot0508--01 ~ 0706--01; HR15DE |
480543U010 |
US $4.18 |
||
|
49231M
|
49231M
48231-3U010 Screw-Adjust Retainer0508--01 ~ 0706--01; HR15DE |
48231-3U010 |
US $5.62 |
||
|
49233A
|
49233A
48233-3U010 Nut0508--01 ~ 0706--01; HR15DE |
48233-3U010 |
US $5.62 |
||
|
49237M
|
49237M
48237-ED000 Spring-Retainer0508--01 ~ 0706--01; HR15DE |
48237-ED000 |
US $4.08 |
||
|
49311M
|
49311M
48011-1U700 Housing Assy-Power Steering0508--01 ~ 0706--01; HR15DE |
48011-1U700 |
US $233.28 |
||
|
49520K
|
49520K
485203U025 Socket Kit-Tie Rod, Outer0508--01 ~ 0706--01; HR15DE |
485203U025 |
from US $44.12 |
||
|
49520K
|
49520K
486403U025 Socket Kit-Tie Rod, Outer0508--01 ~ 0706--01; HR15DE |
486403U025 |
from US $44.59 |
||
|
49520KA
|
49520KA
486403U025 Socket Kit-Tie Rod, Outer0508--01 ~ 0706--01; HR15DE |
486403U025 |
from US $44.59 |
||
|
49521K
|
49521K
485213U025 Socket Kit-Tie Rod, Inner0508--01 ~ 0706--01; HR15DE |
485213U025 |
from US $41.90 |
||
|
49521K
|
49521K
485213U025 Socket Kit-Tie Rod, Inner0508--01 ~ 0706--01; HR15DE |
485213U025 |
from US $41.90 |
||
|
49521KA
|
49521KA
485213U025 Socket Kit-Tie Rod, Inner0508--01 ~ 0706--01; HR15DE |
485213U025 |
from US $41.90 |
||
