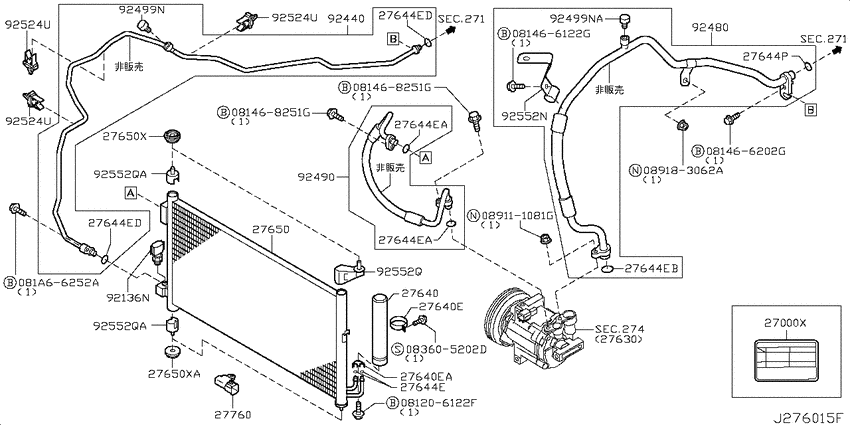

air conditioner (engine room) (2007-06-01 ~ ; 5HB.HR15DE) Diagram Nissan MARCH
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- CVT
- grade
- 15E
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206122F
|
081206122F
08120-6122F
Bolt-hexagon
|
08120-6122F |
— | ||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466202G
|
081466202G
081466202G
Bolt-hexagon
|
081466202G |
— | ||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
081A66252A
|
081A66252A
081A66252A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A66252A |
— | ||
|
083605202D
|
083605202D
08360-5202D
SCREW
|
08360-5202D |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089183062A
|
089183062A
089183062A NUTFLANGEHEX |
089183062A |
US $1.18 |
||
|
27000X
|
27000X
2709079941 Label-Air Con0706--01 ~ ; 5HB.HR15DE |
2709079941 |
US $4.18 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
274
|
Compressor
274
|
||||
|
274
|
Compressor
274
|
||||
|
27640
|
27640
921312Y920 Tank Assy-Liquid0706--01 ~ ; 5HB.HR15DE |
921312Y920 |
from US $105.12 |
||
|
27640
|
27640
921454W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.HR15DE |
921454W000 |
US $6.34 |
||
|
27640
|
27640
921354W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.HR15DE |
921354W000 |
US $6.34 |
||
|
27640E
|
27640E
921454W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.HR15DE |
921454W000 |
US $6.34 |
||
|
27640E
|
27640E
921354W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.HR15DE |
921354W000 |
US $6.34 |
||
|
27640EA
|
27640EA
921354W000 Bracket-Liquid Tank0706--01 ~ ; 5HB.HR15DE |
921354W000 |
US $6.34 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ8 ﾖｳ |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ8 ﾖｳ |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92472N8210 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ12 ﾖｳ |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92474N8210 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ19 ﾖｳ |
92474N8210 |
US $1.68 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0706--01 ~ ; 5HB.HR15DE |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0706--01 ~ ; 5HB.HR15DE |
92470HC050 |
from US $0.85 |
||
|
27644EA
|
27644EA
92472N8210 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ12 ﾖｳ |
92472N8210 |
from US $0.98 |
||
|
27644EA
|
27644EA
92472N8210 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ12 ﾖｳ |
92472N8210 |
from US $0.98 |
||
|
27644EB
|
27644EB
92474N8210 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ19 ﾖｳ |
92474N8210 |
US $1.68 |
||
|
27644ED
|
27644ED
92471-N8210
O Ring
0706--01 ~ ; 5HB.HR15DE |
92471-N8210 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470HC050 O Ring0706--01 ~ ; 5HB.HR15DE |
92470HC050 |
from US $0.85 |
||
|
27644ED
|
27644ED
92471-N8210
O Ring
0706--01 ~ ; 5HB.HR15DE |
92471-N8210 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470HC050 O Ring0706--01 ~ ; 5HB.HR15DE |
92470HC050 |
from US $0.85 |
||
|
27644P
|
27644P
92473N8210 O Ring0706--01 ~ ; 5HB.HR15DE; ﾊﾟｲﾌﾟ16 ﾖｳ |
92473N8210 |
from US $1.41 |
||
|
27650
|
27650
921101U600 Condenser Assy0706--01 ~ ; 5HB.HR15DE |
921101U600 |
US $431.88 |
||
|
27650
|
27650
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.HR15DE |
921184M400 |
from US $1.68 |
||
|
27650
|
27650
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.HR15DE |
921184M400 |
from US $1.68 |
||
|
27650X
|
27650X
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.HR15DE |
921184M400 |
from US $1.68 |
||
|
27650X
|
27650X
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.HR15DE |
921184M400 |
from US $1.68 |
||
|
27650XA
|
27650XA
921184M400 Mounting Rubber-Condenser, Upper0706--01 ~ ; 5HB.HR15DE |
921184M400 |
from US $1.68 |
||
|
27760
|
27760
2772215U00 Sensor Assy-Ambient0706--01 ~ ; *5HB.15E |
2772215U00 |
US $22.75 |
||
|
92136N
|
92136N
92136-6J010 Sensor Assy-Pressure0706--01 ~ ; 5HB.HR15DE |
92136-6J010 |
US $50.83 |
||
|
92440
|
92440
92440CT00A ﾊﾟｲﾌﾟ,ﾌﾛﾝﾄ0706--01 ~ ; 5HB.HR15DE |
92440CT00A |
US $115.49 |
||
|
92480
|
92480
92480-CT00A ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ ﾛｳ0706--01 ~ ; 5HB.HR15DE; [B325] |
92480-CT00A |
US $282.24 |
||
|
92490
|
92490
924901U600 Hose-Flexible, High0706--01 ~ ; 5HB.HR15DE |
924901U600 |
US $72.86 |
||
|
92499N
|
92499N
9249989920 Cap-Charge Valve0706--01 ~ ; 5HB.HR15DE |
9249989920 |
US $3.18 |
||
|
92499N
|
92499N
9249989921 Cap-Charge Valve0706--01 ~ ; 5HB.HR15DE |
9249989921 |
from US $2.83 |
||
|
92499NA
|
92499NA
9249989921 Cap-Charge Valve0706--01 ~ ; 5HB.HR15DE |
9249989921 |
from US $2.83 |
||
|
92524U
|
92524U
46271EW00A
Clip
0706--01 ~ ; 5HB.HR15DE |
46271EW00A |
— | ||
| replacement | |||||
|
92524U
|
92524U
46271-EW80A Clip0706--01 ~ ; 5HB.HR15DE |
46271-EW80A |
from US $2.21 |
||
|
92524U
|
92524U
46271EW00A
Clip
0706--01 ~ ; 5HB.HR15DE |
46271EW00A |
— | ||
| replacement | |||||
|
92524U
|
92524U
46271-EW80A Clip0706--01 ~ ; 5HB.HR15DE |
46271-EW80A |
from US $2.21 |
||
|
92524U
|
92524U
46271EW00A
Clip
0706--01 ~ ; 5HB.HR15DE |
46271EW00A |
— | ||
| replacement | |||||
|
92524U
|
92524U
46271-EW80A Clip0706--01 ~ ; 5HB.HR15DE |
46271-EW80A |
from US $2.21 |
||
|
92552N
|
92552N
92552-CT00A ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ ｸﾘﾂﾌﾟ0706--01 ~ ; 5HB.HR15DE |
92552-CT00A |
US $7.49 |
||
|
92552Q
|
92552Q
B211C1U600 Bracket0706--01 ~ ; 5HB.HR15DE |
B211C1U600 |
US $14.69 |
||
|
92552Q
|
92552Q
B760C-1U600 Bracket0706--01 ~ ; 5HB.HR15DE |
B760C-1U600 |
US $8.06 |
||
|
92552QA
|
92552QA
B760C-1U600 Bracket0706--01 ~ ; 5HB.HR15DE |
B760C-1U600 |
US $8.06 |
||
|
92552QA
|
92552QA
B760C-1U600 Bracket0706--01 ~ ; 5HB.HR15DE |
B760C-1U600 |
US $8.06 |
||
