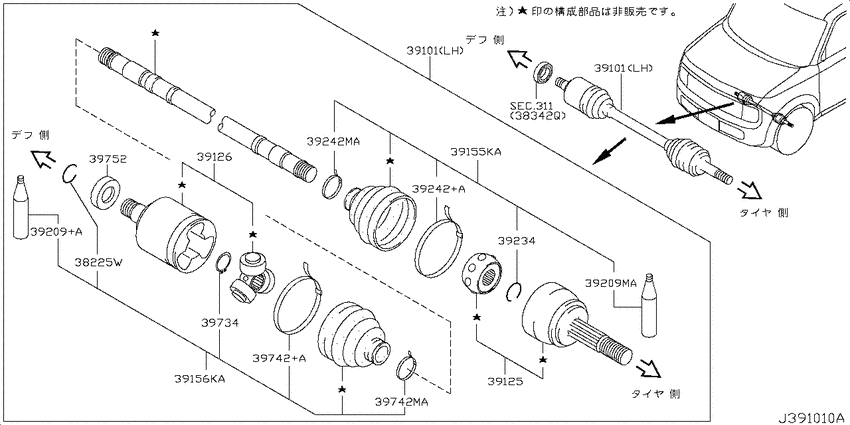

Front drive shaft (ff) (2007-06-01 ~ ; 左側; HR15DE) Diagram Nissan MARCH
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- CVT
- grade
- 15E
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
38225W
|
38225W
3822565A05 Clip-Drive Shaft0706--01 ~ ; HR15DE |
3822565A05 |
from US $0.57 |
||
|
39101
|
39101
391014V70C Shaft Assy-Front Drive, Lh0706--01 ~ ; HR15DE |
391014V70C |
US $926.06 |
||
|
39101
|
39101
391014V70C Shaft Assy-Front Drive, Lh0706--01 ~ ; HR15DE |
391014V70C |
US $926.06 |
||
|
39125
|
39125
39211-3U000 Joint Assy-Outer0706--01 ~ ; HR15DE |
39211-3U000 |
US $490.76 |
||
|
39126
|
39126
39711-3U000 Joint Assy-Inner0706--01 ~ ; HR15DE |
39711-3U000 |
US $259.20 |
||
|
39155KA
|
39155KA
392413U026 Repair Kit-Dust Boot, Outer0706--01 ~ ; HR15DE |
392413U026 |
from US $51.21 |
||
|
39156KA
|
39156KA
39741-3U026
Repair Kit-Dust B00T, Inner
0706--01 ~ ; HR15DE |
39741-3U026 |
— | ||
| replacement | |||||
|
39156KA
|
39156KA
C9GDA-3U025 REPAIR KITDUST0706--01 ~ ; HR15DE |
C9GDA-3U025 |
from US $51.43 |
||
|
39209+A
|
39209+A
C9709-4V012 Grease-Inner0706--01 ~ ; HR15DE |
C9709-4V012 |
US $29.95 |
||
|
39209MA
|
39209MA
C9209-AN012 Grease-Outer0706--01 ~ ; HR15DE |
C9209-AN012 |
US $26.21 |
||
|
39234
|
39234
39234-3U001 Circlip-Drive Shaft0706--01 ~ ; HR15DE |
39234-3U001 |
US $13.10 |
||
|
39242+A
|
39242+A
39242-ED50B Band-Boot, Drive Shaft Outer0706--01 ~ ; HR15DE |
39242-ED50B |
US $13.10 |
||
|
39242MA
|
39242MA
39242-ED51B Band-Boot, Drive Shaft0706--01 ~ ; HR15DE |
39242-ED51B |
US $13.10 |
||
|
39734
|
39734
39708-44B00 Ring-Snap0706--01 ~ ; HR15DE |
39708-44B00 |
US $1.58 |
||
|
39742+A
|
39742+A
39742-ED50A Band-Boot, Drive Shaft Inner0706--01 ~ ; HR15DE |
39742-ED50A |
US $4.03 |
||
|
39742MA
|
39742MA
39242-ED50A Band-Boot, Drive Shaft Inner0706--01 ~ ; HR15DE |
39242-ED50A |
US $13.10 |
||
|
39752
|
39752
39752-JA01B
Shield-Dust
0706--01 ~ ; HR15DE |
39752-JA01B |
— | ||
| replacement | |||||
|
39752
|
39752
39752-1FA0B Shield-Dust0706--01 ~ ; HR15DE |
39752-1FA0B |
US $4.03 |
||
