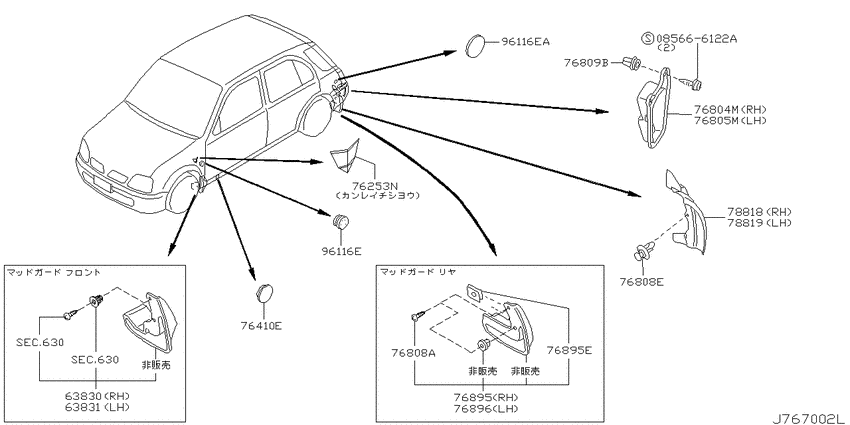

Body side fitting (1999-11-01 ~ 2000-10-01; W) Diagram Nissan MARCH
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- transmission
- AT.F4
- grade
- BOX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666122A
|
085666122A
085666122A SCREWTAPPING |
085666122A |
US $0.50 |
||
|
63830
|
63830
F3854-41B00 Mudguard Set-Front Fender, Rh9911--01 ~ 0010--01; *W; [K504] |
F3854-41B00 |
US $68.11 |
||
|
63831
|
63831
F3855-41B00 Mudguard Set-Front Fender, Lh9911--01 ~ 0010--01; *W; [K504] |
F3855-41B00 |
US $68.11 |
||
|
76253N
|
76253N
76249-3J200 Protector-Front Pillar Cover, Lh9911--01 ~ ; *W |
76249-3J200 |
US $19.73 |
||
|
76410E
|
76410E
0165802111 PLUG-BODY SILL9911--01 ~ ; W |
0165802111 |
from US $0.85 |
||
|
76804M
|
76804M
76804-41B10 Duct-Drafter, Outlet Rh9911--01 ~ ; *W |
76804-41B10 |
US $40.75 |
||
|
76805M
|
76805M
7680541B10 Duct-Drafter, Outlet Lh9911--01 ~ ; W |
7680541B10 |
US $40.75 |
||
|
76808A
|
76808A
01461-00941 SCREW9911--01 ~ 0010--01; *W |
01461-00941 |
US $2.45 |
||
|
76808E
|
76808E
0155309321 CLIP9911--01 ~ ; W |
0155309321 |
US $0.97 |
||
|
76809B
|
76809B
01281-00601
GROMMET-SCREW
9911--01 ~ ; W |
01281-00601 |
— | ||
| replacement | |||||
|
76809B
|
76809B
0128101231 GROMMET-SCREW9911--01 ~ ; W |
0128101231 |
from US $2.24 |
||
|
76895
|
76895
G8812-41B00 Mudguard Set-Rear, Rh9911--01 ~ 0010--01; *W; [K504] |
G8812-41B00 |
US $68.11 |
||
|
76895
|
76895
01241-00751 NUT-SPRING9911--01 ~ 0010--01; *W |
01241-00751 |
US $1.73 |
||
|
76895E
|
76895E
01241-00751 NUT-SPRING9911--01 ~ 0010--01; *W |
01241-00751 |
US $1.73 |
||
|
76896
|
76896
G8813-41B00 Mudguard Set-Rear, Lh9911--01 ~ 0010--01; *W; [K504] |
G8813-41B00 |
US $68.11 |
||
|
78818
|
78818
78818-41B00 Closing-Rear Bumper, Rh9911--01 ~ ; W |
78818-41B00 |
US $19.30 |
||
|
78819
|
78819
78819-41B00 Closing-Rear Bumper, Lh9911--01 ~ ; W |
78819-41B00 |
US $19.30 |
||
|
96116E
|
96116E
01658-01781
PLUG
9911--01 ~ ; W |
01658-01781 |
— | ||
| replacement | |||||
|
96116E
|
96116E
24253-AL500 Plug9911--01 ~ ; W |
24253-AL500 |
US $3.32 |
||
|
96116E
|
96116E
01658-00531
PLUG
9911--01 ~ ; W |
01658-00531 |
— | ||
| replacement | |||||
|
96116E
|
96116E
74816AL500 Plug9911--01 ~ ; W |
74816AL500 |
US $1.93 |
||
|
96116EA
|
96116EA
01658-00531
PLUG
9911--01 ~ ; W |
01658-00531 |
— | ||
| replacement | |||||
|
96116EA
|
96116EA
74816AL500 Plug9911--01 ~ ; W |
74816AL500 |
US $1.93 |
||
