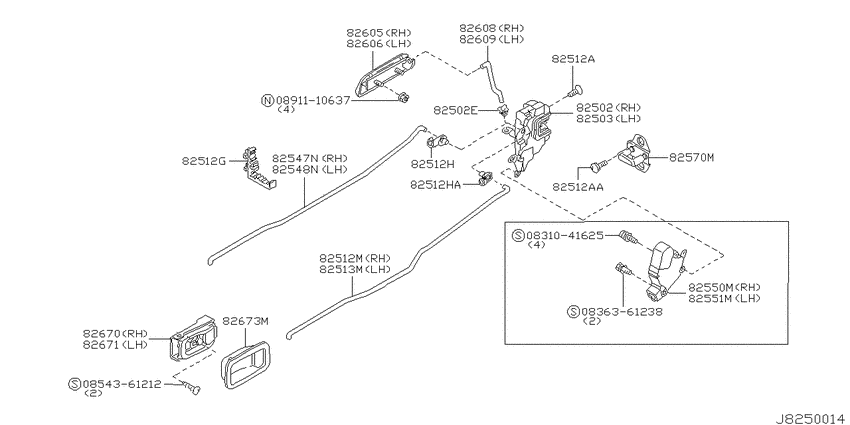

Rear door lock & handle (1999-11-01 ~ ; W) Diagram Nissan MARCH
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- transmission
- AT.F4
- grade
- BOX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831041625
|
0831041625
08310-41625
SCREWMACHINE
|
08310-41625 |
— | ||
|
0836361238
|
0836361238
0836361238
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836361238 |
— | ||
|
0854361212
|
0854361212
08543-61212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-61212 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
82502
|
82502
8250267B00 Lock Assy-Rear Door, Rh9911--01 ~ ; W |
8250267B00 |
US $122.54 |
||
|
82502
|
82502
80516-01M00 Bushing-Knob Rod9911--01 ~ ; W |
80516-01M00 |
US $1.73 |
||
|
82502E
|
82502E
80516-01M00 Bushing-Knob Rod9911--01 ~ ; W |
80516-01M00 |
US $1.73 |
||
|
82503
|
82503
82503-67B00 Lock Assy-Rear Door, Lh9911--01 ~ ; W |
82503-67B00 |
US $122.54 |
||
|
82512A
|
82512A
01413-00091 SCREW9911--01 ~ ; W |
01413-00091 |
US $2.91 |
||
|
82512A
|
82512A
01433-00161 SCREW9911--01 ~ ; W |
01433-00161 |
from US $1.24 |
||
|
82512AA
|
82512AA
01433-00161 SCREW9911--01 ~ ; W |
01433-00161 |
from US $1.24 |
||
|
82512G
|
82512G
8053401U00 Holder-Rod9911--01 ~ ; W |
8053401U00 |
from US $1.93 |
||
|
82512H
|
82512H
80532-85E00 HOLDER-ROD9911--01 ~ ; W; ﾐｷﾞｶﾞﾜ |
80532-85E00 |
US $1.73 |
||
|
82512H
|
82512H
8053385E00
HOLDER-ROD
9911--01 ~ ; W; ﾋﾀﾞﾘ |
8053385E00 |
— | ||
| replacement | |||||
|
82512H
|
82512H
8053389900 Holder-Rod9911--01 ~ ; W; ﾋﾀﾞﾘ |
8053389900 |
US $1.82 |
||
|
82512H
|
82512H
8053289900 Holder-Rod9911--01 ~ ; W; ﾐｷﾞｶﾞﾜ |
8053289900 |
from US $1.82 |
||
|
82512H
|
82512H
8053389900 Holder-Rod9911--01 ~ ; W; ﾋﾀﾞﾘ |
8053389900 |
US $1.82 |
||
|
82512HA
|
82512HA
8053289900 Holder-Rod9911--01 ~ ; W; ﾐｷﾞｶﾞﾜ |
8053289900 |
from US $1.82 |
||
|
82512HA
|
82512HA
8053389900 Holder-Rod9911--01 ~ ; W; ﾋﾀﾞﾘ |
8053389900 |
US $1.82 |
||
|
82512M
|
82512M
82506-49B00 Rod-Rear Door Inside Handle, Rh9911--01 ~ ; W |
82506-49B00 |
US $6.05 |
||
|
82513M
|
82513M
82507-49B00 Rod-Rear Door Inside Handle, Lh9911--01 ~ ; W |
82507-49B00 |
US $6.05 |
||
|
82547N
|
82547N
82512-49B00 Rod-Lock Knob, Rh9911--01 ~ ; W |
82512-49B00 |
US $11.95 |
||
|
82548N
|
82548N
82513-49B00 Rod-Lock Knob, Lh9911--01 ~ ; W |
82513-49B00 |
US $11.95 |
||
|
82550M
|
82550M
8255261U01 Actuator-Auto Door Lock, Rear Rh9911--01 ~ ; W |
8255261U01 |
US $121.68 |
||
|
82551M
|
82551M
8255361U01 Actuator-Auto Door Lock, Rear Lh9911--01 ~ ; W |
8255361U01 |
US $121.68 |
||
|
82570M
|
82570M
80570-70N00
Striker Assy-Front Door Lock
9911--01 ~ ; W |
80570-70N00 |
— | ||
| replacement | |||||
|
82570M
|
82570M
8057085E1A Striker Assy-Front Door Lock9911--01 ~ ; W |
8057085E1A |
from US $15.45 |
||
|
82605
|
82605
80606-AN020 Handle Assy-Front Door Outside, Rh0010--01 ~ ; W.CGA3DE |
80606-AN020 |
US $83.09 |
||
|
82605
|
82605
80606-AN021 Handle Assy-Front Door Outside, Rh0010--01 ~ ; W.CGA3DE |
80606-AN021 |
US $83.09 |
||
|
82605
|
82605
80606-AP500
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
9911--01 ~ 0010--01; W.CGA3DE |
80606-AP500 |
— | ||
|
82605
|
82605
80606-AP501
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
9911--01 ~ ; W.CGA3DE |
80606-AP501 |
— | ||
|
82605
|
82605
80606-AP502
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
9911--01 ~ ; W.CGA3DE |
80606-AP502 |
— | ||
|
82605
|
82605
80606-AP503
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
9911--01 ~ 0010--01; W.CGA3DE |
80606-AP503 |
— | ||
|
82606
|
82606
80607-AN020 Handle Assy-Front Door Outside, Lh0010--01 ~ ; W.CGA3DE |
80607-AN020 |
US $83.09 |
||
|
82606
|
82606
80607AN021 Handle Assy-Front Door Outside, Lh0010--01 ~ ; W.CGA3DE |
80607AN021 |
US $83.09 |
||
|
82606
|
82606
80607-AP500
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
9911--01 ~ 0010--01; W.CGA3DE |
80607-AP500 |
— | ||
|
82606
|
82606
80607-AP501
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
9911--01 ~ ; W.CGA3DE |
80607-AP501 |
— | ||
|
82606
|
82606
80607-AP502
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
9911--01 ~ ; W.CGA3DE |
80607-AP502 |
— | ||
|
82606
|
82606
80607-AP503
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
9911--01 ~ 0010--01; W.CGA3DE |
80607-AP503 |
— | ||
|
82608
|
82608
82608-AN100 Rod Assy-Outside Handle, Rear Rh9911--01 ~ ; W |
82608-AN100 |
US $6.05 |
||
|
82609
|
82609
82609-AN100 Rod Assy-Outside Handle, Rear Lh9911--01 ~ ; W |
82609-AN100 |
US $6.05 |
||
|
82670
|
82670
80670-2U010 Handle Assy-Door Inside, Rh9911--01 ~ 0104--01; W |
80670-2U010 |
US $23.76 |
||
|
82670
|
82670
80670-2U011 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ rh0104--01 ~ ; W |
80670-2U011 |
US $23.76 |
||
|
82670
|
82670
80670-AN000 Handle Assy-Door Inside, Rh9911--01 ~ 0104--01; W |
80670-AN000 |
US $23.76 |
||
|
82670
|
82670
80670AN001 HANDLE DOOR0104--01 ~ ; W |
80670AN001 |
from US $23.76 |
||
|
82671
|
82671
80671-2U010 Handle Assy-Door Inside, Lh9911--01 ~ 0104--01; W |
80671-2U010 |
US $23.76 |
||
|
82671
|
82671
80671-2U011 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ lh0104--01 ~ ; W |
80671-2U011 |
US $23.76 |
||
|
82671
|
82671
80671-AN000 Handle Assy-Door Inside, Lh9911--01 ~ 0104--01; W |
80671-AN000 |
US $23.76 |
||
|
82671
|
82671
80671AN001 ﾊﾝﾄﾞﾙ0104--01 ~ ; W |
80671AN001 |
US $23.76 |
||
|
82673M
|
82673M
806821M201 Escutcheon-Inside Handle9911--01 ~ ; W |
806821M201 |
US $11.23 |
||
|
82673M
|
82673M
80682AN000 Escutcheon-Inside Handle9911--01 ~ ; W |
80682AN000 |
US $11.23 |
||
