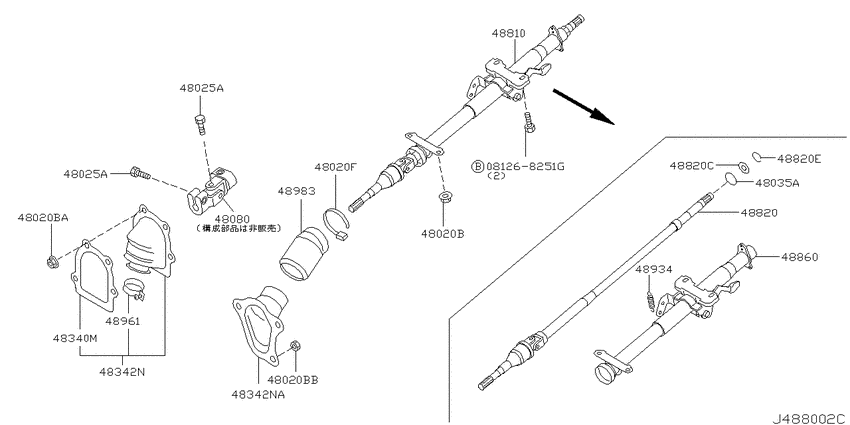

Steering column (1999-11-01 ~ ; CGA3DE) Diagram Nissan MARCH
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- transmission
- AT.F4
- grade
- BOX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268251G
|
081268251G
08126-8251G Bolt-hexagon |
08126-8251G |
US $3.06 |
||
|
48020B
|
48020B
0122500481
NUT
9911--01 ~ ; CGA3DE |
0122500481 |
— | ||
|
48020B
|
48020B
0122500371 NUT9911--01 ~ ; CGA3DE |
0122500371 |
US $1.73 |
||
|
48020B
|
48020B
0122500371 NUT9911--01 ~ ; CGA3DE |
0122500371 |
US $1.73 |
||
|
48020BA
|
48020BA
0122500371 NUT9911--01 ~ ; CGA3DE |
0122500371 |
US $1.73 |
||
|
48020BB
|
48020BB
0122500371 NUT9911--01 ~ ; CGA3DE |
0122500371 |
US $1.73 |
||
|
48020F
|
48020F
01555-00551
CLAMP-HOSE
9911--01 ~ ; CGA3DE |
01555-00551 |
— | ||
| replacement | |||||
|
48020F
|
48020F
0155501001 CLAMP-HOSE9911--01 ~ ; CGA3DE |
0155501001 |
US $5.27 |
||
|
48025A
|
48025A
48935-4P000 Bolt9911--01 ~ ; CGA3DE |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-4P000 Bolt9911--01 ~ ; CGA3DE |
48935-4P000 |
US $2.45 |
||
|
48035A
|
48035A
48035-40U10 Seal-O Ring9911--01 ~ ; CGA3DE |
48035-40U10 |
US $2.74 |
||
|
48080
|
48080
48080-0M001 Joint Assy-Steering, Lower9911--01 ~ ; CGA3DE |
48080-0M001 |
US $79.06 |
||
| replacement | |||||
|
48080
|
48080
48080-0M00A
Joint Assy-Steering Column, Lower
9911--01 ~ ; CGA3DE |
48080-0M00A |
— | ||
|
48340M
|
48340M
48958-2U600 Bracket Assy-Jacket Tube9911--01 ~ ; CGA3DE |
48958-2U600 |
US $67.82 |
||
|
48342N
|
48342N
48950-2U600 Cover-Column Hole9911--01 ~ ; CGA3DE |
48950-2U600 |
US $69.41 |
||
|
48342N
|
48342N
48982-41B00 Cover-Column Hole9911--01 ~ ; CGA3DE |
48982-41B00 |
US $61.20 |
||
|
48342NA
|
48342NA
48982-41B00 Cover-Column Hole9911--01 ~ ; CGA3DE |
48982-41B00 |
US $61.20 |
||
|
48810
|
48810
48810-72B10 Column Assy-Steering, Upper9911--01 ~ ; CGA3DE |
48810-72B10 |
US $505.51 |
||
|
48820
|
48820
48820-67B10 Shaft Assy-Steering Column, Upper9911--01 ~ ; CGA3DE |
48820-67B10 |
US $253.44 |
||
|
48820
|
48820
48283-40U10 Washer-Plain9911--01 ~ ; CGA3DE |
48283-40U10 |
US $3.46 |
||
|
48820
|
48820
48268-40U10 Ring-Snap9911--01 ~ ; CGA3DE |
48268-40U10 |
US $0.86 |
||
|
48820C
|
48820C
48283-40U10 Washer-Plain9911--01 ~ ; CGA3DE |
48283-40U10 |
US $3.46 |
||
|
48820E
|
48820E
48268-40U10 Ring-Snap9911--01 ~ ; CGA3DE |
48268-40U10 |
US $0.86 |
||
|
48860
|
48860
48860-72B10 Tube Assy-Jacket, Upper9911--01 ~ 0010--01; CGA3DE |
48860-72B10 |
US $263.52 |
||
|
48860
|
48860
48860-77B00 Tube Assy-Jacket, Upper0010--01 ~ ; CGA3DE |
48860-77B00 |
US $243.36 |
||
|
48934
|
48934
48933-2J010 Spring-Steering Column9911--01 ~ ; CGA3DE |
48933-2J010 |
US $2.30 |
||
|
48961
|
48961
48963-41B00 Clamp-Steering Column, Lower9911--01 ~ ; CGA3DE |
48963-41B00 |
US $22.18 |
||
|
48983
|
48983
48983-41B00 Cover-Steering Column9911--01 ~ ; CGA3DE |
48983-41B00 |
US $71.42 |
||
