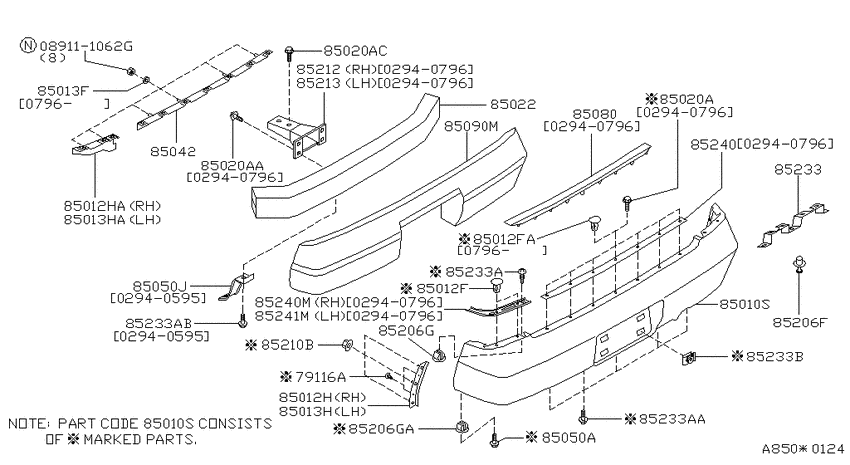

Rear bumper (1996-07-01 ~ ; FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- VQ30DE
- transmission
- AT
- body
- FED.S
- trim lvl
- GXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.54 |
||
|
79116A
|
79116A
66919H1001 Clip1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
66919H1001 |
from US $0.81 |
||
|
85010S
|
85010S
85022-0L725
Fascia kit-rear bumper
1998-10-01 ~ ; FED.S +CAL.S; NOT PAINTED |
85022-0L725 |
— | ||
|
85010S
|
85010S
H5022-0L725
Fascia kit-rear bumper
1996-07-01 ~ 1998-10-01; FED.S +CAL.S; NOT PAINTED |
H5022-0L725 |
— | ||
|
85010S
|
85010S
H5022-40U25
Fascia kit-rear bumper
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
H5022-40U25 |
— | ||
|
85012F
|
85012F
6387801E10 CLIP1996-07-01 ~ ; FED.S +CAL.S; , |
6387801E10 |
US $1.11 |
||
|
85012F
|
85012F
0155309241 CLAMP1996-07-01 ~ ; FED.S +CAL.S; , |
0155309241 |
from US $0.82 |
||
|
85012FA
|
85012FA
0155309241 CLAMP1996-07-01 ~ ; FED.S +CAL.S; , |
0155309241 |
from US $0.82 |
||
|
85012H
|
85012H
85220-31U00
Bracket-rear bumper side,rh
1996-07-01 ~ ; FED.S +CAL.S; , |
85220-31U00 |
— | ||
|
85012H
|
85012H
85040-0L710
Bracket-rear bumper side,rh
1996-07-01 ~ ; FED.S +CAL.S; , |
85040-0L710 |
— | ||
|
85012H
|
85012H
85040-40U00
Bracket-rear bumper side,rh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85040-40U00 |
— | ||
|
85012HA
|
85012HA
85040-0L710
Bracket-rear bumper side,rh
1996-07-01 ~ ; FED.S +CAL.S; , |
85040-0L710 |
— | ||
|
85012HA
|
85012HA
85040-40U00
Bracket-rear bumper side,rh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85040-40U00 |
— | ||
|
85013F
|
85013F
85094-40U00 ｽﾍﾟ-ｻ-,ﾘﾔ ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ1996-07-01 ~ ; FED.S +CAL.S; , |
85094-40U00 |
US $1.01 |
||
|
85013H
|
85013H
85221-31U00
Bracket-rear bumper side,lh
1996-07-01 ~ ; FED.S +CAL.S; , |
85221-31U00 |
— | ||
|
85013H
|
85013H
85041-0L710
Bracket-rear bumper side,lh
1996-07-01 ~ ; FED.S +CAL.S; , |
85041-0L710 |
— | ||
|
85013H
|
85013H
85041-40U00
Bracket-rear bumper side,lh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85041-40U00 |
— | ||
|
85013HA
|
85013HA
85041-0L710
Bracket-rear bumper side,lh
1996-07-01 ~ ; FED.S +CAL.S; , |
85041-0L710 |
— | ||
|
85013HA
|
85013HA
85041-40U00
Bracket-rear bumper side,lh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85041-40U00 |
— | ||
|
85020A
|
85020A
01125-01331 BOLT1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01125-01331 |
US $3.46 |
||
|
85020A
|
85020A
01121-04691 BOLT1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01121-04691 |
US $1.73 |
||
|
85020A
|
85020A
01121-06041 BOLT1996-07-01 ~ ; FED.S +CAL.S; , |
01121-06041 |
US $1.93 |
||
|
85020AA
|
85020AA
01121-04691 BOLT1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01121-04691 |
US $1.73 |
||
|
85020AC
|
85020AC
01121-06041 BOLT1996-07-01 ~ ; FED.S +CAL.S; , |
01121-06041 |
US $1.93 |
||
|
85022
|
85022
85030-0L735
Reinforce-inner rear bumper center
1996-07-01 ~ ; FED.S +CAL.S; , |
85030-0L735 |
— | ||
|
85022
|
85022
85030-0L737
Reinforce-inner rear bumper center
1996-06-01 ~ 1996-07-01; FED.S +CAL.S; , |
85030-0L737 |
— | ||
|
85022
|
85022
85030-56U30
Reinforce-inner rear bumper center
1995-05-01 ~ 1996-06-01; FED.S +CAL.S; , |
85030-56U30 |
— | ||
|
85022
|
85022
85036-40U00
Reinforce-inner rear bumper center
1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
85036-40U00 |
— | ||
|
85042
|
85042
85046-40U00 BRACKETREAR BU1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85046-40U00 |
US $103.10 |
||
|
85042
|
85042
85046-40U15 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾊﾞﾝﾊﾟ- ｾﾝﾀ-1996-07-01 ~ ; FED.S +CAL.S; , |
85046-40U15 |
US $78.48 |
||
|
85050A
|
85050A
01466-00201 SCREW1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
01466-00201 |
US $1.73 |
||
|
85050A
|
85050A
0146600241 SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0146600241 |
from US $1.20 |
||
|
85050J
|
85050J
85043-40U00
Bracket-rear bumper
1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
85043-40U00 |
— | ||
|
85080
|
85080
85230-40U00
Shield-sight,rear bumper
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85230-40U00 |
— | ||
|
85090M
|
85090M
85090-0L700
Energy absorber-rear bumper
1996-07-01 ~ ; FED.S +CAL.S; , |
85090-0L700 |
— | ||
|
85090M
|
85090M
85090-40U00
Energy absorber-rear bumper
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85090-40U00 |
— | ||
|
85206F
|
85206F
6384801G00 Clip-Harness Protector1996-07-01 ~ ; FED.S +CAL.S; , |
6384801G00 |
from US $0.54 |
||
|
85206G
|
85206G
0128100111 GROMMET-SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0128100111 |
from US $0.85 |
||
|
85206G
|
85206G
01281-00601
GROMMET-SCREW
1996-07-01 ~ ; FED.S +CAL.S; , |
01281-00601 |
— | ||
| replacement | |||||
|
85206G
|
85206G
0128101231 GROMMET-SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0128101231 |
US $4.16 |
||
|
85206GA
|
85206GA
01281-00601
GROMMET-SCREW
1996-07-01 ~ ; FED.S +CAL.S; , |
01281-00601 |
— | ||
| replacement | |||||
|
85206GA
|
85206GA
0128101231 GROMMET-SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0128101231 |
US $4.16 |
||
|
85210B
|
85210B
01225-00791 NUT1996-07-01 ~ ; FED.S +CAL.S; , |
01225-00791 |
US $1.87 |
||
|
85212
|
85212
85210-40U00
Stay-rear bumper,rh
1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
85210-40U00 |
— | ||
|
85212
|
85212
85210-56U00
Stay-rear bumper,rh
1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
85210-56U00 |
— | ||
|
85213
|
85213
85211-56U00
Stay-rear bumper,lh
1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
85211-56U00 |
— | ||
|
85233
|
85233
96252-40U00
Bracket-licence lamp
1996-07-01 ~ ; FED.S +CAL.S; , |
96252-40U00 |
— | ||
|
85233
|
85233
0145200131 SCREW-TAPPING1996-07-01 ~ ; FED.S +CAL.S; , |
0145200131 |
US $1.93 |
||
|
85233
|
85233
01436-01041
Bolt
1996-07-01 ~ ; FED.S +CAL.S; , |
01436-01041 |
— | ||
| replacement | |||||
|
85233
|
85233
081466162G Bolt-hexagon1996-07-01 ~ ; FED.S +CAL.S; , |
081466162G |
from US $0.67 |
||
|
85233
|
85233
01436-01041
Bolt
1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
01436-01041 |
— | ||
| replacement | |||||
|
85233
|
85233
081466162G Bolt-hexagon1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
081466162G |
from US $0.67 |
||
|
85233
|
85233
0124100881 NUT-SPRING1996-07-01 ~ ; FED.S +CAL.S; , |
0124100881 |
from US $0.94 |
||
|
85233A
|
85233A
0145200131 SCREW-TAPPING1996-07-01 ~ ; FED.S +CAL.S; , |
0145200131 |
US $1.93 |
||
|
85233A
|
85233A
01436-01041
Bolt
1996-07-01 ~ ; FED.S +CAL.S; , |
01436-01041 |
— | ||
| replacement | |||||
|
85233A
|
85233A
081466162G Bolt-hexagon1996-07-01 ~ ; FED.S +CAL.S; , |
081466162G |
from US $0.67 |
||
|
85233A
|
85233A
01436-01041
Bolt
1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
01436-01041 |
— | ||
| replacement | |||||
|
85233A
|
85233A
081466162G Bolt-hexagon1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
081466162G |
from US $0.67 |
||
|
85233AA
|
85233AA
01436-01041
Bolt
1996-07-01 ~ ; FED.S +CAL.S; , |
01436-01041 |
— | ||
| replacement | |||||
|
85233AA
|
85233AA
081466162G Bolt-hexagon1996-07-01 ~ ; FED.S +CAL.S; , |
081466162G |
from US $0.67 |
||
|
85233AB
|
85233AB
01436-01041
Bolt
1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
01436-01041 |
— | ||
| replacement | |||||
|
85233AB
|
85233AB
081466162G Bolt-hexagon1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
081466162G |
from US $0.67 |
||
|
85233B
|
85233B
0124100881 NUT-SPRING1996-07-01 ~ ; FED.S +CAL.S; , |
0124100881 |
from US $0.94 |
||
|
85240
|
85240
85248-40U00
Retainer-rear bumper,upper
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85248-40U00 |
— | ||
|
85240
|
85240
85240-40U00
Retainer-rear bumper,upper rh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85240-40U00 |
— | ||
|
85240M
|
85240M
85240-40U00
Retainer-rear bumper,upper rh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85240-40U00 |
— | ||
|
85241M
|
85241M
85241-40U00
Retainer-rear bumper,upper lh
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
85241-40U00 |
— | ||
