Clutch piping (1994-02-01 ~ 1995-05-01; VQ30DE)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
083636355G	083636355G 08363-6355G ｽｸﾘﾕ-,ﾏｼﾝ	08363-6355G	—
30364A	30364A 30859-40U10 Bracket-Clutch Tube Connector 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30859-40U10	—
30364B	30364B 30623-31U10 Screw-Bleeder 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30623-31U10	US $4.18
305	Clutch master cylinder 305
305	Clutch master cylinder 305
306	Clutch operating cylinder 306
306	Clutch operating cylinder 306
30650	30650 30850-40U00 Tube Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30850-40U00	—
	replacement
30650	30650 30850-40U0A Tube Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30850-40U0A	—
30650	30650 30851-40U00 Tube Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30851-40U00	—
30650	30650 0145600031 SCREW 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	0145600031	from US $1.11
30650	30650 01436-01251 Bolt 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01251	US $1.73
30650	30650 0143601161 SCREW 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	0143601161	—
	replacement
30650	30650 08368-6125G ｽｸﾘﾕ- 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	08368-6125G	US $2.21
30650	30650 01436-01191 SCREW 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01191	—
	replacement
30650	30650 083686165G SCRHEX HDPP W 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	083686165G	from US $0.63
30650	30650 01436-01421 SCREW 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	01436-01421	US $3.46
30650	30650 01436-01251 Bolt 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	01436-01251	US $1.73
30650	30650 46271-01E03 CLIP-TUBE,CLUTCH 1994-02-01 ~ 1994-10-01; VQ30DE.MT; ,	46271-01E03	US $0.97
30650	30650 46271-0P010 Clamp-Brake Tube 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-0P010	—
	replacement
30650	30650 175626P002 Insulator 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	175626P002	US $1.67
30650	30650 46271-01E03 CLIP-TUBE,CLUTCH 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-01E03	US $0.97
30650	30650 47492-0C000 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-0C000	US $2.45
	replacement
30650	30650 47492-5C900 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-5C900	US $2.45
30650	30650 46271-35F10 Insulator 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-35F10	US $1.82
30650+A	30650+A 30851-40U00 Tube Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30851-40U00	—
30650A	30650A 0145600031 SCREW 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	0145600031	from US $1.11
30650A	30650A 01436-01251 Bolt 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01251	US $1.73
30650A	30650A 0143601161 SCREW 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	0143601161	—
	replacement
30650A	30650A 08368-6125G ｽｸﾘﾕ- 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	08368-6125G	US $2.21
30650A	30650A 01436-01191 SCREW 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01191	—
	replacement
30650A	30650A 083686165G SCRHEX HDPP W 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	083686165G	from US $0.63
30650A	30650A 01436-01421 SCREW 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	01436-01421	US $3.46
30650A	30650A 01436-01251 Bolt 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	01436-01251	US $1.73
30650AA	30650AA 01436-01251 Bolt 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01251	US $1.73
30650AB	30650AB 0143601161 SCREW 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	0143601161	—
	replacement
30650AB	30650AB 08368-6125G ｽｸﾘﾕ- 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	08368-6125G	US $2.21
30650AB	30650AB 01436-01191 SCREW 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01191	—
	replacement
30650AB	30650AB 083686165G SCRHEX HDPP W 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	083686165G	from US $0.63
30650AB	30650AB 0143601161 SCREW 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	0143601161	—
	replacement
30650AB	30650AB 08368-6125G ｽｸﾘﾕ- 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	08368-6125G	US $2.21
30650AB	30650AB 01436-01191 SCREW 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01191	—
	replacement
30650AB	30650AB 083686165G SCRHEX HDPP W 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	083686165G	from US $0.63
30650AB	30650AB 0143601161 SCREW 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	0143601161	—
	replacement
30650AB	30650AB 08368-6125G ｽｸﾘﾕ- 1995-05-01 ~ 1996-07-01; VQ30DE.MT; ,	08368-6125G	US $2.21
30650AB	30650AB 01436-01191 SCREW 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	01436-01191	—
	replacement
30650AB	30650AB 083686165G SCRHEX HDPP W 1994-02-01 ~ 1995-05-01; VQ30DE.MT; ,	083686165G	from US $0.63
30650AC	30650AC 01436-01421 SCREW 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	01436-01421	US $3.46
30650AD	30650AD 01436-01251 Bolt 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	01436-01251	US $1.73
30650D	30650D 46271-01E03 CLIP-TUBE,CLUTCH 1994-02-01 ~ 1994-10-01; VQ30DE.MT; ,	46271-01E03	US $0.97
30650D	30650D 46271-0P010 Clamp-Brake Tube 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-0P010	—
	replacement
30650D	30650D 175626P002 Insulator 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	175626P002	US $1.67
30650D	30650D 46271-01E03 CLIP-TUBE,CLUTCH 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-01E03	US $0.97
30650D	30650D 47492-0C000 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-0C000	US $2.45
	replacement
30650D	30650D 47492-5C900 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-5C900	US $2.45
30650DA	30650DA 46271-01E03 CLIP-TUBE,CLUTCH 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-01E03	US $0.97
30650DB	30650DB 47492-0C000 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-0C000	US $2.45
	replacement
30650DB	30650DB 47492-5C900 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-5C900	US $2.45
30650DB	30650DB 47492-0C000 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-0C000	US $2.45
	replacement
30650DB	30650DB 47492-5C900 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	47492-5C900	US $2.45
30650F	30650F 46271-35F10 Insulator 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-35F10	US $1.82
30650F	30650F 46271-35F10 Insulator 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46271-35F10	US $1.82
30651	30651 30855-31U02 Hose Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30855-31U02	US $22.75
	replacement
30651	30651 30855-31U0A Hose Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30855-31U0A	—
30651	30651 30855-31U12 Hose Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30855-31U12	US $54.86
	replacement
30651	30651 30855-31U1A Hose Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30855-31U1A	—
30651	30651 46206-2J000 Spring-Lock 1995-09-01 ~ 1996-07-01; VQ30DE.MT; ,	46206-2J000	—
	replacement
30651	30651 462062J00A Spring-Lock, Brake Hose 1995-09-01 ~ 1996-07-01; VQ30DE.MT; ,	462062J00A	from US $0.80
30651	30651 46206M0200 Spring-Lock 1994-02-01 ~ 1995-09-01; VQ30DE.MT; ,	46206M0200	from US $0.74
30651	30651 46237A4600 Gasket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46237A4600	from US $0.35
30651	30651 30820-40U10 Bracket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30820-40U10	US $20.30
30651	30651 30822-26E00 BOLT-HOSE BRACKET 1994-02-01 ~ 1994-10-01; VQ30DE.MT; ,	30822-26E00	US $7.20
	replacement
30651	30651 30822-26E0A Bolt-hose bracket 1994-02-01 ~ 1994-10-01; VQ30DE.MT; ,	30822-26E0A	—
30651	30651 30822-26E01 BOLT-HOSE BRACKET 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-26E01	US $1.58
	replacement
30651	30651 30822-26E0A Bolt-hose bracket 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-26E0A	—
30651	30651 30822-31U00 Bolt-Hose Bracket 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-31U00	US $1.58
	replacement
30651	30651 30822-31U0A Bolt-Hose Bracket 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-31U0A	—
30651	30651 30885-31U00 Gasket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30885-31U00	US $2.45
30651+A	30651+A 30855-31U12 Hose Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30855-31U12	US $54.86
	replacement
30651+A	30651+A 30855-31U1A Hose Assy-Clutch 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30855-31U1A	—
30651B	30651B 46206-2J000 Spring-Lock 1995-09-01 ~ 1996-07-01; VQ30DE.MT; ,	46206-2J000	—
	replacement
30651B	30651B 462062J00A Spring-Lock, Brake Hose 1995-09-01 ~ 1996-07-01; VQ30DE.MT; ,	462062J00A	from US $0.80
30651B	30651B 46206M0200 Spring-Lock 1994-02-01 ~ 1995-09-01; VQ30DE.MT; ,	46206M0200	from US $0.74
30651C	30651C 46237A4600 Gasket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46237A4600	from US $0.35
30651C	30651C 46237A4600 Gasket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46237A4600	from US $0.35
30651D	30651D 30820-40U10 Bracket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30820-40U10	US $20.30
30651E	30651E 30822-26E00 BOLT-HOSE BRACKET 1994-02-01 ~ 1994-10-01; VQ30DE.MT; ,	30822-26E00	US $7.20
	replacement
30651E	30651E 30822-26E0A Bolt-hose bracket 1994-02-01 ~ 1994-10-01; VQ30DE.MT; ,	30822-26E0A	—
30651E	30651E 30822-26E01 BOLT-HOSE BRACKET 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-26E01	US $1.58
	replacement
30651E	30651E 30822-26E0A Bolt-hose bracket 1994-10-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-26E0A	—
30651E	30651E 30822-31U00 Bolt-Hose Bracket 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-31U00	US $1.58
	replacement
30651E	30651E 30822-31U0A Bolt-Hose Bracket 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-31U0A	—
30651EA	30651EA 30822-31U00 Bolt-Hose Bracket 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-31U00	US $1.58
	replacement
30651EA	30651EA 30822-31U0A Bolt-Hose Bracket 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30822-31U0A	—
30651M	30651M 30885-31U00 Gasket-Clutch Hose 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30885-31U00	US $2.45
30652F	30652F 4979131G00 Clip 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	4979131G00	US $5.33
30655	30655 30857-40U10 Connector-Clutch Tube 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30857-40U10	—
30655	30655 46048-40U10 Connector-Clutch Tube 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46048-40U10	—
30655	30655 30858-32J10 Connector 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30858-32J10	US $18.43
30655+A	30655+A 46048-40U10 Connector-Clutch Tube 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	46048-40U10	—
30655+B	30655+B 30858-32J10 Connector 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30858-32J10	US $18.43
30825	30825 30825-40U10 Bracket-Connector 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30825-40U10	—
	replacement
30825	30825 30825-40U1A Bracket-Connector 1994-02-01 ~ 1996-07-01; VQ30DE.MT; ,	30825-40U1A	—

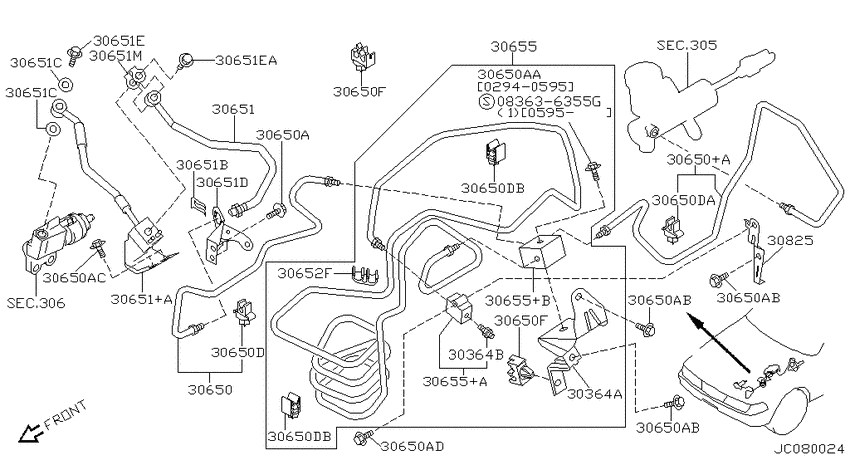

Clutch piping (1994-02-01 ~ 1995-05-01; VQ30DE) Diagram Nissan MAXIMA U.S.A. 2295728-181476

Clutch piping (1994-02-01 ~ 1995-05-01; VQ30DE) Diagram Nissan MAXIMA U.S.A. 2295728-181476
